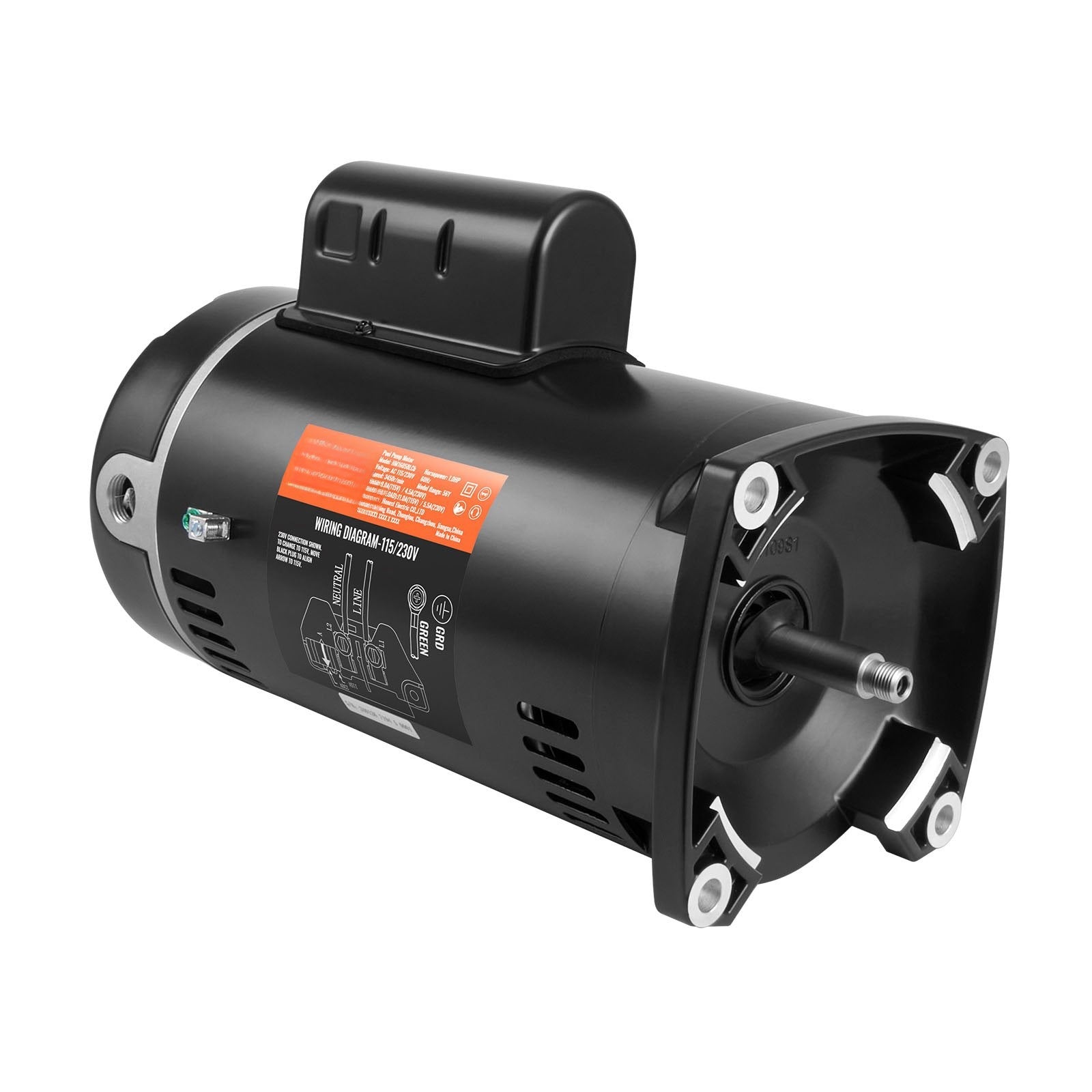

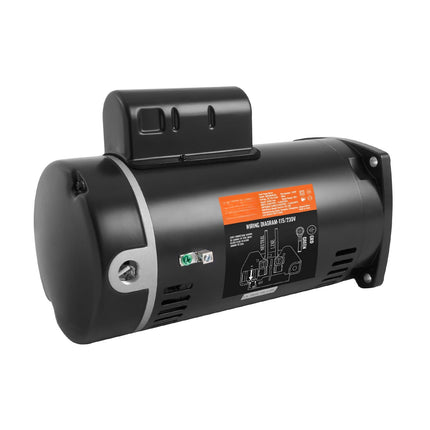

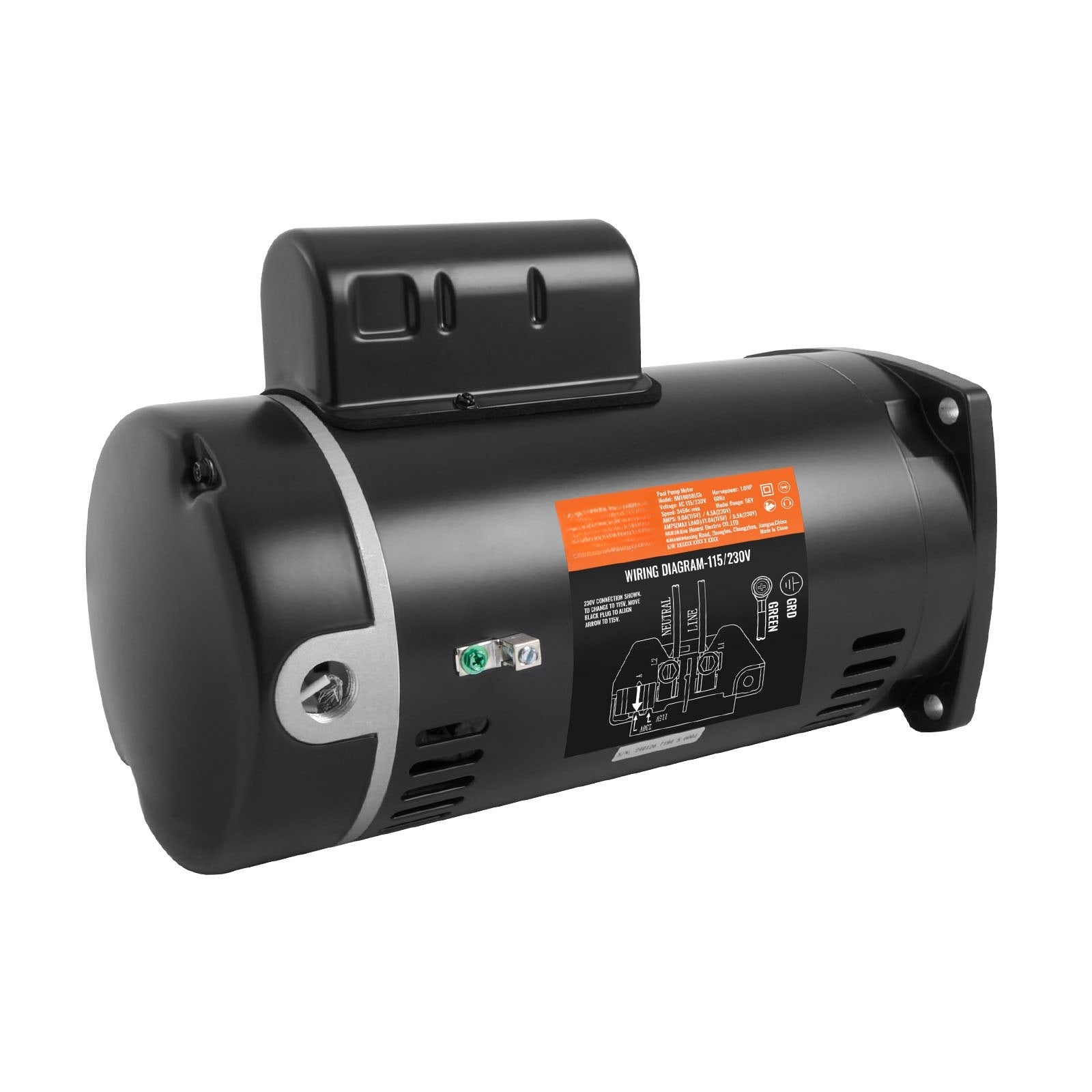

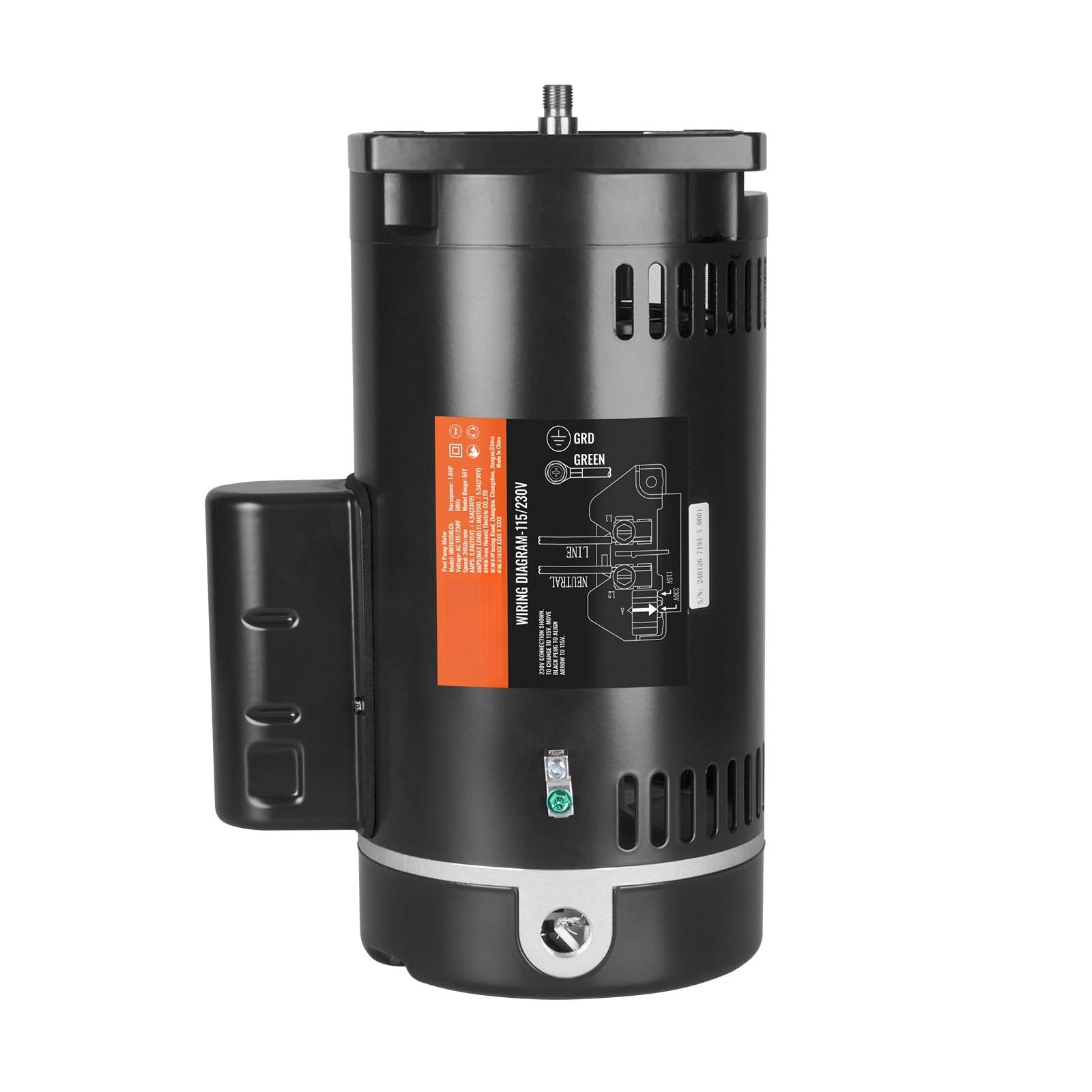

1 HP Pool Pump Motor, 56Y, 115/230V, 3450 RPM CCW

1 HP pool pump motor replacement restores strong, steady water circulation to keep your pool cleaner with less downtime. Built on a 56Y square flange frame, it runs at 3450 RPM for high-speed flow while staying at ≤70 dB for quieter operation. Dual-voltage 115V/230V wiring supports common pool setups, and the corrosion-resistant steel housing, ball bearings, and overload protection are designed for dependable daily use.

• Delivers 3450 RPM performance for efficient circulation and consistent filtration.


• Fits 56Y square flange applications for straightforward replacement on compatible pumps.


• Supports 115V/230V dual voltage to match many residential and commercial pool systems.


• Reduces noise with ≤70 dB operation for a more comfortable pool area.


• Protects components with steel housing, ball bearings, and built-in overload protection.

When a worn motor causes weak flow, noisy starts, or frequent shutdowns, a correctly matched replacement brings your system back to stable operation. This motor is designed for easy mounting and connection using common thread and shaft standards, helping you get your pump running again with minimal hassle. Confirm your existing frame style, voltage, and rotation direction before ordering to ensure a proper match. Grab yours today and get your pool circulation back on schedule.

• Power: 1 HP


• Frame/Flange: 56Y square flange


• Voltage/Frequency: AC 115/230V, 60Hz


• Current: 9.0A (115V) / 4.5A (230V)


• Max Load Current: 11.0A (115V) / 5.5A (230V)


• Speed: 3450 RPM (no-load)


• Service Factor: 1.25


• Rotation: CCW


• Capacitor: 90 μF / 250V


• Noise Level: ≤ 70 dB


• Dimensions: 12.4 x 6.5 x 9.1 in (315 x 165 x 230 mm)


• Shaft extension: 0.9 in


• Output screw teeth: 1/2-20UNF-2A
