Description

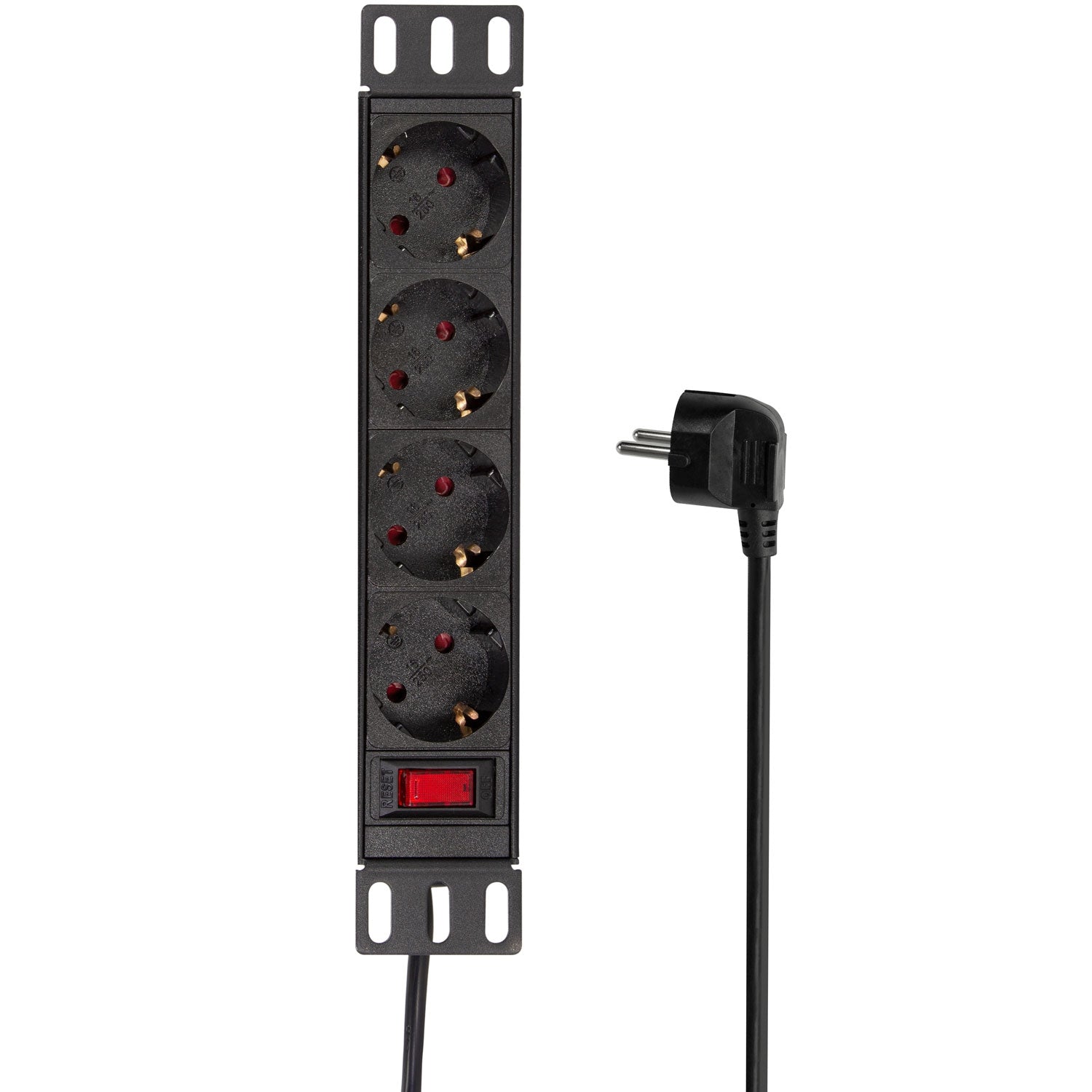

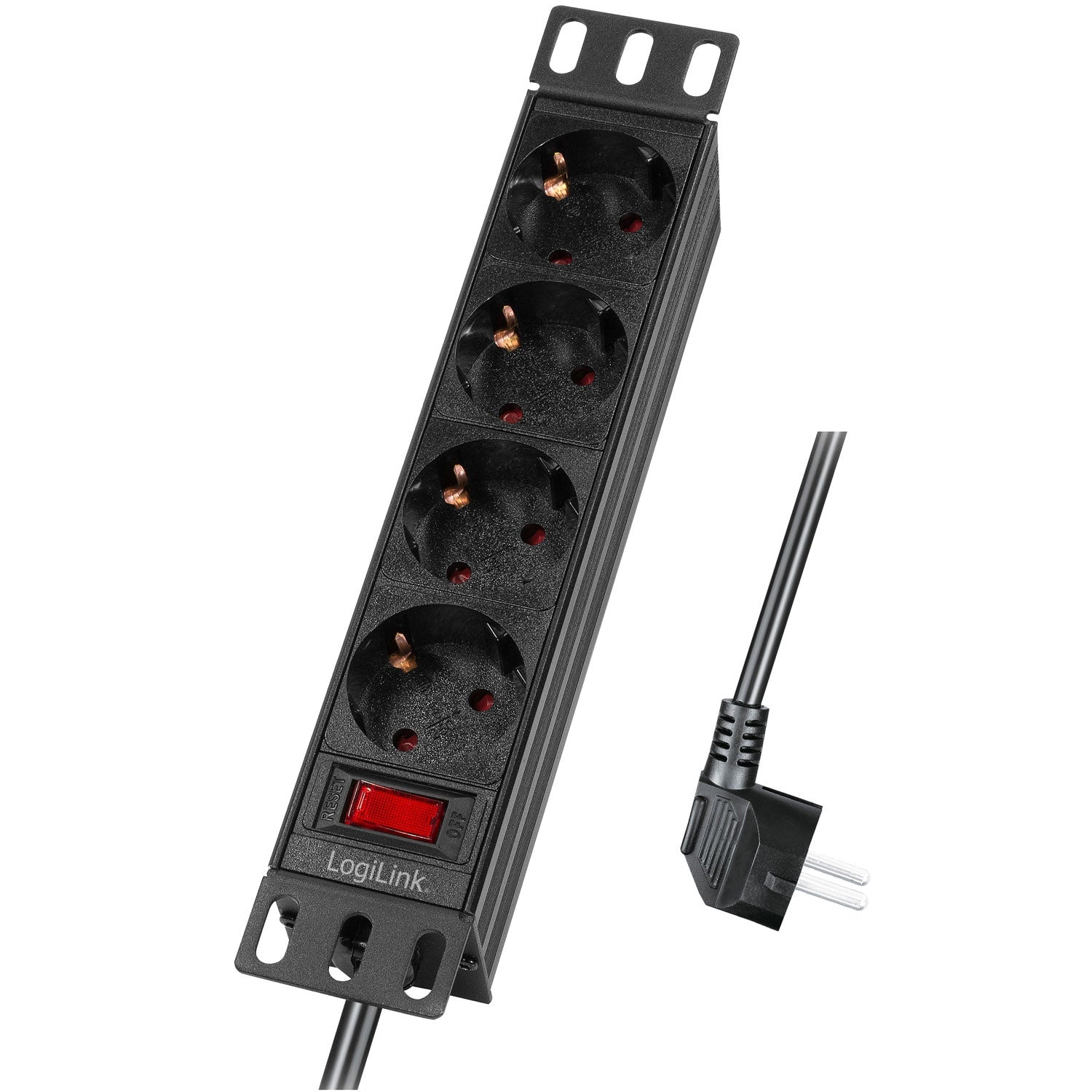

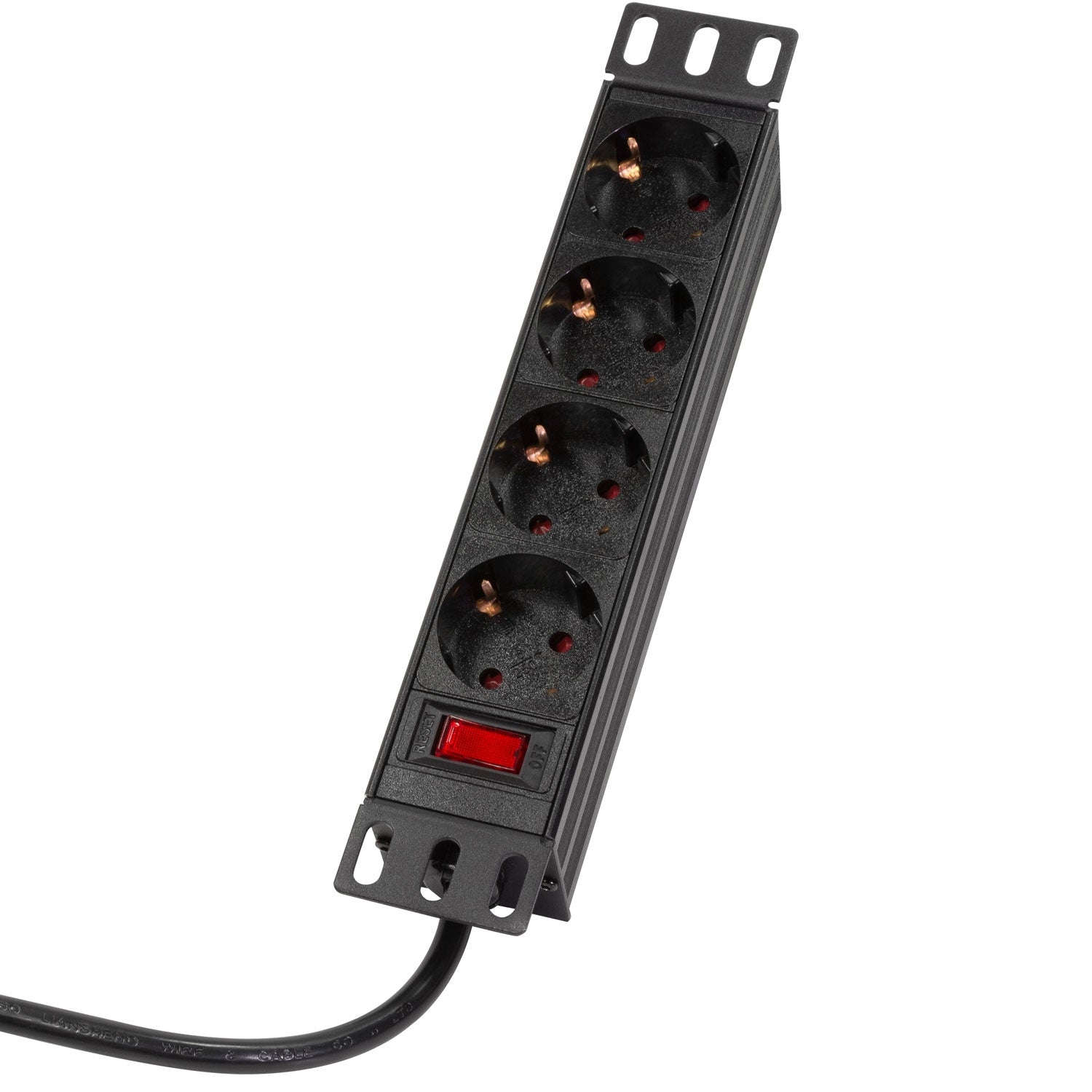

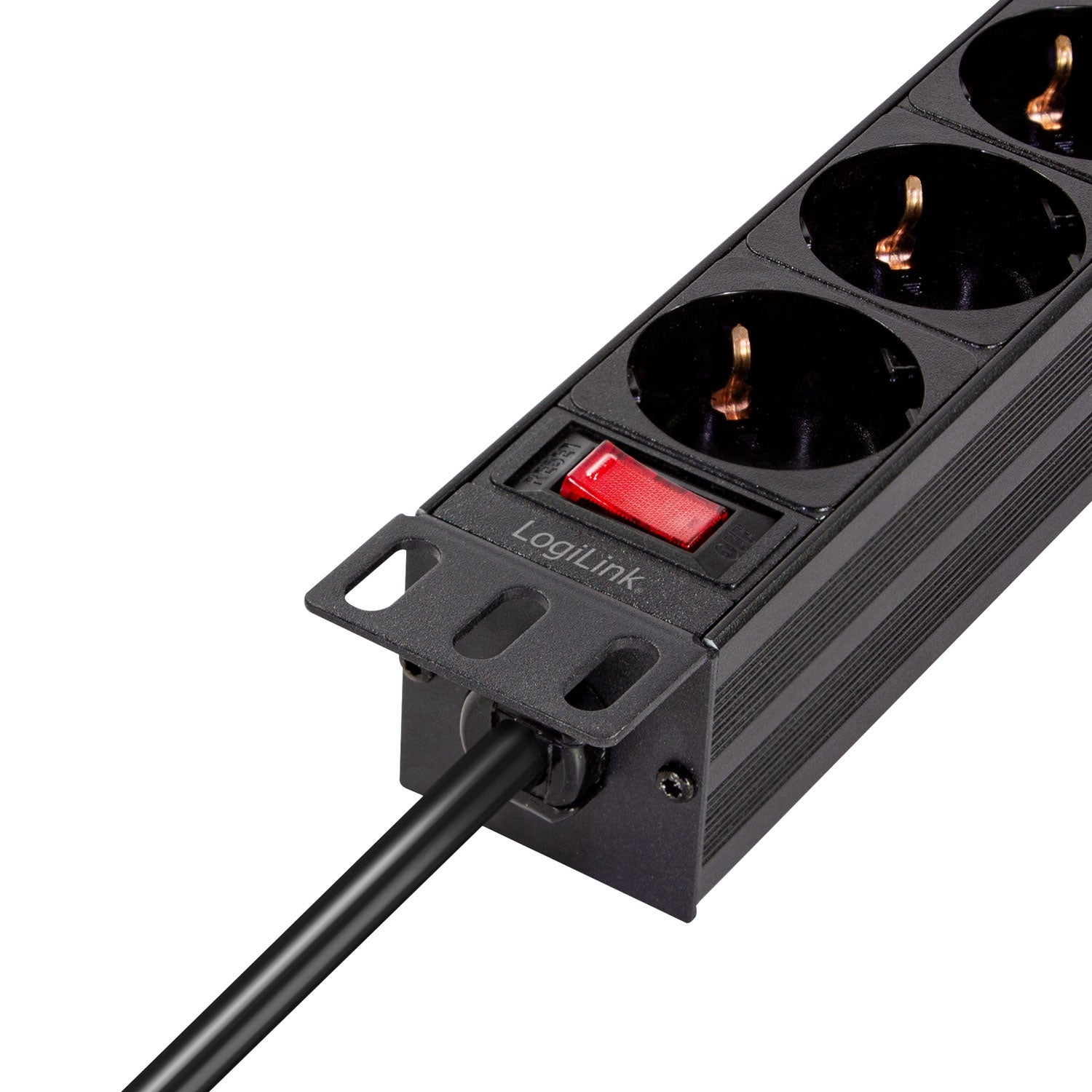

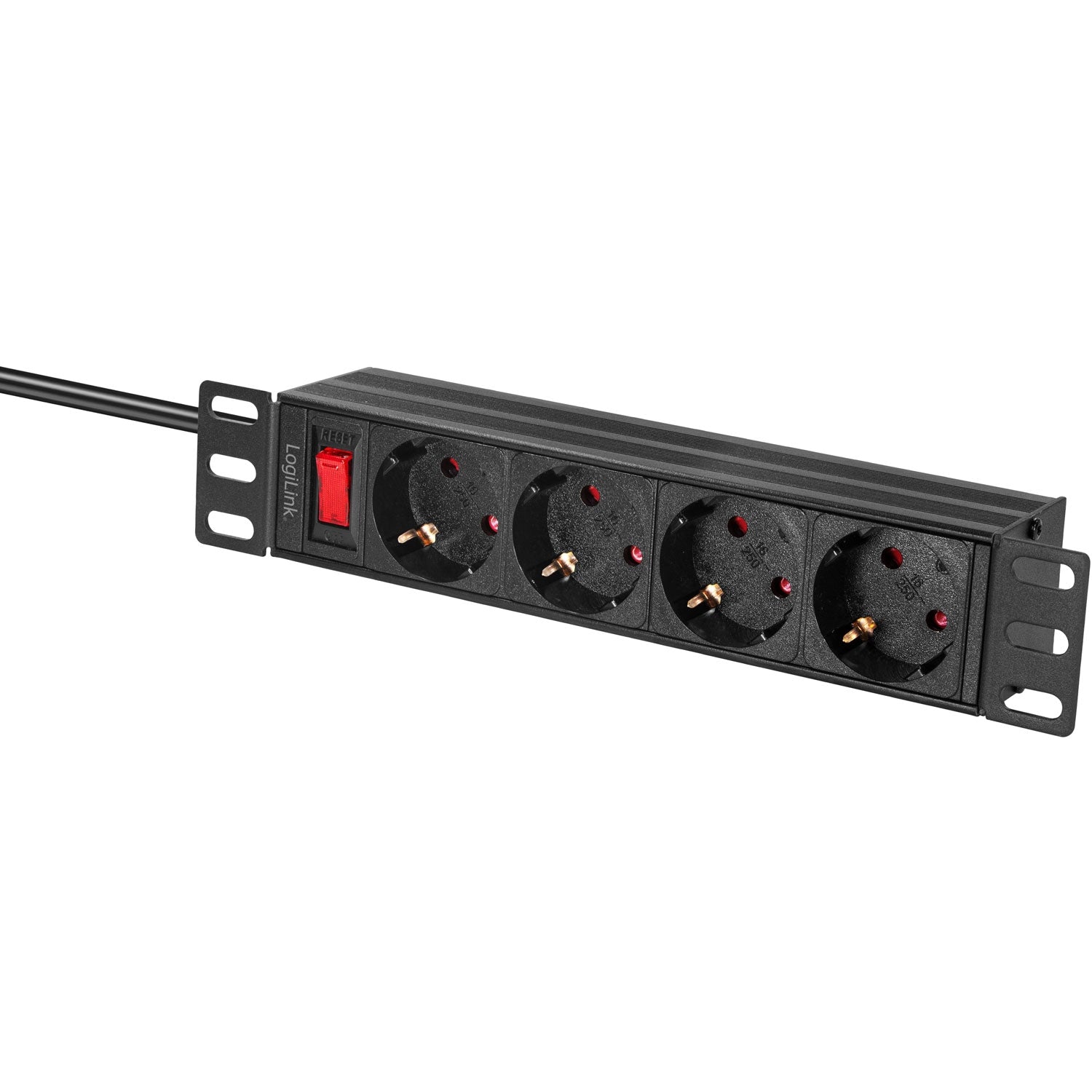

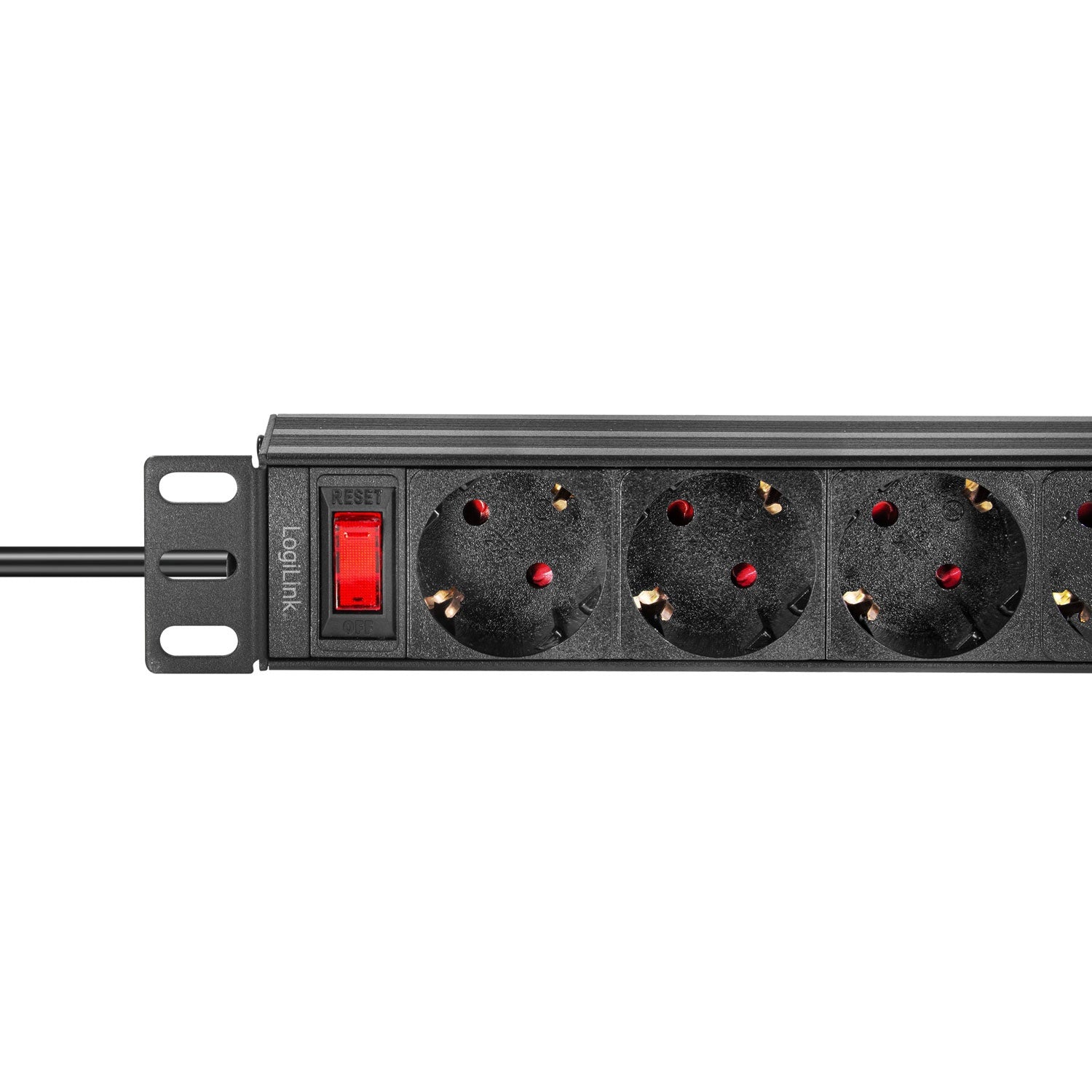

LogiLink 10" PDU 4-way Schuko socket, with switch

This PDU is specially designed for installation in 10" wall cabinets. The power strip consists of a durable frame with only one height unit (U1) and a low profile of 44 mm. The casing of the PDU is made of aluminium. The device has a 2 meter long cable with German safety plug.

• Branch socket for 10-inch rack mounting (1U)
• Robust aluminum housing, IP20
• Socket: 4x safety socket CEE 7/3 , 45° angled
• Connection: Schuko plug (CEE 7/7), angled
• Voltage/power: AC 230 V, 16 A, 50 Hz, max. 3600 W
• 2 m connection cable H05VV-F 3x 1.5²
• With on/off switch
• Color: Black RAL 9005

Dimensions and weight:
Height: 4.5 cm
Width: 4.5 cm
Length: 25.3 cm
Weight: 0.565 kg

Product Documents

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
