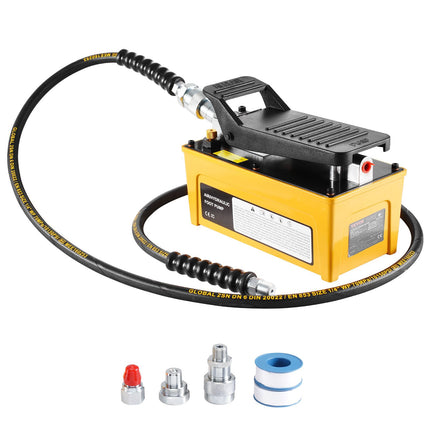

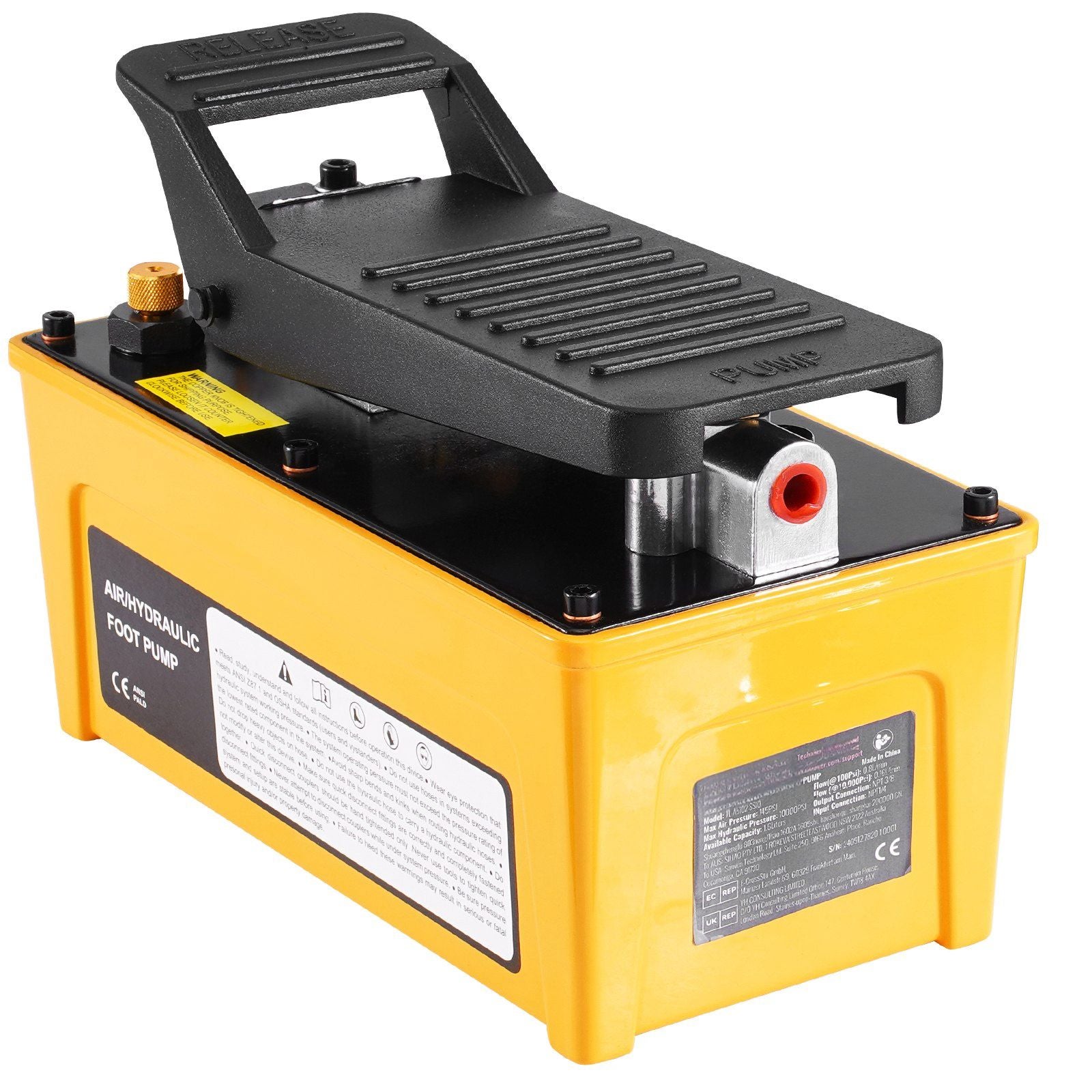

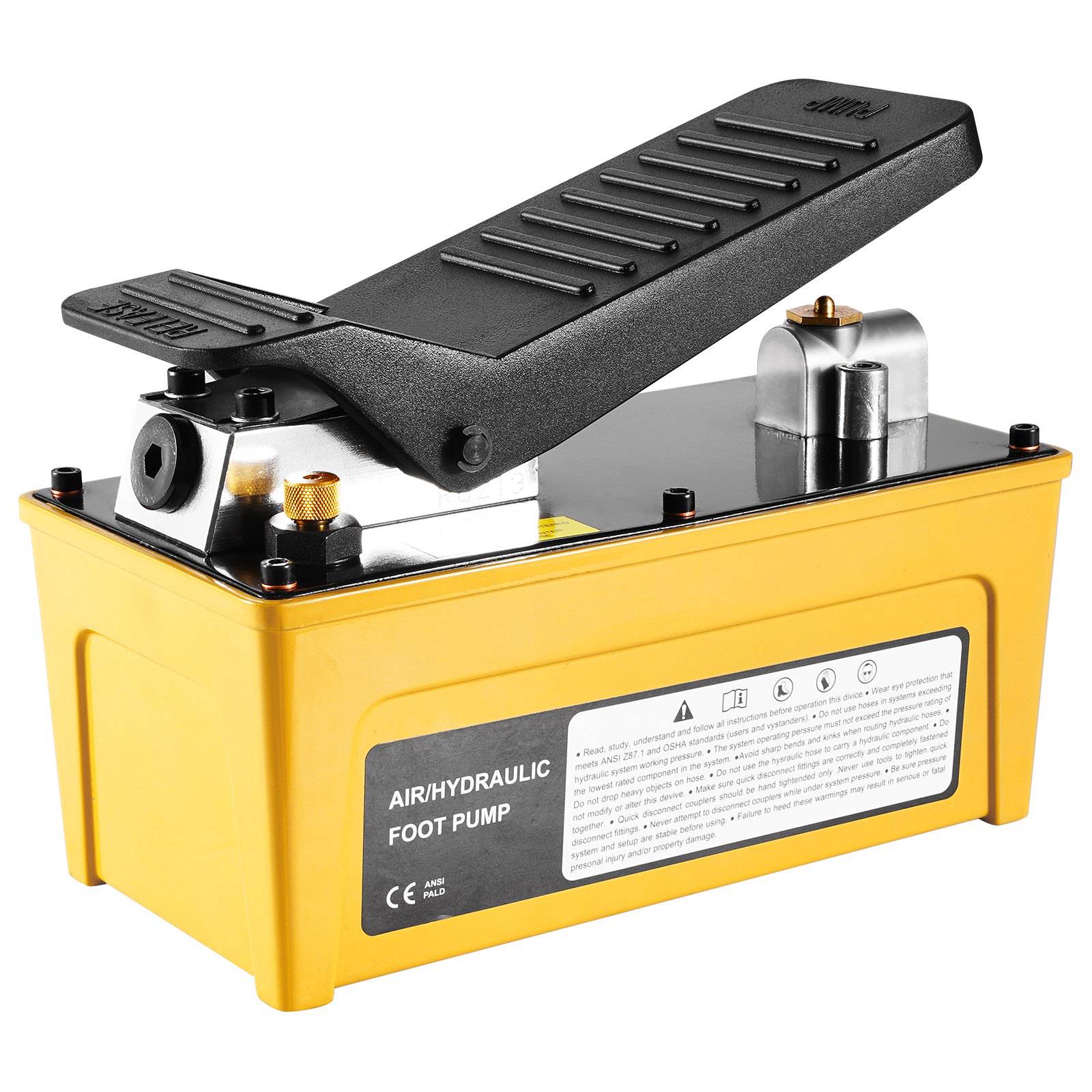

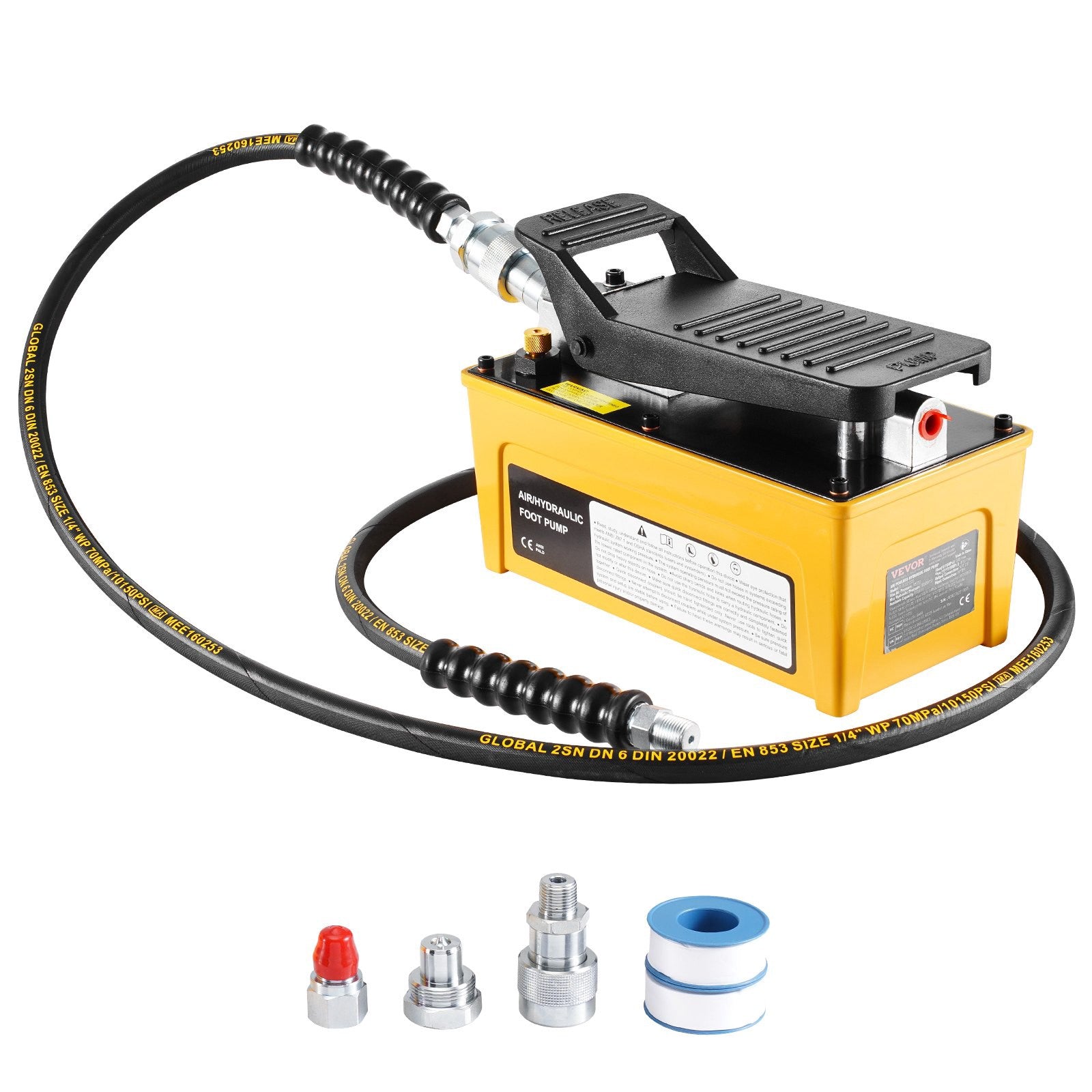

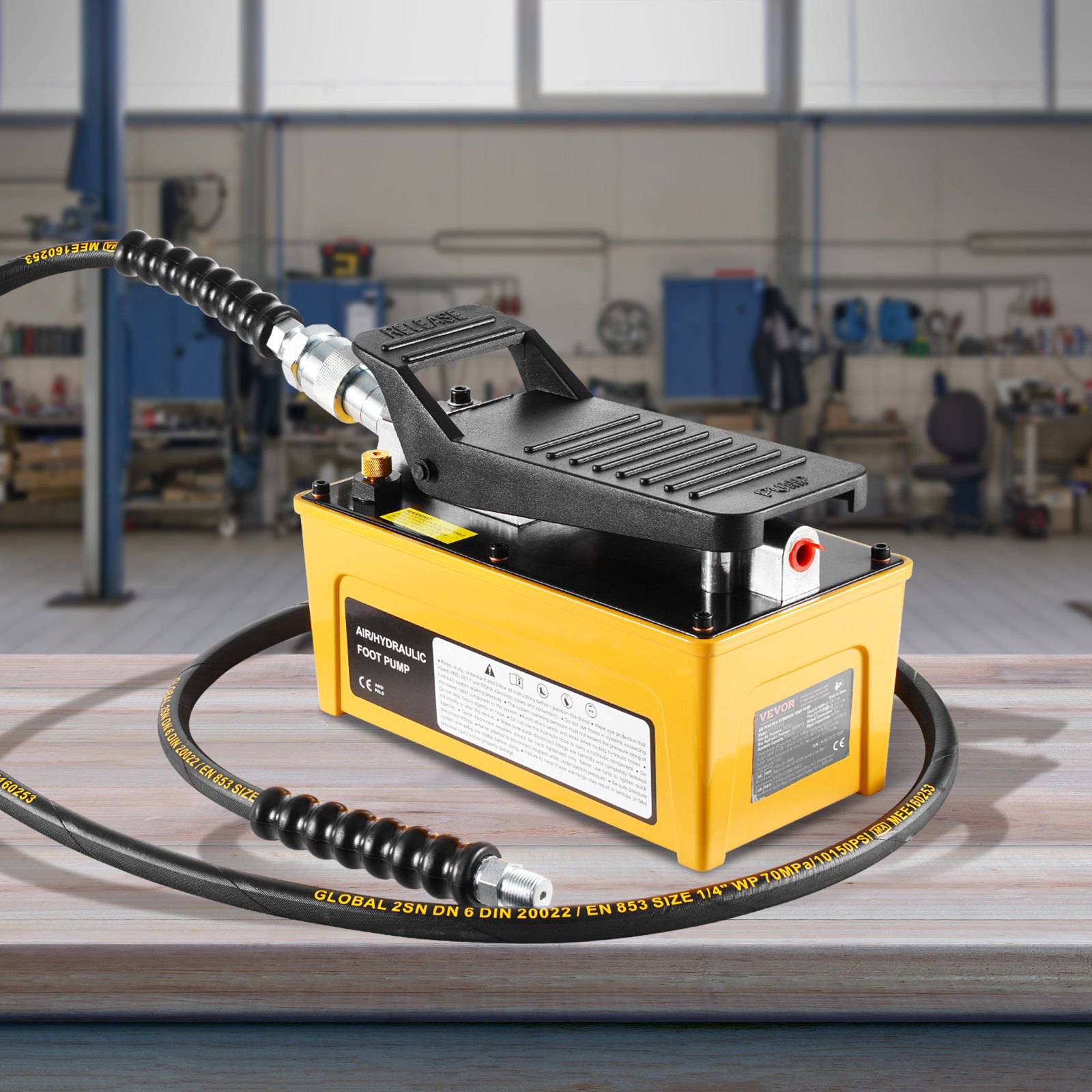

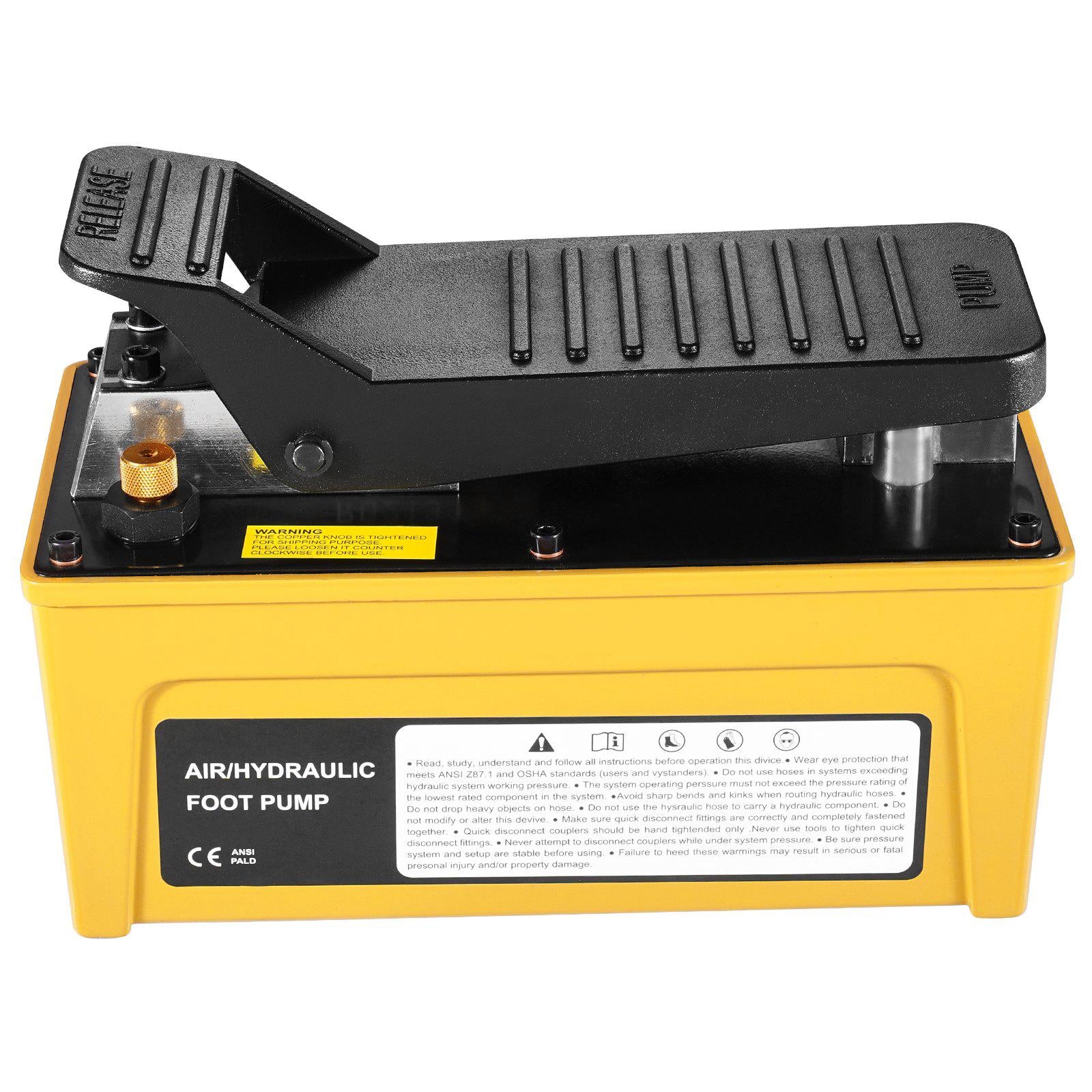

Air Hydraulic Foot Pump, 10,000 PSI, 1.6L Reservoir

10,000 PSI air hydraulic foot pump delivers fast, hands-free pressure control for pressing, lifting, bending, and straightening in the shop. Air-actuated treadle operation keeps both hands on the work while producing up to 10,000 PSI output. A 1.6 L reservoir arrives factory-filled with hydraulic oil to reduce setup time, and NPT 1/4 in air inlet plus NPT 3/8 in oil outlet fit common pneumatic and hydraulic connections.

• Delivers up to 10,000 PSI hydraulic pressure with 340 L/min air flow for heavy-duty repair and press work


• Includes a 1.6 L (0.42 gal) reservoir factory-filled with hydraulic oil so you can start working sooner


• Enables hands-free control via air-actuated treadle; press to build pressure, release to stop quickly


• Supports flexible reach with a 2 m reinforced oil hose designed for high-pressure operation


• Protects components with an internal relief valve and a durable aluminum housing for tough environments

Built for frame machines, hydraulic presses, and general automobile repair, this air-powered hydraulic pump keeps output consistent while reducing operator fatigue. The compact footprint fits crowded work areas, and standard NPT ports simplify integration with existing air supply and high-pressure hydraulic tooling. Use it for assembling/disassembling, cutting, straightening, or bending where controlled force matters. Keep your air supply within the specified range for stable performance. Grab yours today and get reliable foot-controlled hydraulic power on demand.

• Maximum output pressure: 10,000 PSI


• Input air pressure: 110–145 PSI


• Air flow rate: 340 L/min


• Hydraulic flow rate: 0.8 L/min (no load) / 0.16 L/min (load)


• Reservoir capacity: 1.6 L (0.42 gal)


• Air inlet: NPT 1/4 in (6.4 mm / 13.7 mm)


• Oil outlet: NPT 3/8 in (9.5 mm / 16.66 mm)


• Oil hose length: 2 m (6.56 ft), reinforced rubber


• Dimensions: 10.31 x 5.35 x 7.32 in (262 x 136 x 186 mm)


• Net weight: 17.64 lb (8 kg)
