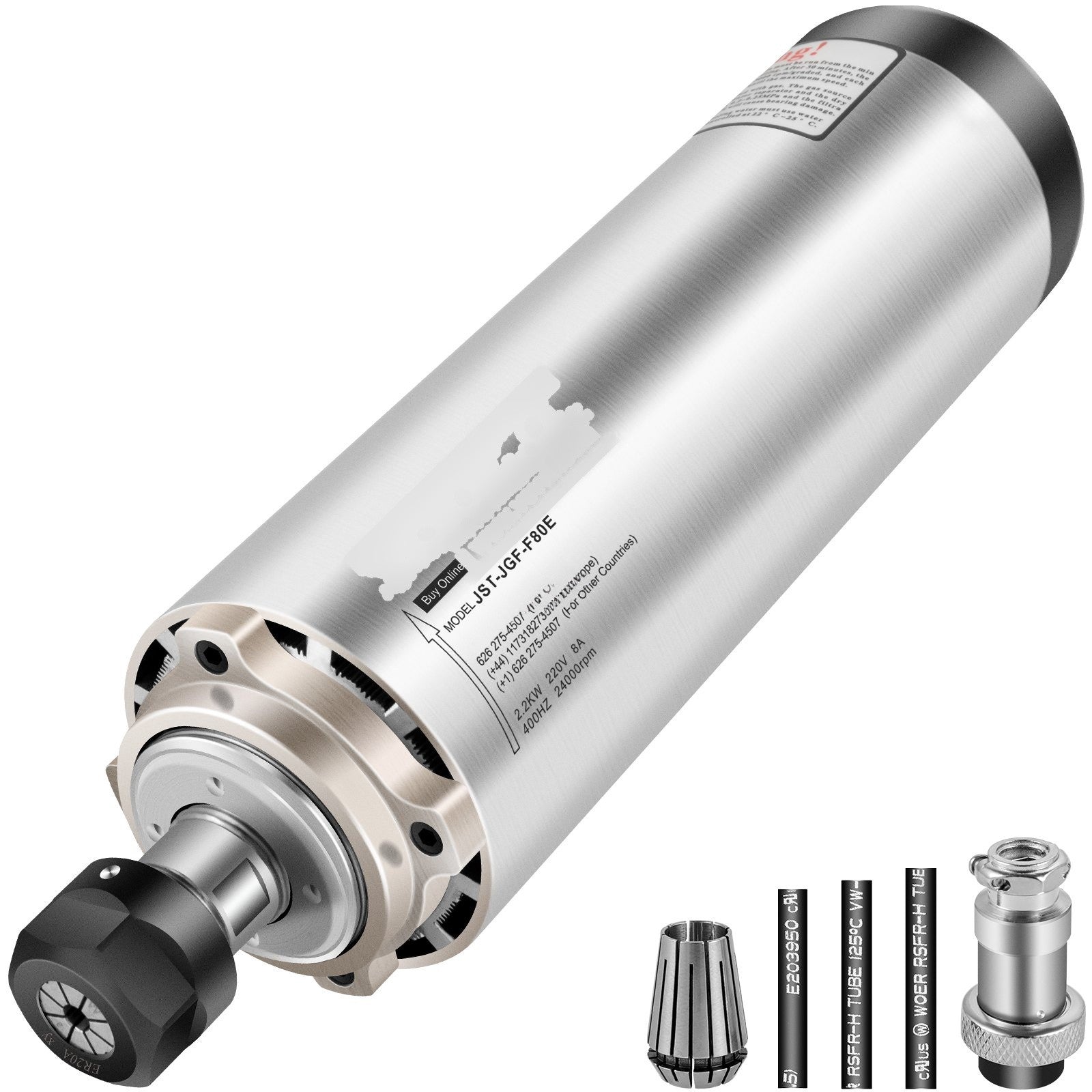

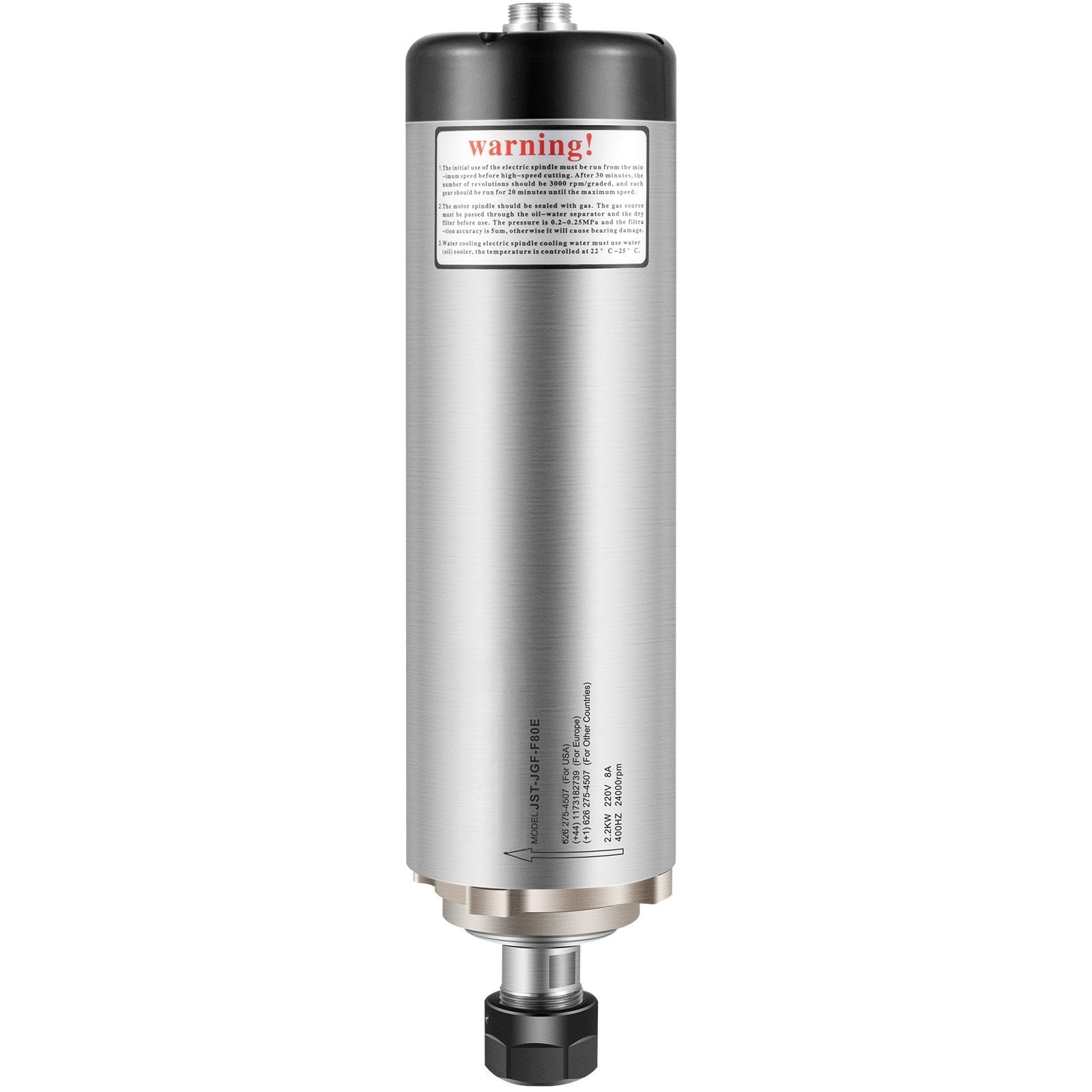

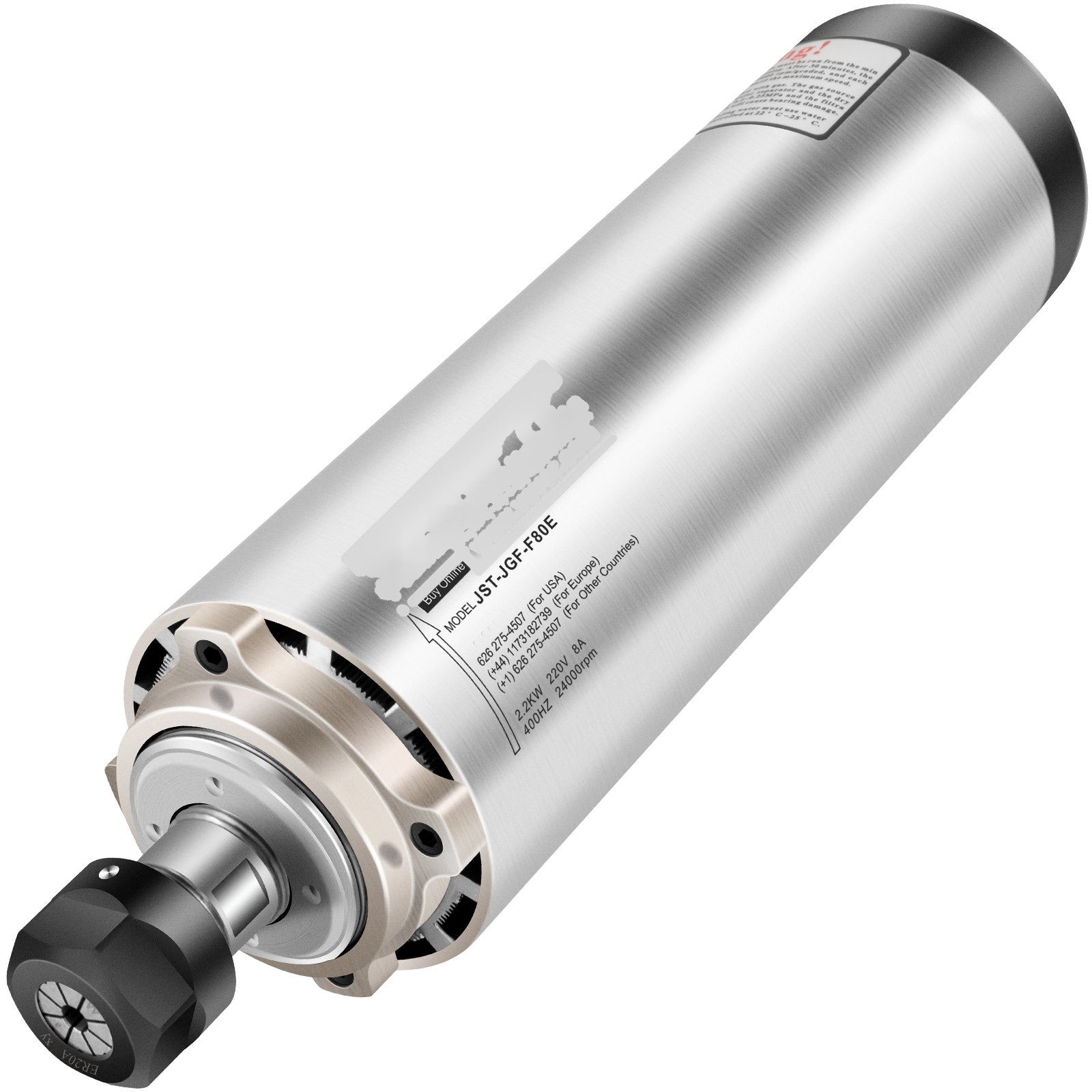

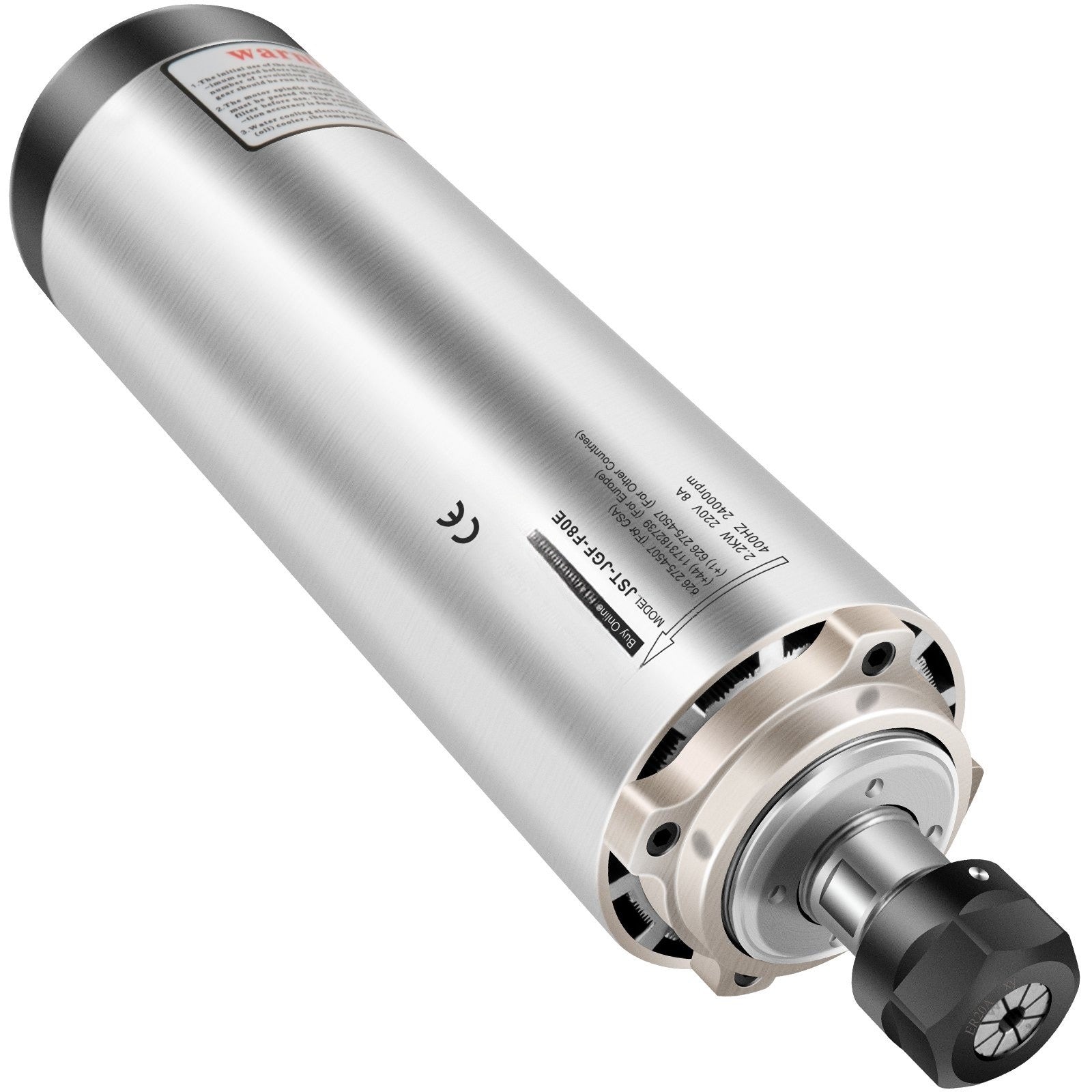

CNC Spindle Motor 2.2kW 220V, Air-Cooled ER20

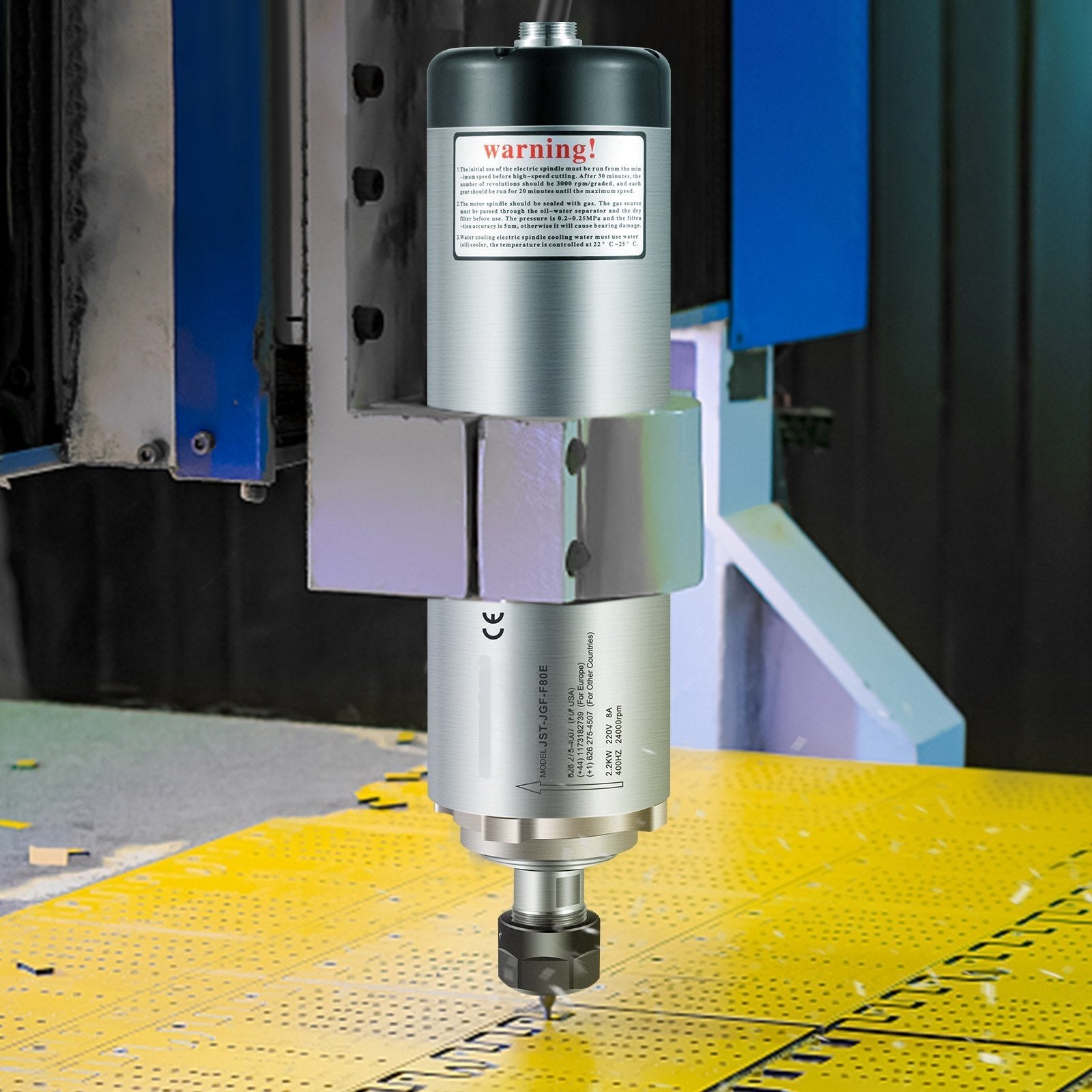

Air cooled CNC spindle motor delivers stable high-speed cutting with reduced heat buildup for cleaner engraving and milling results. Designed for router and engraving machines using an ER20 collet, it combines dynamic balance and four precision bearings to support smooth rotation and consistent accuracy. The air-circulation cooling design helps maintain performance during longer runs, while tight runout control supports fine detail work and reliable tool holding.

• Delivers 2.2 kW power with 12,000–24,000 RPM speed range for engraving, routing, and milling tasks


• Reduces vibration with dynamic balance design to help lower noise and improve surface finish


• Holds tools securely with ER20 standard collet for stable clamping and consistent machining


• Supports precision work with runout less than 0.002 mm for cleaner lines and tighter tolerances


• Dissipates heat efficiently via air cooling system for smoother operation on longer jobs

Built for makers and shops that need dependable performance from a high-speed spindle, this unit is engineered for accuracy-focused CNC work and repeatable results. The four-bearing construction supports durability under load, while the air-cooled design simplifies setup compared with water-cooling systems. Pair it with a compatible frequency converter (VFD) and your CNC router/engraving machine to dial in speed for different materials and bit sizes. Grab yours today and upgrade your spindle setup for smoother, more consistent cutting.

• Power: 2.2 kW


• Voltage: 220V


• Current: 8A


• Speed: 12,000–24,000 R/min


• Frequency: 200–400 Hz


• Collet chuck: ER20


• Bearings: 4


• Runout: < 0.002 mm (listed); also stated < 0.005 mm in source


• Size: 80 x 215 mm (Diameter 80 mm x Length 215 mm); also stated approx. 8 cm x 29.9 cm in source


• Net/Gross weight: 5 kg (11.02 lb) listed
