Description

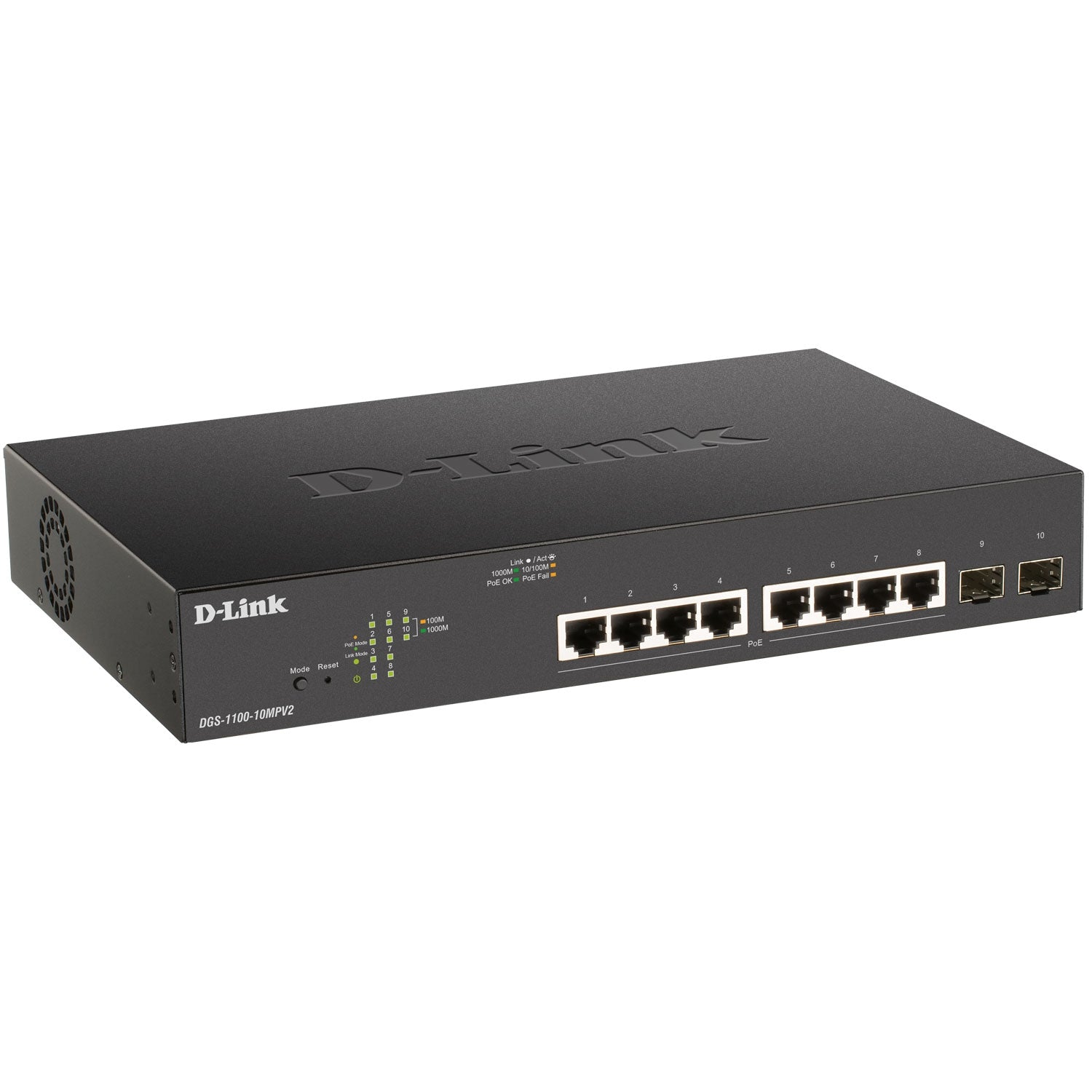

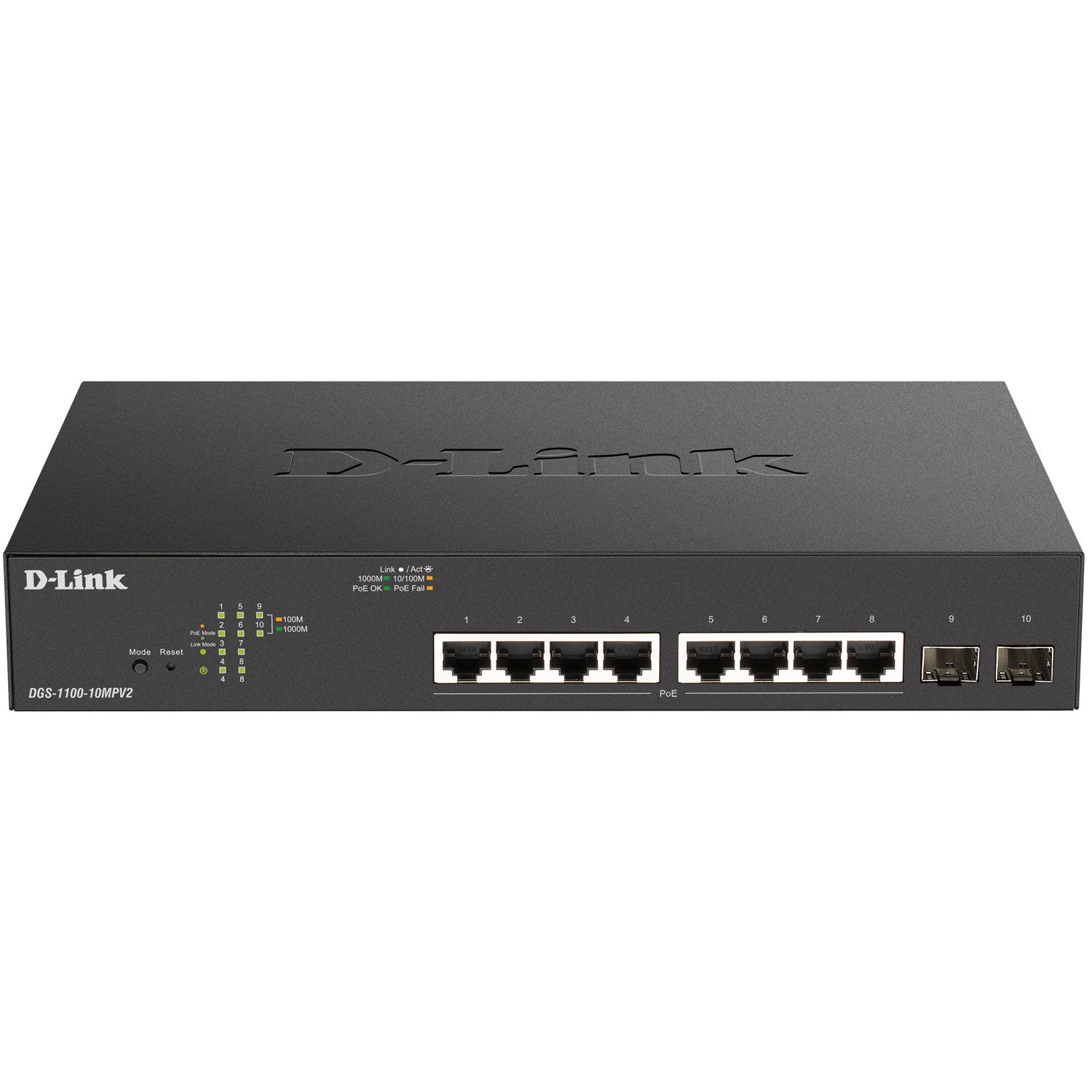

DGS-1100-10MPV2

DGS-1100 Series - Smart Managed Gigabit Switches

- 8 x 1000Base-T 802.3af/802.3at PoE
- 2 x SFP
- 130 W PoE budget
- Simple Layer 2 management
- Web-based user interface
- Limited lifetime warranty upon registration

Web Interface

User-friendly web interface for accessing management features.

VLAN

Segment your network into VLANs.

Easy Deployment with Auto Configuration

Simply connect the switch to your network, and it will detect devices from various brands for easy management.

Energy-Efficient Design

Automatic energy-saving features reduce power consumption.

Uncomplicated. Simple. Smart.

The DGS-1100 series smart switches offer an affordable solution for environments requiring straightforward network management.

Smart Web Interface

The DGS-1100 web interface allows easy management of L2 features such as VLAN, Spanning Tree Protocol, and static link aggregation. Robust security features like IGMP snooping, Static MAC, and Storm Control make the DGS-1100 series a versatile solution for environments needing hassle-free deployment and configuration.

Free Network Management Software

Download our free network management software designed for network integrity, control, and cost-effective scaling. It can be used as a local software management platform or as a cloud solution. Alternatively, it provides dedicated hardware-based centralized network management.

PoE

The DGS-1100 series includes a range of PoE-compatible switches with a high power budget for businesses with larger deployments of VoIP phones, wireless access points, or network cameras.

Easy Troubleshooting

The DGS-1100 series features loopback detection and cable diagnostics to help network administrators quickly and easily identify and resolve network issues.

Green Technology

The DGS-1100 series can save energy without sacrificing performance. Most switches in the series have a fanless design for quiet and energy-efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE.

Free Next Business Day Service

Standard service includes free next business day replacement for faulty equipment. Our fast technical support is designed to provide businesses with the best possible support for their unique environments. Our extended warranty and service packages further increase warranty periods and minimize downtime.

Specifications

General

Form Factor: 11” desktop (rack mounting kit included), 1U height
Number of Ports: 8 x 10/100/1000 Mbps (PoE), 2 x 100/1000 Mbps SFP
Port Features: IEEE 802.3 for Ethernet, IEEE 802.3u for Fast Ethernet, IEEE 802.3ab for Gigabit Ethernet, IEEE 802.3af/at/bt, IEEE 802.3az compliant, Auto-negotiation, Auto MDI/MDIX, IEEE 802.3x Flow Control supports full-duplex mode, Supports half/full-duplex operation (half/full at 10/100 Mbps, full at 1000 Mbps)
Performance

Switching Capacity: 20 Gbps
Maximum Forwarding Rate: 14.88 Mpps
MAC Address Table Size: 8K entries
Packet Buffer: 4.1 Mbits
Flash Memory: 16 Mbytes

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor
