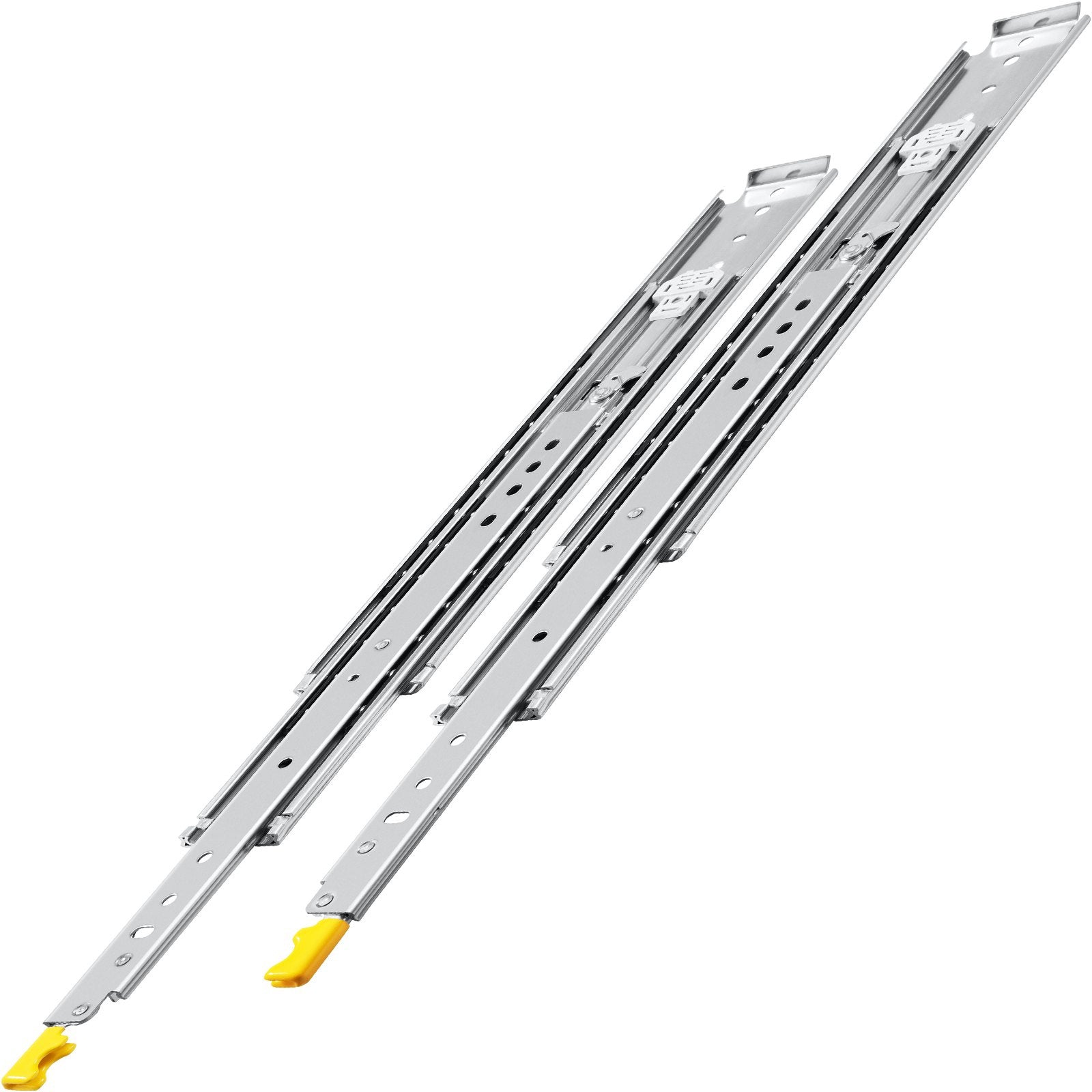

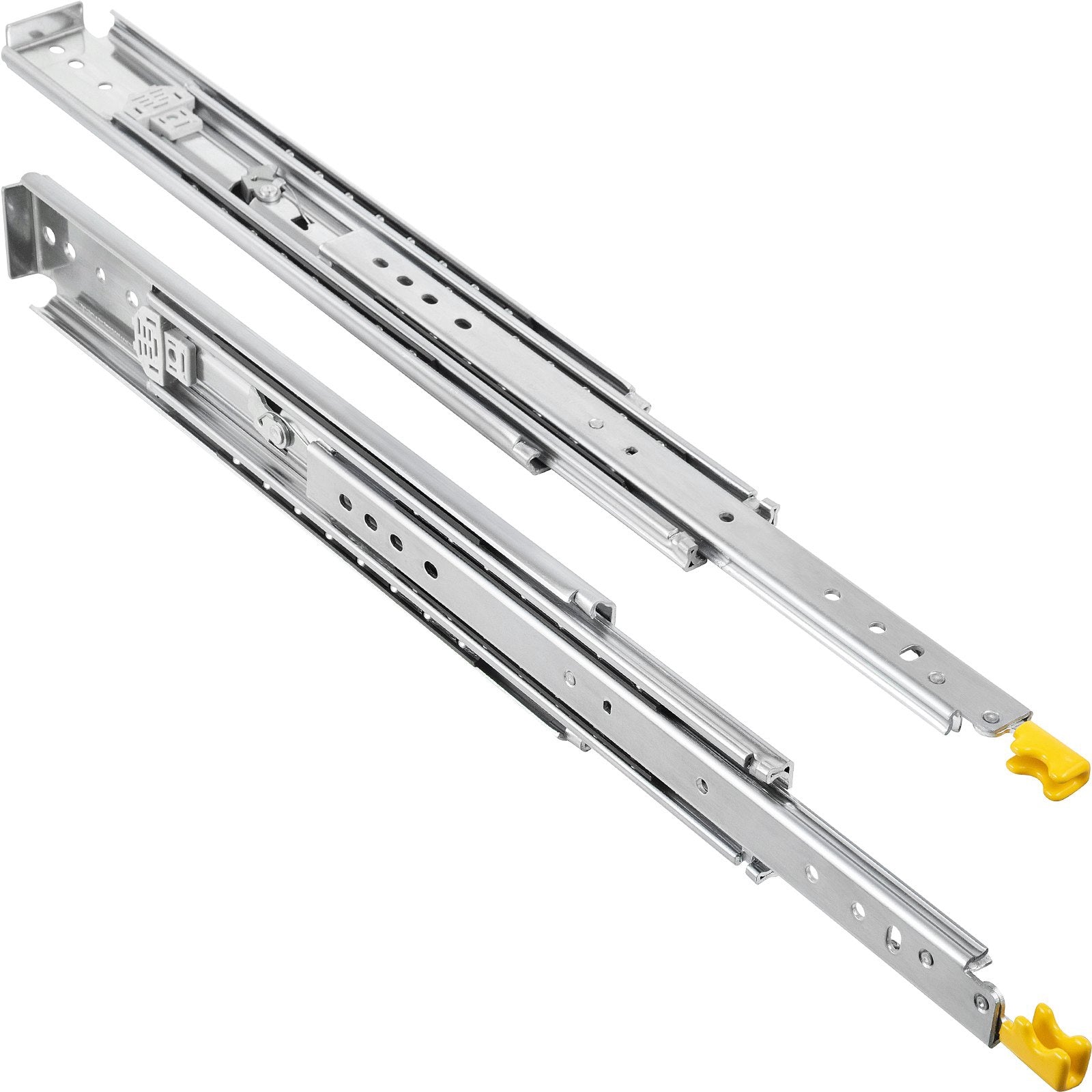

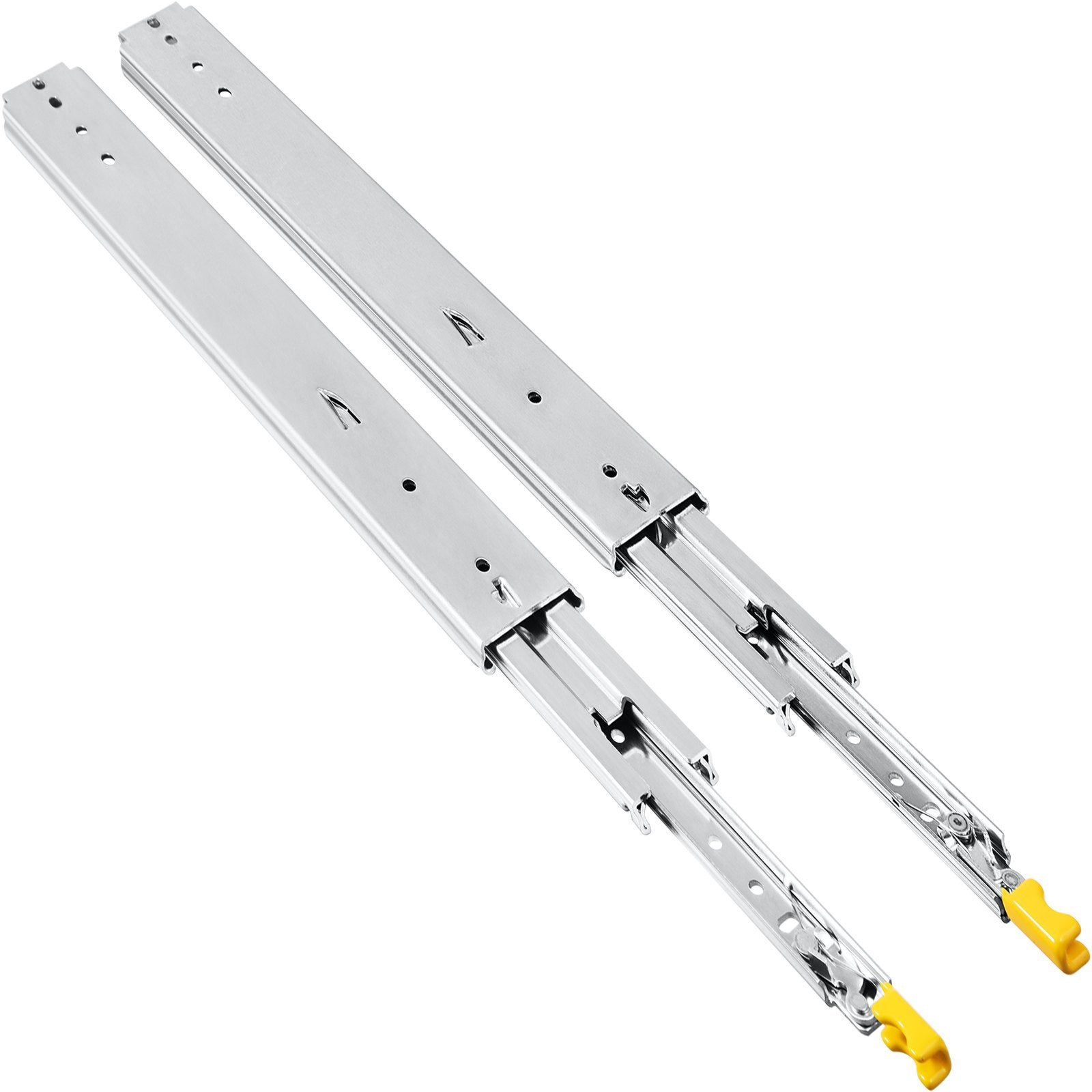

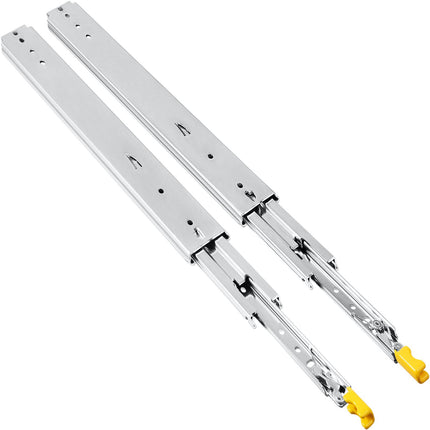

Drawer Slides With Lock, 38 in, 500 lb, Full Extension

Heavy duty locking drawer slides keep large drawers stable while delivering full access to tools, cargo, and equipment. This 38-inch side-mount slide pair uses a 3-fold full extension design to reach 76 inches fully open, with lock-in/lock-out control to hold the drawer in position. Built from cold rolled steel with a zinc plated finish, the ball bearing mechanism and nylon buffer help reduce noise and prevent bounce during travel or frequent use.

• Delivers 3-fold full extension for complete access; extends up to 76 in/193 cm


• Supports up to 500 lb/225 kg capacity for industrial drawers, shelves, and heavy storage


• Locks in and locks out to secure drawers open or closed and help prevent slide separation


• Glides smoothly with double-row ball bearings plus nylon buffer for quieter operation

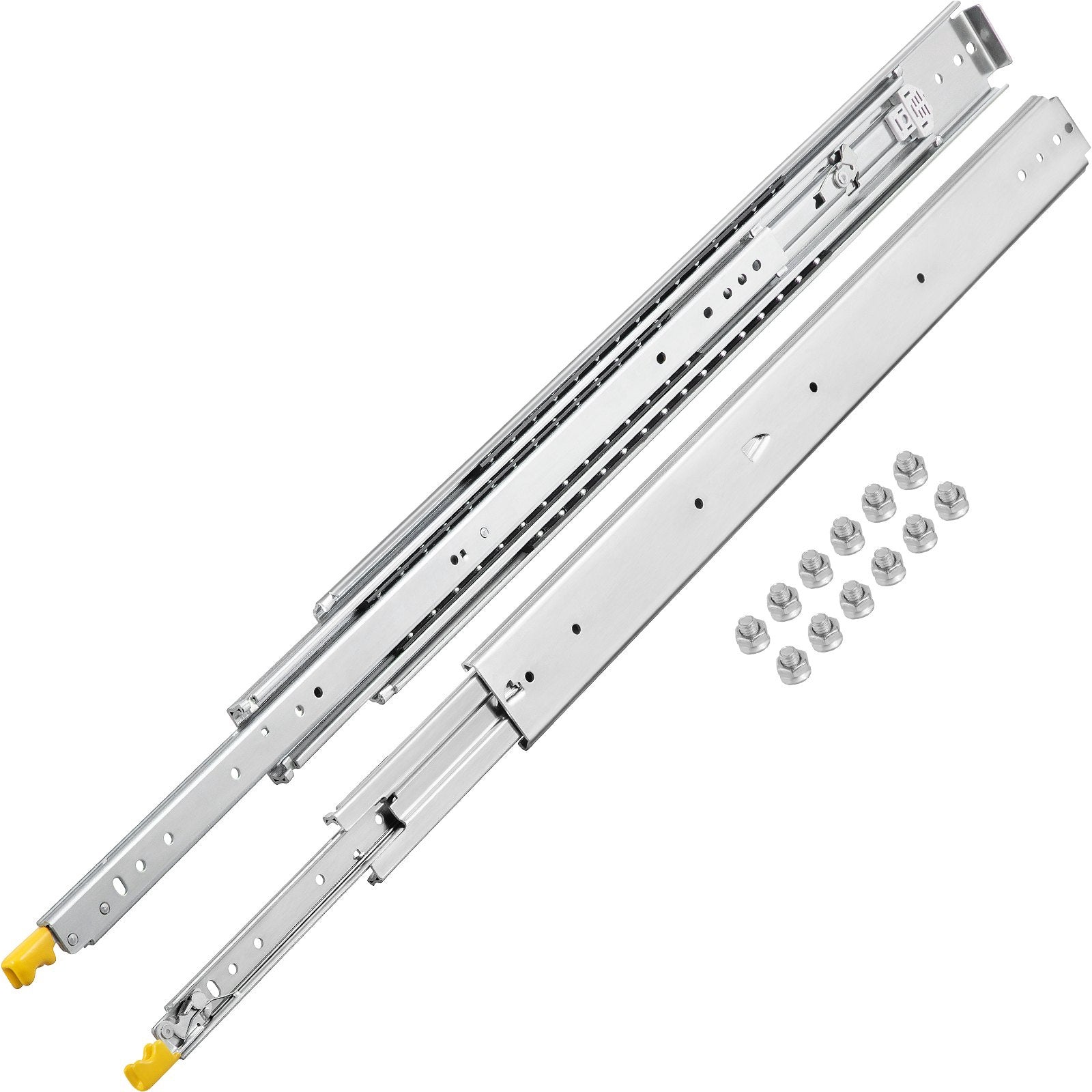

• Includes mounting hardware for side-mount installs in cabinets, RVs, trucks, and equipment

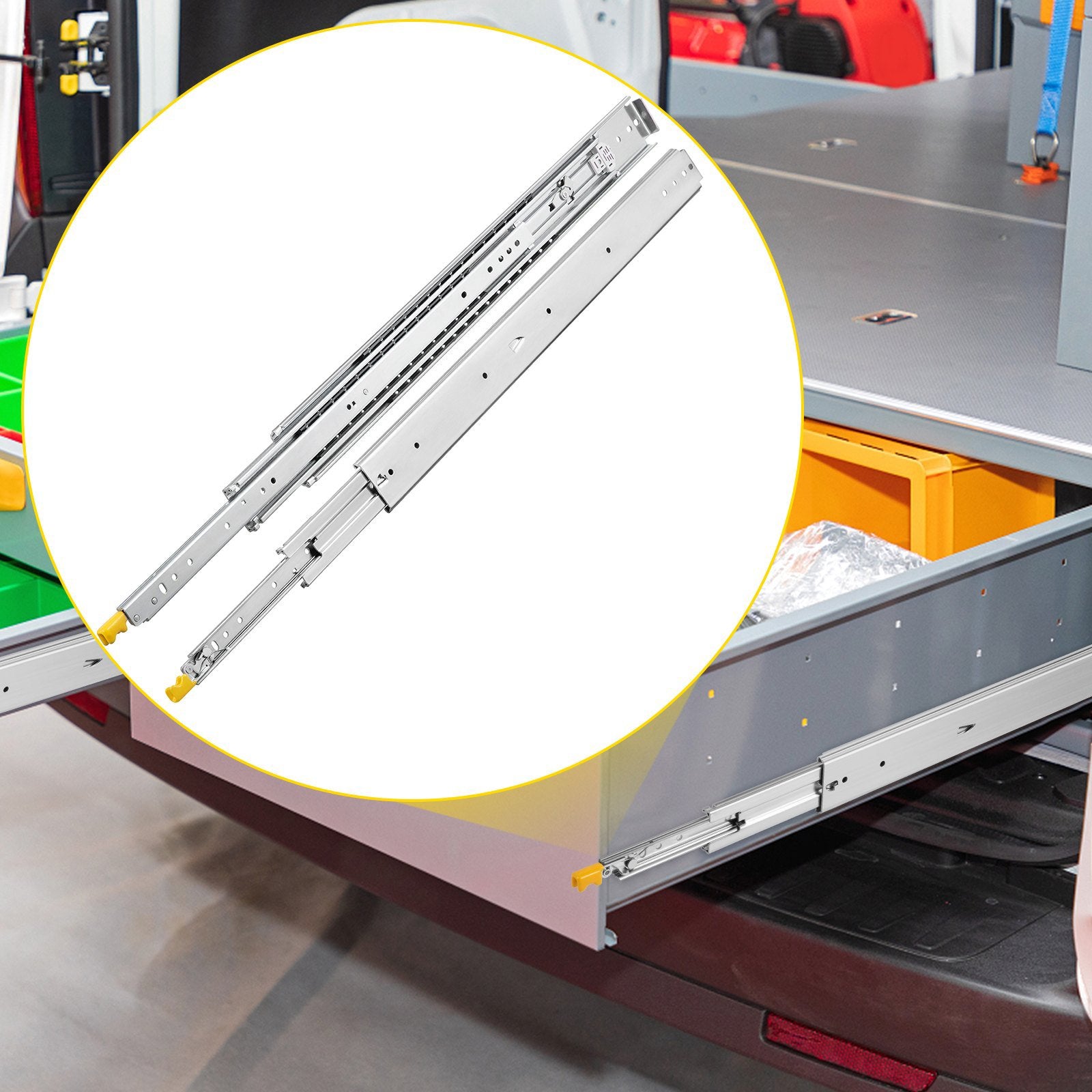

Designed for workshops, commercial fixtures, and vehicle builds, these full extension ball bearing drawer slides combine high load capacity with dependable locking control. Measure drawer depth and cabinet space before ordering; slide length should be shorter than the drawer depth for proper fit. Use for new installs, remodels, or replacements where stability matters—industrial cabinets, vending machines, tool storage, and retrofit applications. Grab yours today and upgrade to a secure, smooth-gliding drawer system built for heavy use.

• Type: Side-mount, 3-section (3-fold) full extension locking slides


• Quantity: 1 pack (1 pair / 2 pcs)


• Slide length (closed): 38 in / 96.5 cm


• Fully extended length: 76 in / 193 cm


• Overall size (L×W×T): 38×3×0.75 in / 96.5×7.6×1.9 cm


• Load capacity: Up to 500 lb / 225 kg


• Material: Cold rolled steel


• Finish/Color: Zinc plated, silver


• Outer (L×W): 38×3 in / 96.5×7.6 cm


• Middle (L×W): 38×2.1 in / 96.5×5.4 cm


• Inner (L×W): 38×1.2 in / 96.5×3 cm


• Locking: Lock-in & lock-out (supports open/close locking)
