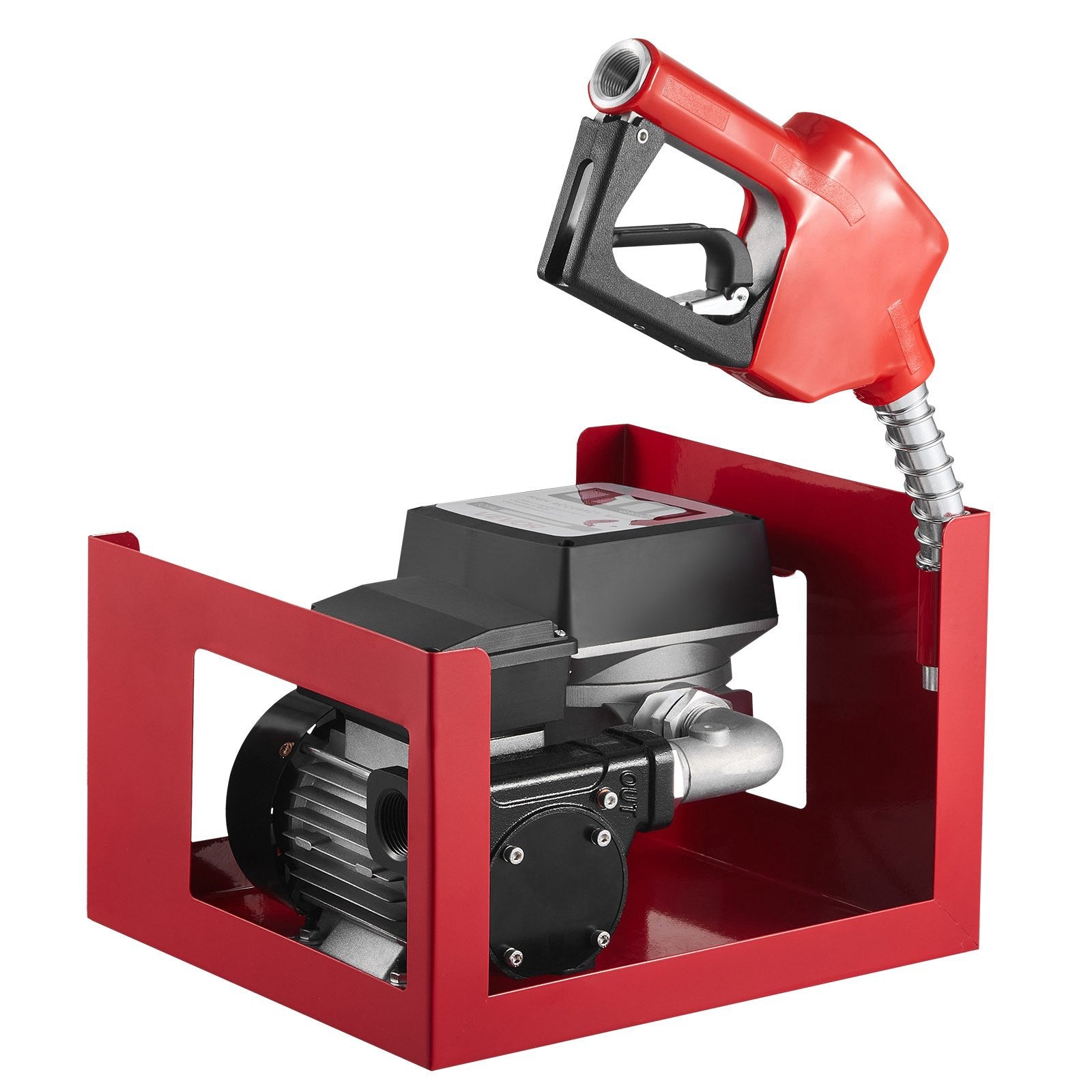

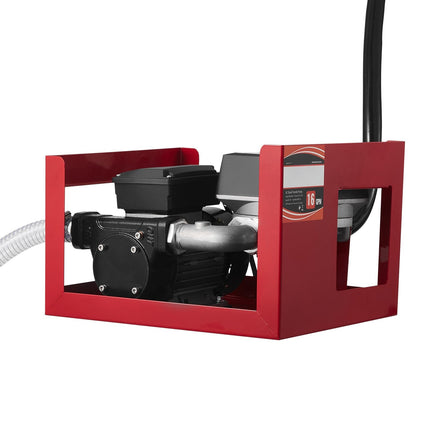

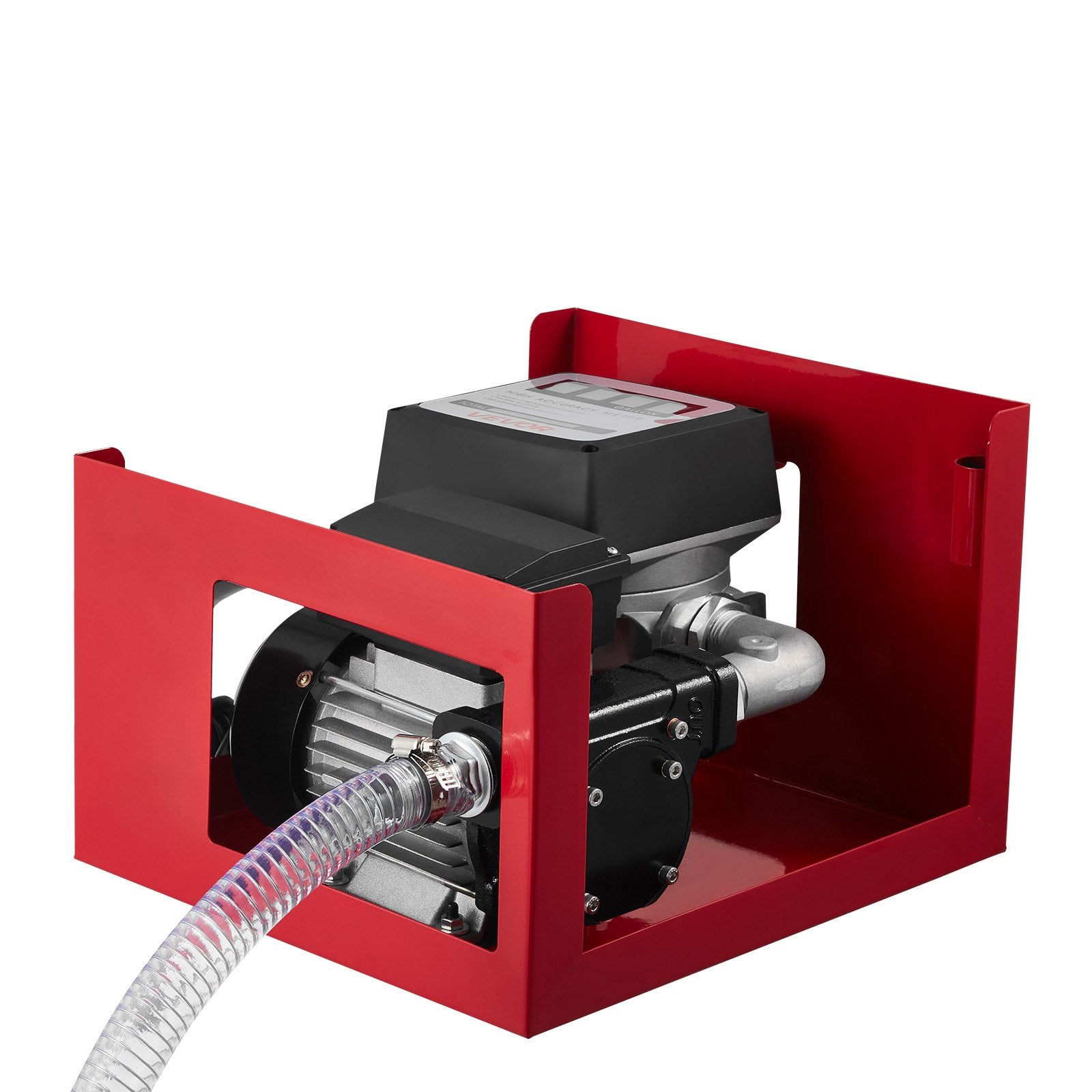

Fuel Transfer Pump, 16 GPM AC Electric, Meter, Nozzle

Electric diesel fuel transfer pump with meter speeds bulk refueling up to 16 GPM (60 L/min) for trucks, machinery, and onsite tanks. Built for diesel, kerosene, and biodiesel (not gasoline), it pairs a durable cast iron body with a quiet-running motor and waterproof power switch for tougher work areas. The included auto shut-off nozzle and easy-read flow meter help control dispensing and reduce spills, while standard 1 in ports simplify installation on common fuel setups.

• Delivers up to 16 GPM/60 L/min flow to cut downtime when fueling large tanks and heavy equipment


• Handles diesel, kerosene & biodiesel applications; do not use with gasoline


• Includes flow meter, auto shut-off nozzle, 13 ft outlet hose & 6.6 ft inlet hose for a ready-to-run setup


• Resists wear with cast iron housing plus waterproof power switch for outdoor/damp job sites


• Supports easy installs with standard 1 in (25.4 mm) inlet/outlet and base mounting holes

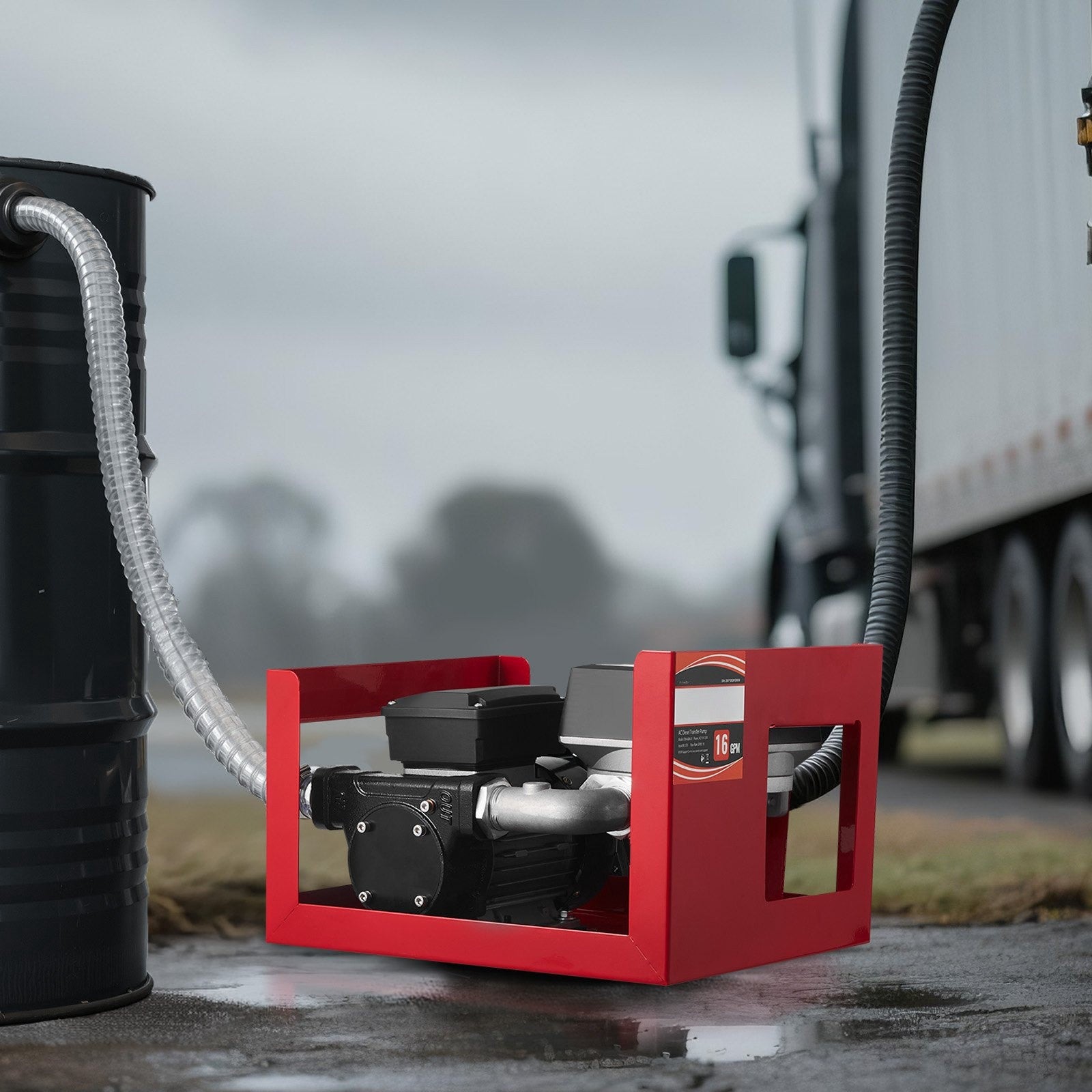

Set up a reliable fuel transfer station for vehicles, construction sites, farms, and generator fueling. With 8 ft (2.4 m) max suction lift and 45 ft (13.7 m) max discharge lift, this AC-powered pump helps move fuel where you need it without constant repositioning. The overheat protection adds an extra layer of operating safety, while the meter keeps tracking straightforward for maintenance logs and consumption checks. Grab yours today and keep equipment fueled and moving.

• Max flow rate: 16 GPM (60 L/min)


• Voltage/Frequency: AC 110–120V, 60Hz


• Power: 0.5 HP / 370 W


• Max suction lift: 8 ft (2.4 m)


• Max discharge lift: 45 ft (13.7 m)


• Inlet/Outlet size: 1 in (25.4 mm)


• Body material: Cast iron


• Hoses: 13 ft (4 m) rubber outlet; 6.6 ft (2 m) PVC inlet

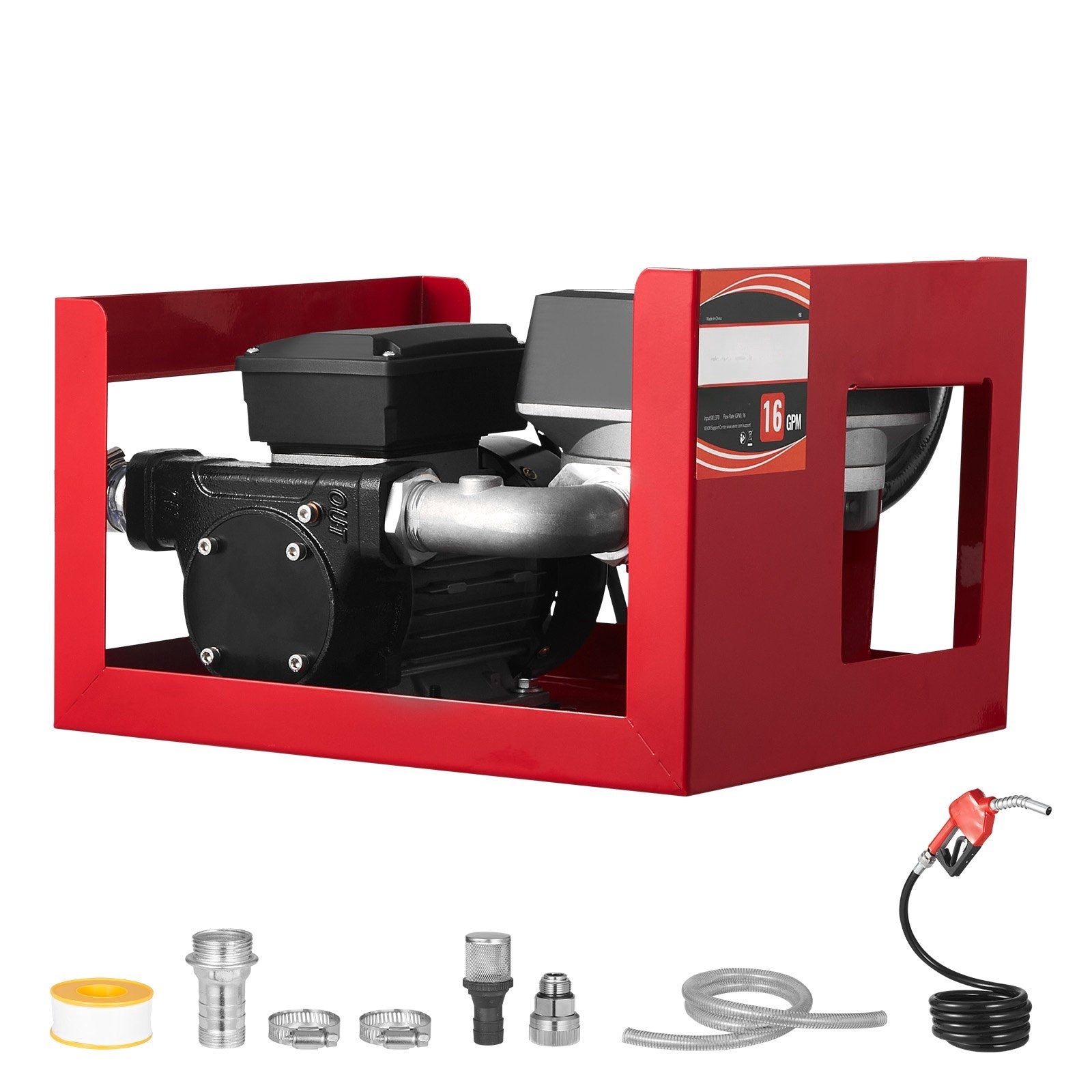

• Includes: Flow meter, auto shut-off fuel nozzle, hoses
