Description

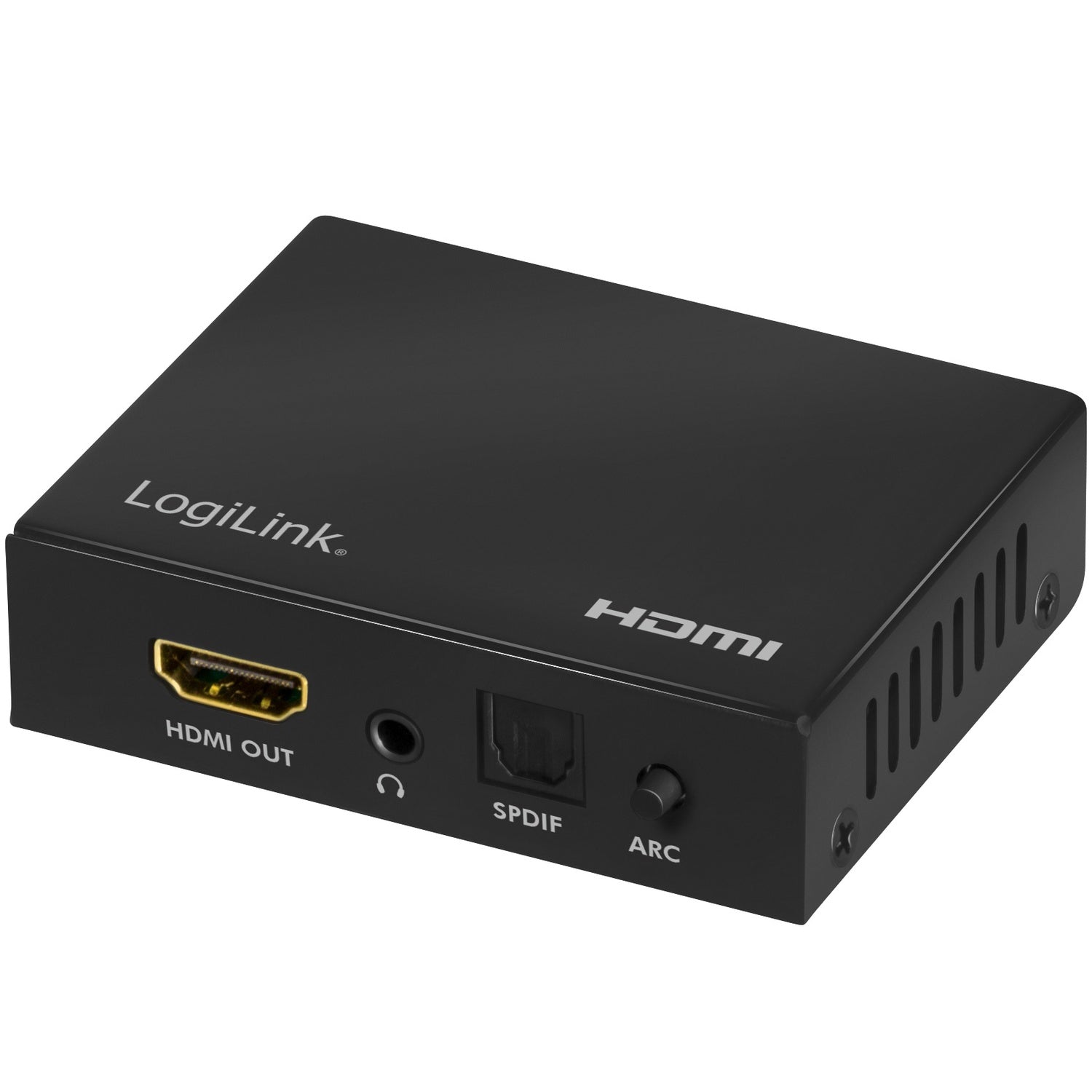

HDMI audio extractor, 2CH, 5.1 4K/60Hz
Adapter that separates the audio from the HDMI signal. This Audio Extractor supports resolutions up to 4K @ 60 Hz and outputs the audio separately via a SPDIF or 3.5mm stereo.

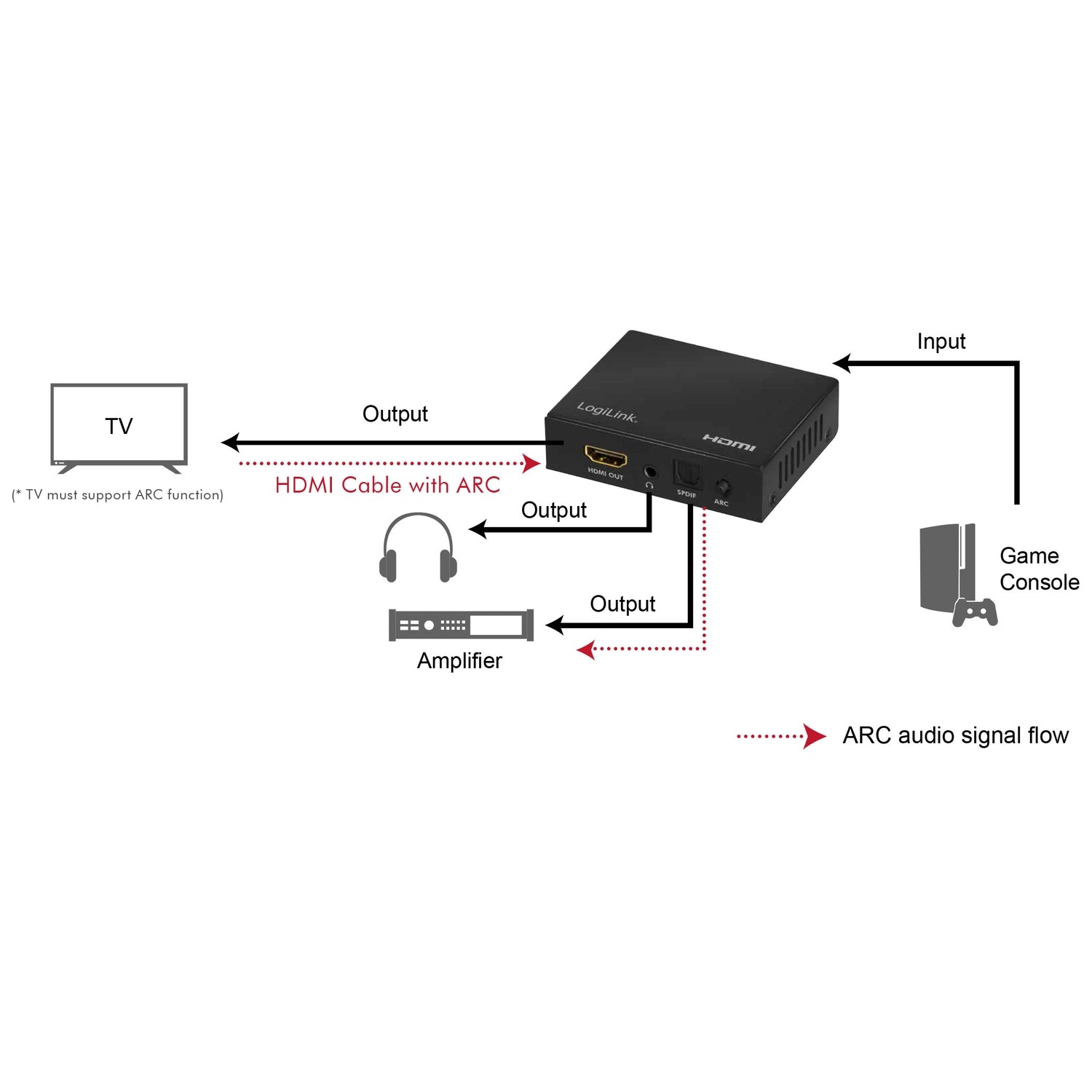

It also supports ARC, simply connect it to an ARC-compatible TV and extract the sound separately to an external sound system, such as a soundbar or amplifier.
- Converts digital HDMI signals to analog and digital audio (HDMI, SPDIF and 3.5mm)
- Supports 2.0 CH / 5.1 CH / PASS audio switching
- Supports UHD 4K @ 60 Hz (YUV 4:4:4), Full 3D and 12-bit deep color
- Supports HDCP 2.2
- Supports HDR and CEC
- Supported audio formats for HDMI output: DTS-HD Master Audio™ / Dolby TrueHD
- Plug and play , no drivers needed
Specifications

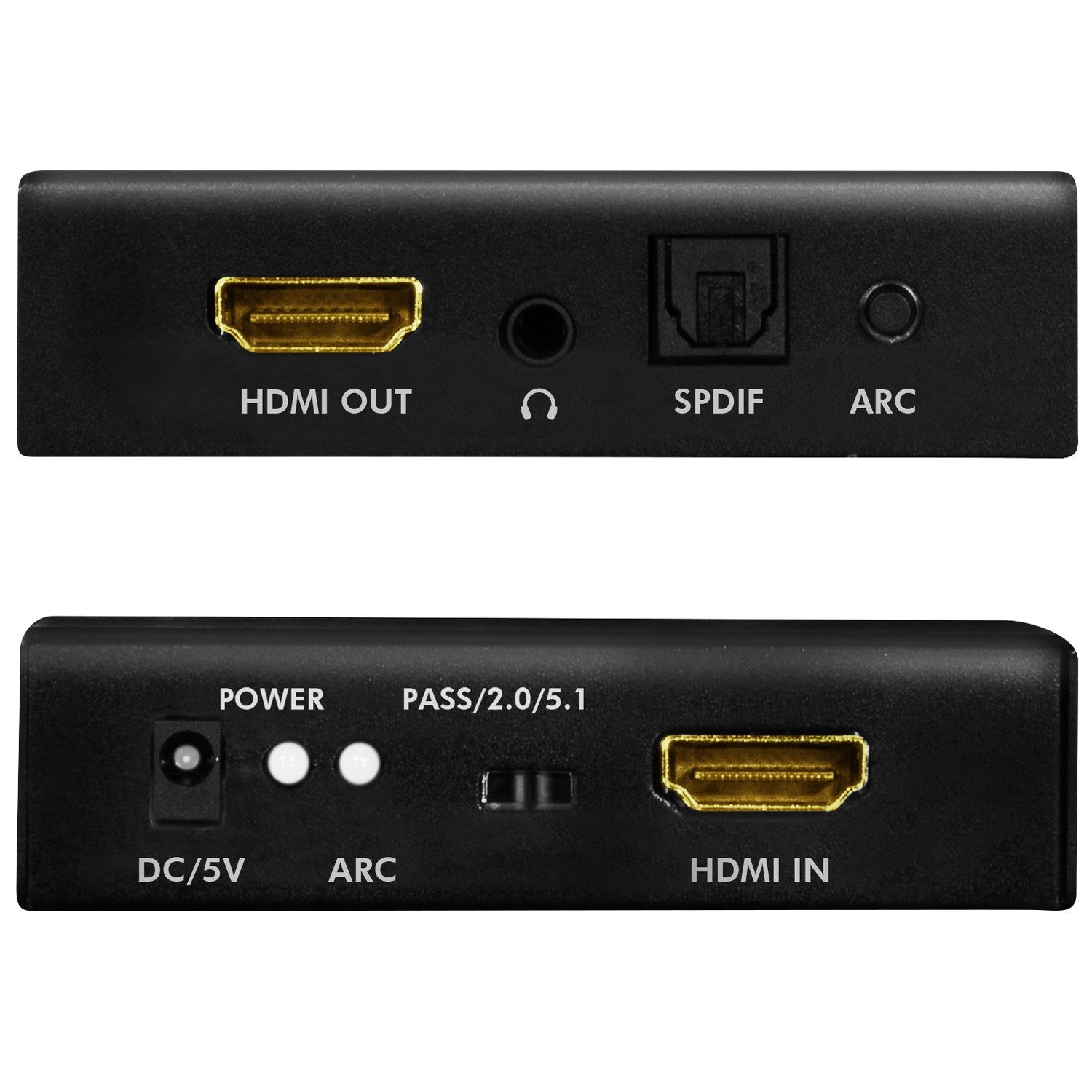

In: 1x HDMI-A female, 1x DC socket
Out: 2x HDMI-A female, 1x SPDIF, 1x 3.5mm phono socket
HDMI Version: 2.0
HDCP Version: 2.2
HDMI ARC: Yes
HDMI CEC: Yes
HDMI HDR: Yes
Video resolution out: 480i/60 Hz, 576i/50 Hz, 1080i/50/60 Hz, 480p/60 Hz, 576p/50 Hz, 720p/50/60 Hz, 1080p/24/25/30/50/60 Hz , 4K@24/25/30 Hz, 4K@50/60 Hz
Video bandwidth: 6 Gbps/600 MHz
SPDIF: Yes
Power consumption: 5W max.

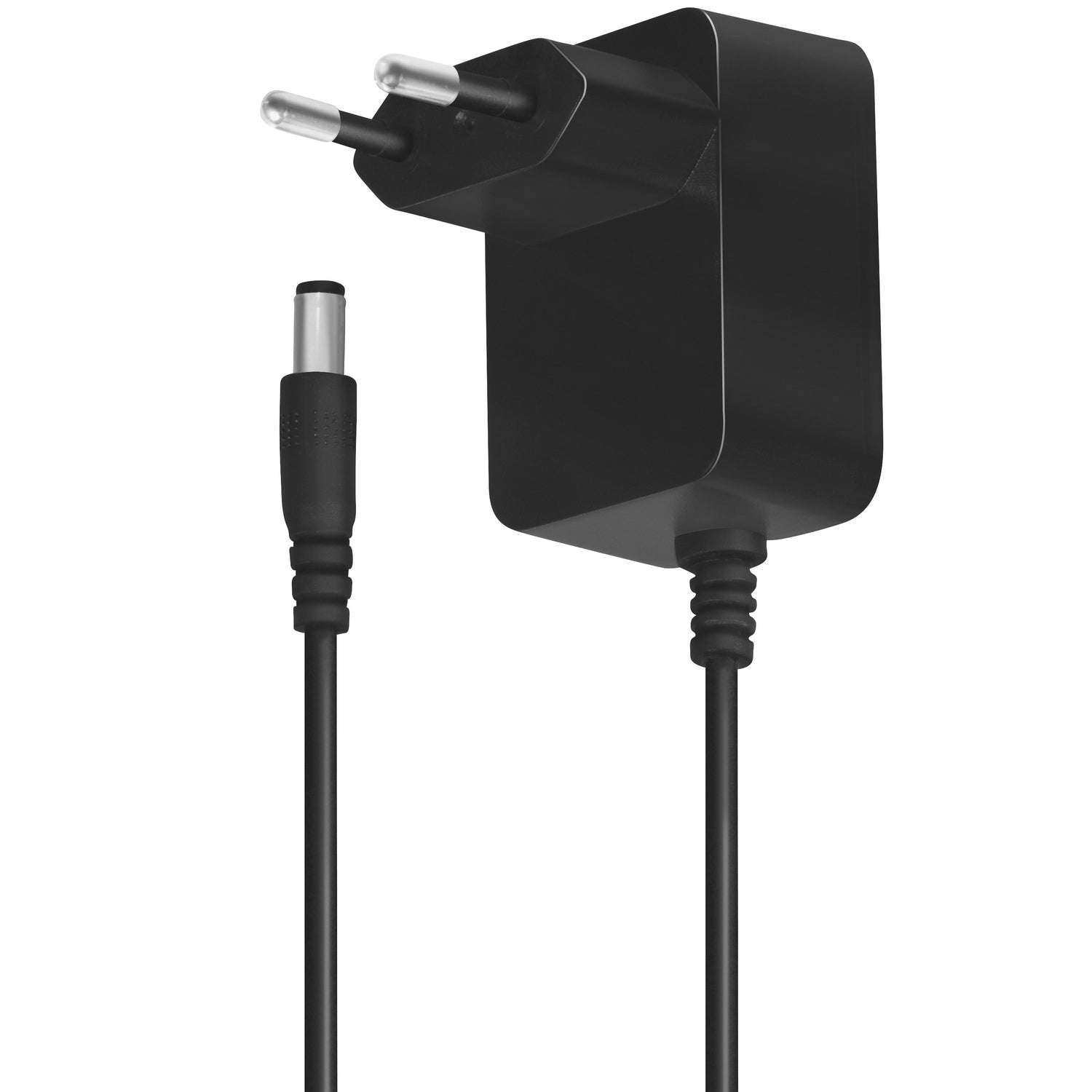

Power supply: 5V /1 A
Uncompressed Audio: LPCM 7.1
Compressed Audio: HDMI: DTS-HD Master Audio™, Dolby TrueHD
SPDIF: DTS/Dolby Digital
Dimensions: 7.8 x 6 x 2 cm
