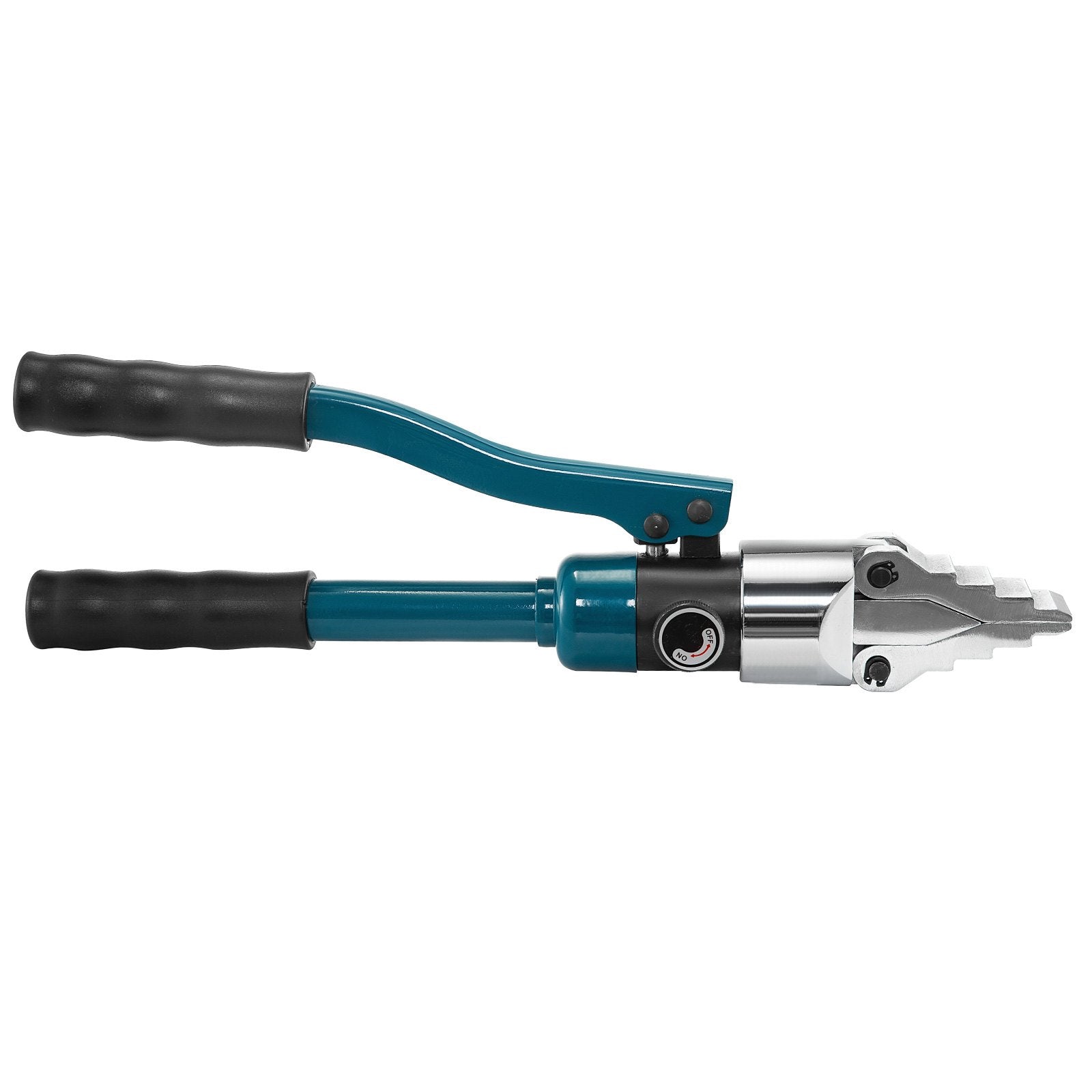

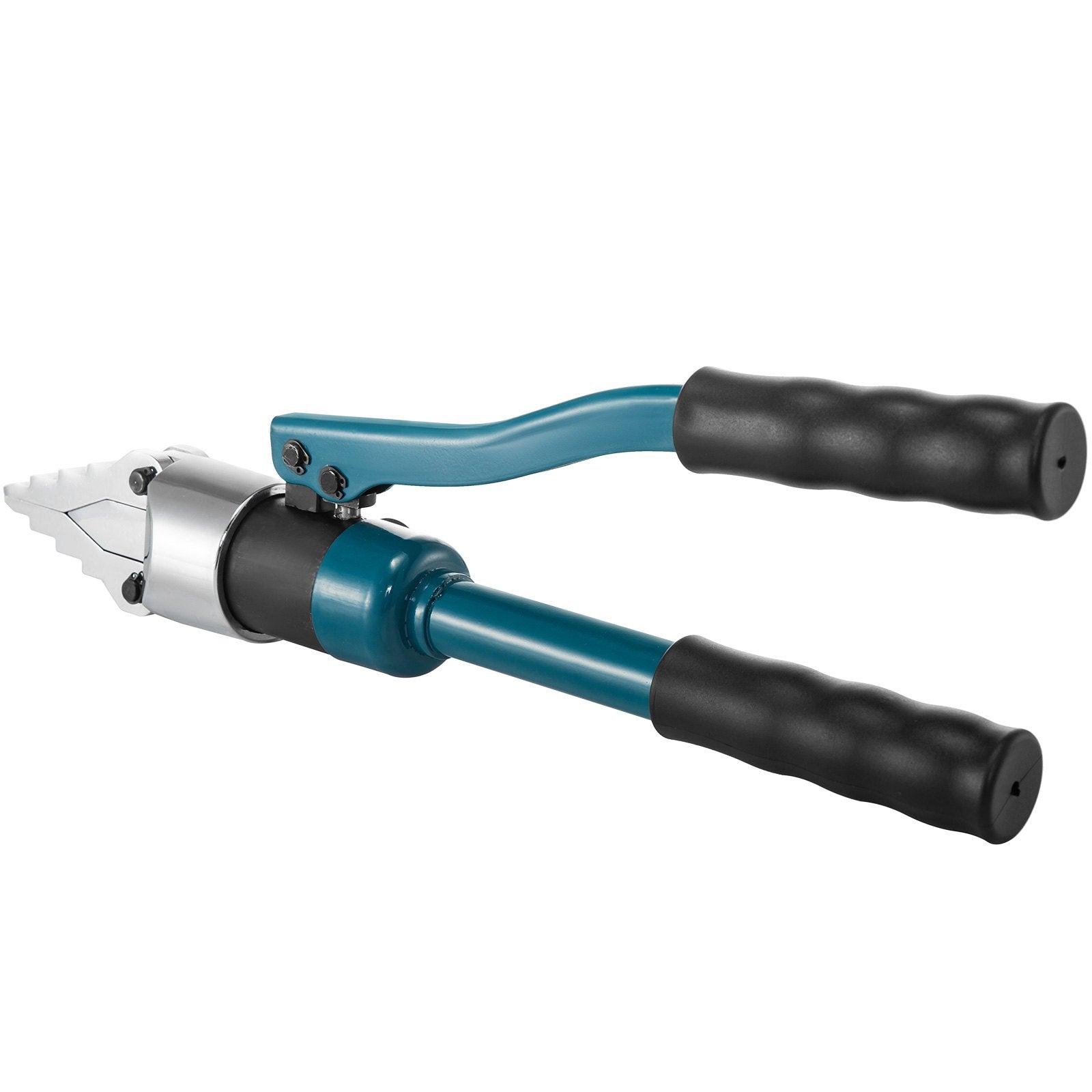

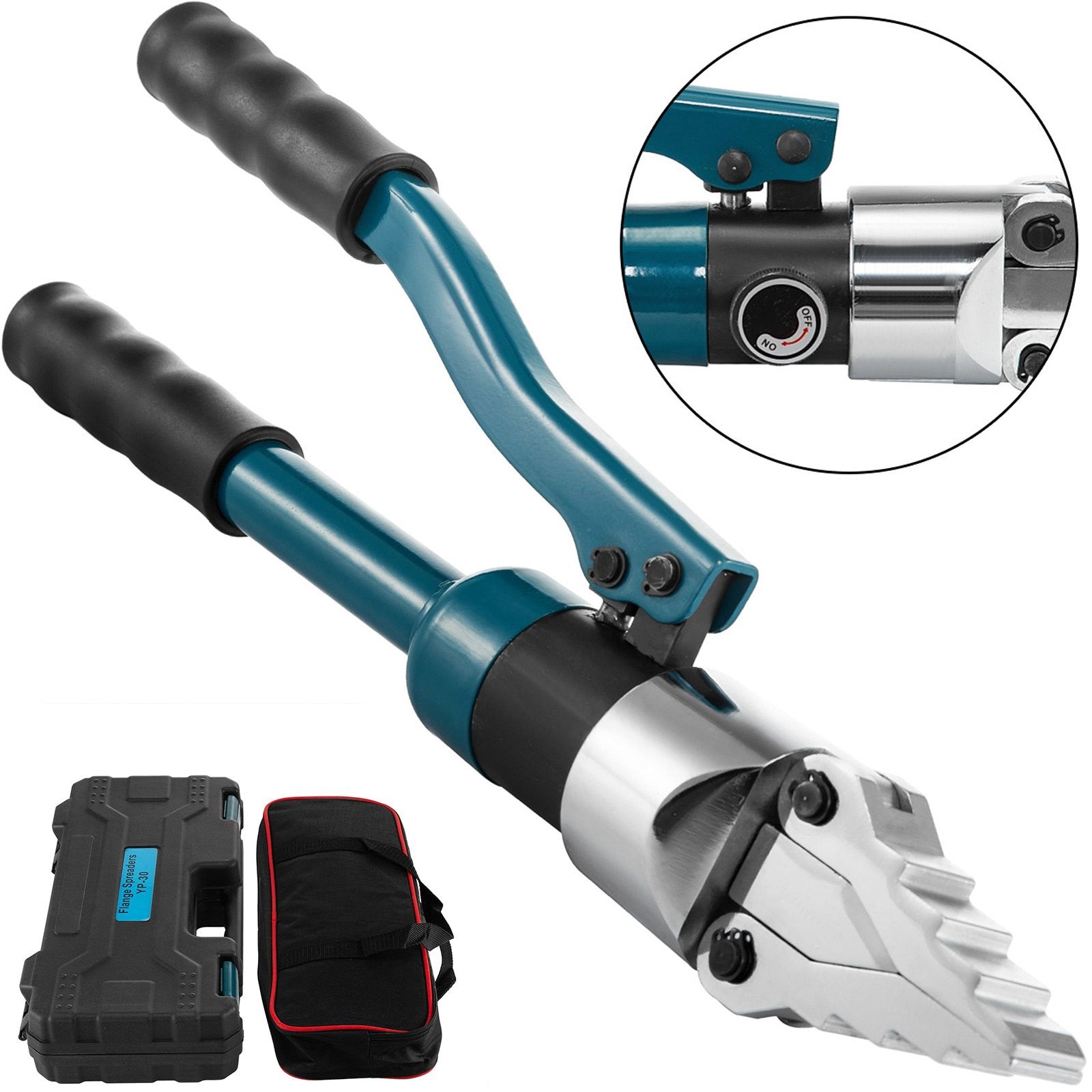

Hydraulic Flange Spreader, 8 Ton Manual, 30mm, 9mm Tip

Hydraulic flange spreader delivers controlled 8-ton separating force to open stubborn flanges and joints fast, helping you reduce downtime during commissioning, replacement, and dismantling. The integral manual hydraulic design uses a built-in pump to drive an alloy steel wedge head into the gap and expand up to 30 mm for safer, more precise separation work. A pressure relief valve supports smooth control, while the insulated, anti-slip handle improves comfort for extended use.

• Delivers 8T manual hydraulic force to separate flanges and components with controlled pressure


• Fits gaps ≥ 9 mm with a slim wedge tip to start separation without excessive prying


• Expands up to 30 mm max opening to help free seized flange faces during dismantling


• Improves control with a pressure relief valve for safer, gradual spreading and reset


• Supports long jobs with an insulated, anti-slip handle and thickened cylinder design

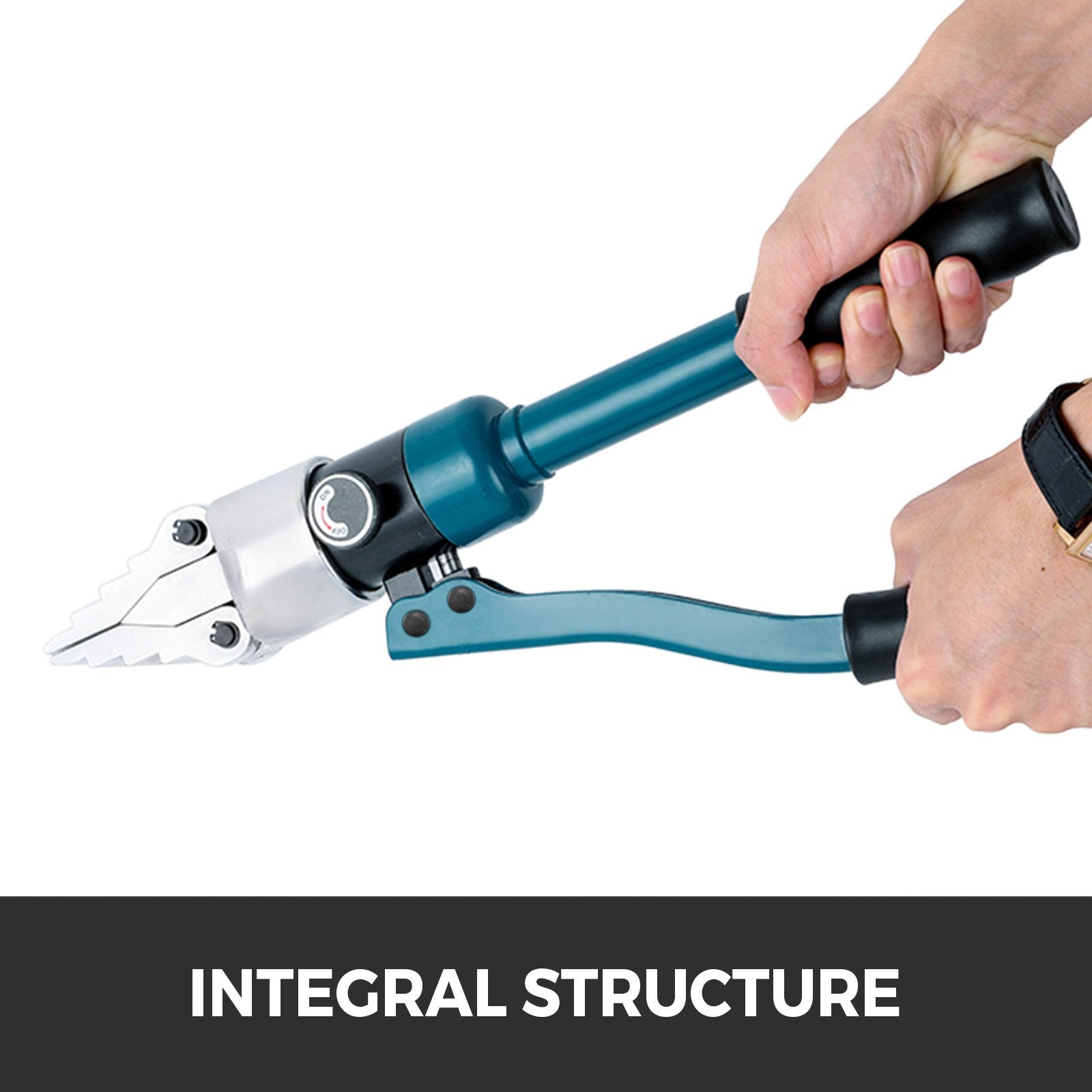

Built for field and shop use, this wedge-type flange separator combines an alloy steel, heat-treated head with a thickened hydraulic cylinder to apply steady spreading power where mechanical wedges or hammers can damage surfaces. The integrated structure keeps setup simple—insert the tip, pump to spread, then relieve pressure to retract. Ideal for maintenance teams, pipefitters, and industrial service work that demands repeatable flange separation without overexertion. Grab yours today and keep your flange work moving.

• Type: Manual hydraulic, integral split design


• Rated force: 8 ton


• Wedge tip thickness: 9 mm (0.35 in)


• Maximum expansion/opening: 30 mm (1.18 in)


• Max spreading stroke: 20 mm (0.79 in)


• Head material: Alloy steel (heat-treated)


• Features: Pressure relief valve, thickened cylinder, insulated anti-slip handle
