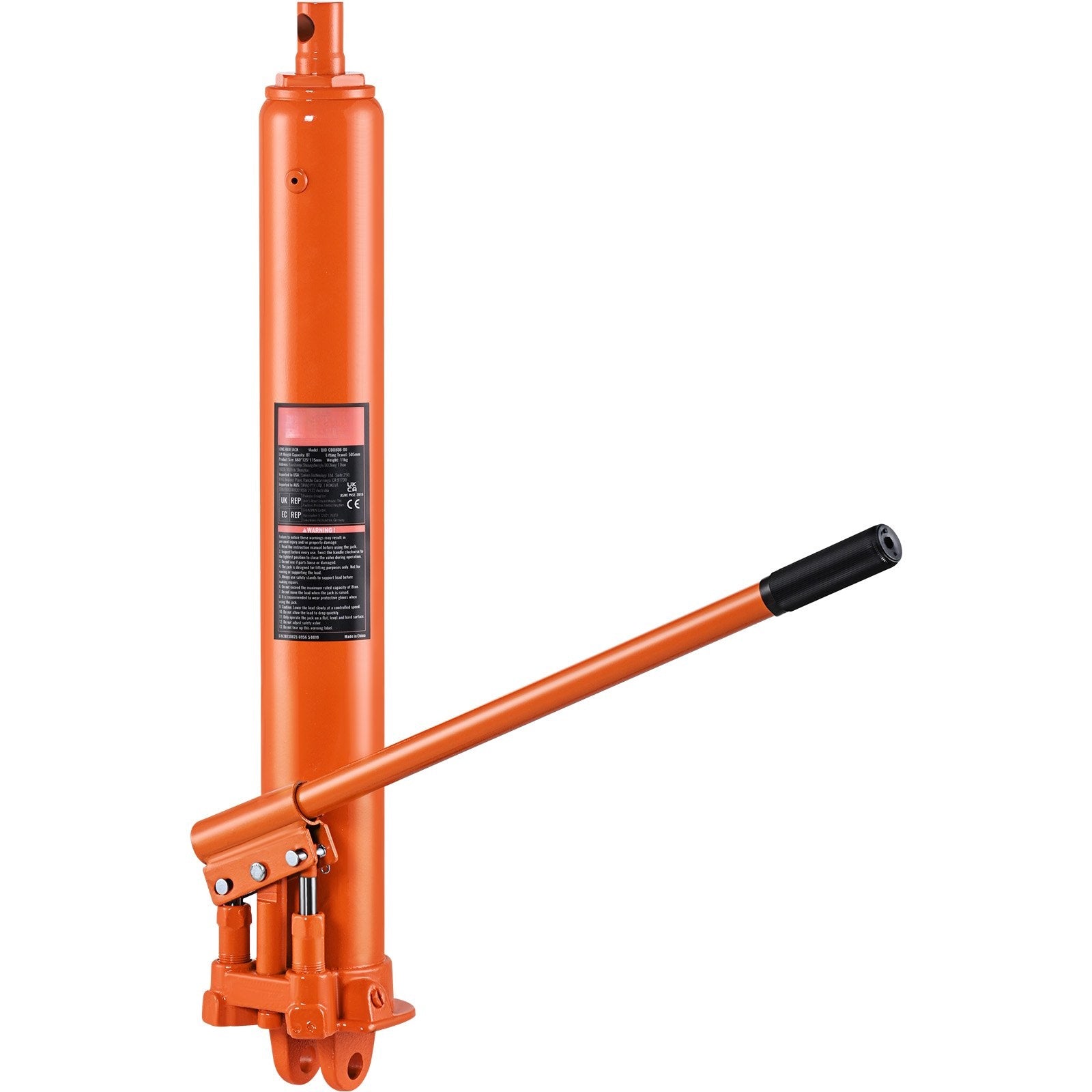

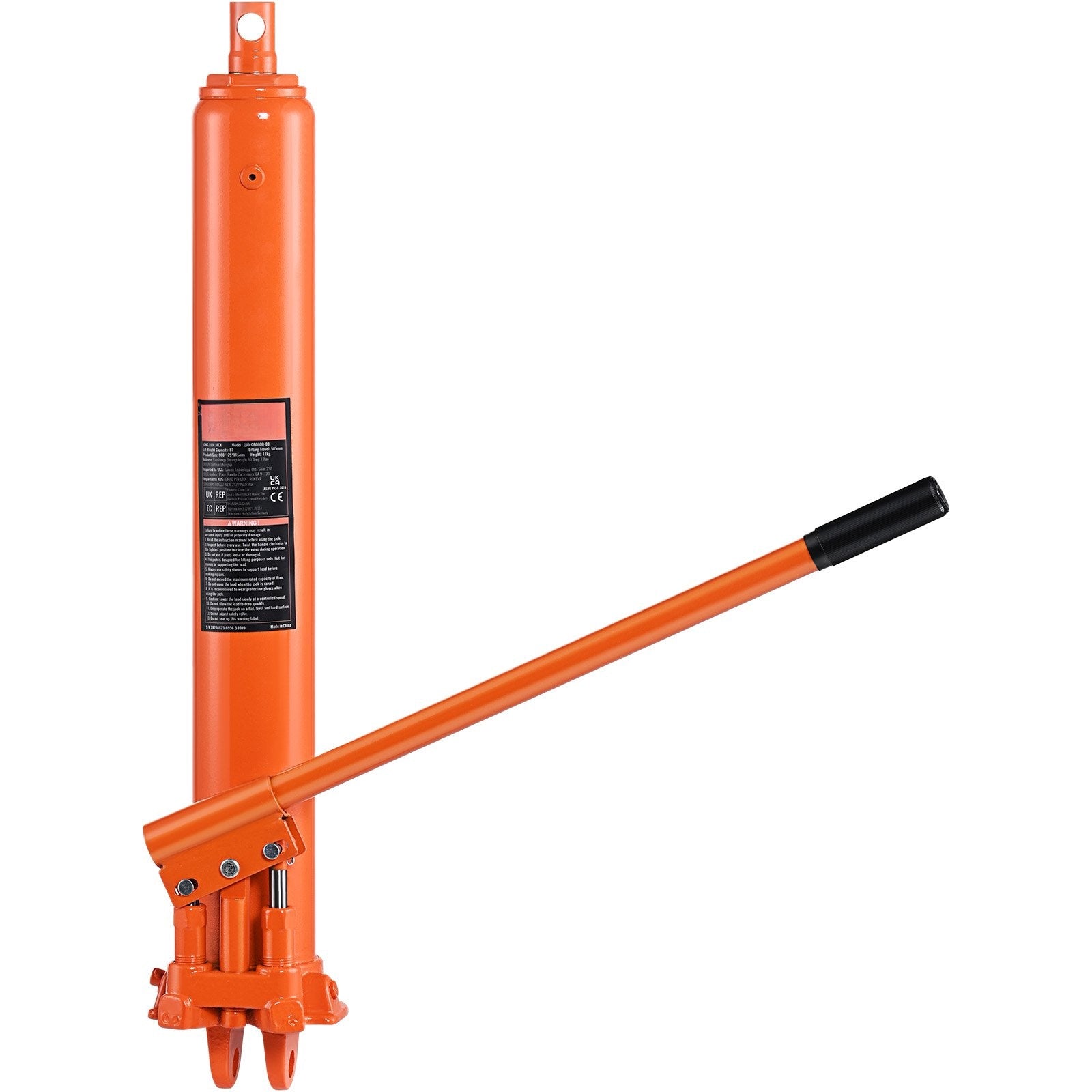

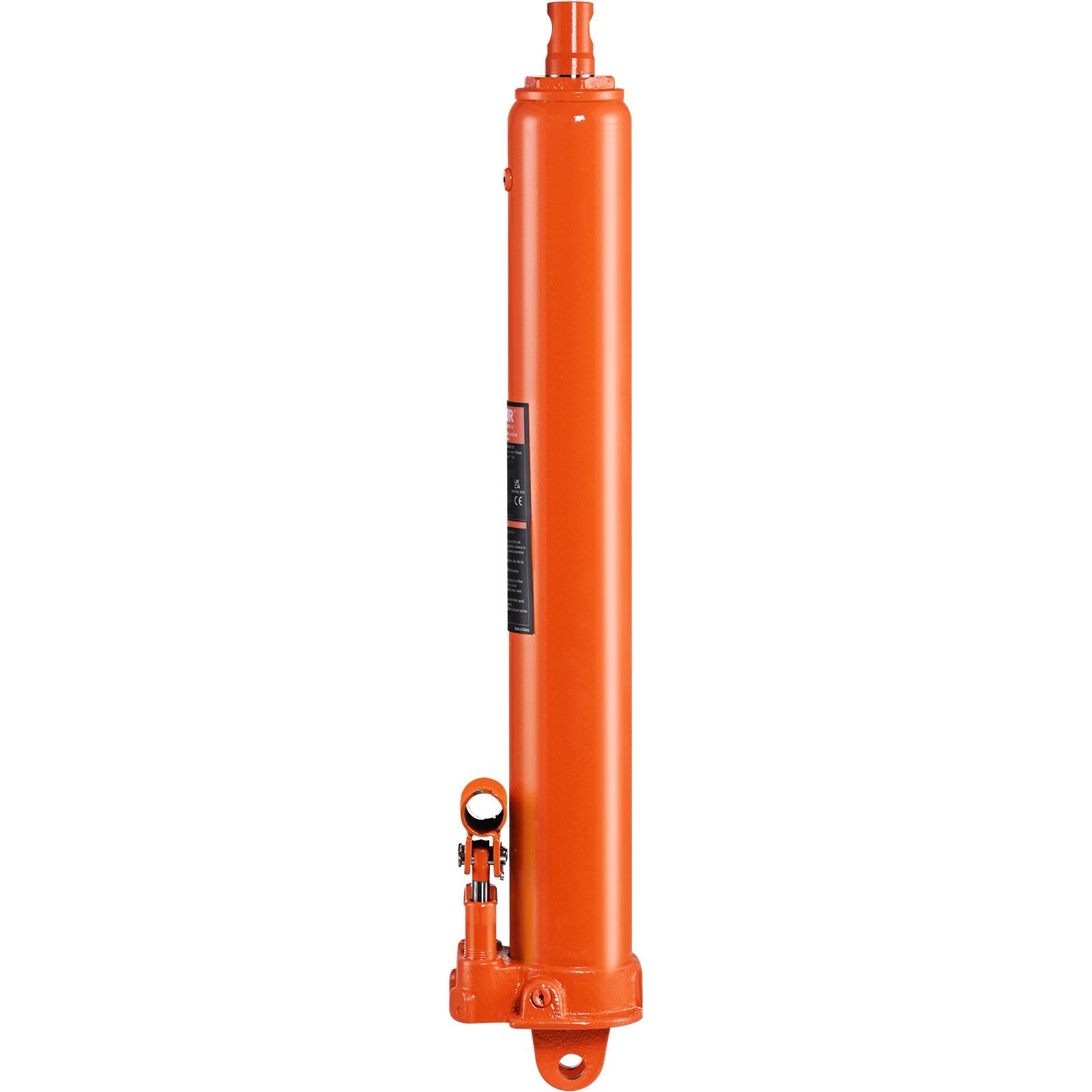

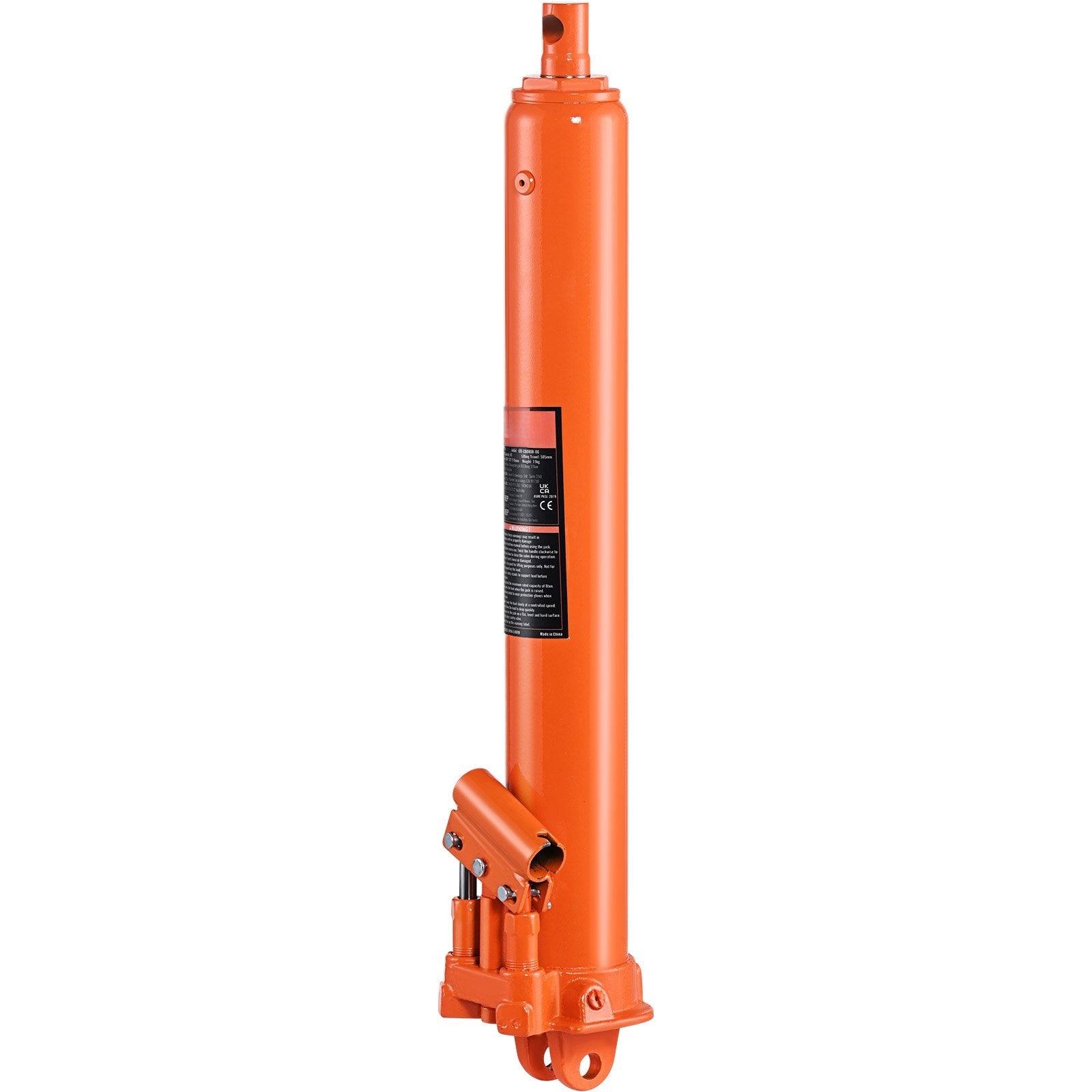

Hydraulic Long Ram Jack 8 Ton, Engine Hoist Clevis Base

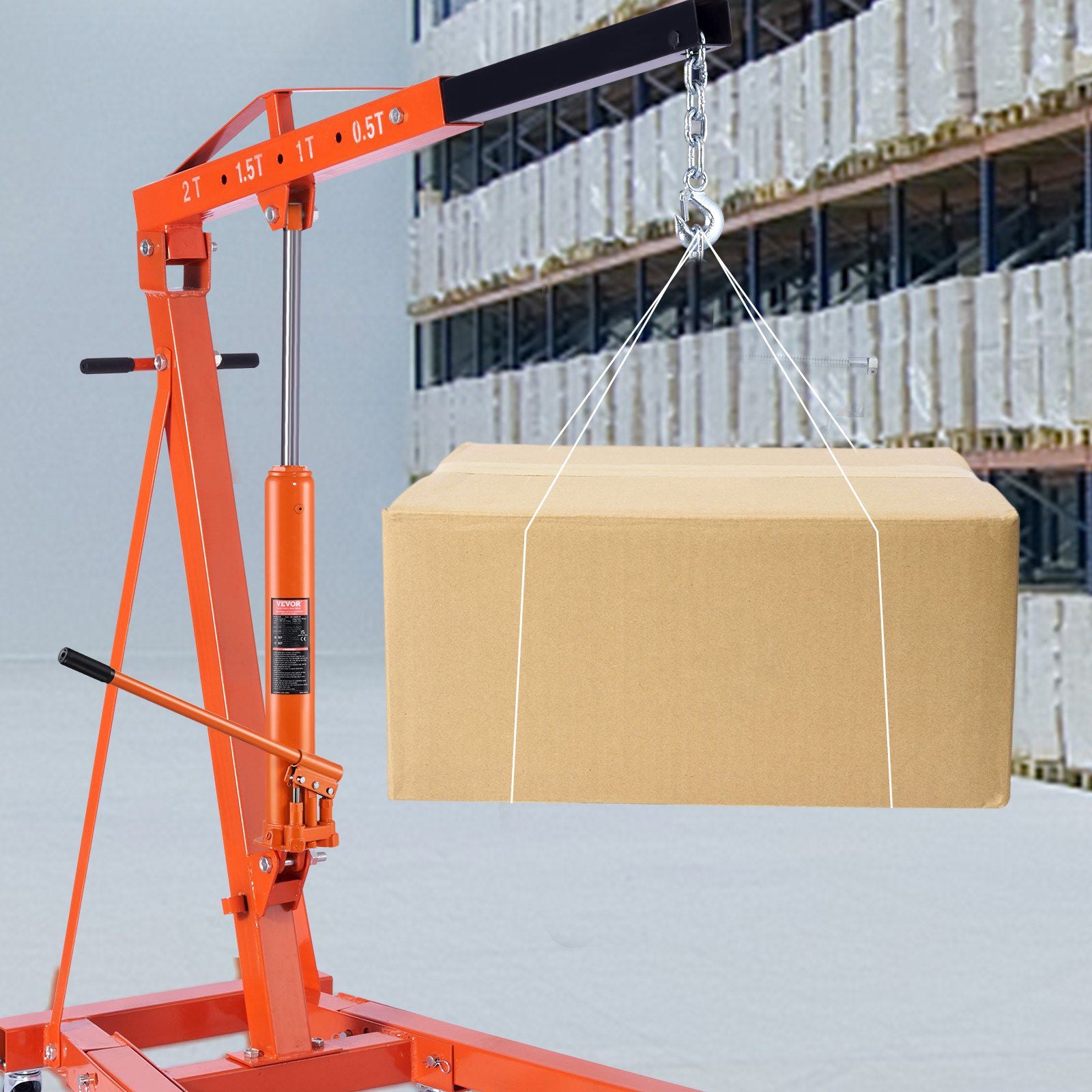

Hydraulic long ram jack delivers controlled, high-capacity lifting for engine hoists and shop cranes, with a slow-release function for safer lowering. Built for workshop, farm, and mechanical lifting tasks, it combines an 8-ton (17,600 lb) load rating with an adjustable lift range to handle heavy engines and equipment. Durable steel construction with a hard chrome-plated finish supports wear resistance, while the double piston pump design helps reduce effort during operation.

• Delivers 8-ton/17,600 lb lifting power for engine lift hoists, garage cranes, and shop equipment


• Adjusts height from 26" to 45.67" (660–1160 mm) with a 19.7" (500 mm) lifting stroke


• Controls lowering via slow-release for steady descent and safer load handling


• Protects with oil bypass and overload valves to help prevent overload-related damage


• Mounts securely using a clevis base for direct fit on compatible crane/hoist assemblies

Designed for frequent lifting in workshops and maintenance bays, this hydraulic ram cylinder focuses on predictable performance and long service life. The large-diameter hydraulic cylinder helps reduce oil pressure requirements to minimize wear, while the Y-shaped seal ring and plunger design help limit oil bypass and unintended settling under load. A handle with rubber grip improves control during pumping and positioning. Choose this long ram jack when you need an engine hoist cylinder that installs easily and lifts with confidence—grab yours today.

• Load capacity: 8 T / 17,600 lb


• Min height: 26 in / 660 mm


• Max height: 45.67 in / 1,160 mm


• Lifting stroke: 19.7 in / 500 mm


• Piston rod OD: 1.2 in / 30 mm


• Material: #45 steel; hard chrome-plated surface


• Base type: Clevis base


• Product dimensions: 26 × 4.9 × 4.5 in (660 × 125 × 115 mm)


• Net weight: 23.26 lb / 10.55 kg
