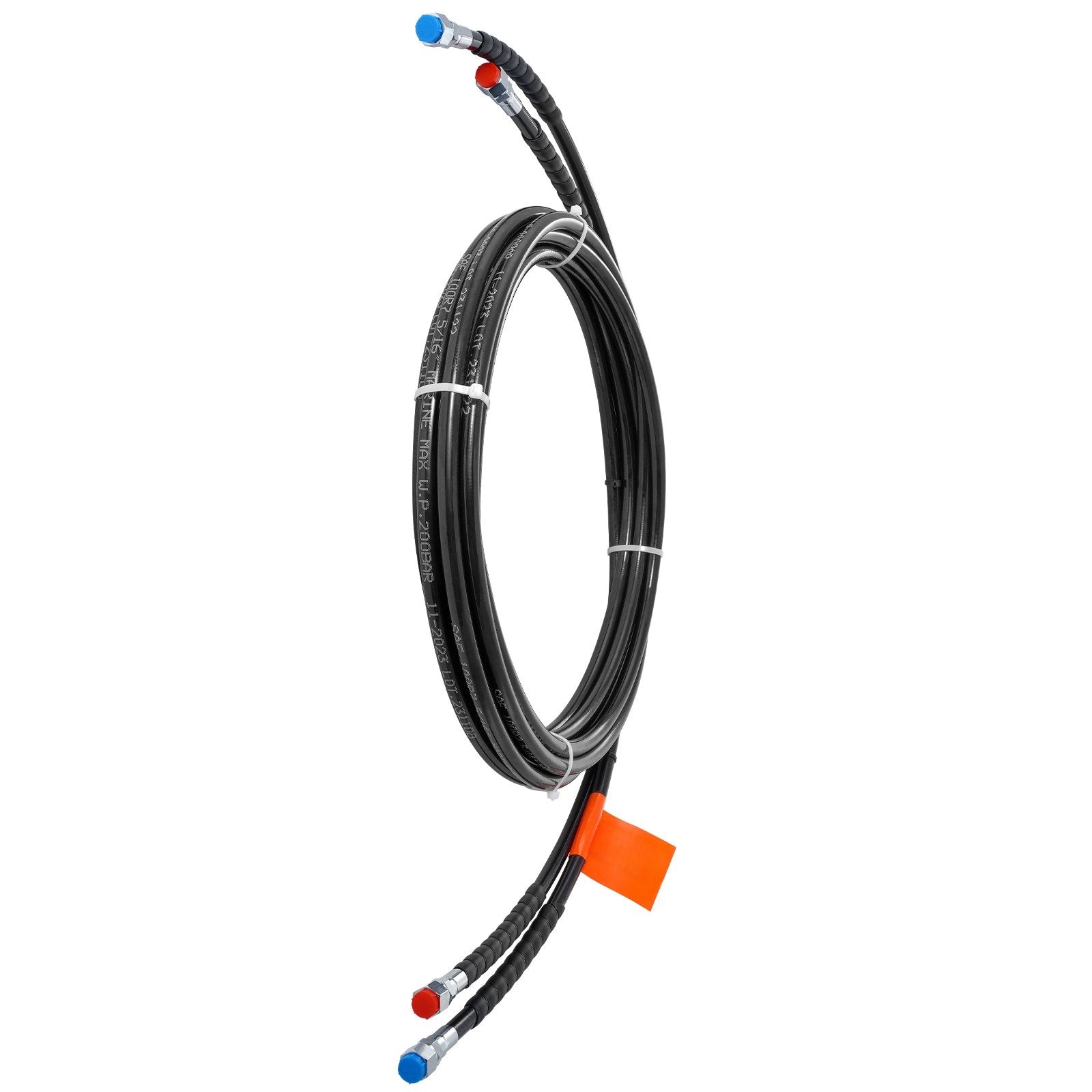

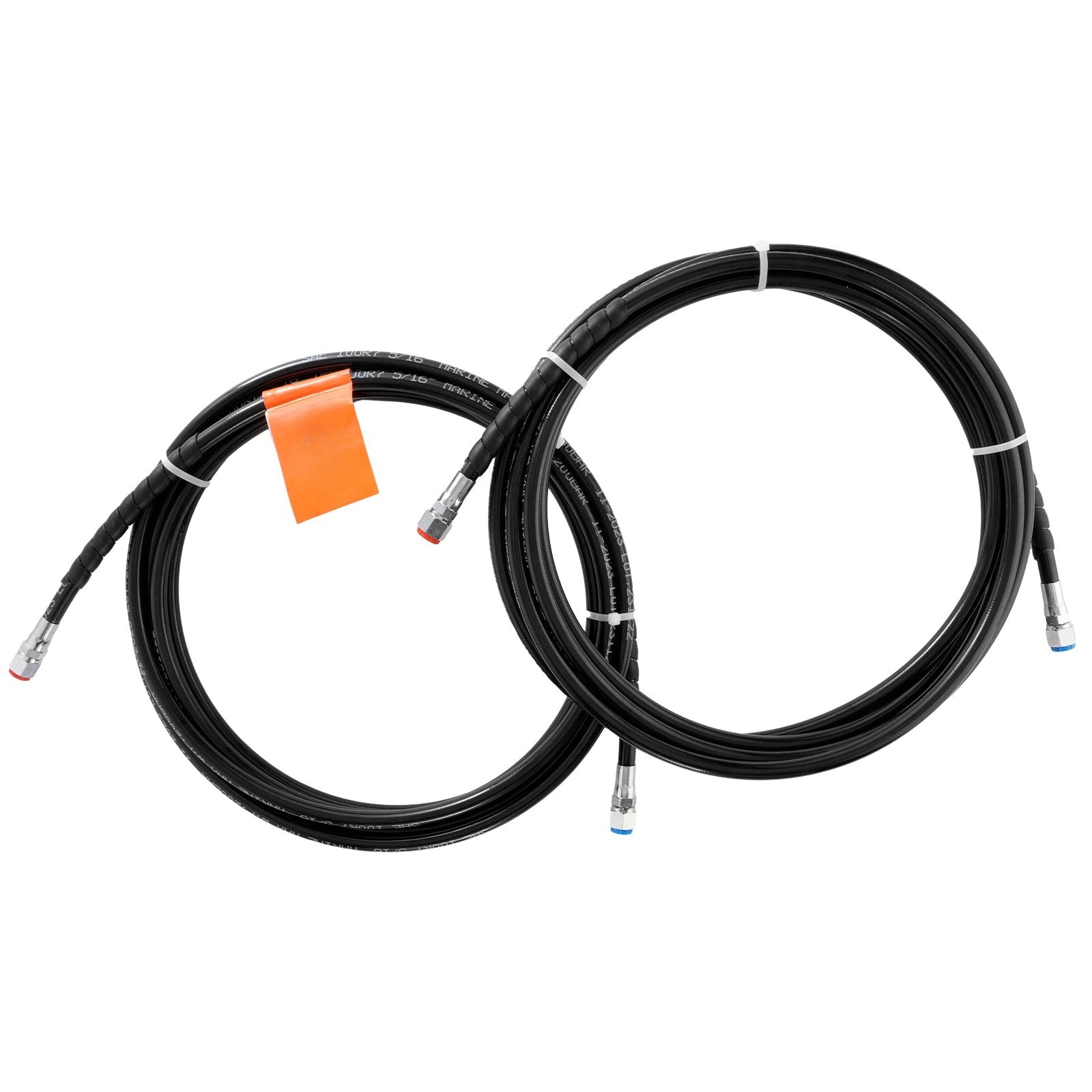

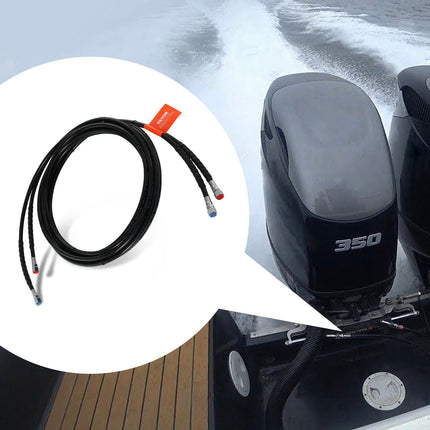

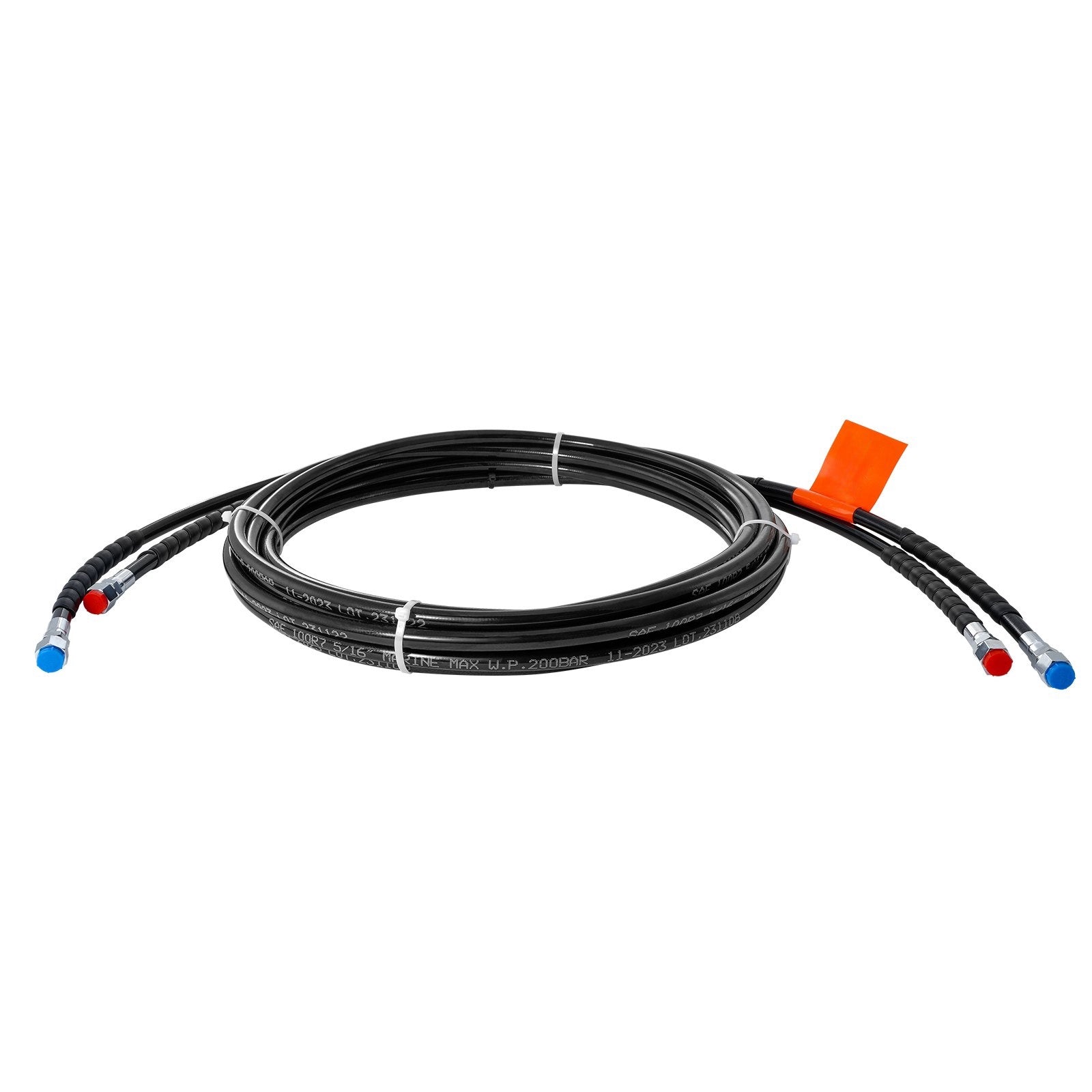

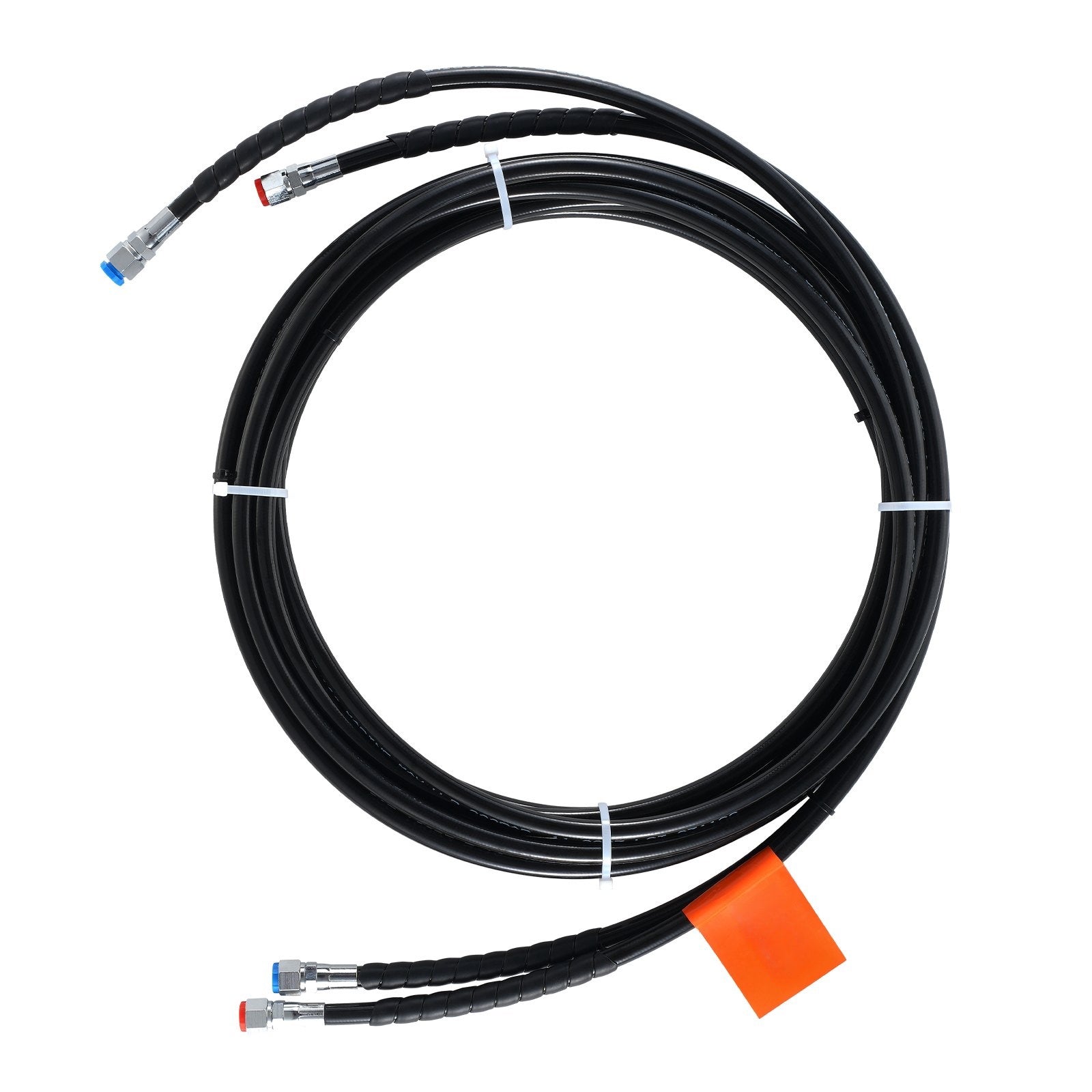

Hydraulic Steering Hose Kit, 2 x 20 Ft, Up to 300 HP

Hydraulic steering hose kit extends your rigging reach with two 20 ft lines for cleaner routing and reliable steering response on marine outboard systems up to 300 HP. Built for high-pressure hydraulic oil transfer, these TPEE boat hoses help reduce leak risk under load while staying flexible for tight bilge runs. SAE J516 standard interfaces and precise threads are designed for a secure fit, helping prevent cross-threading during replacement or new installs.

• Delivers 20 MPa pressure capacity for stable hydraulic flow and responsive steering feel


• Includes 2 matched 20 ft hoses to increase routing flexibility and operating space


• Fits SAE J516 interfaces with 9/16"-18 UNF threads for tight, accurate connections


• Resists corrosion with brass fittings and marine-ready materials for harsh saltwater use


• Simplifies installs with connectors pre-fitted on both ends; measure hose length before swap

When steering hoses are too short, kinked, or prone to seepage, control and confidence can drop fast—especially in rough water. This 2-piece hydraulic hose set is designed for outboard steering repairs and upgrades where dependable pressure handling and leak-resistant connections matter. The flexible TPEE construction supports cleaner runs around obstacles, while brass interfaces help stand up to rust and corrosion. Replace worn lines, refresh your hydraulic steering system, and get back on the water with a fit-focused solution—grab yours today.

• Hose length: 20 ft (6090 ± 50 mm) each, excluding connector length


• Quantity: 2 hoses


• Outer diameter: 0.52 in (13.2 ± 0.2 mm)


• Max pressure: 20 MPa


• Connection standard: SAE J516


• Thread: 9/16"-18 UNF


• Material: TPEE hose; brass interfaces


• Compatible power: marine hydraulic outboard steering systems up to 300 HP


• Net weight: 3.1 lb (1.4 kg)
