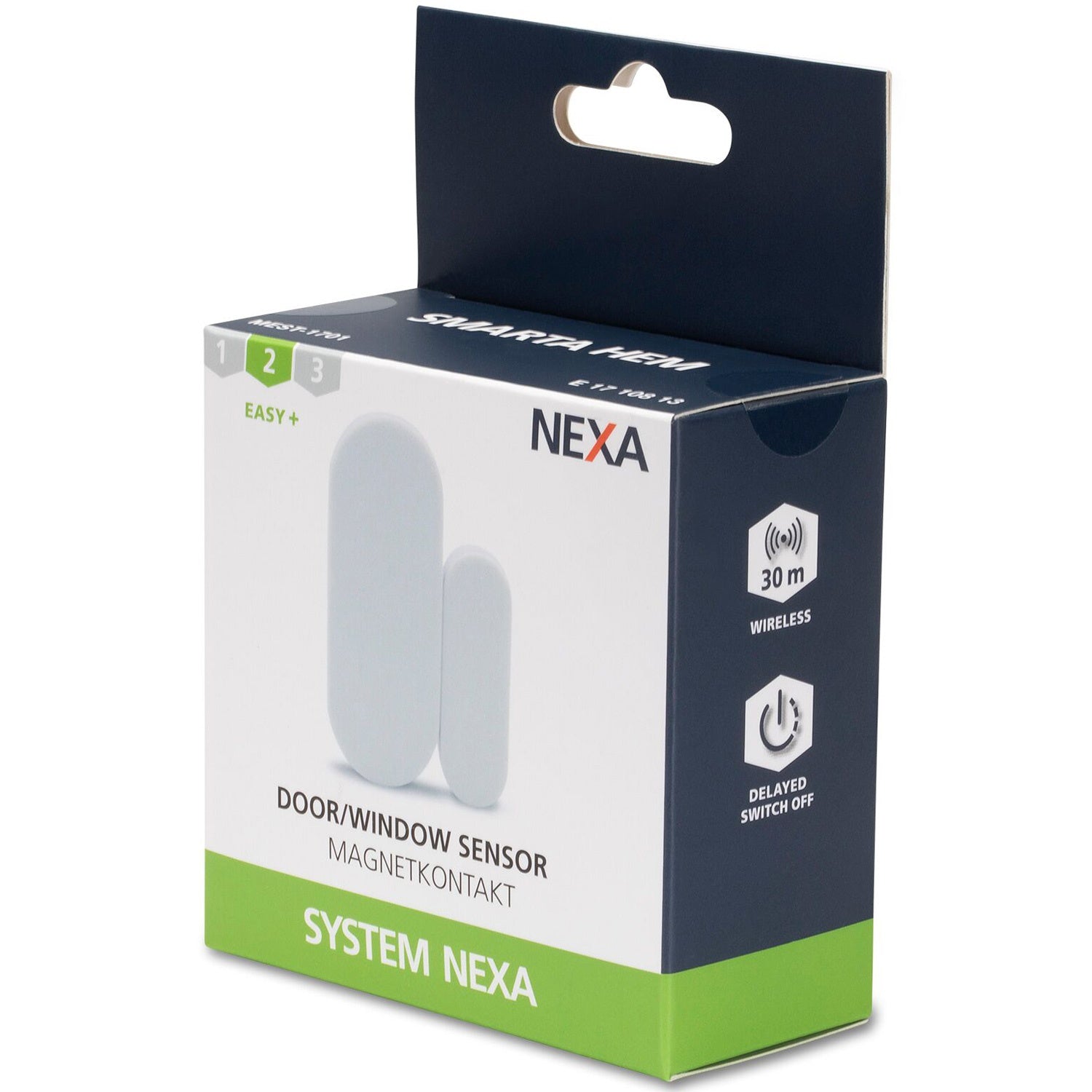

MEST-1701 Magnetic contact
- Item number: 10227786187079
Product information

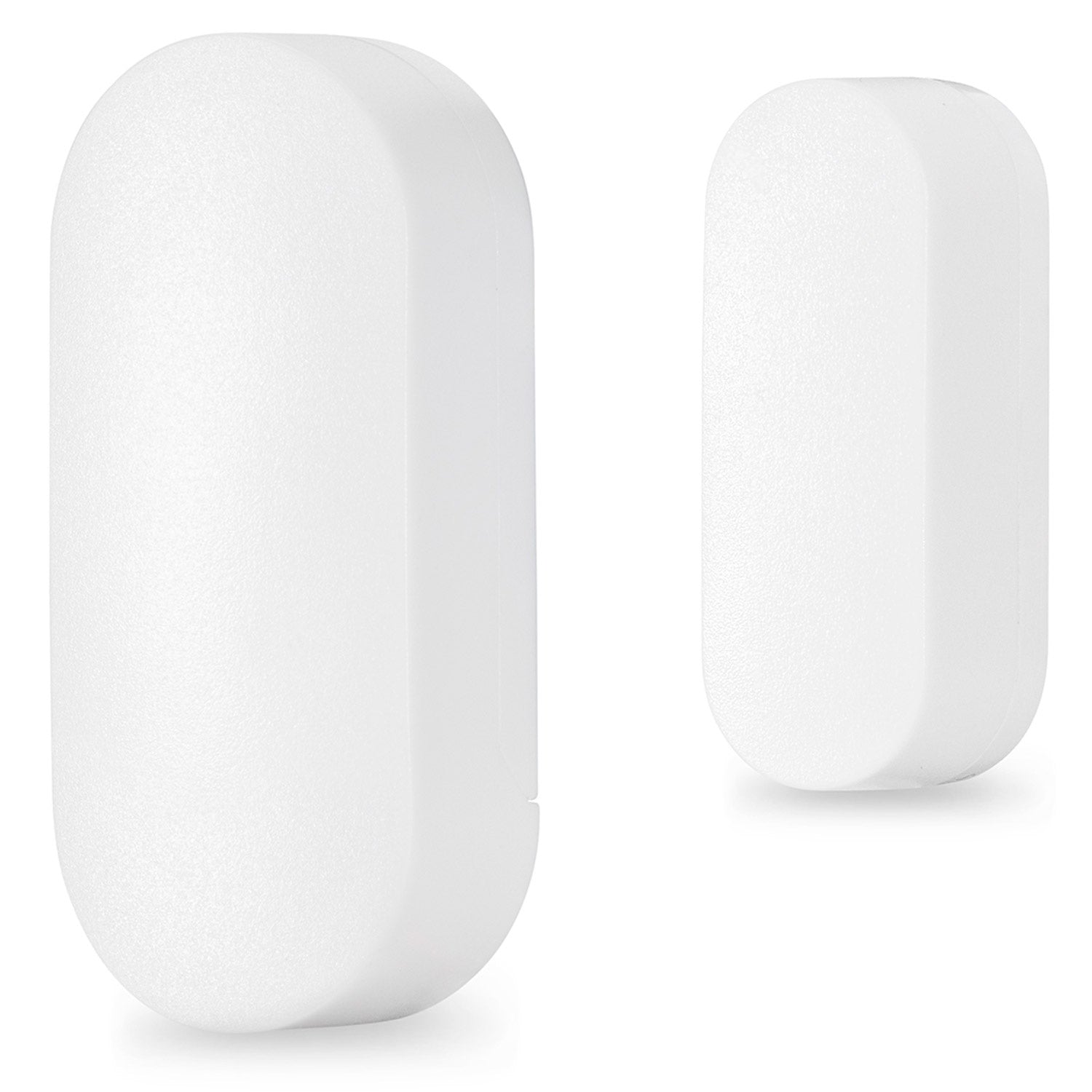

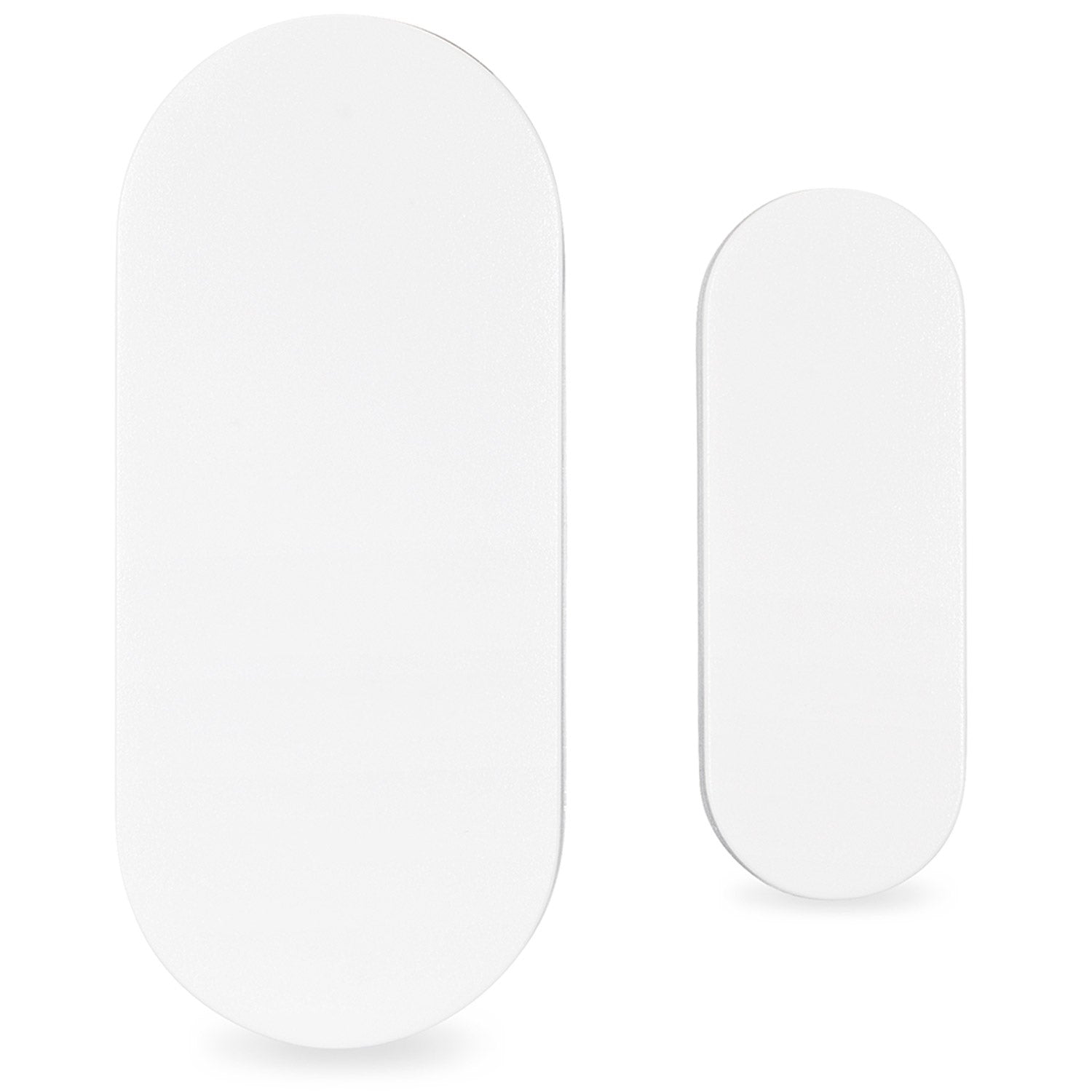

MEST-1701: Magnetic contact for indoor use
Sends a wireless signal, in the same way as a regular remote control. When the magnetic contact is broken, an ON signal is sent to the connected receiver and when the magnetic contact is closed again, an OFF signal is sent to the connected receiver. It is also possible to invert the function (ie OFF signal when breaking and ON signal when closing).

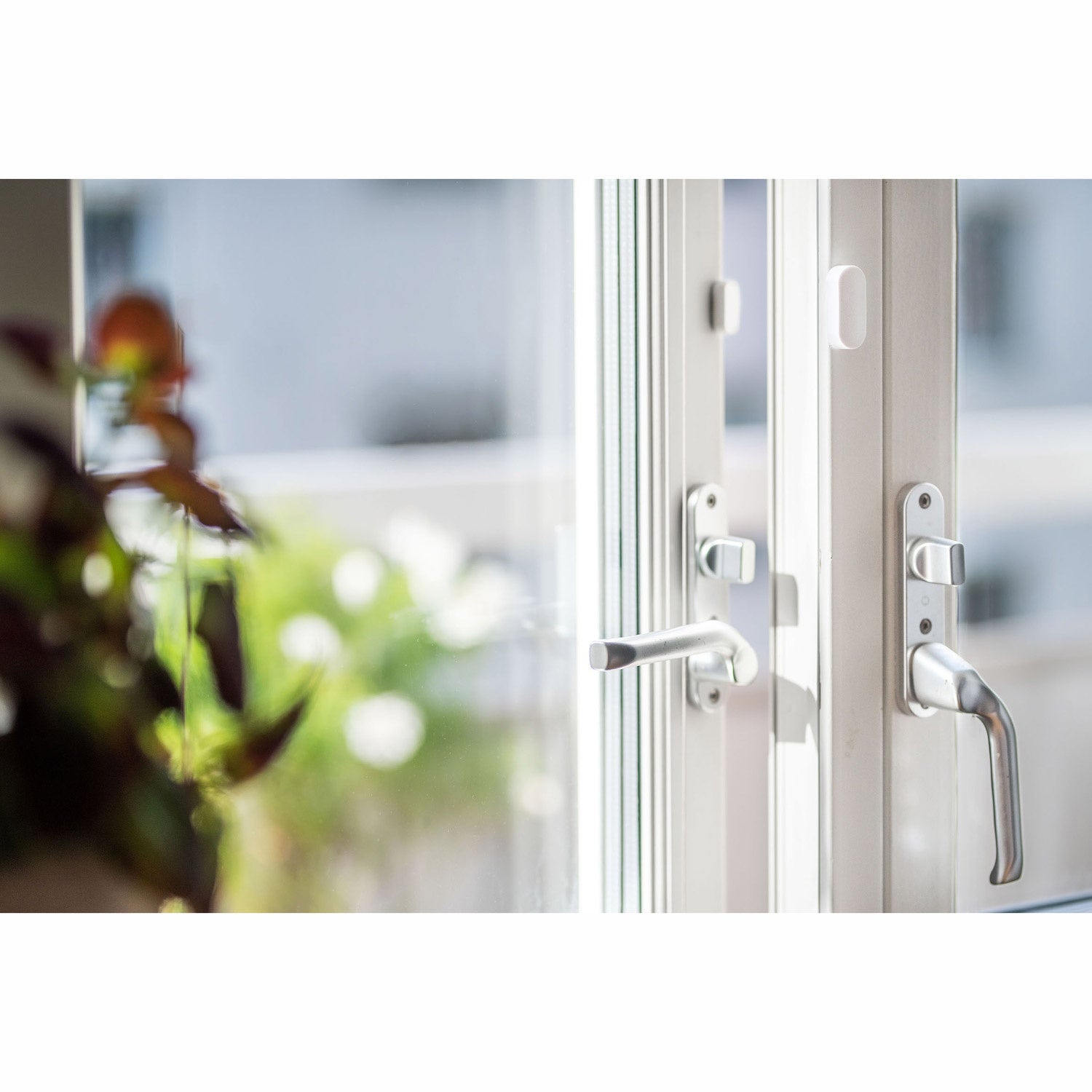

It is also possible to timer control the connection between magnetic contact and receiver. The magnetic contact can be mounted in a horizontal or vertical direction with double-sided tape or screwed into the substrate. Compatible with all self-learning receivers including Nexa wireless doorbells.
Not suitable for use with dimmer receivers.
- Timer function: 0/1/5/10 min
- Small and flexible
- Simple assembly
Specifications:
Power source: Battery: 1 x CR1632 (included)
Radio protocol / Frequency: System Nexa / 433, 92 MHz
Range: Up to 30 meters
Operating temperature: 0-50 °C
Shutdown timer: 0 / 1 / 5 / 10 minutes
Dimensions W x H X D: Sensor: 20 x 46 x 12 mm Magnet: 12 x 32 x 11.5 mm
E-number: 1710813
