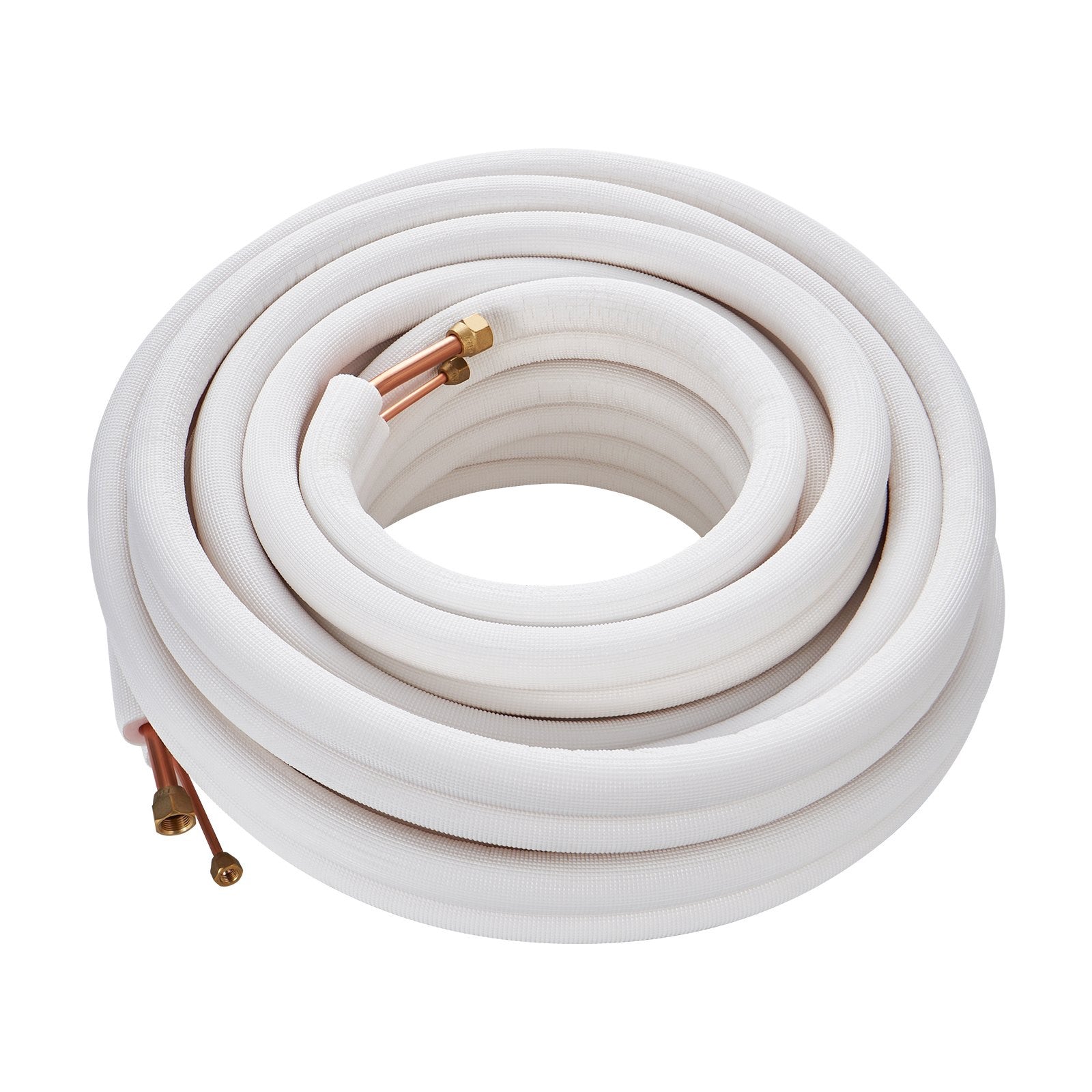

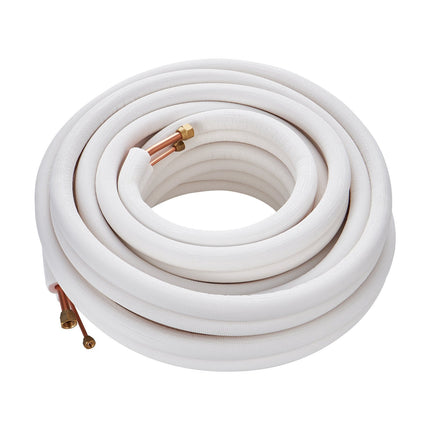

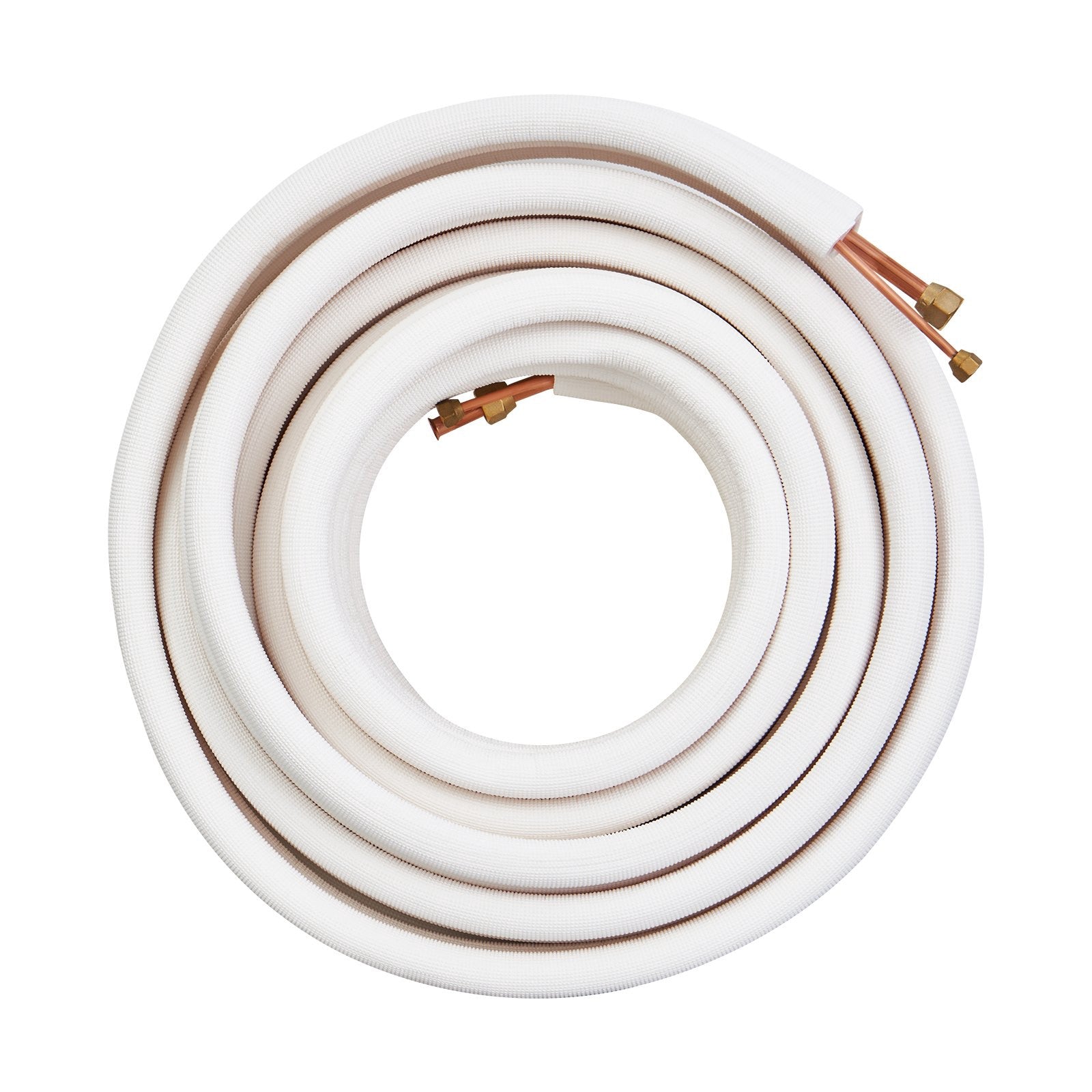

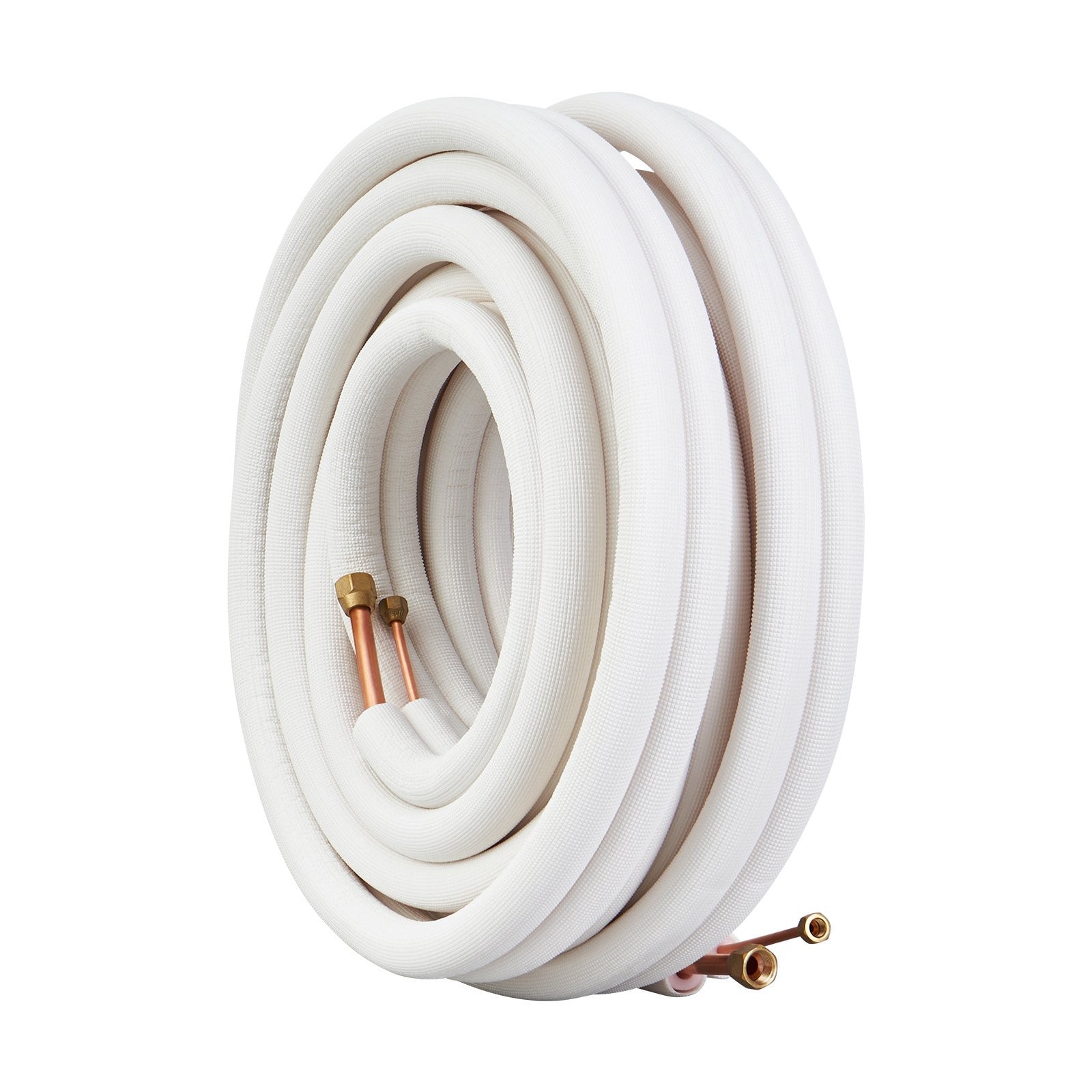

Mini Split Line Set 50 Ft, 1/4 x 1/2 Copper, Insulated

Mini split line set 50 ft delivers a clean, insulated connection between indoor and outdoor units for efficient refrigerant flow and easier HVAC installs. This dual copper tubing set includes 1/4 in and 1/2 in O.D. pipes with triple-layer insulation to help reduce energy loss and protect lines from moisture. Built for mini split air conditioners and heat pump systems where flexibility, durability, and a tidy finish matter.

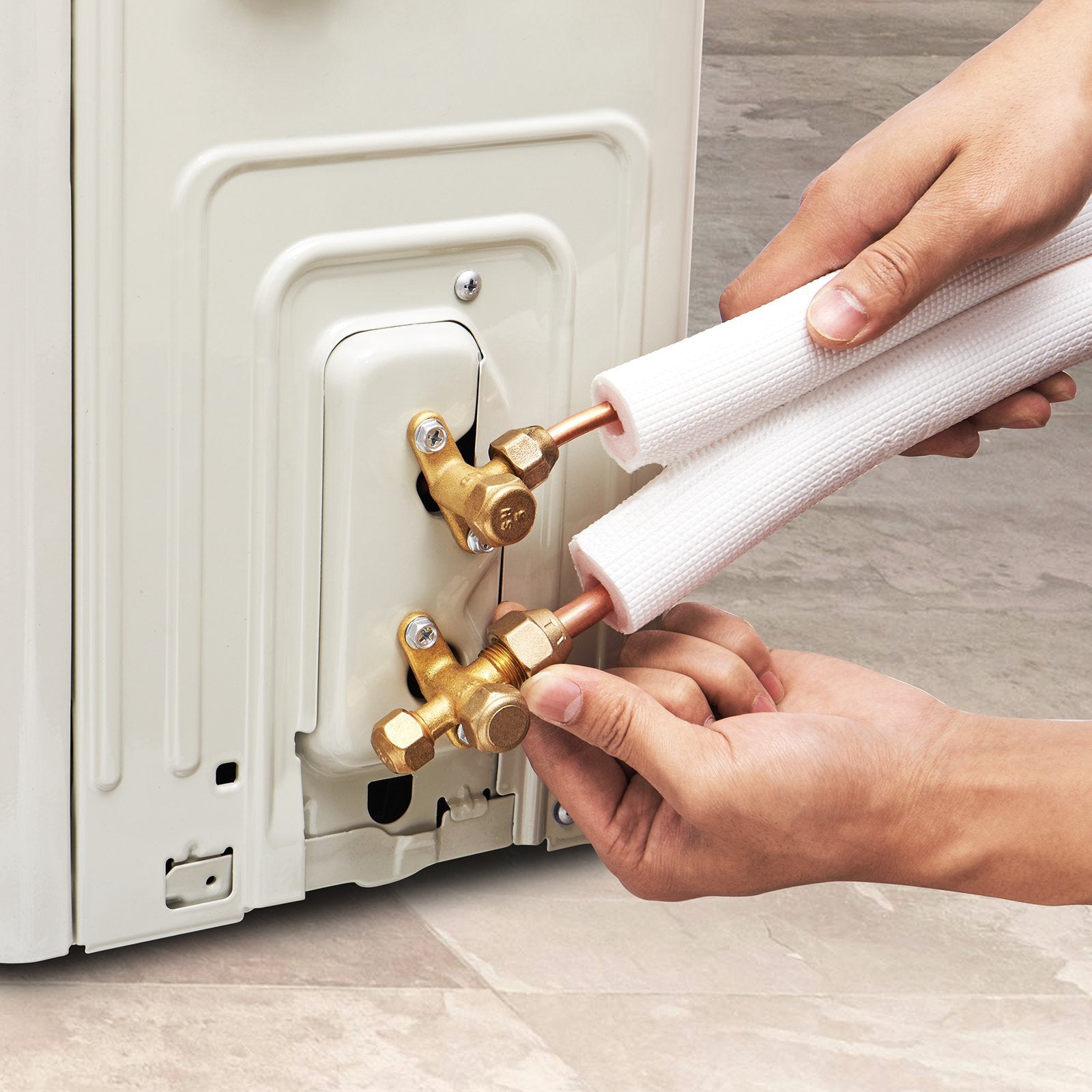

• Connect indoor/outdoor units with a 50 ft reach for longer-distance mini split and heat pump installs.


• Fits common systems by pairing 1/4 in (high-pressure) and 1/2 in (low-pressure) copper tubing.


• Resists kinks with thick-walled copper designed to hold shape during bending and routing.


• Protects lines with triple-layer insulation that helps block moisture and reduce heat transfer.

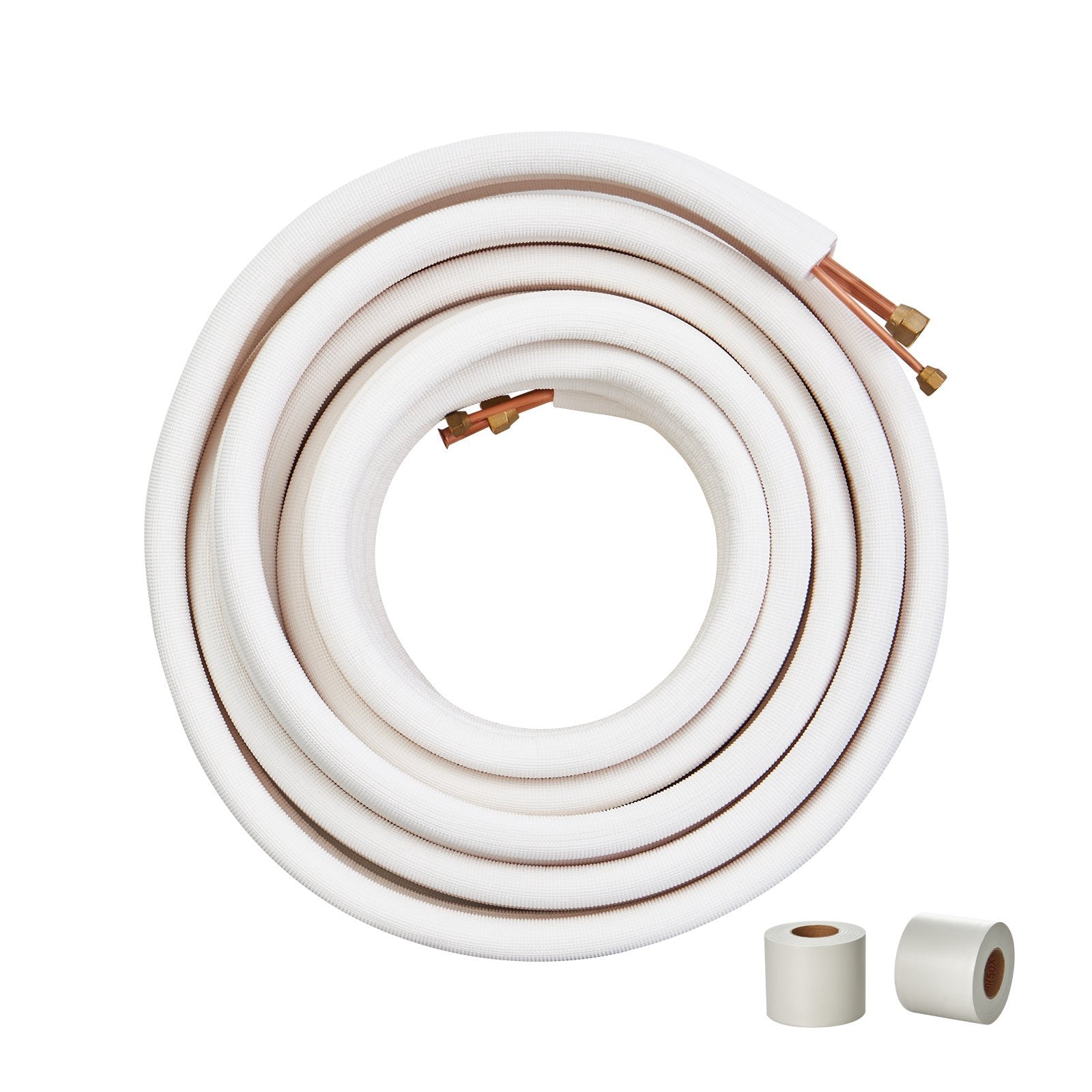

• Includes wrapping strips and 2 tie wraps to bundle, secure, and finish the run neatly.

Designed for quick-scan installers and DIY upgrades, this insulated copper line set helps streamline mini split AC and HVAC routing while keeping lines protected along the entire run. The pre-matched dual-pipe format supports typical 12,000–18,000 BTU mini split applications and reduces the hassle of sourcing separate tubing and insulation. Use it for new installs, replacements, or reroutes where flexibility and a clean wrap matter. Grab yours today and finish your line run with fewer interruptions.

• Line set length: 50 ft (15,240 mm)


• High-pressure pipe O.D.: 1/4 in (6.35 mm)


• Low-pressure pipe O.D.: 1/2 in (12.7 mm)


• Insulation: triple-layer


• Approx. net weight (with accessories): 13.33 lb (6.05 kg)


• Package size (L x W x H): 21.65 x 21.65 x 6.88 in (550 x 550 x 175 mm)


• Recommended application: mini split AC / heat pump, typical 12,000–18,000 BTU systems


• Included accessories: wrapping strips, 2 tie wraps
