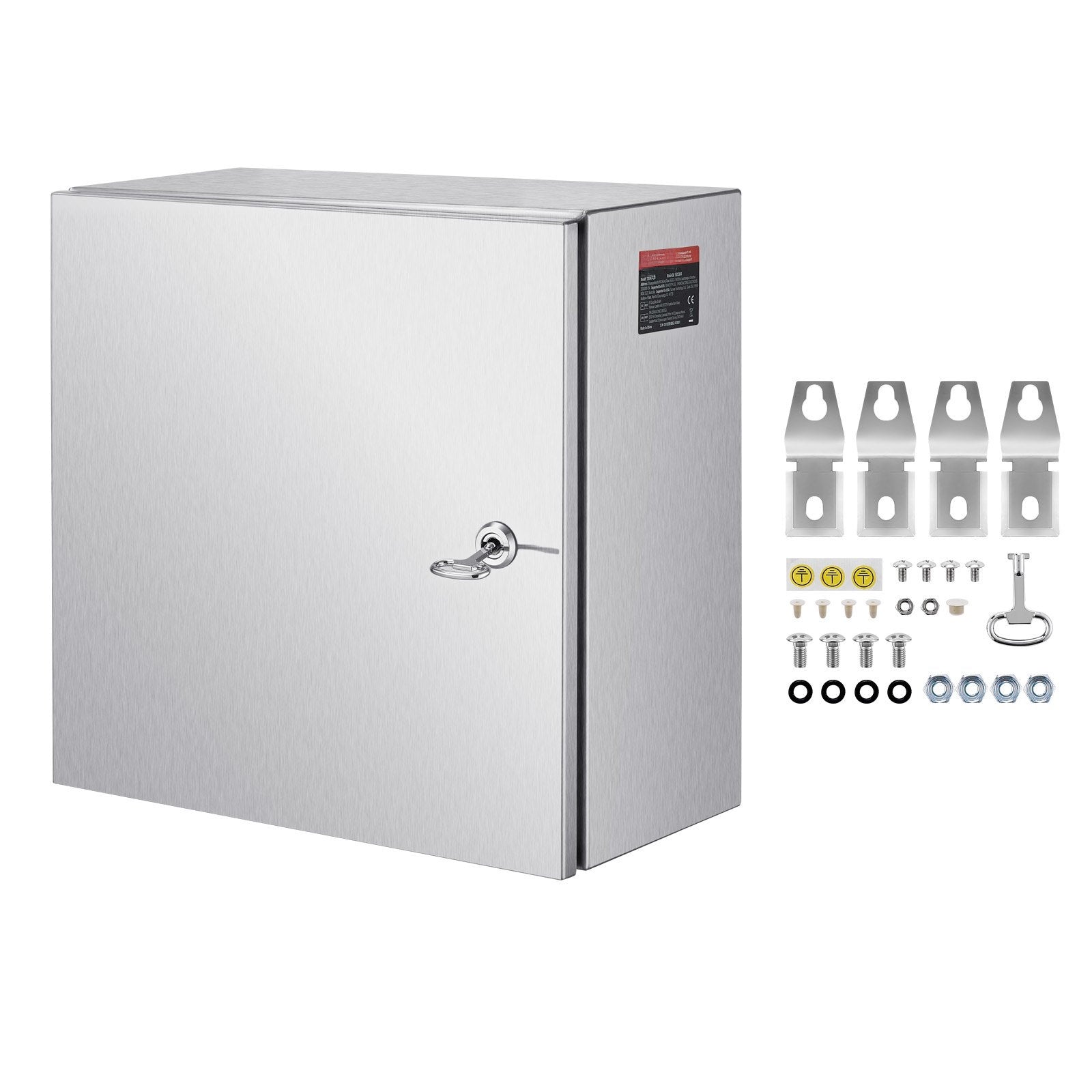

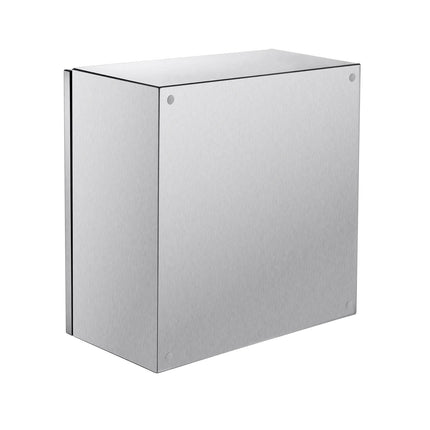

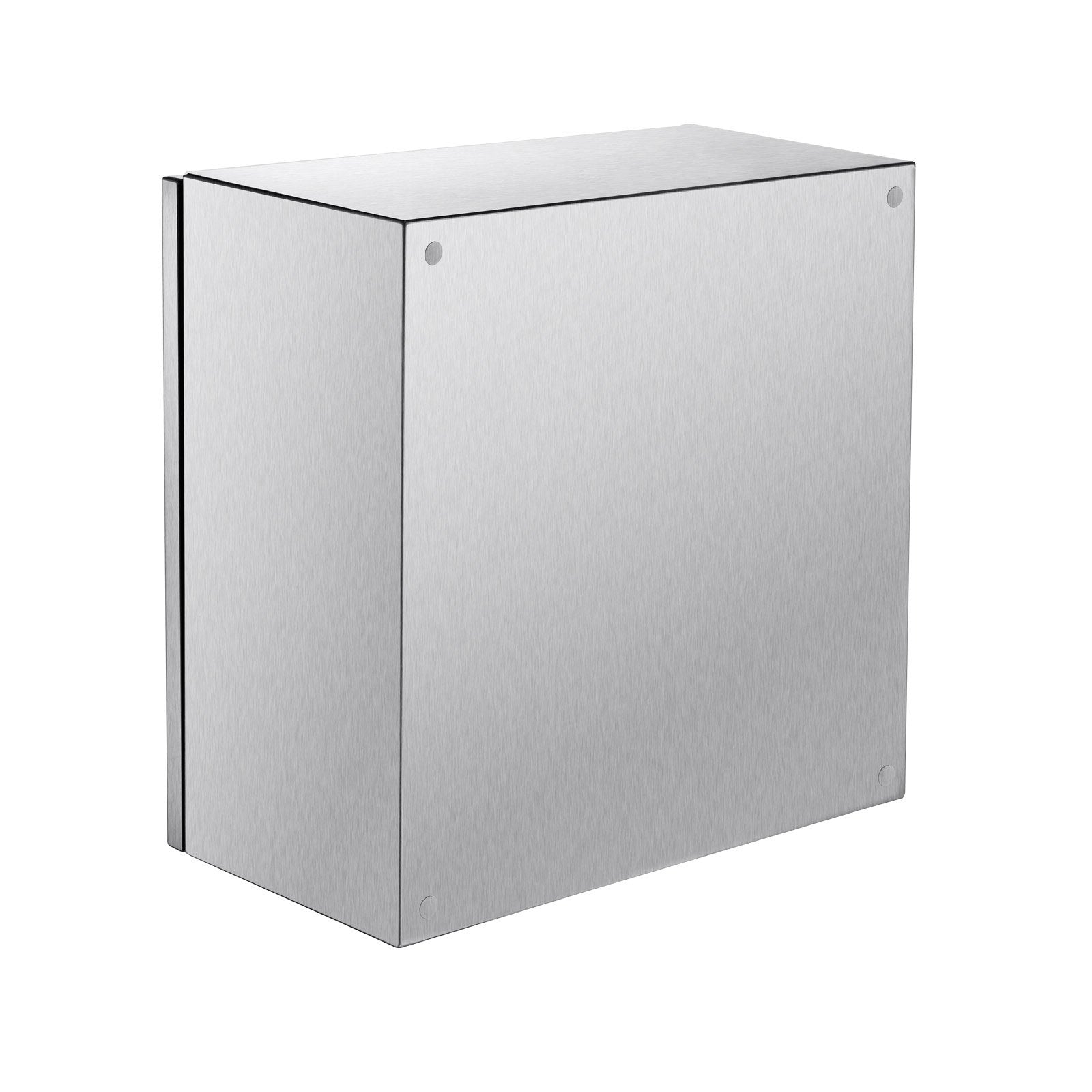

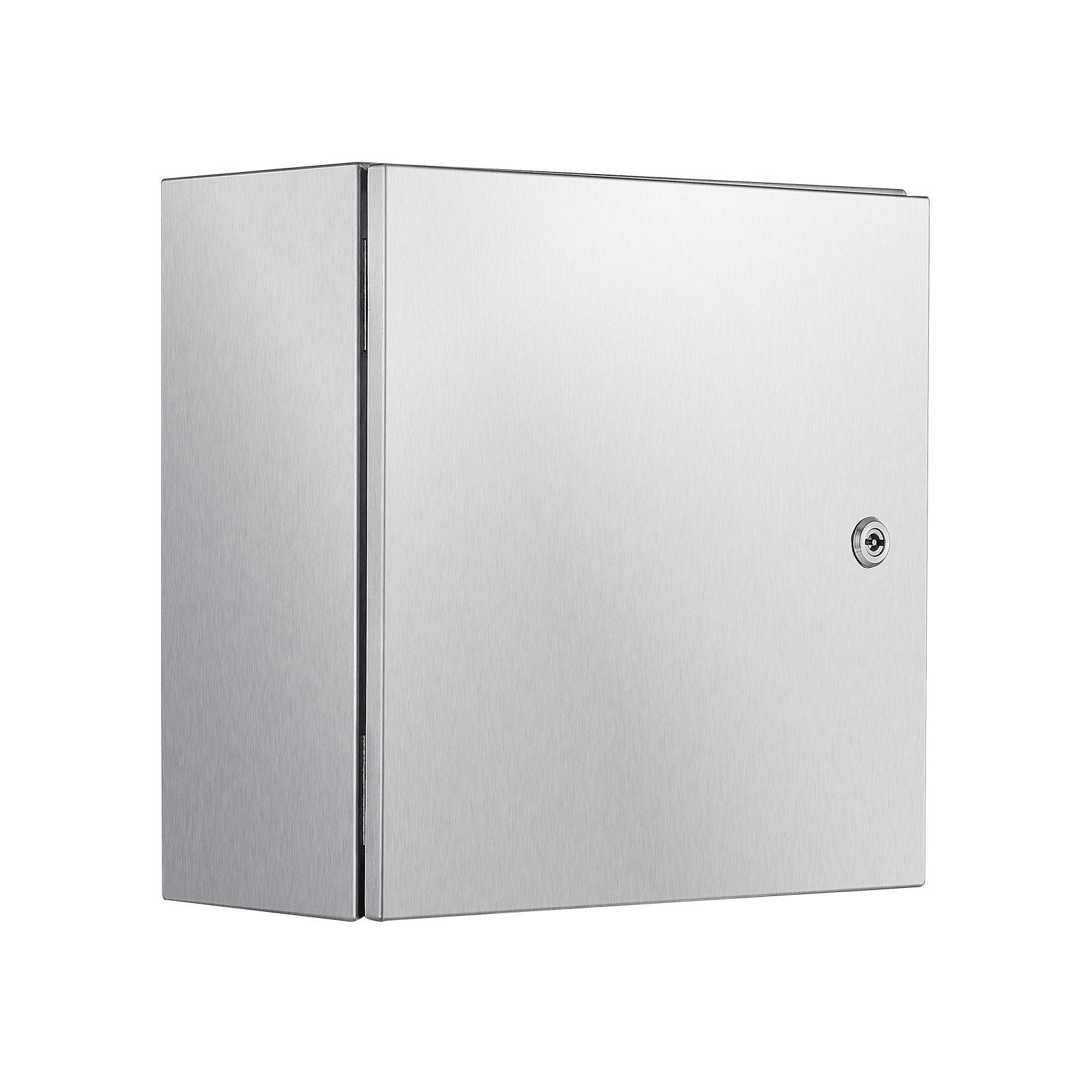

NEMA 4X 304 Stainless Enclosure 300x300x200mm, Mounting Plate

Stainless steel electrical enclosure helps protect controls and wiring from water, dust, and corrosion in demanding indoor/outdoor installs. Built from 1.5 mm SUS304 stainless steel with precision welded seams, it’s designed for harsh environments where a dependable NEMA 4X/IP66 junction box matters. A reinforced door, secure lock, and continuous gasket help keep contaminants out, while the removable galvanized mounting plate speeds component layout and service.

• Delivers NEMA 4X/IP66 protection to help keep rain, spray, and dust away from sensitive electrical components


• Resists corrosion with 1.5 mm SUS304 stainless steel construction for industrial, coastal, and washdown areas

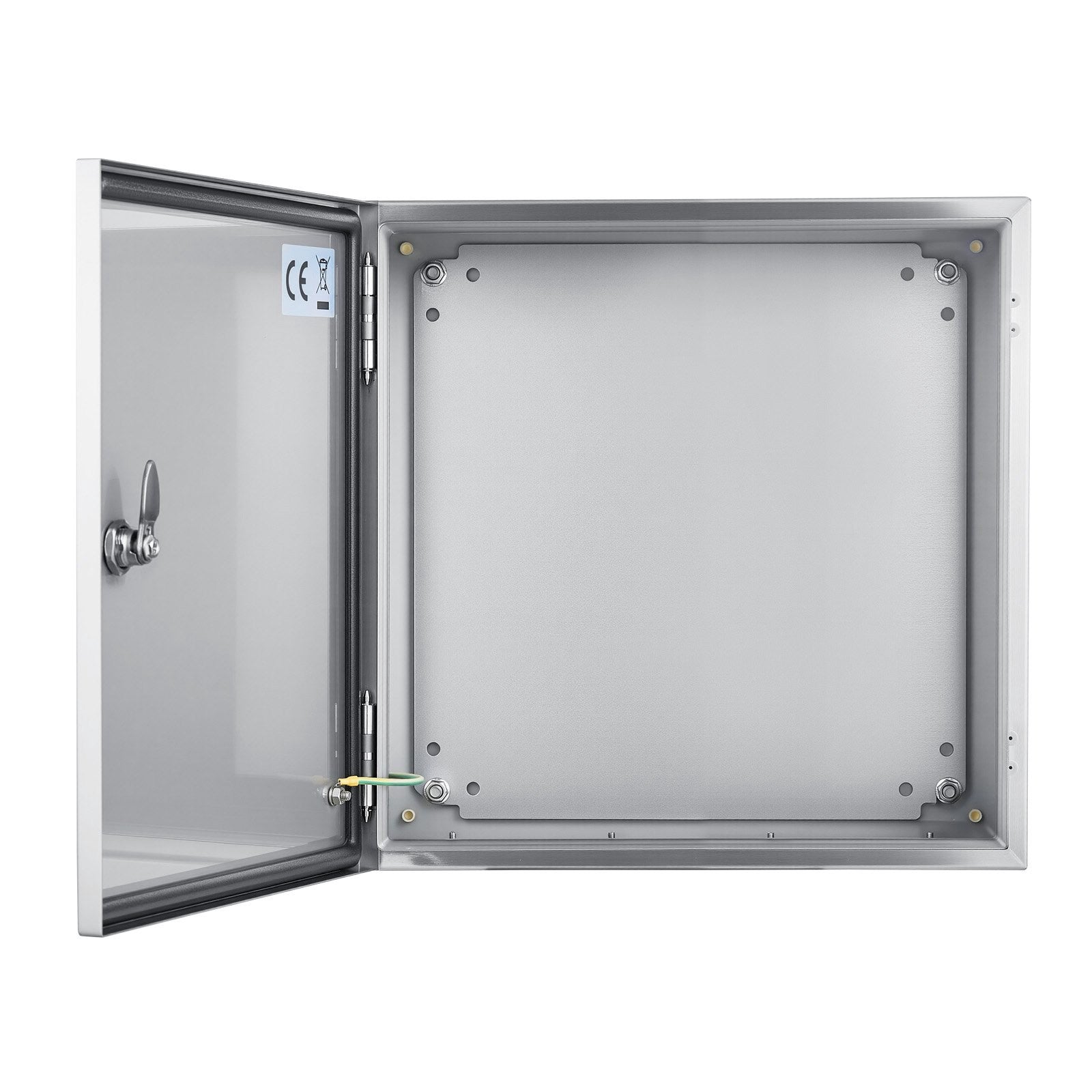

• Includes a removable galvanized mounting plate for faster installation of breakers, terminals, and DIN components


• Secures access with reinforced hinges and a lockable door to reduce tampering and accidental opening


• Supports clean wiring with smooth cutouts, bottom cable entry design, and pre-installed grounding screws

Set up a reliable control box without fighting cramped layouts or compromised seals. This wall-mount stainless steel junction box is sized for common automation, power distribution, and communications builds, with a rigid enclosure body that holds up to daily use. Use it in workshops, construction sites, utility rooms, or outdoor equipment areas where weather and dust are constant threats. Keep your next installation protected and service-ready—grab yours today and build with confidence.

• External size: 300 x 300 x 200 mm


• Material: SUS304 stainless steel


• Steel thickness: 1.5 mm (0.059 in)


• Protection rating: NEMA 4 / NEMA 4X / IP66

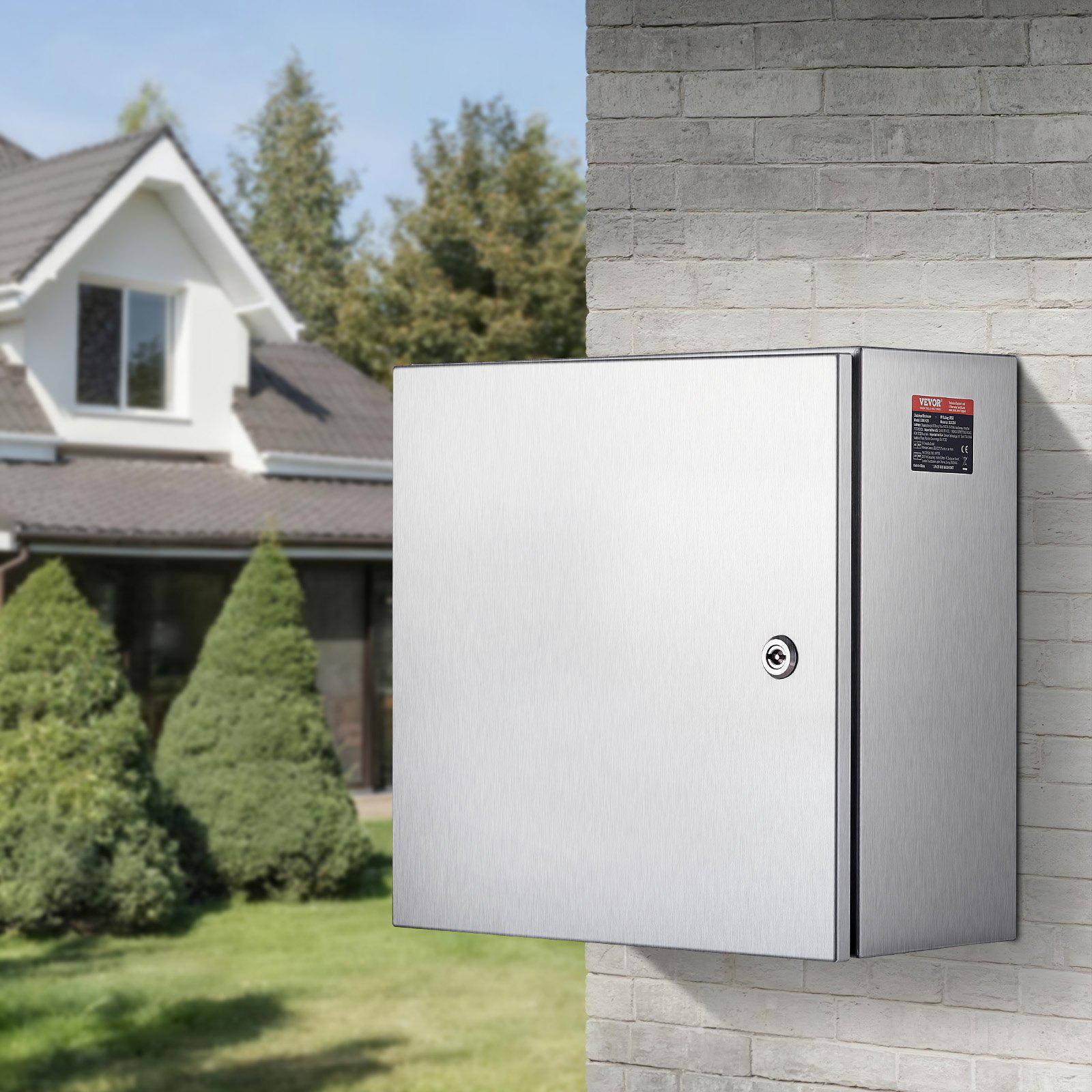

• Mounting: Wall-mounted; removable galvanized mounting backplate


• Features: Reinforced door, lock and hinge, sealing strip gasket, pre-installed grounding screws
