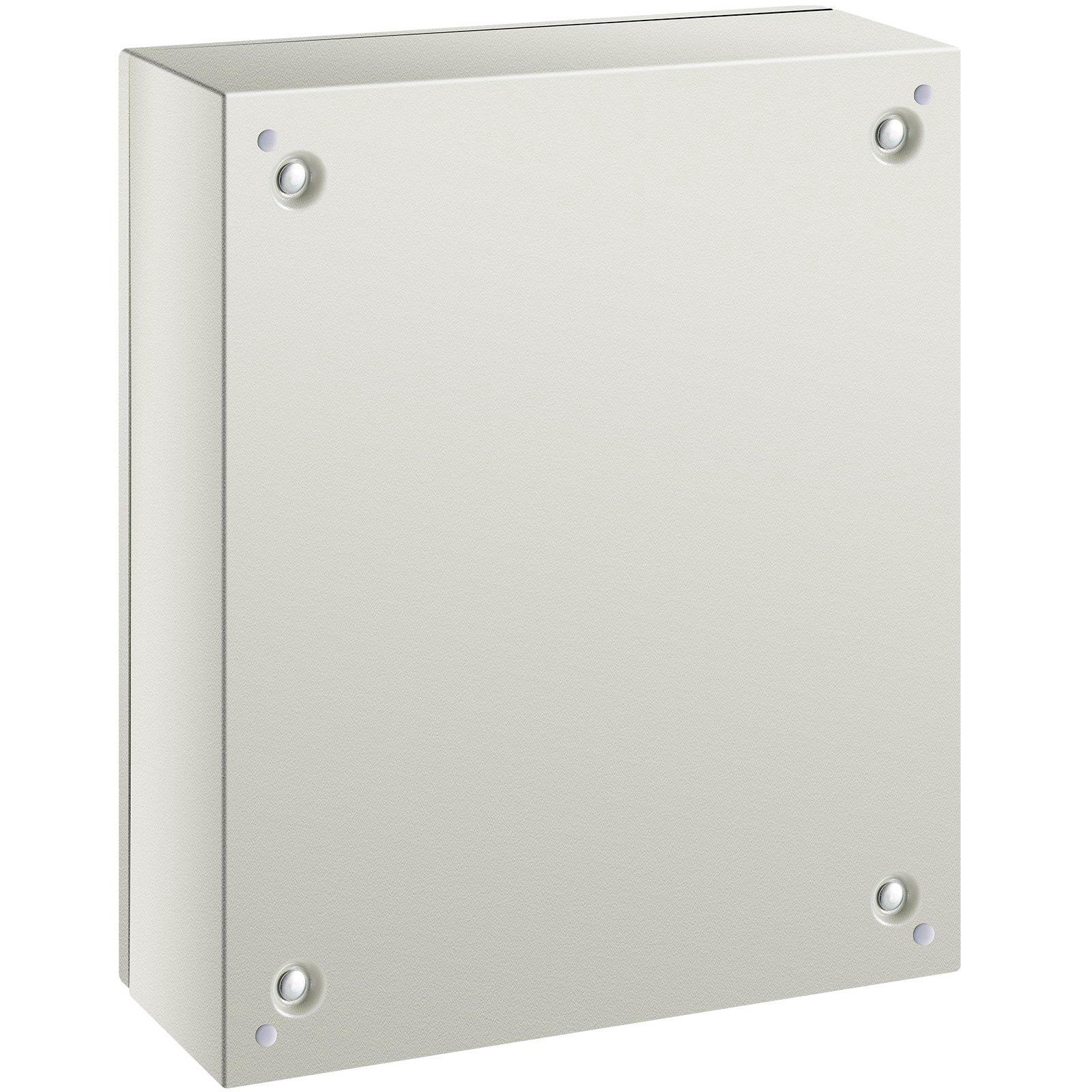

NEMA 4X Steel Electrical Enclosure 50x40x15 cm, IP66

NEMA 4X steel electrical enclosure helps protect sensitive components from water, dust, and impact for reliable indoor/outdoor installs. Built from 1.5 mm cold-rolled carbon steel with a powder-coated finish, it’s designed to meet IP66 and multiple NEMA ratings for demanding sites like factories, construction areas, and residential service points. A hinged door with lock and a continuous gasket seal support secure, clean routing and maintenance access.

• Delivers IP66 sealing to help block dust and water intrusion in harsh environments.


• Protects with 1.5 mm carbon steel and epoxy polyester powder coating for corrosion resistance.

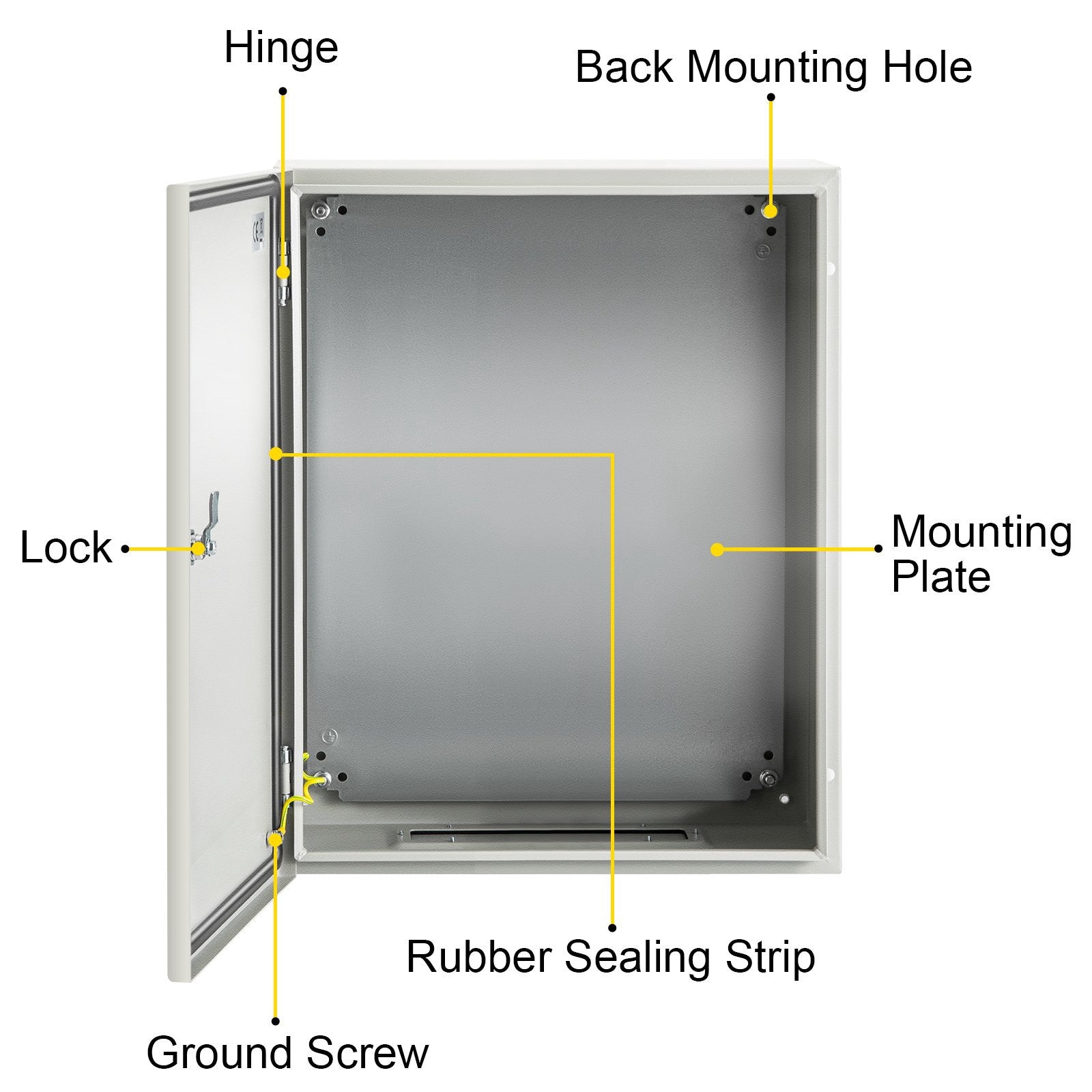

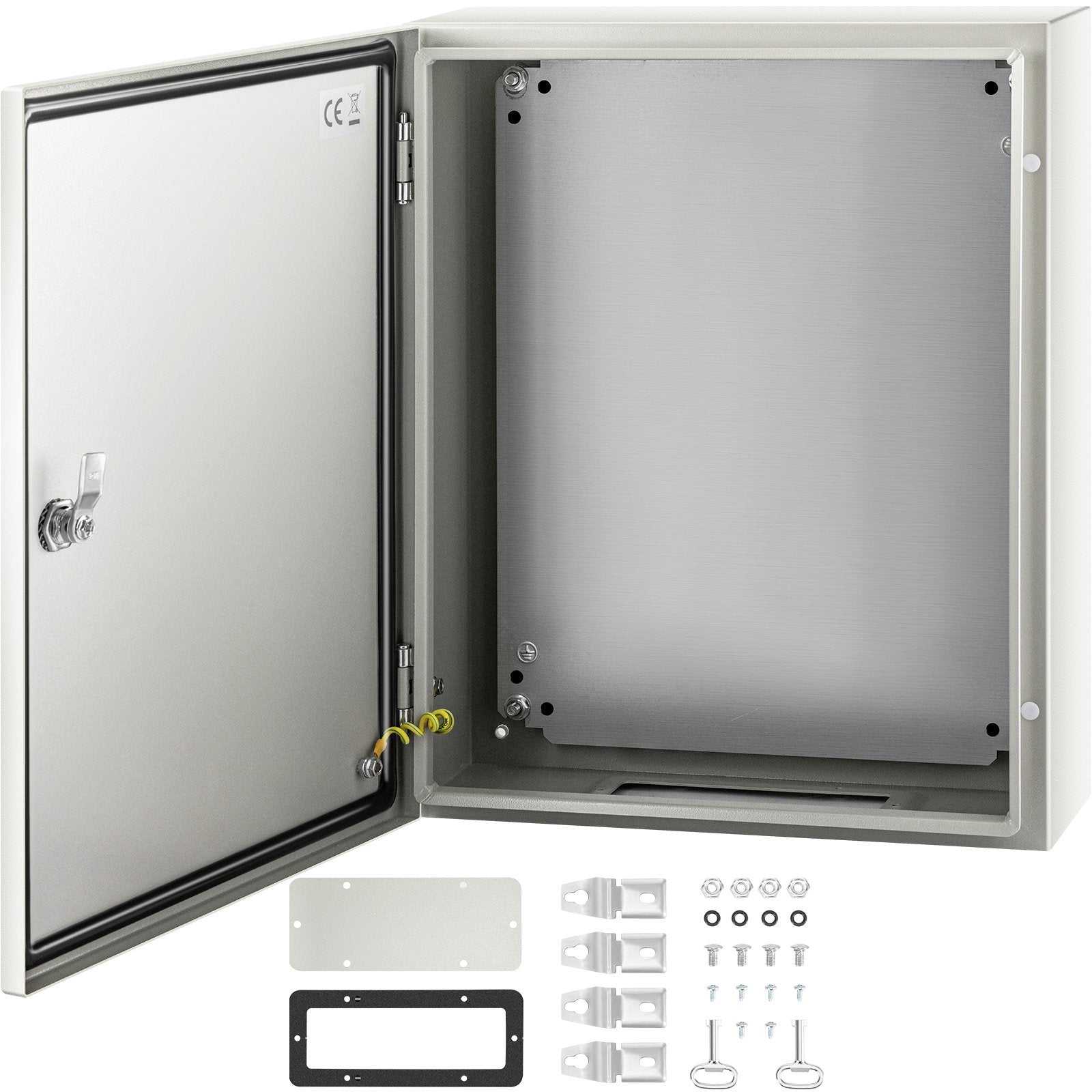

• Includes a detachable 2 mm galvanized mounting plate for fast component layout and wiring.


• Secures with a reinforced hinged door and lockable latch for controlled access.


• Simplifies installs via rear wall-mount holes, smooth cable entry cutouts, and pre-installed grounding screws.

Use this lockable electrical junction box to organize breakers, controls, or terminal blocks while keeping wiring protected and service-friendly. The gray-white RAL7035 finish blends into industrial and commercial spaces, while the gasketed door helps maintain a clean interior between inspections. Designed to meet CE and ROHS requirements and sized for common panel builds, it’s a practical choice when you need an IP66-rated, NEMA-style enclosure that’s ready to mount and wire. Grab yours today and build with confidence.

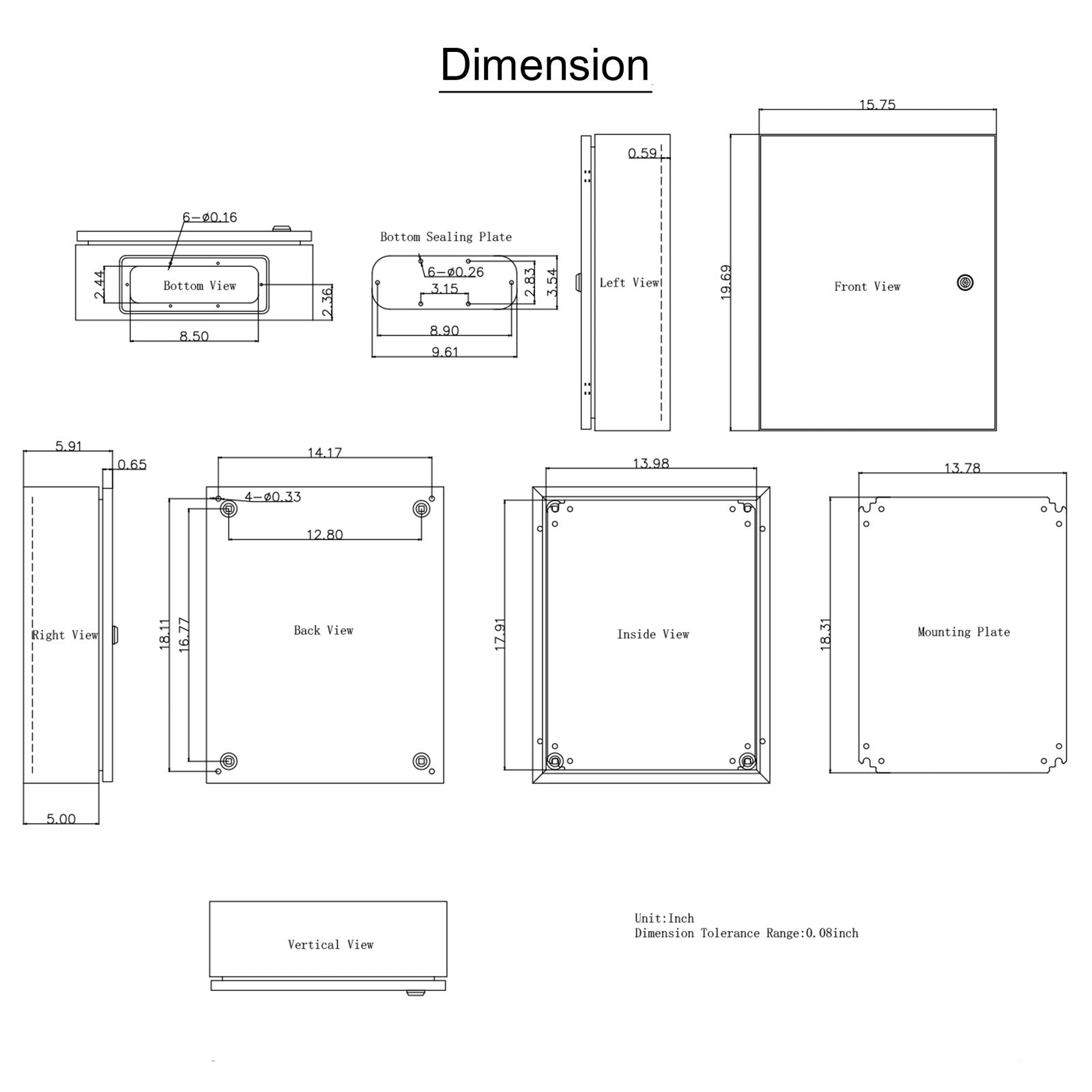

• Outer dimensions (H×W×D): 20 × 16 × 6 in / 50 × 40 × 15 cm


• Inner dimensions (H×W×D): 19.6 × 15.6 × 4.6 in / 49.7 × 39.7 × 11.65 cm


• Material: 1.5 mm (0.059 in) cold-rolled carbon steel


• Backplate: 2 mm (0.079 in) detachable galvanized steel; 17.7 × 13.8 in / 45 × 35 cm


• Ingress rating: Designed to meet IP66; NEMA 1, 2, 4, 4X, 12


• Door: Hinged, lockable


• Finish: Epoxy polyester powder coating


• Color: Gray White (RAL7035)


• Certifications: CE, ROHS


• Net weight: 26.68 lb / 12.1 kg
