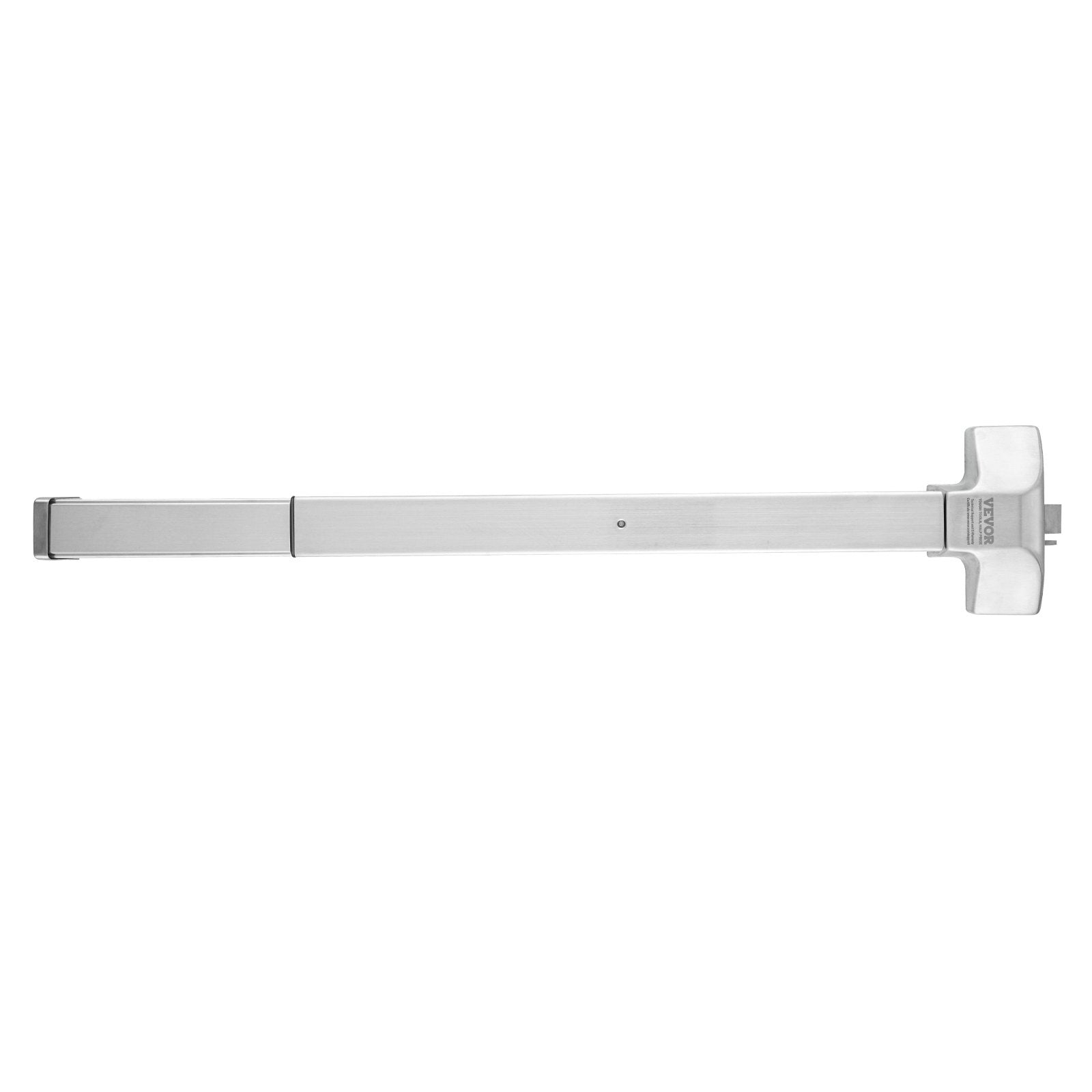

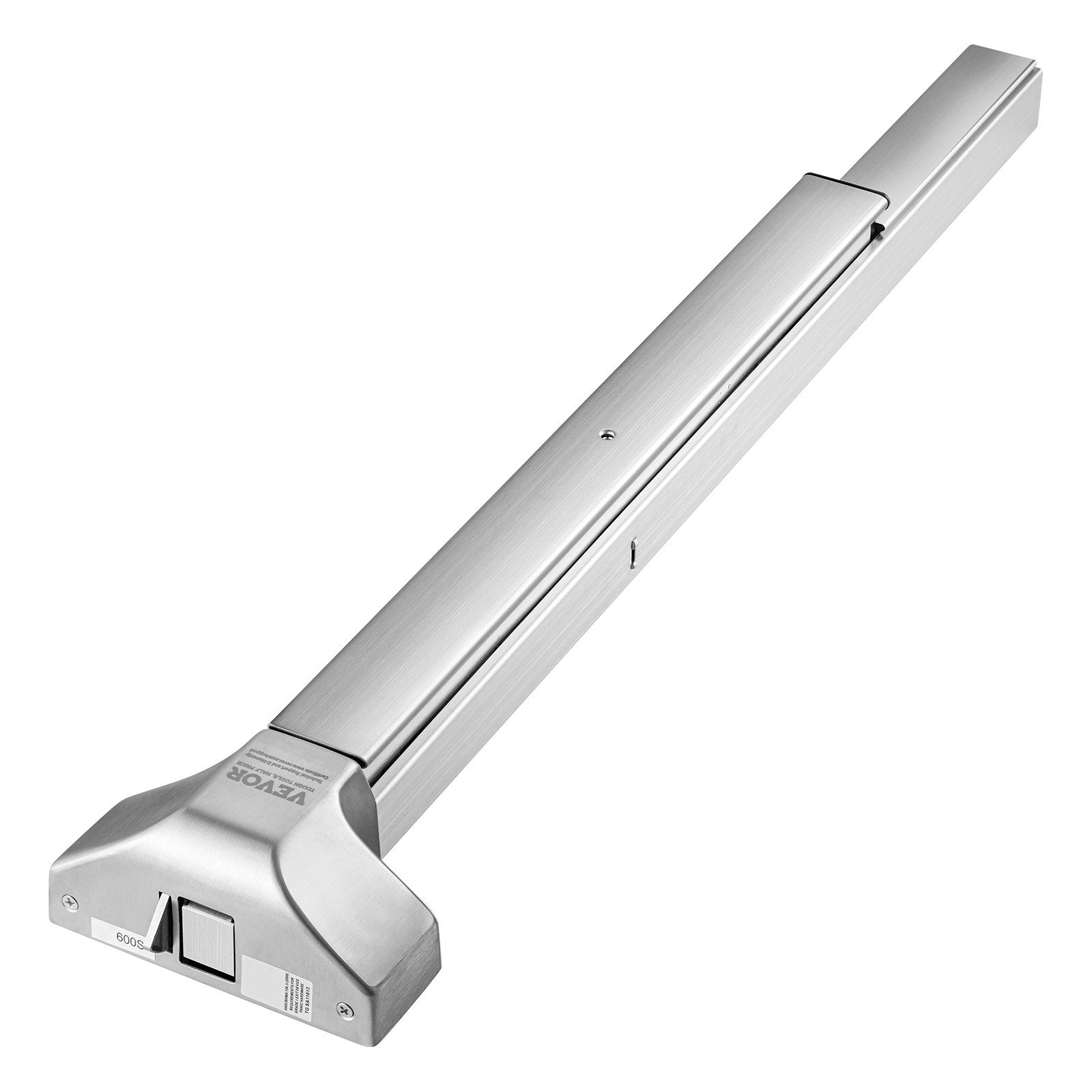

Panic Bar Exit Device, 304 Stainless, Lever, 3 Keys

Panic bar exit device hardware delivers fast, intuitive egress while helping secure the door from outside entry. Built from thickened 304 stainless steel for rust and corrosion resistance, this push bar door lock supports high-traffic use with tested durability and a keyed exterior lever for controlled access. Designed for metal or wood doors, it fits common 30–36 in door widths and works on left- or right-handed doors. Not for glass doors.

• Delivers quick egress with an inside push bar that opens with a hand or body in emergencies


• Secures access with a keyed exterior lever; auto-locks on close to deter unauthorized entry


• Includes dogging function to hold the latch in constant-open mode for high-flow events


• Fits 30–36 in wood or metal doors; reversible for left- and right-hand installations


• Simplifies setup with pre-drilled parts, included hardware, and clear installation instructions

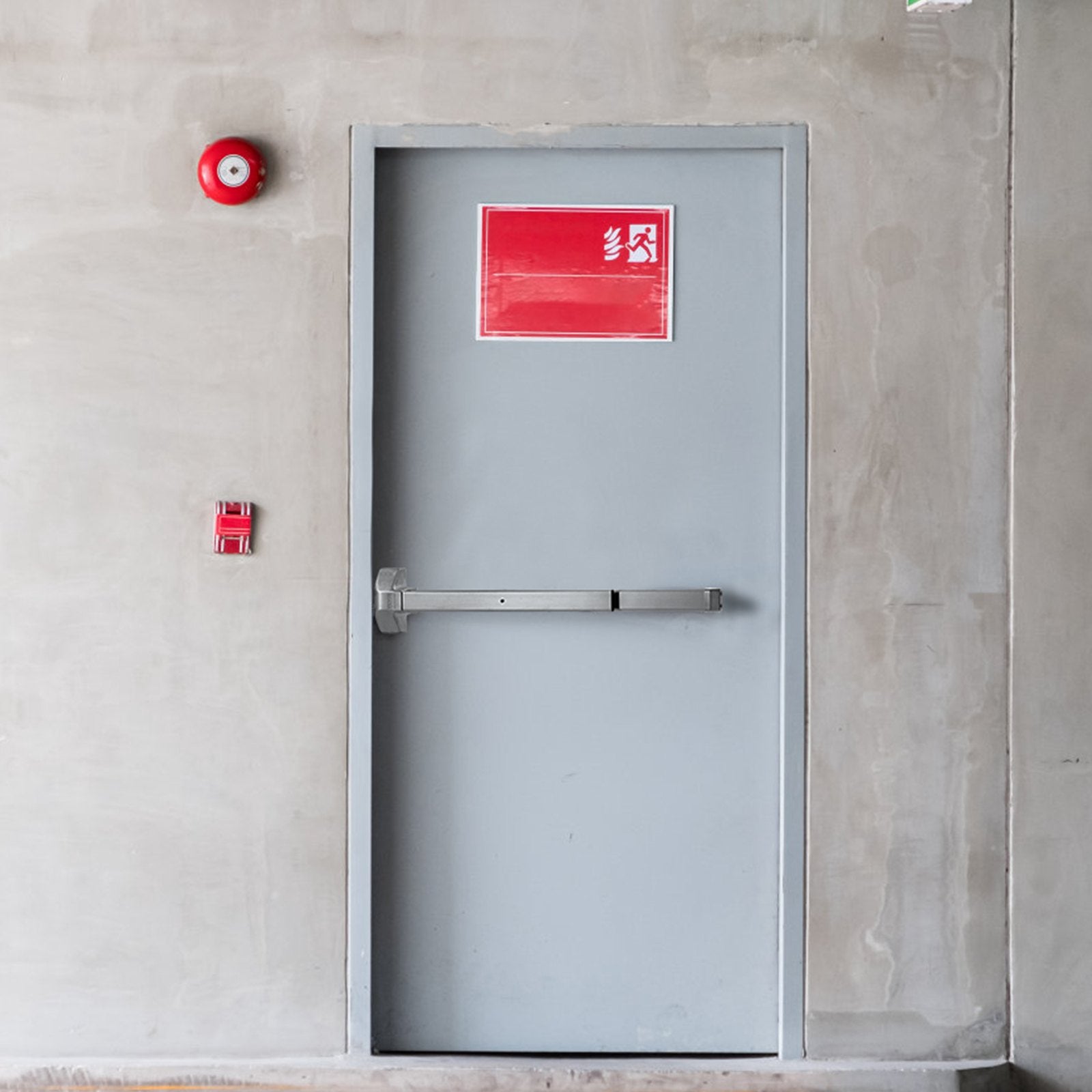

Built for busy public and commercial spaces, this stainless steel panic bar hardware supports one-way exit control for doors in offices, apartments, hotels, hospitals, retail, warehouses, and more. The zinc alloy handle and copper lock core are selected for long service life, while the enlarged head cover helps streamline alignment during installation. If you need dependable emergency exit function with keyed exterior control, grab yours today and outfit your door with hardware designed for frequent use.

• Main material: 304 stainless steel


• Compliance: UL and ANSI testing standards; 500,000+ open/close cycles tested


• Door compatibility: 30–36 in (762–914 mm) wide; wood/metal; left/right handed


• Not compatible with: glass doors


• Overall dimensions: 31.9 x 6 x 2.6 in (811 x 153 x 65.8 mm)


• Lock head cover: 6.06 x 3.43 x 2.6 in (154 x 87 x 65.8 mm)


• Door hole diameter: Φ2.17 in (Φ55 mm)


• Push plate: 1.85 x 19.69 in (47 x 500 mm)


• Back plate: 1.57 x 7.63 in (40 x 194 mm)


• Exterior handle: 0.83–0.98 x 5.28 in (21–25 x 134 mm)


• Net weight: 7.8 lb (3.55 kg)

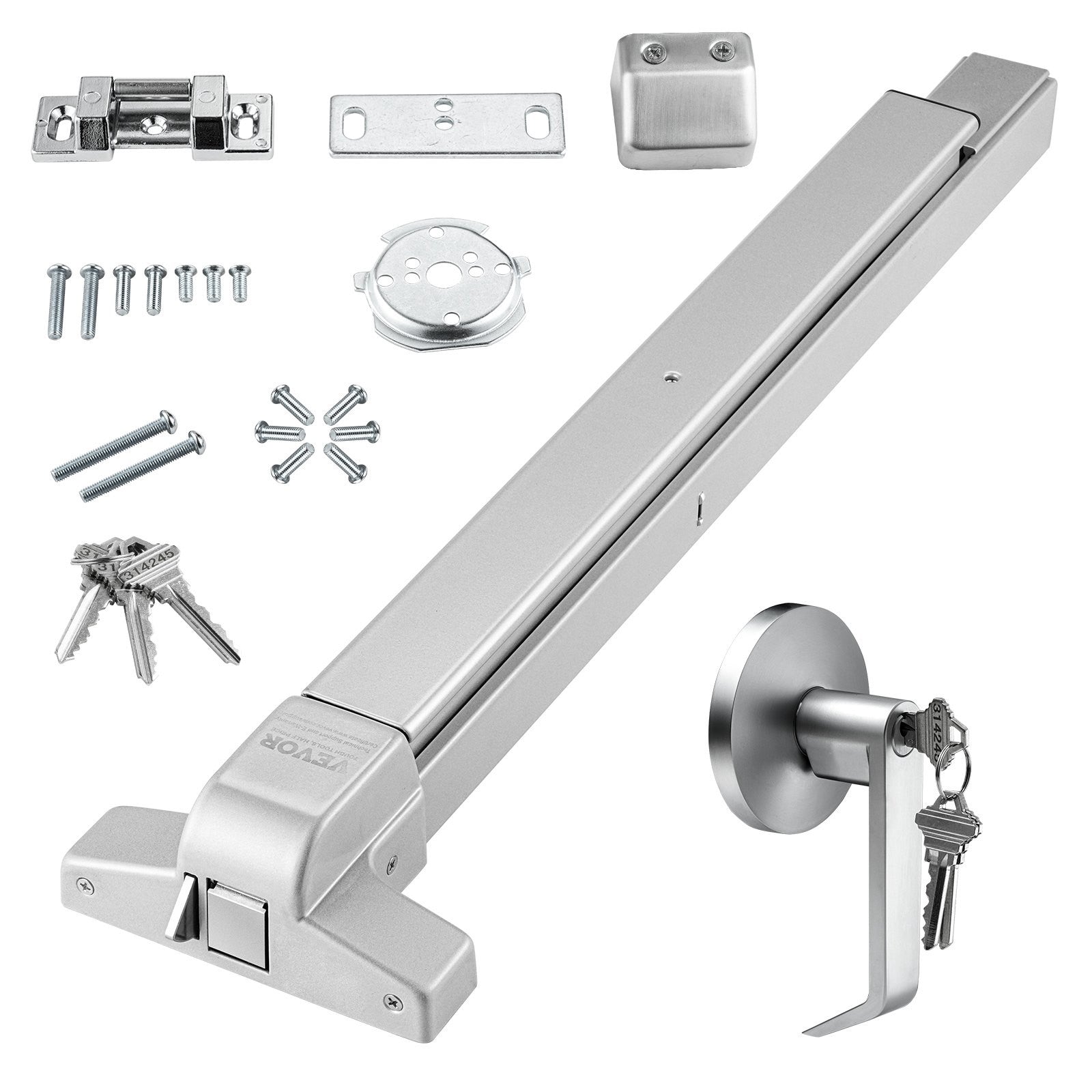

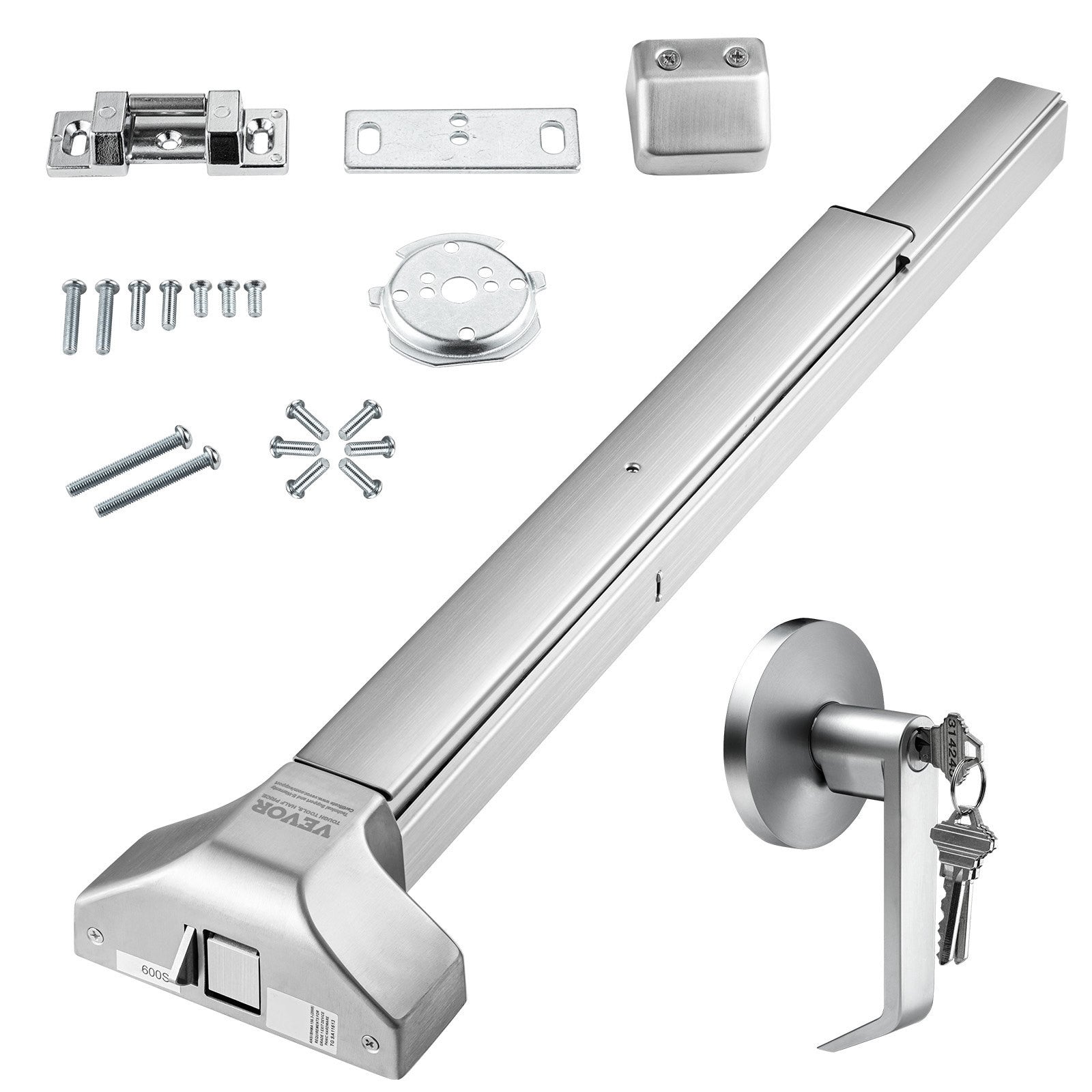

• Includes: exterior lever, 3 keys
