USB 2.0 Audio/Video grabber RCA + SVHS

LogiLink USB 2.0 A/V Grabber

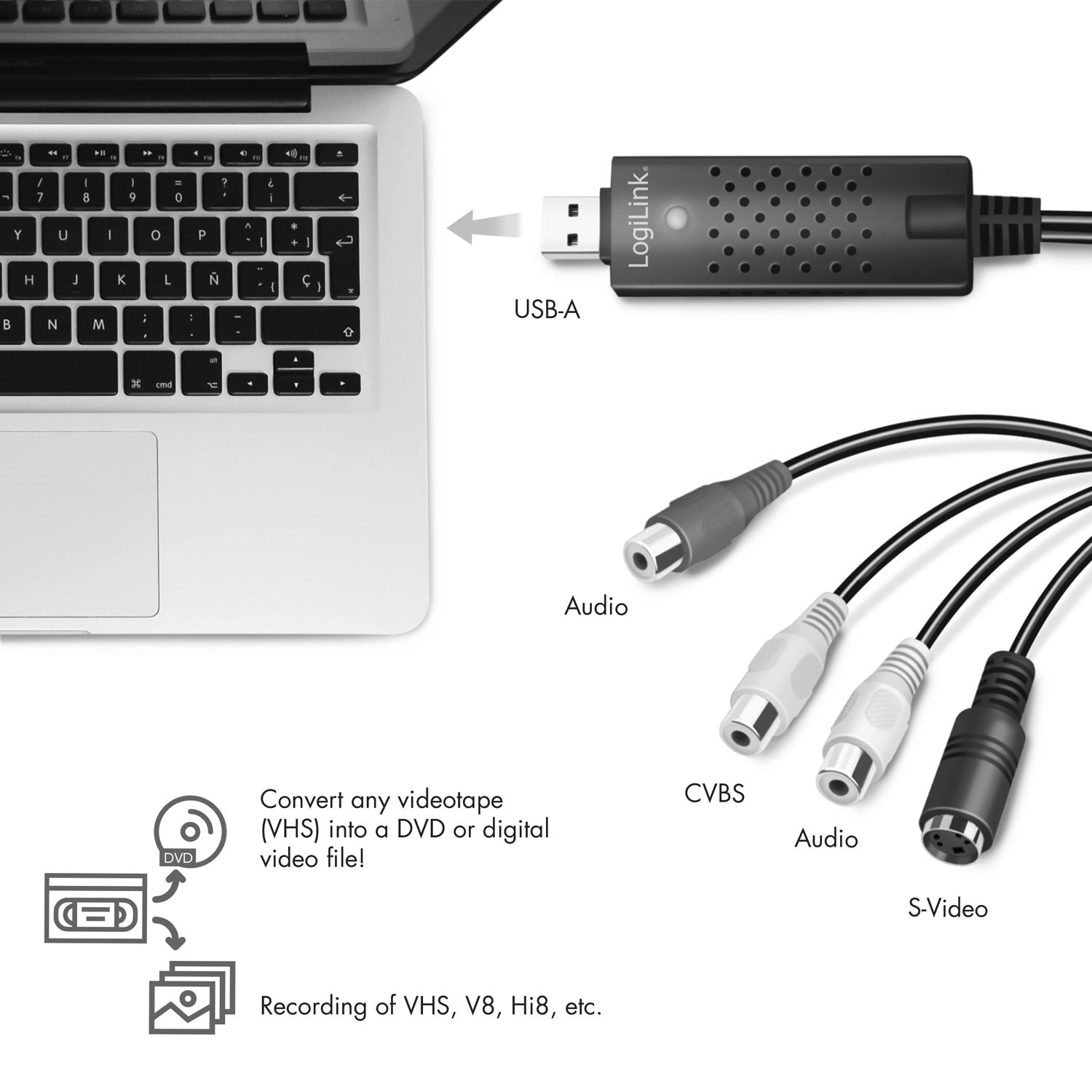

Digitize your old analog movies as quickly and easily as never before. Simply connect the USB 2.0 Audio and Video Grabber to the USB port on your computer and e.g. to the VHS tape recorder. This way you can transfer the data to the hard drive and if you want then easily burn them to DVD.

• Conforms to USB2.0/1.1 standard

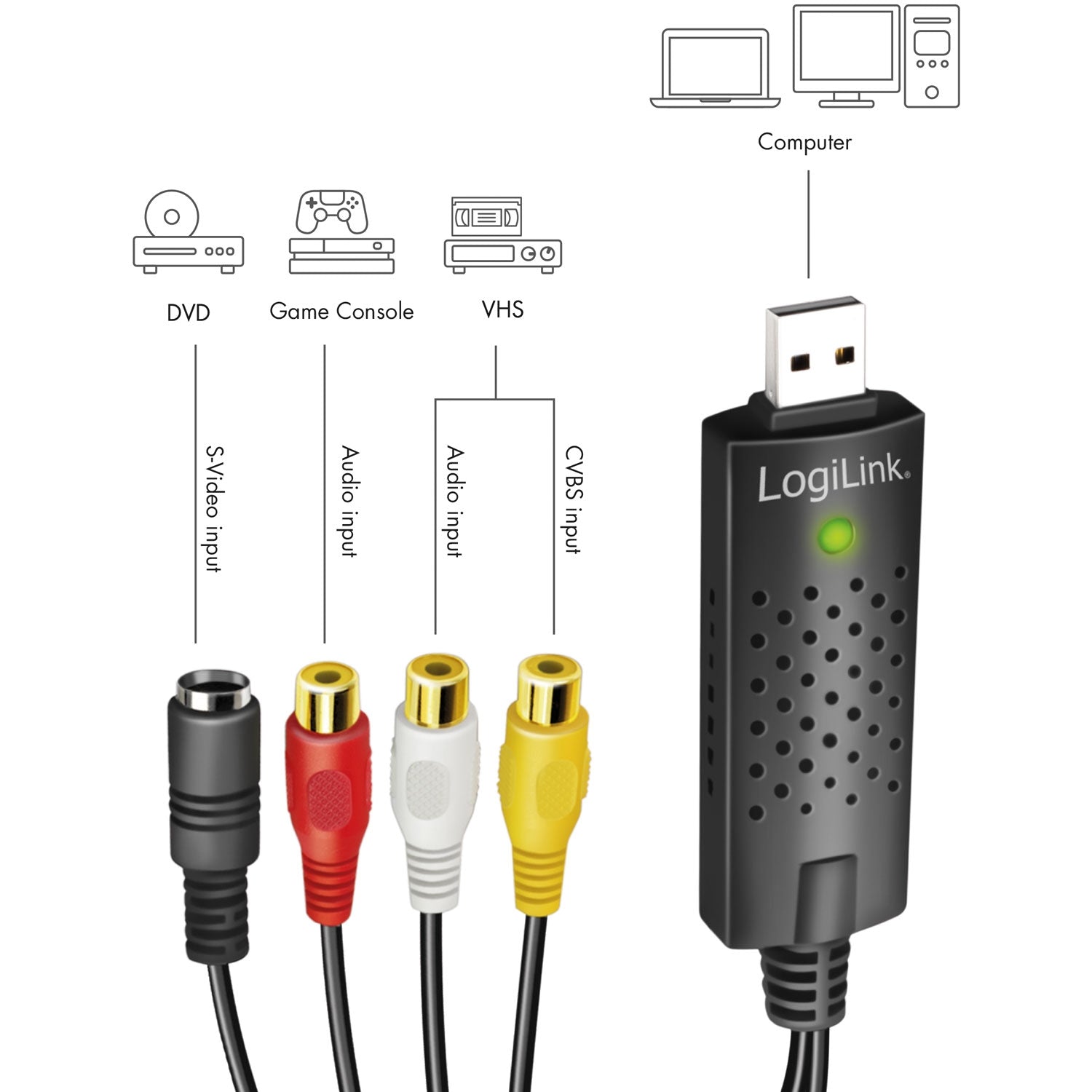

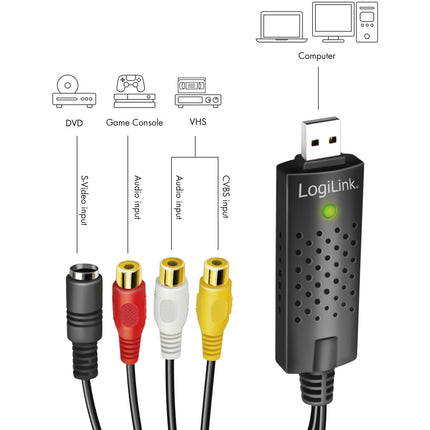

• Video input: 1 x RCA Composite, 1 x S-Video
• Audio input: 2 x stereo audio (RCA)
• Support for NTSC and PAL video formats up to 1080p@30 fps
• Capture video source from VHS, V8, Hi8, etc.
• Resolution: NTSC/PAL: MJPEG: 1920X1080@30 Hz; YUV422: 720X576@25 Hz

Specifications:
Interface 1: USB-A male
Interface 2: 3x RCA female, 1x Mini Din jack 5-pin female
USB standard: USB 2.0
Recording format: MJPEG & YUV422
Maximum Resolution:
MJPEG: 1920 x 1080@30 Hz
YUV422: 720 x 576@25 Hz
Video Format Support: NTSC & PAL
Video input: 1x RCA composite & 1x S-Video
Audio Input: 2x Stereo Audio (RCA L/R)
Powered by: USB
Compatible OS: Windows 7/8/10/11, Mac OS 10.7 or higher, Android 5.0 or higher
Material for casing: ABS
Color: Black
Operating temperature: 0-45°C
Operating humidity: 25-60% RH (no condensation)
Dimensions: 8.9 x 2.6 x 1.4 cm
Weight: 42 g
Cable length: 17 cm
