Description

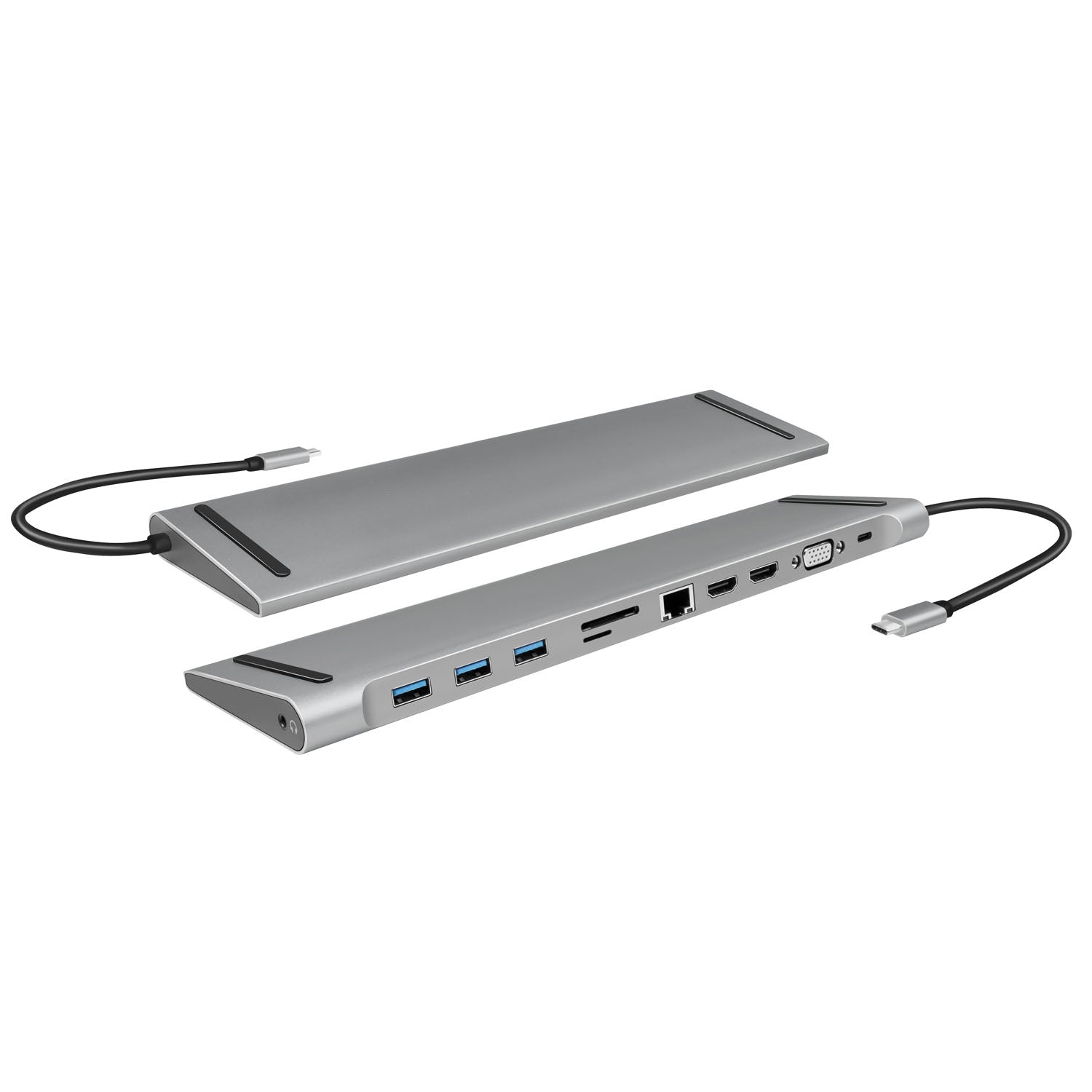

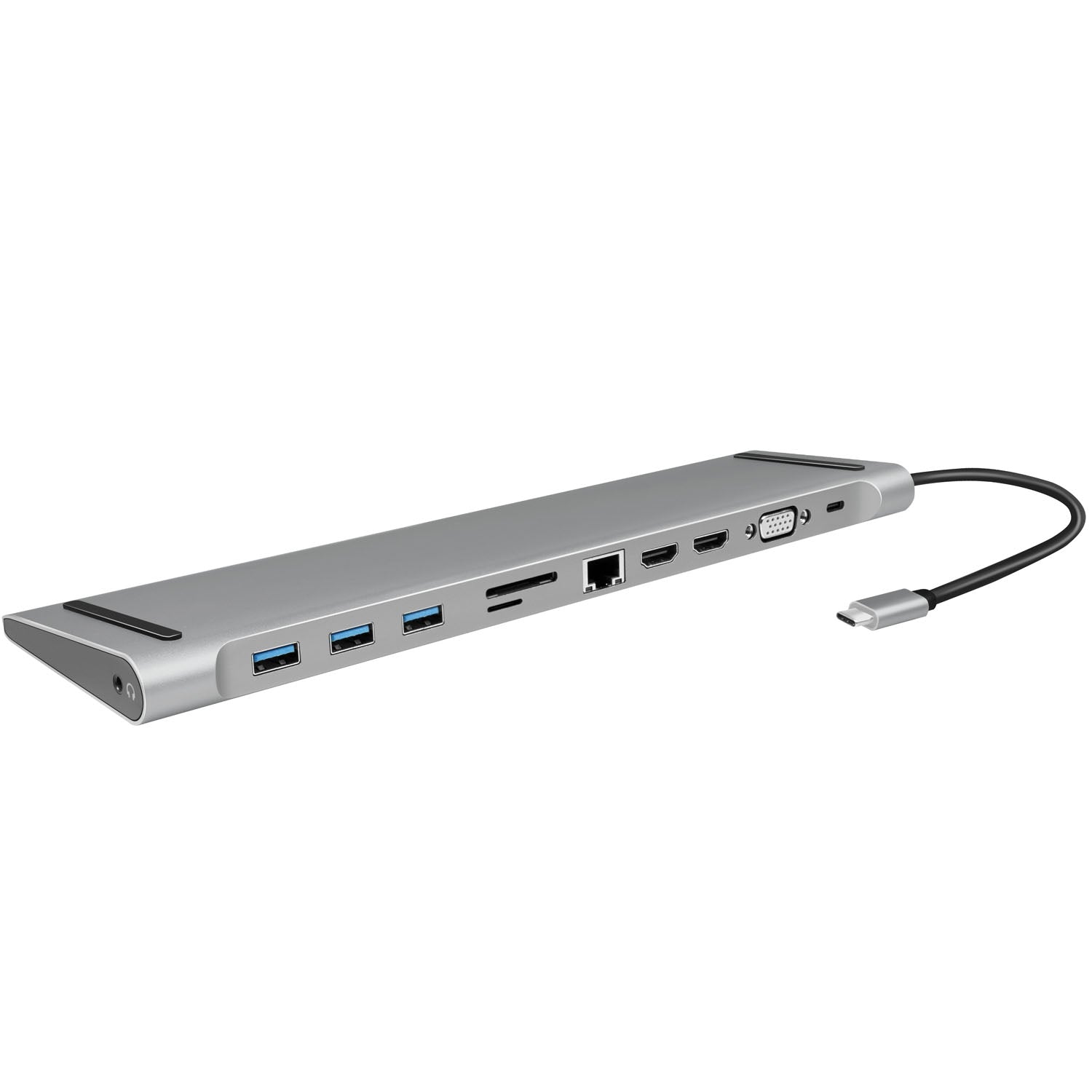

LogiLink USB-C docking station USB 3.2 Gen, 11-port, USB-C, PD
The ultimate docking station with an all-in-one solution for connectivity of a laptop with USB-C to multiple devices; connect projectors, 4K screens, SD cards, speakers, mice, keyboards and USB memory sticks.
It also supports pass-through charging up to 100W.
Ergonomic design and heat-dissipating design< /strong>

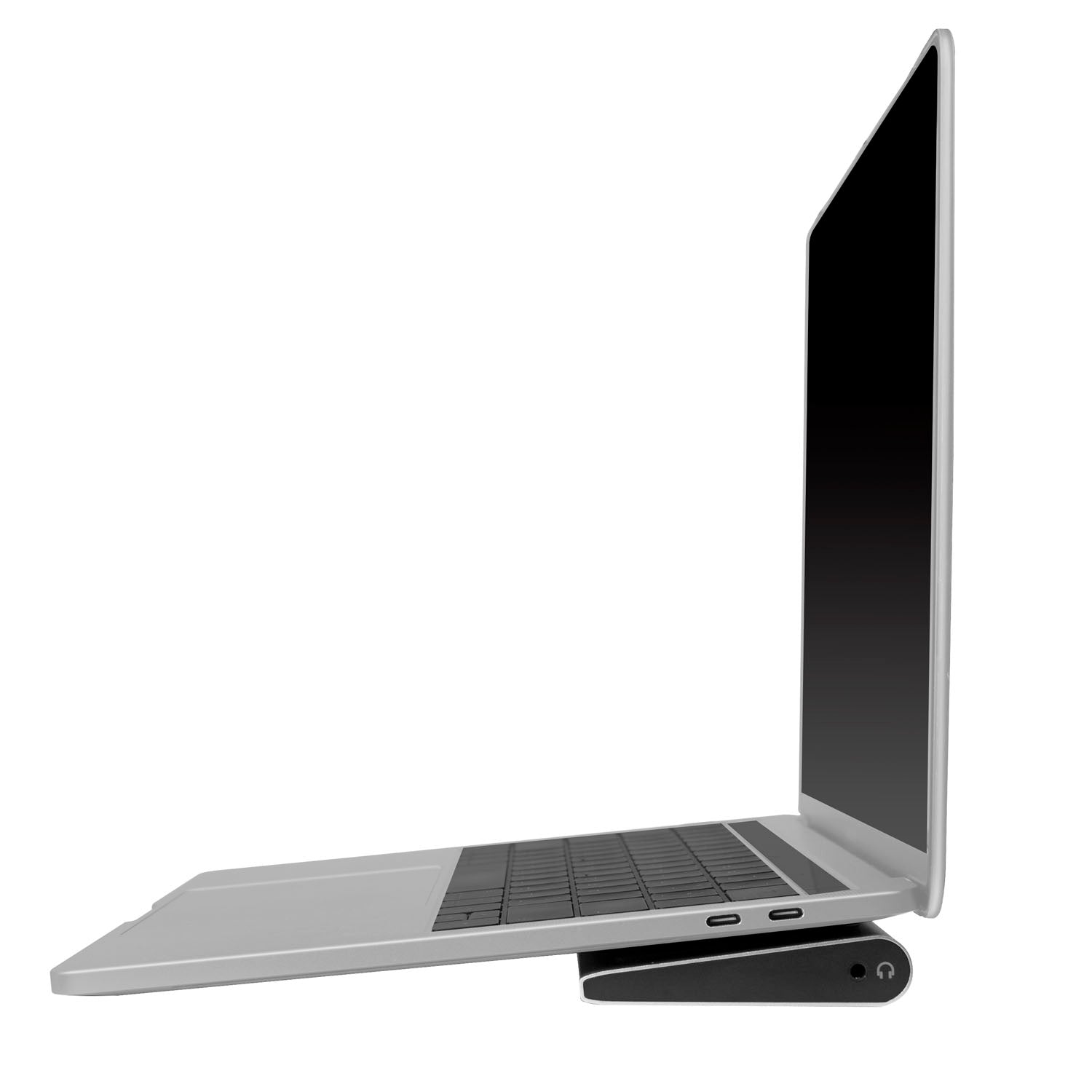

The elevated design improves comfort, while at the same time facilitating ventilation of the computer. The rubber pads ensure that the computer is stable on the docking station.
11-in-1

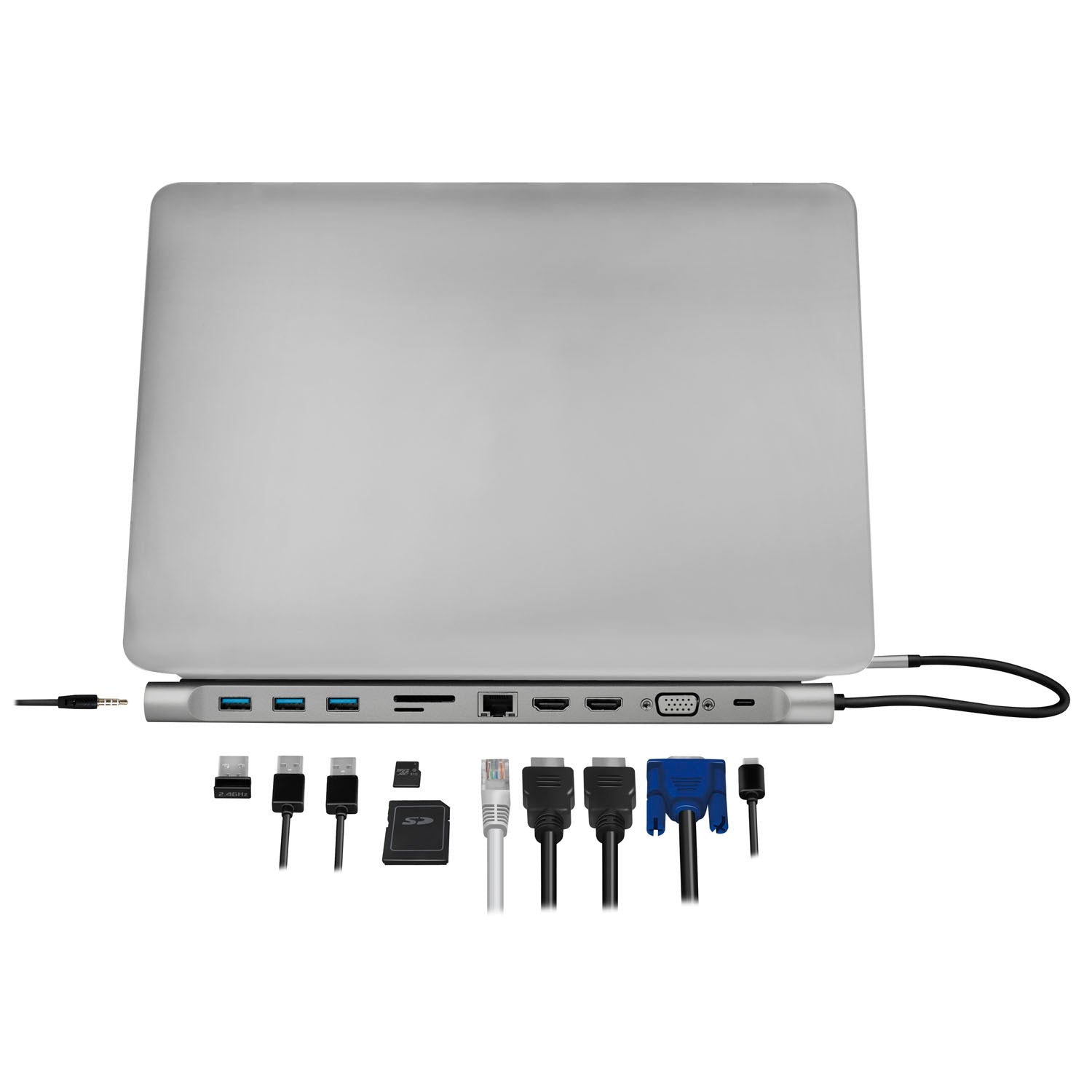

Expand the number of connections, from a USB-C port to;
- 1x 3.5 mm audio output
- 3x USB 3.0 port
- 1x MicroSD card reader
- 1x SD card reader
- 1x RJ45 Gigabit Ethernet port
- 2x HDMI type A outputs
- 1x VGA output
- 1x USB-C PD 3.0 port
Powerful fast charging
USB- C PD port with power supply up to 100W provides stable and super fast charging.
Connect the computer's USB-C charger in the docking station and the docking station's USB-C cable to the computer's USB-C charging port.
< p>- Input: USB-C (male)
- Output: 1x USB-C PD (female), 3x 3.0 USB-A (female), 2x HDMI-A (female), 1x 3.5 mm audio port (female), 1x VGA (female), 1x RJ45 Gigabit Ethernet port (female) ), 1x SD / MicroSD card reader
- Connects up to 11 devices to a laptop via a single USB-C cable ( 0.2 m)
- Supports USB Power Delivery (USB-PD 3.0) for charging / using external devices with up to 100 W
- Supports MST (Multi-Stream Transmission) in Windows
- Supports UHD 4K at 30 Hz resolutions (3840x2160 dpi) over HDMI with HEC, CEC, ARC and HDCP
- Supports Full HD 1080p at 60 Hz resolutions (1900x1200 dpi) over VGA
- Supports simultaneous use of VGA / HDMI and HDMI / HDMI
- Fast data transfer rates of up to 5 Gbit / s
- Supports headphones and headsets
- Supports SD / SDHC / SDXC up to 2 TB card capacity (SD v3 .0, UHS-I, MMC)
- Plug-and-play - no driver installation needed, compatible with Windows and Mac OS
- Anti-slip aluminum housing prevents sliding
Product document a>
Instructions for safe use in Swedish
