USB-C -> HDMI/USB-A/USB-C PD 4K/60Hz

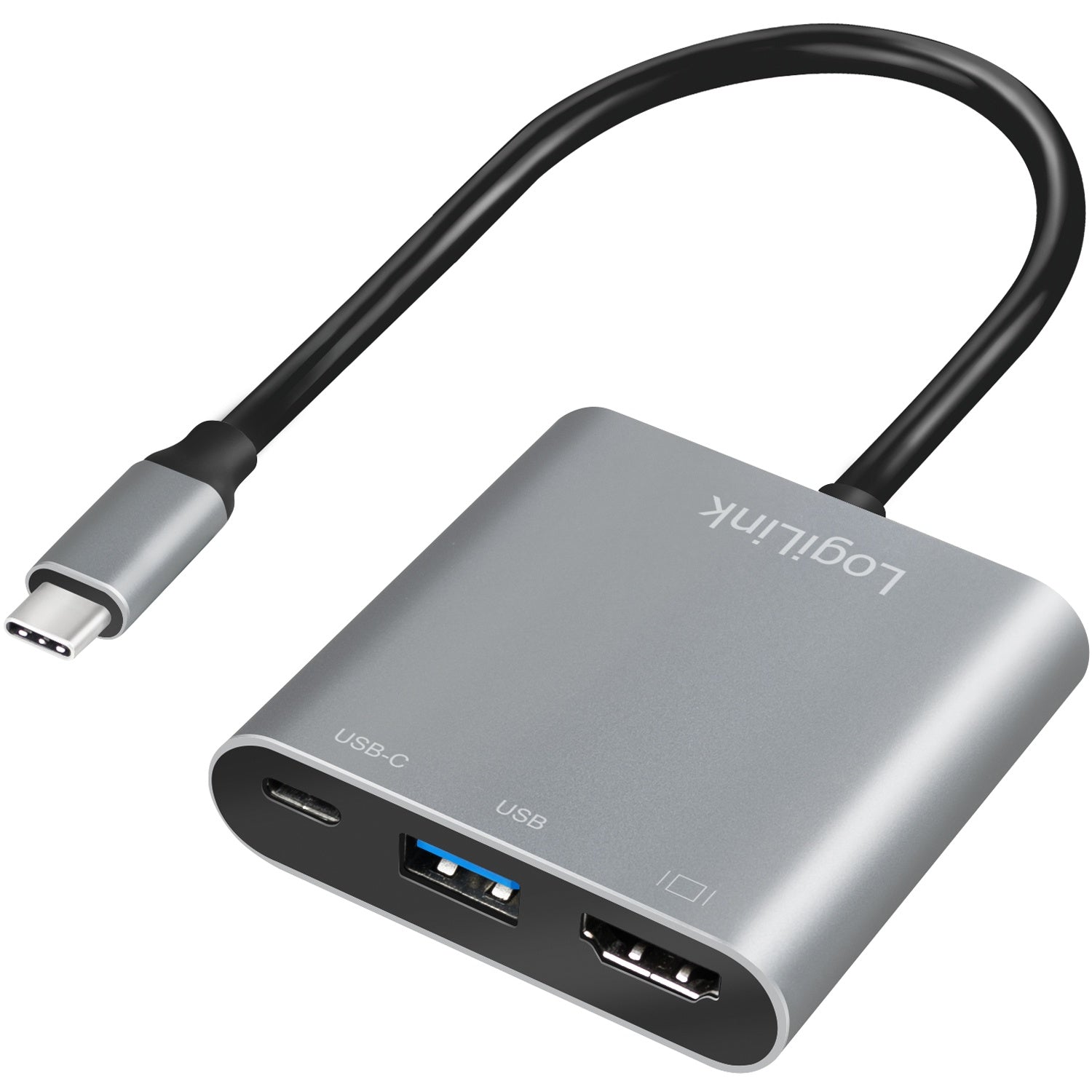

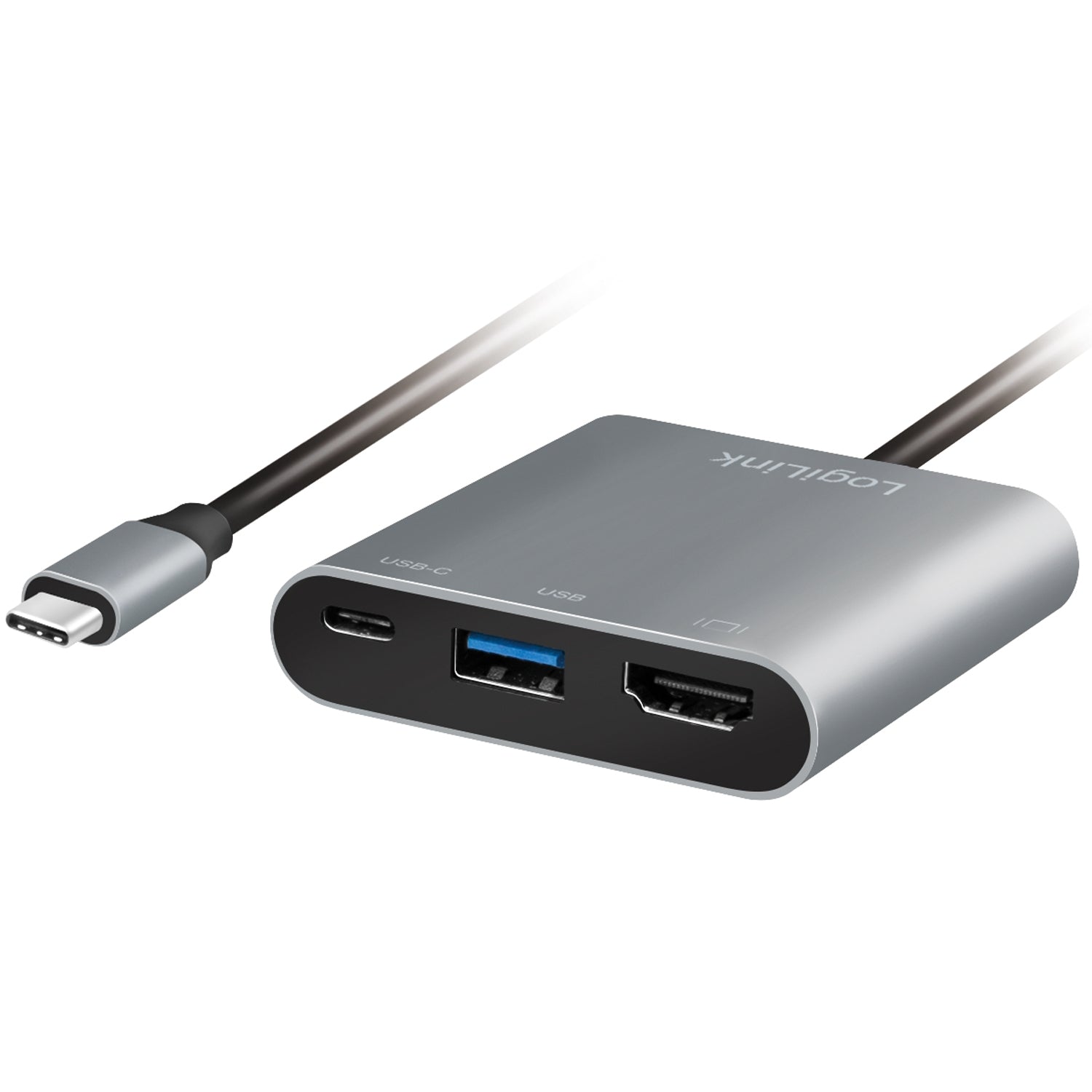

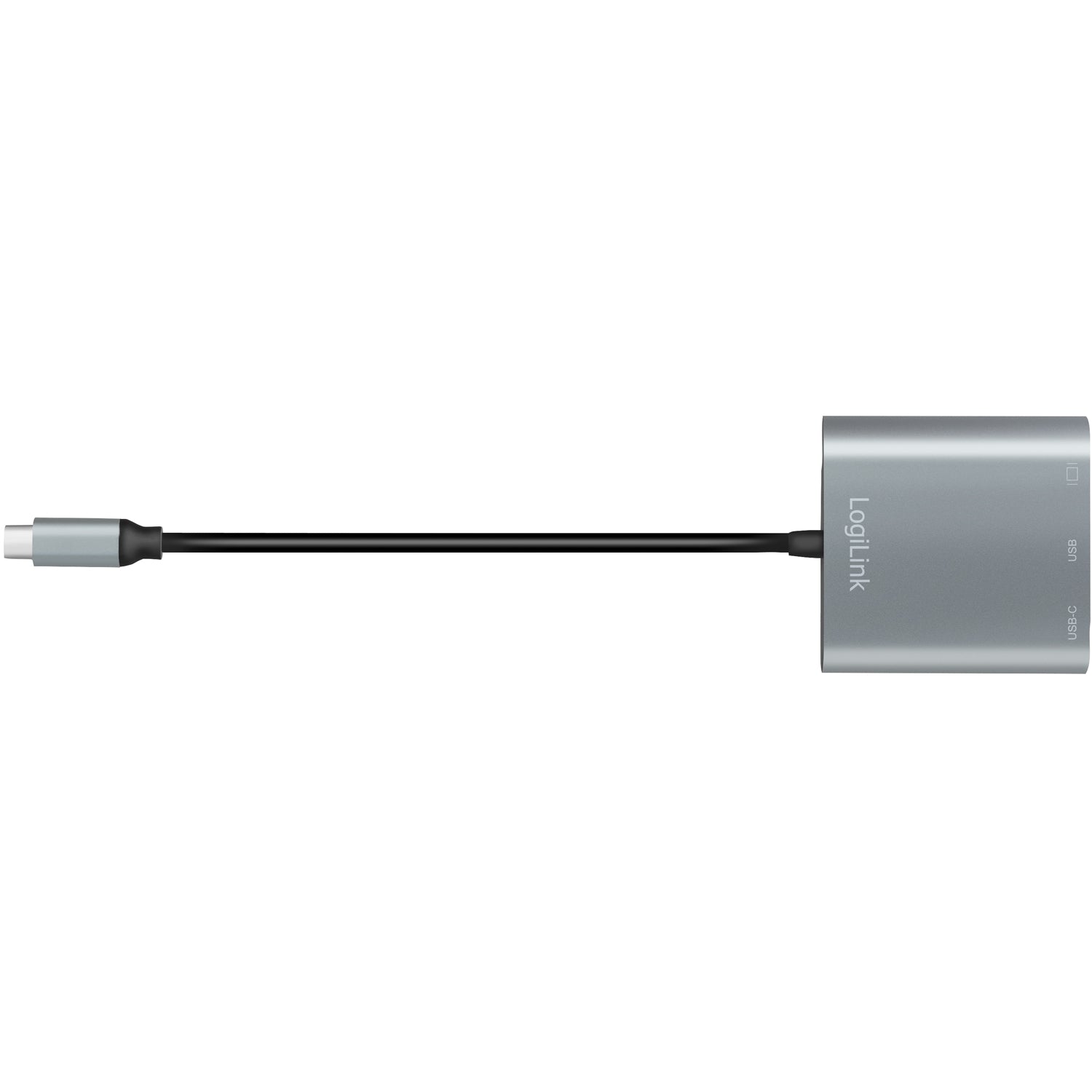

LogiLink USB-C to HDMI/USB-A/USB-C PD 4K/60Hz 15 cm

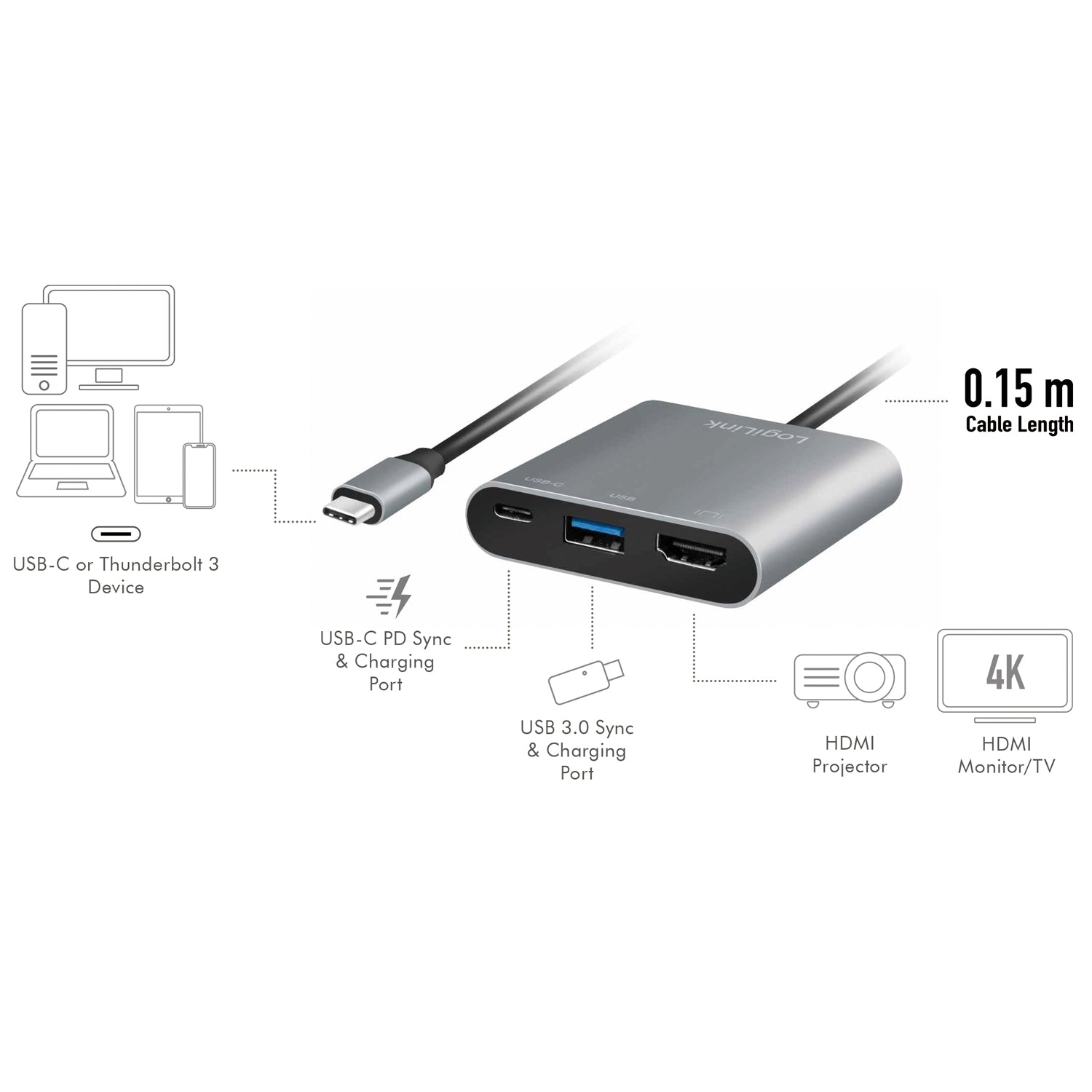

With the USB-C to HDMI multi-port adapter in aluminum design, you can connect your MacBook with the USB-C connector and watch your photos/videos in 4K resolution on an HDMI screen. At the same time, devices with USB-C can be connected for charging and data transfer at 5 Gbit/s via the USB-A port. With this adapter, you can stream your MacBook or Chrome screen to your HDMI-enabled TV in Ultra HD 4K at 60 Hz. Plug the adapter into the USB-C port on your MacBook or Chromebook, then connect your TV or projector via an HDMI cable (not included).

• Connector 1: USB-C (male)
• Connector 2: HDMI-A (female) + USB-A (female) + USB-C (female)
• Compliant with USB 3.2 Gen1 SuperSpeed
• Connected devices must support USB DP/HDMI Alternate Mode
• Resolution: Ultra HD up to UHD 4K/60 Hz (3840x2160)
• Support for USB-PD (Power Delivery)
• Up to 20 V, 5 A, 100 W power supply

Specifications:

Connection 1: USB-C, male
Connection 2:
1x HDMI, female
1x USB-A, female
1x USB-C, female
Power supply: USB-C PD 3.0 (100 W)
HDMI version: HDMI 2.0
HDCP Version: 1.3/2.3
Max. Video Resolution: 4K@60 Hz
Data Transfer Rate: Up to 5 Gbps
Display Modes: Main/Extended/Mirror
3D Support: Yes
EDID Handling: Yes
HDR (high dynamic range): Yes
Uncompressed audio support: Yes
Compressed audio support: Yes
LED indicator blue: LED
Power supply: Powered via USB bus
Housing material: Aluminum and plastic
Operating temperature: -10-70°C
Operating humidity: 5-90% RH (non-condensing)
Dimensions: 21.3 x 6.2 x 1.5 cm
Weight: 55.5 g
Cable length: 0.15 m
