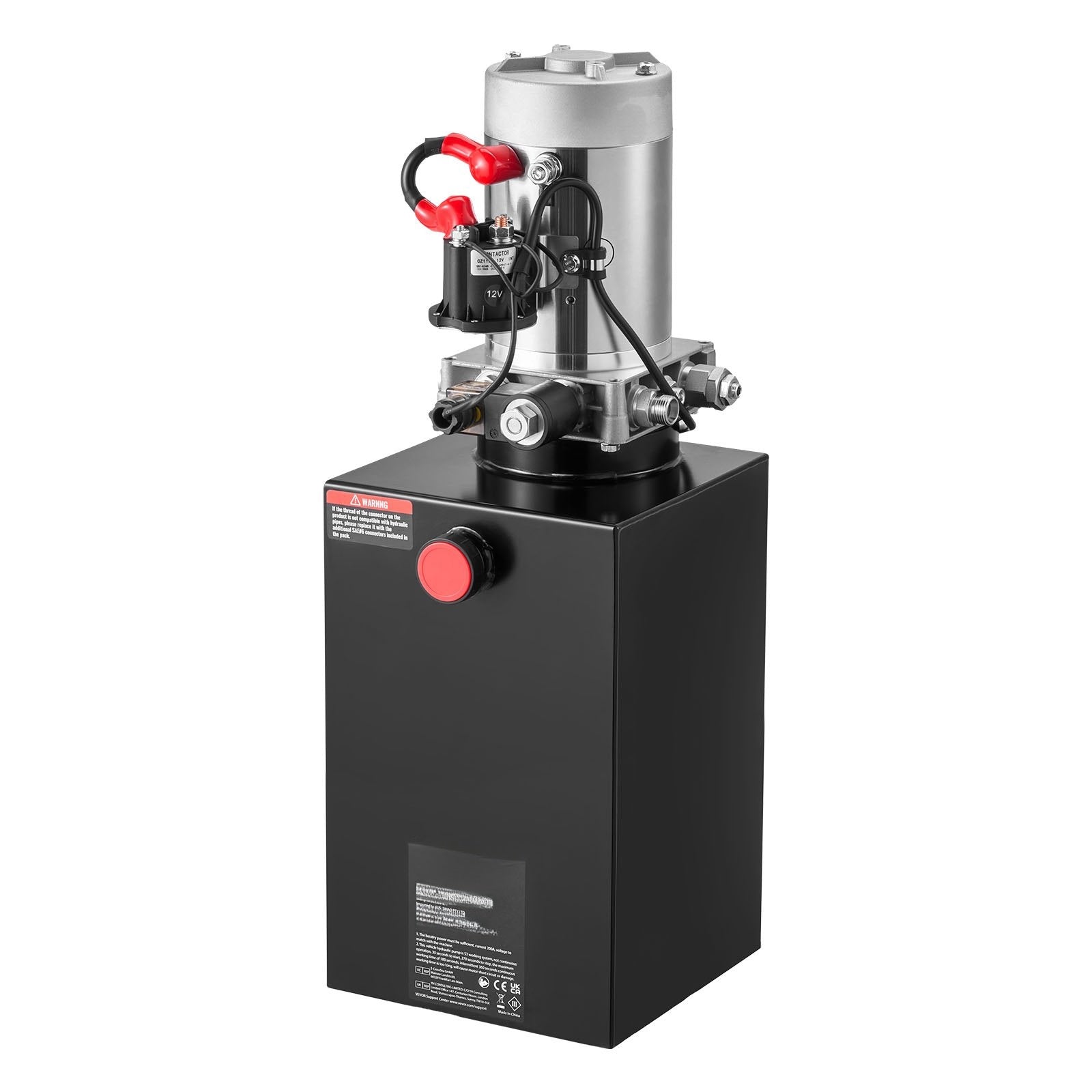

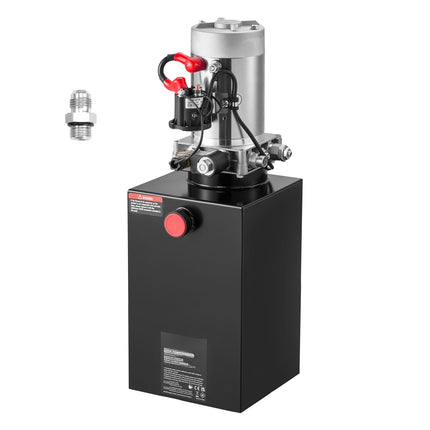

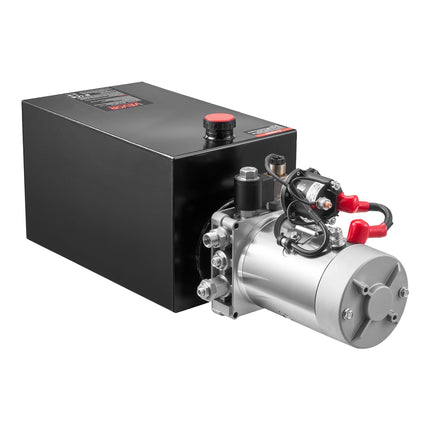

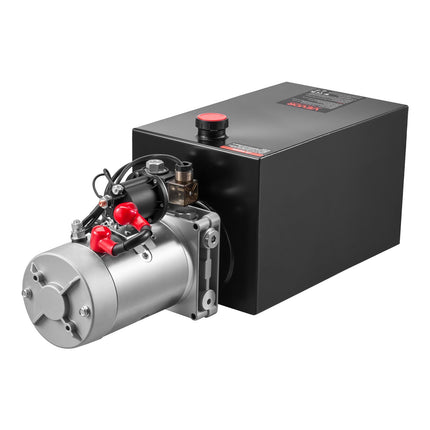

12V Hydraulic Power Unit, 10L Tank, Single-Acting Pump

Hydraulic power unit delivers dependable lifting power for dump trailers and single-acting systems, with smooth raises and controlled gravity lowering. Built around a DC 12V, 1.6 kW motor and a metal reservoir, it’s designed for quick start, steady flow, and stable pressure control via an integrated relief valve. Ideal when you need compact, jobsite-ready hydraulic force without complex setup—add hydraulic oil, connect SAE #6 lines, and power up.

• Delivers 3.4 L/min (0.91 GPM) flow for consistent lift speed on single-acting applications


• Handles up to 22 MPa max relief pressure to help protect components from over-pressure


• Includes a 10-quart (2.5 gal) steel reservoir built to resist leaks and daily impact


• Installs fast with pre-assembled design plus SAE #6 ports for standard hydraulic hookups

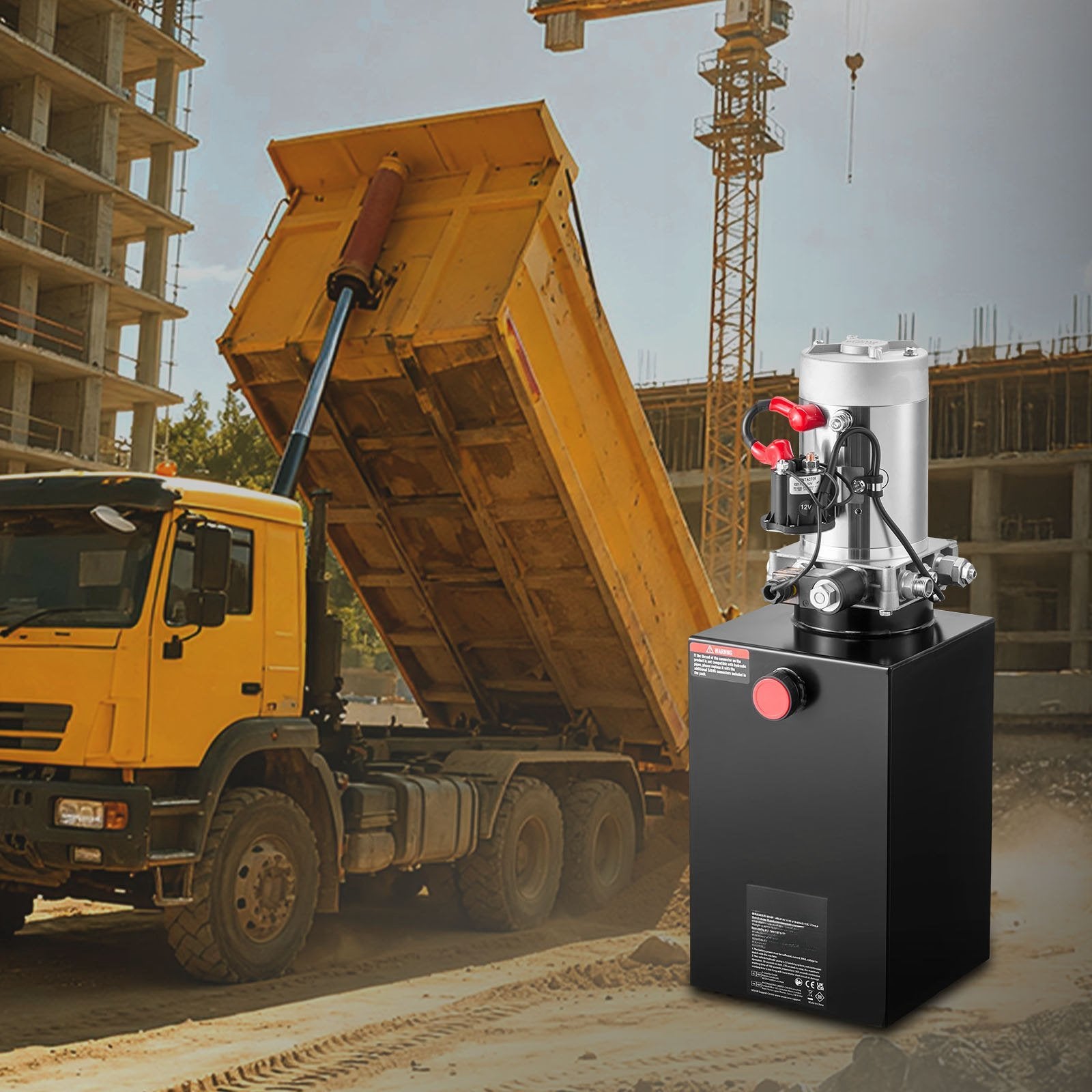

• Fits dump trailers, liftgates, scissor lifts, lift tables, small presses, and conveyors

Keep your equipment moving with a compact DC electric hydraulic pump engineered for steady performance and clean integration. The single-acting design supports reliable lifting while lowering by gravity for simple, predictable operation. With a rust-resistant metal tank and secure sealing, it’s made for routine use in shops, farms, and job sites where downtime costs time. Confirm hose routing, wiring polarity, and fluid level before operation, then put dependable hydraulic power on your trailer or lift system. Grab yours today.

• Type/Function: Single-acting (power up, gravity down)


• Voltage: DC 12V


• Power: 1.6 kW


• Flow rate: 0.91 GPM (3.4 L/min)


• Max relief pressure: 22 MPa (approx. 3,200 psi)


• Working pressure: 16–20 MPa (as stated)


• Motor speed: 2600 r/min


• Displacement/Traffic: 2.1 mL/r


• Reservoir capacity: 10 qt (2.5 gal)


• Material: Metal/steel reservoir


• Dimensions: 23.4 × 7.0 × 8.5 in (595 × 177 × 215 mm)


• Net weight: 30.2 lb (13.7 kg), accessories included


• Ports/Fittings: SAE #6
