12V Hydraulic Power Unit, 6-Quart, Single-Acting, Remote

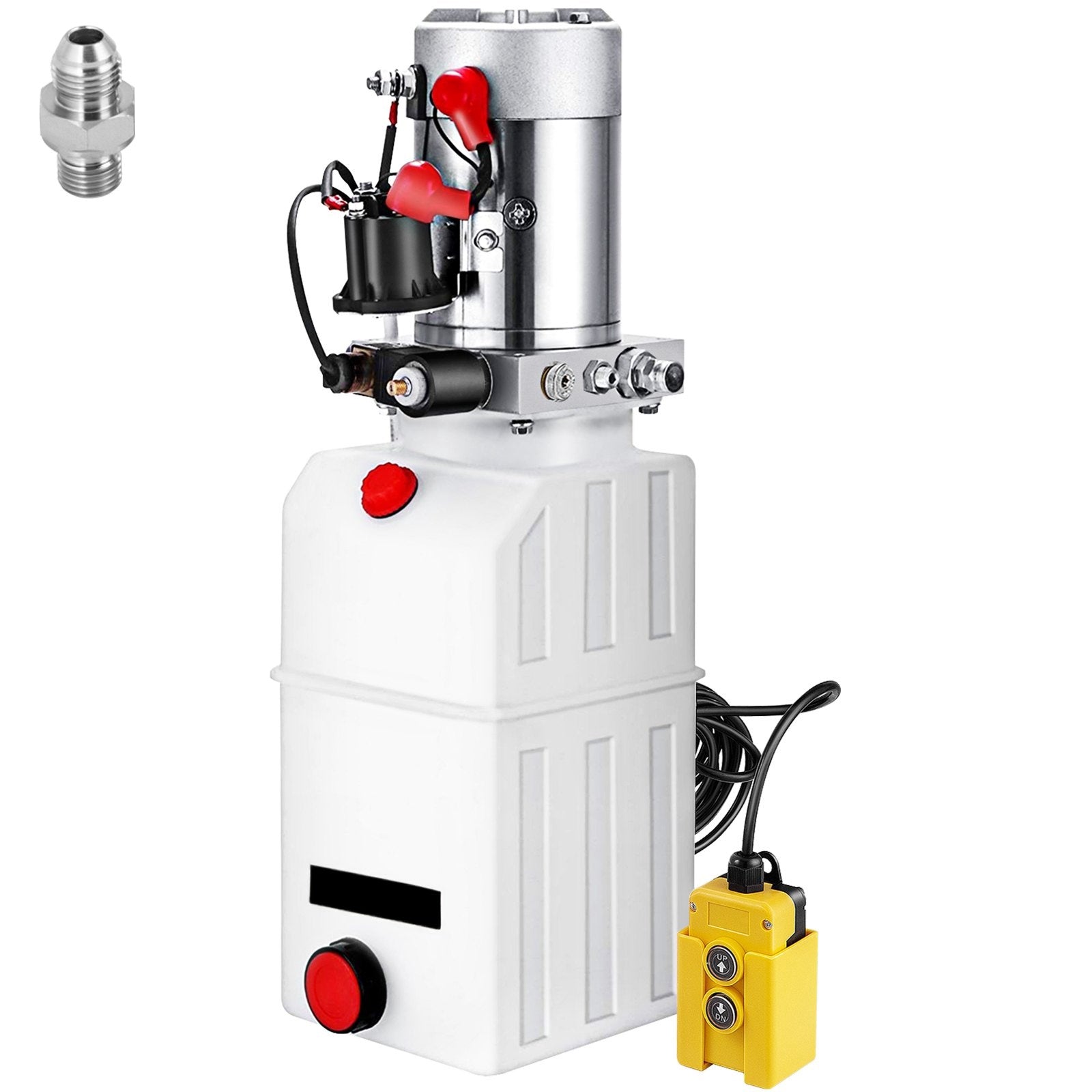

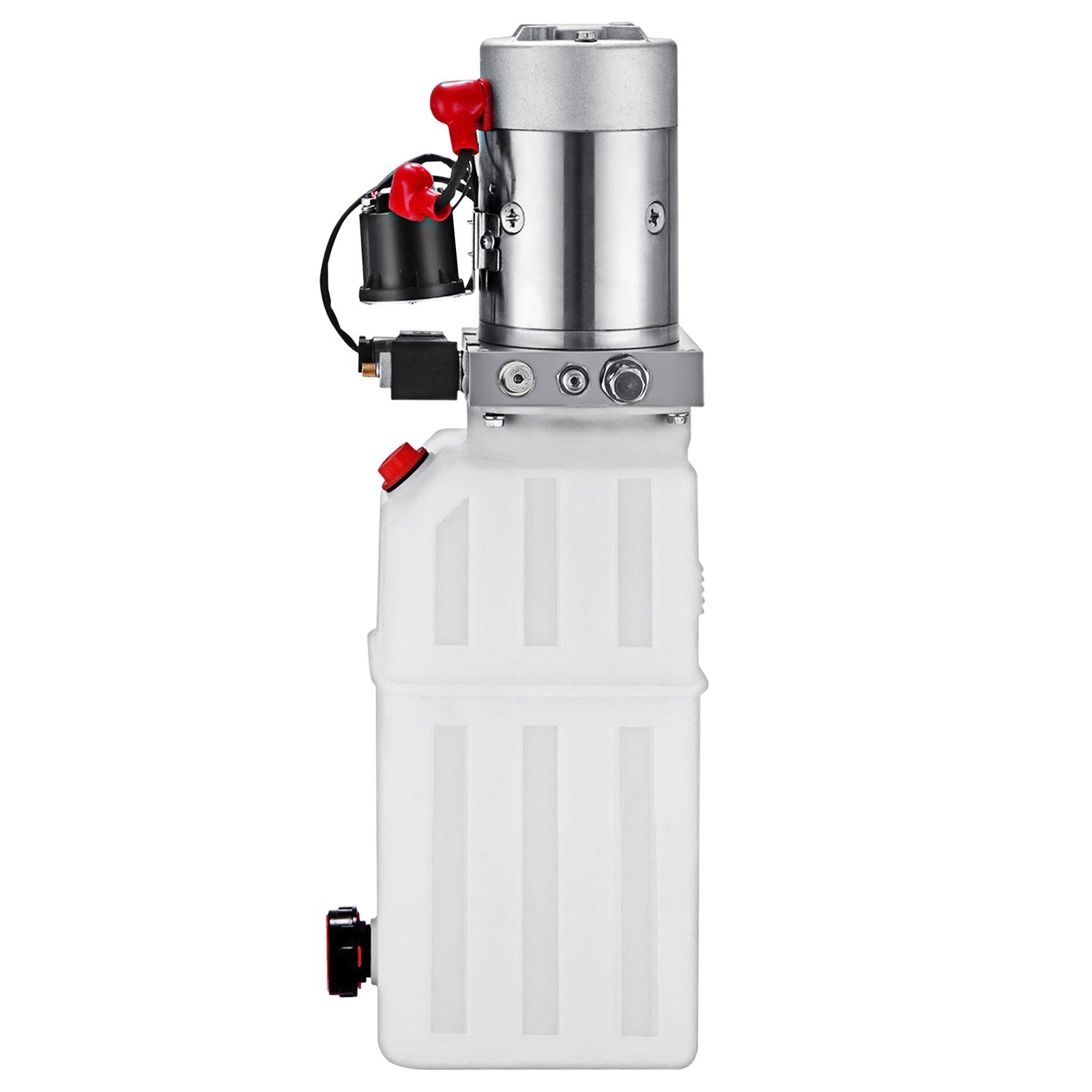

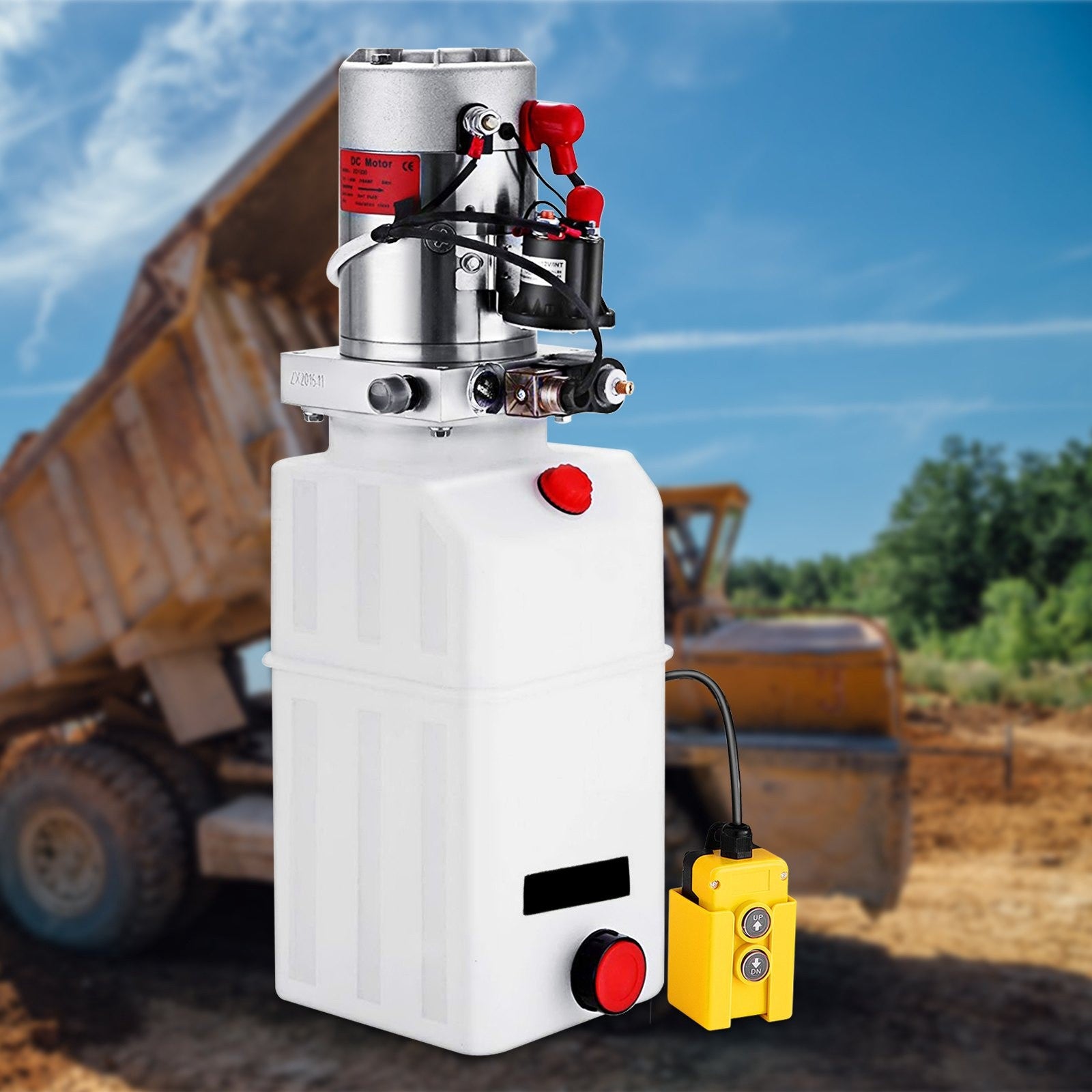

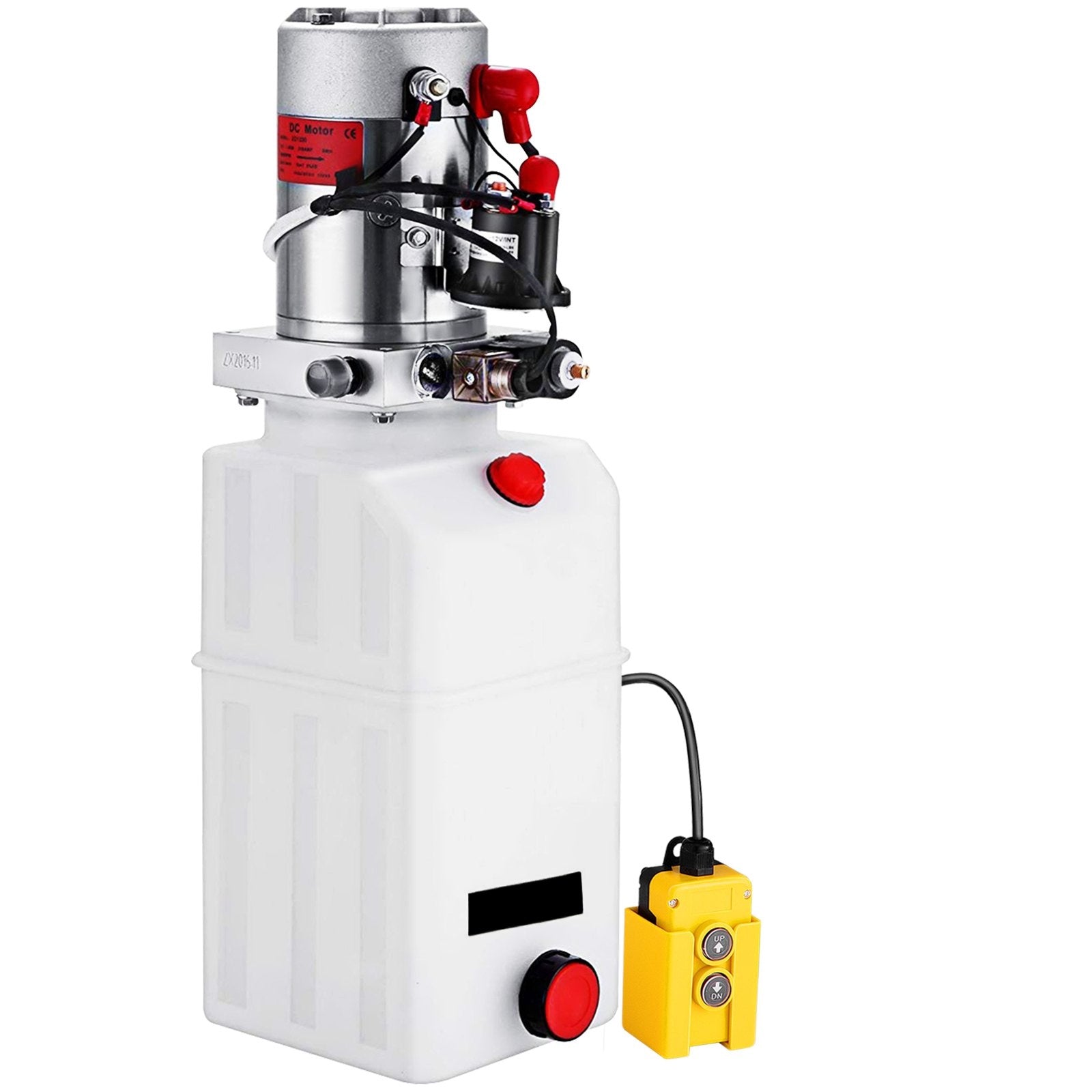

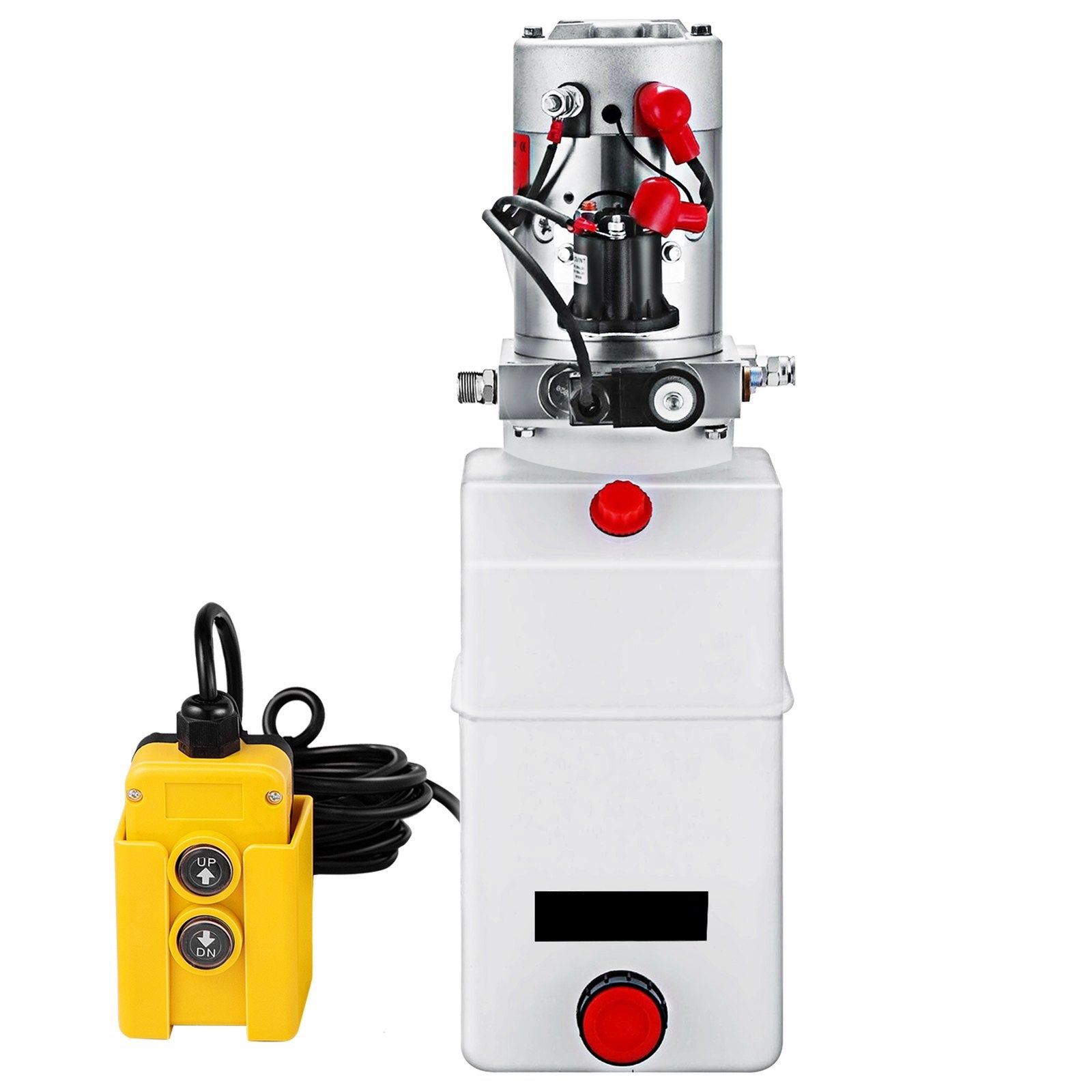

12V hydraulic power unit delivers fast, reliable lifting for dump trailers and other single-acting hydraulic systems, with power-up/gravity-down control for straightforward operation. Built around a 6-quart (6L) reservoir and a quick-start DC motor, it’s designed as a direct replacement for many remotely controlled hydraulic setups. Pre-assembled wiring and a long remote pendant help reduce install time and keep operation simple on the job.

• Delivers quick lift performance with single-acting power-up/gravity-down hydraulic operation.


• Includes a 15 ft (4.5 m) handheld pendant remote and one additional SAE#6 connector.


• Handles demanding loads with max relief settings up to 3200 PSI (A port) and 1500 PSI (B port).


• Reduces downtime with a pre-assembled hydraulic power pack and simplified wiring layout.


• Fits many dump trailers, dump beds, stackers, and small to medium lifting platforms using 12V DC.

Set up a dependable replacement hydraulic power pack without overcomplicating your system. This compact unit is optimized for common 12V DC remote hydraulic applications and provides steady flow for lifting tasks where consistent output matters. The integrated relief/overflow protection helps manage overpressure during operation, while the translucent reservoir makes fluid checks easier at a glance. If you’re refreshing a worn pump on a dump trailer or upgrading a remote-controlled lift circuit, grab yours today and get back to work faster.

• System type: Single-acting (power up / gravity down)


• Motor: 12V DC, approx. 1.6–3.0 kW


• Flow rate: 2 GPM


• Max relief setting: 3200 PSI (A port, SAE#6); 1500 PSI (B port, SAE#6)


• Reservoir: 6 quart / 6L translucent plastic tank


• Remote: Handheld pendant with ~15 ft (4.5 m) cord
