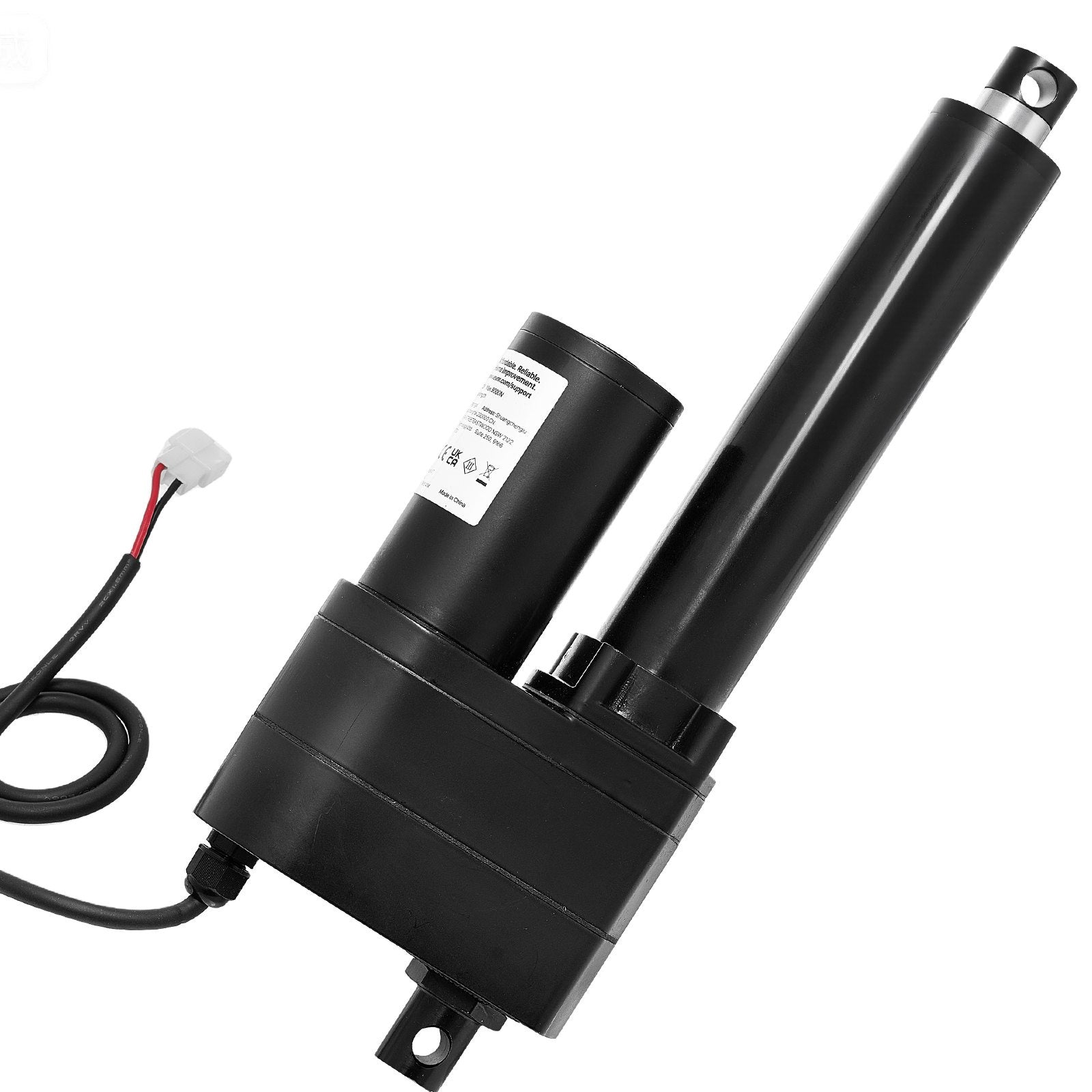

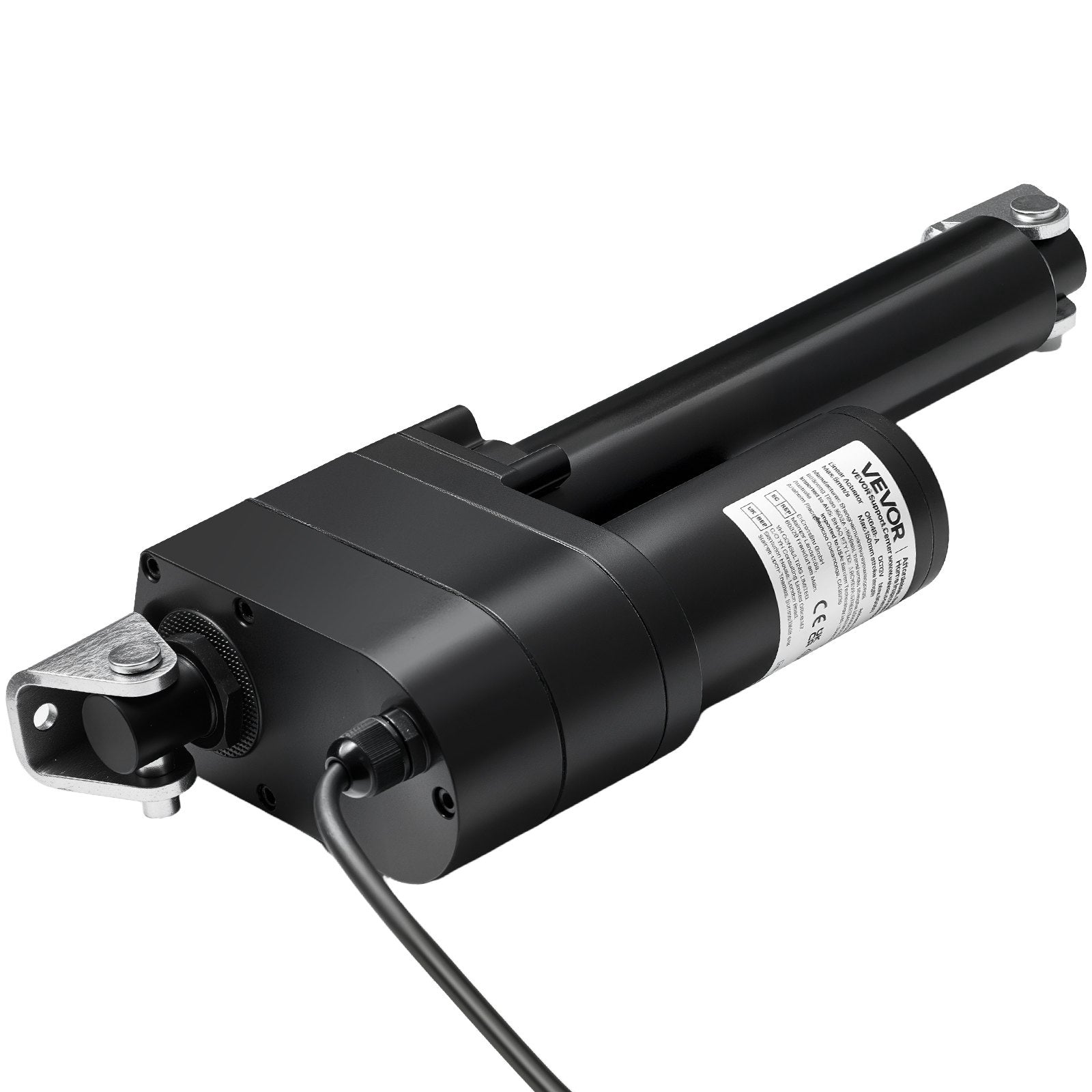

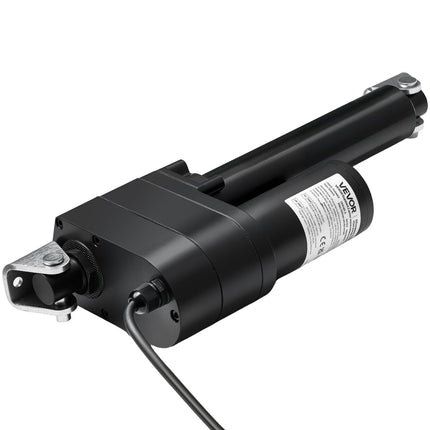

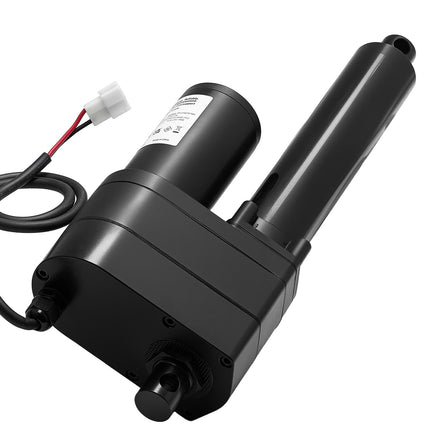

12V Linear Actuator, 150mm Stroke, 9000N, IP65

12V linear actuator delivers up to 9000N (2023 lbf) thrust for controlled, ultra heavy-duty lifting, pushing, and positioning in industrial equipment. With a 150mm stroke, slow 5mm/s travel for stable motion, and IP65-rated sealing for dust and water resistance, it’s built for machinery, vessels, automation systems, and high-load platforms. Aluminum alloy housing helps resist corrosion and wear in demanding environments.

• Delivers 9000N (2023 lbf) thrust for heavy lifting systems, industrial automation, and mechanical equipment


• Provides 150mm stroke with 5mm/s travel speed for precise, controlled linear motion


• Resists dust and water with an IP65-rated design for indoor/outdoor use (avoid prolonged exposure)

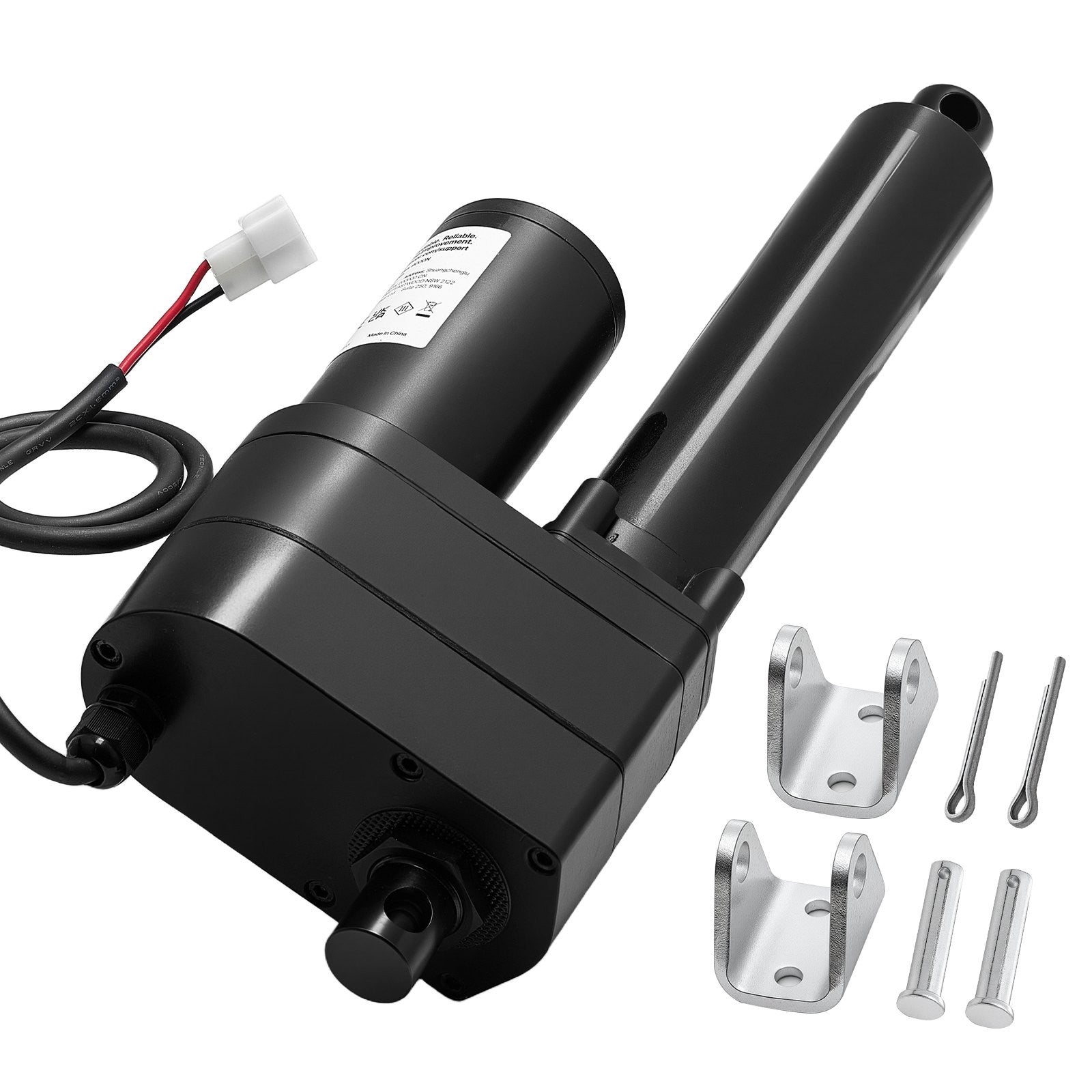

• Includes mounting brackets to simplify installation on machinery frames, platforms, and structures


• Reduces disruption with ≤65 dB no-load noise for workshops, warehouses, and job sites

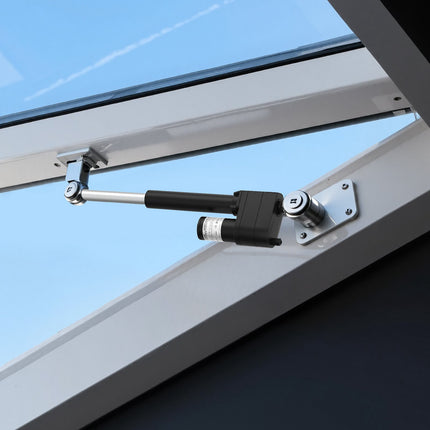

Built for high-load tasks where reliability matters, this actuator pairs a reinforced, sealed construction with stable, low-speed movement to help prevent sudden shifts under load. Use it for heavy robotic arms, barn door systems, transport mechanisms, marine/vessel applications, and lifting platforms where consistent thrust and repeatable positioning are required. Match your power supply and wiring to the 12V DC input and 20A draw for dependable performance. Grab yours today and upgrade your motion system with confident, heavy-duty control.

• Input voltage: DC 12V


• Max load/thrust: 9000N (2023 lbf)


• Stroke length: 150 mm (5.9 in)


• Travel speed: 5 mm/s (0.2 in/s)


• Extended length: 553 mm (21.77 in)


• Retracted length: 403 mm (15.87 in)


• IP rating: IP65


• Current draw: 20 A


• No-load noise: ≤65 dB


• Material: Aluminum alloy


• Net weight: 5.425 kg (12.0 lb)


• Product dimensions: 420 × 150 × 75 mm (16.5 × 5.9 × 3.0 in)
