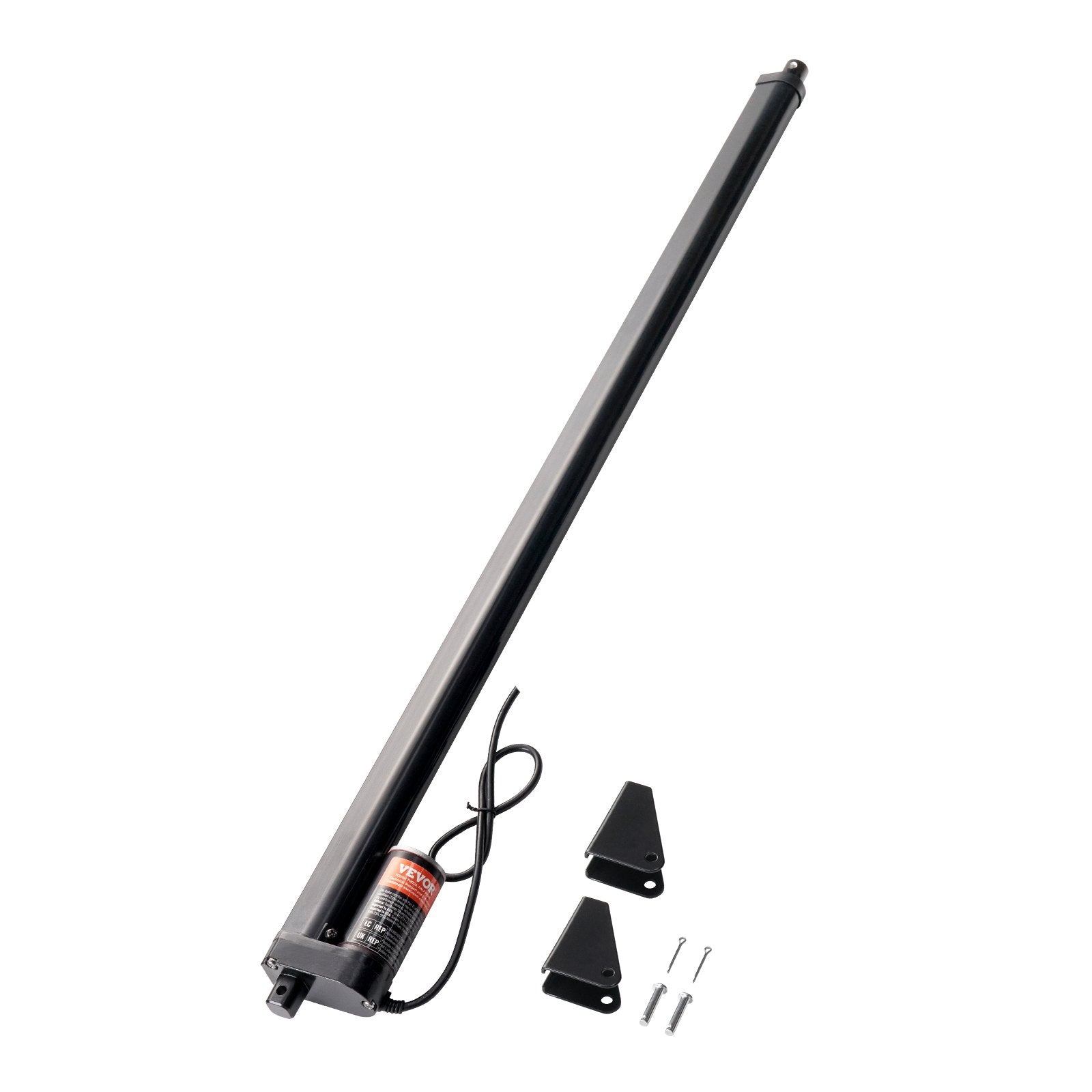

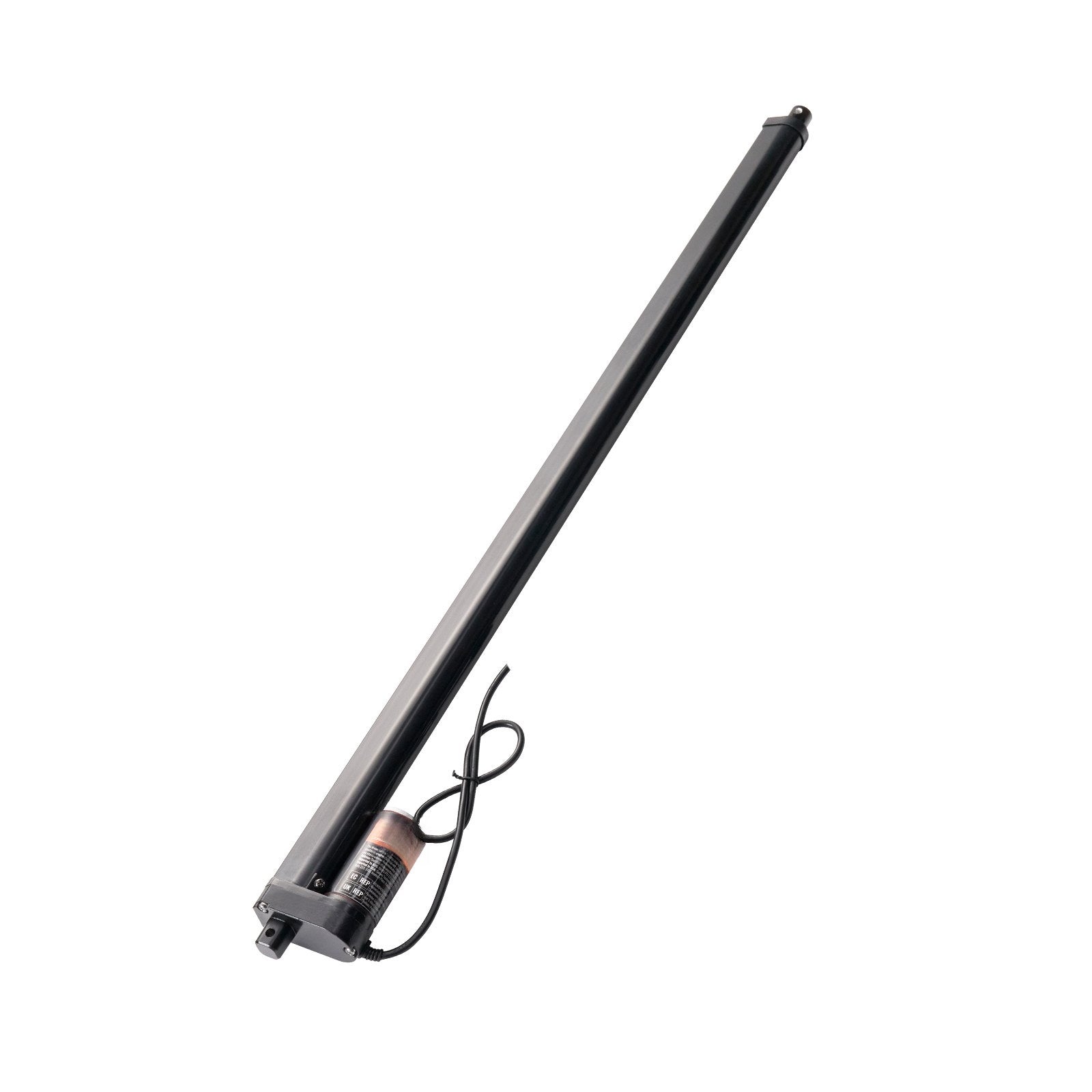

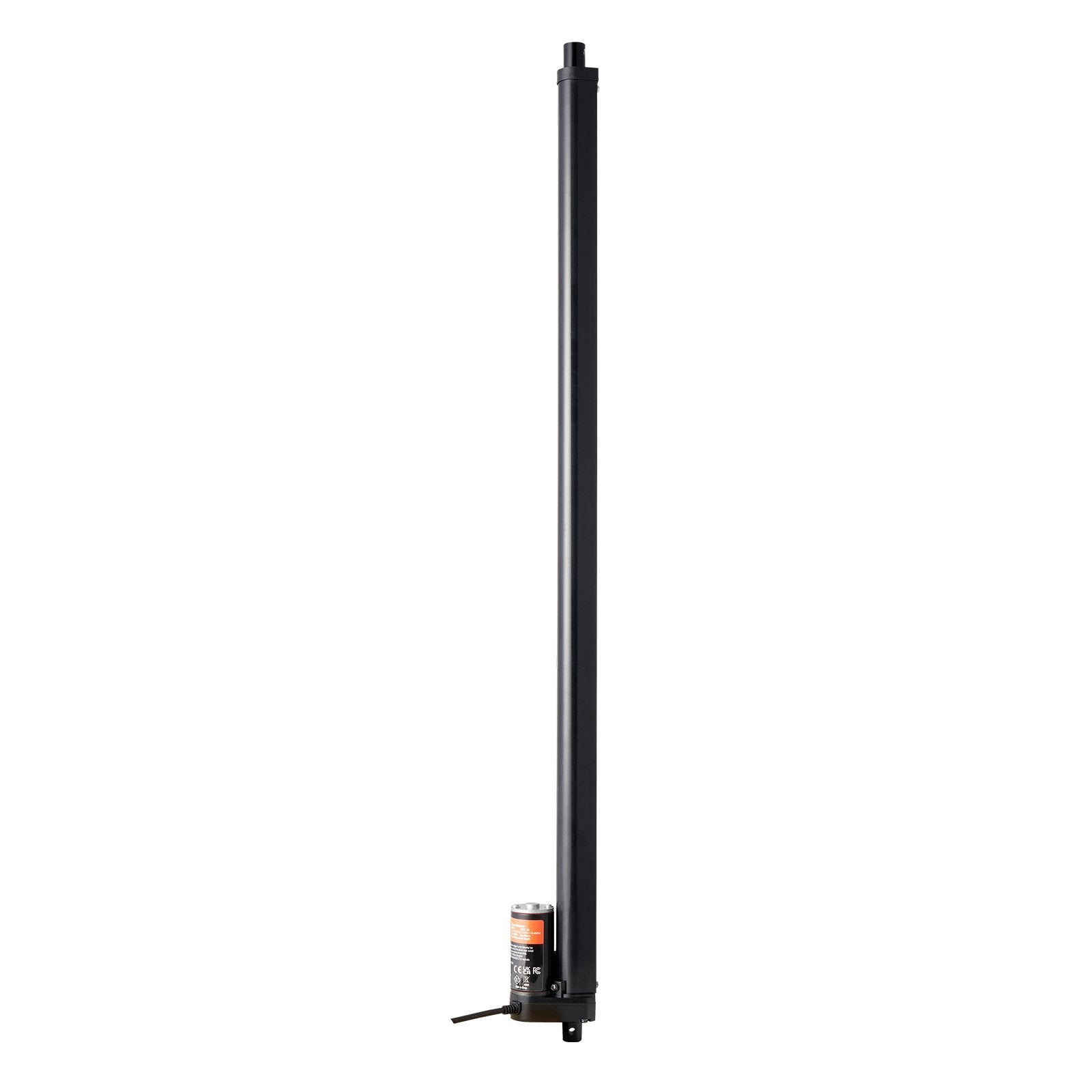

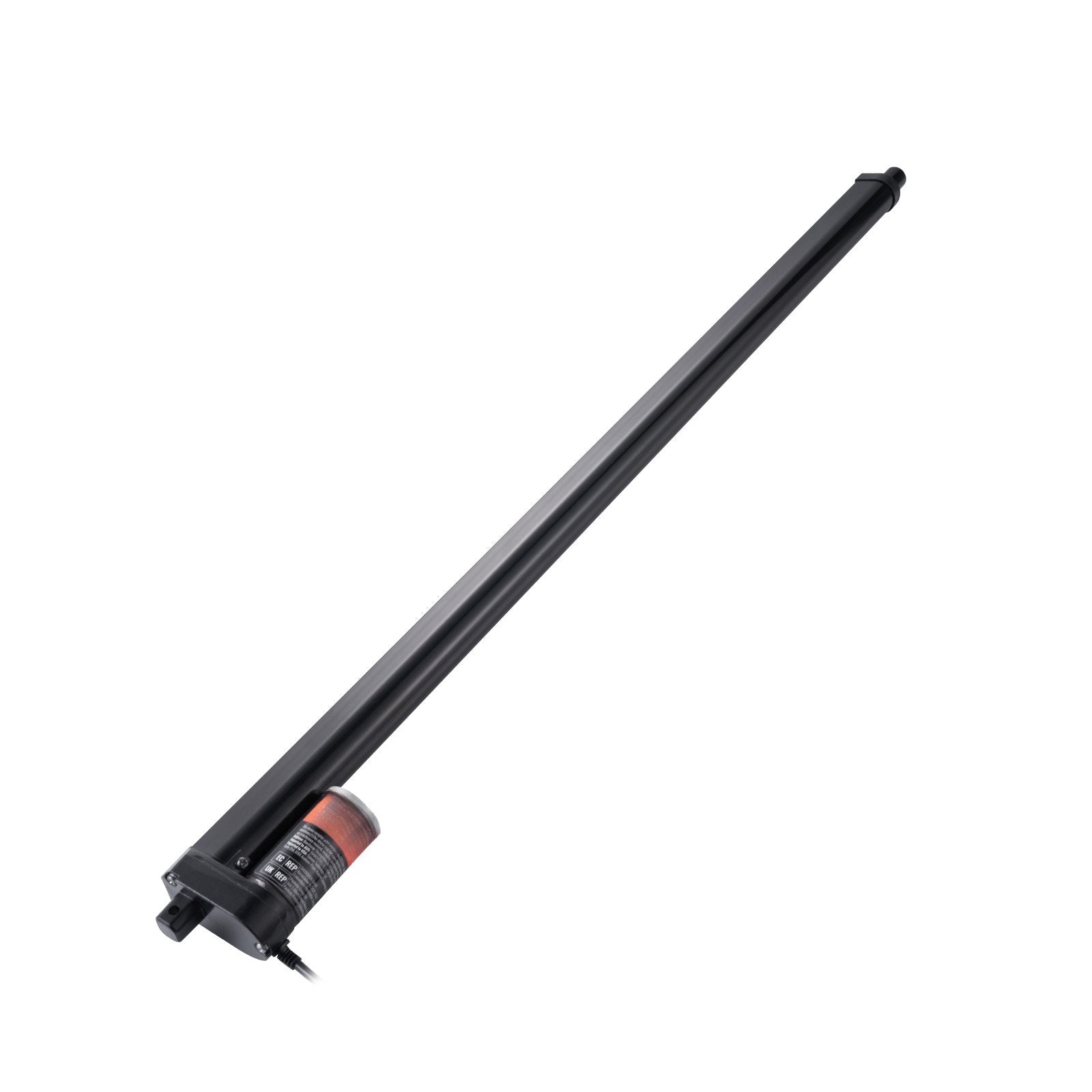

12V Linear Actuator, 20 in Stroke, 1000N, IP54

12V linear actuator delivers fast, controlled lifting and lowering for smooth height adjustments on desks, platforms, doors, and automation projects. With a 20-inch (500mm) stroke and high-speed travel, it helps you dial in position quickly while staying quiet under load. An IP54-rated housing supports use in dusty areas and light splash environments, making it a practical choice for workshop builds, outdoor enclosures, and industrial setups.

• Delivers 1000N (≈225 lbf) thrust for steady medium-duty lifting, pushing, and pulling tasks


• Moves at 0.55 in/s (14 mm/s) to reduce wait time during frequent height changes


• Operates at ≤50 dB for quieter furniture lifts, motorized windows, and equipment automation


• Protects with IP54 rating against dust and splashing water (do not submerge or allow water inside)


• Installs easily with DC 12V power for DIY control boxes, switches, and automation systems

Built with an aluminum alloy body for durability, this high-speed actuator is designed for repeatable motion in home, shop, and light industrial applications—think adjustable furniture, lift tables, vent panels, hatches, and mechanical equipment. The 25% duty cycle supports intermittent operation, ideal for projects that move, pause, and reposition throughout the day. Match the load, stroke, and mounting geometry to your build, then wire to a suitable DC 12V supply or controller. Grab yours today and start automating your next mechanism.

• Rated voltage: DC 12V


• Max load / actuation force: 1000N (≈225 lbf)


• Stroke length: 20 in / 500 mm


• Travel speed: 0.55 in/s / 14 mm/s


• Retracted length: 24.6 in / 625 mm


• Extended length: 44.6 in / 1125 mm


• Rated current: <5A


• Noise level: ≤50 dB


• Protection class: IP54


• Duty cycle: 25%


• Main material: Aluminum alloy


• Product dimensions: 24.6 x 2.95 x 1.57 in (625 x 75 x 40 mm)


• Net weight: 3.26 lb / 1.48 kg (including accessories)
