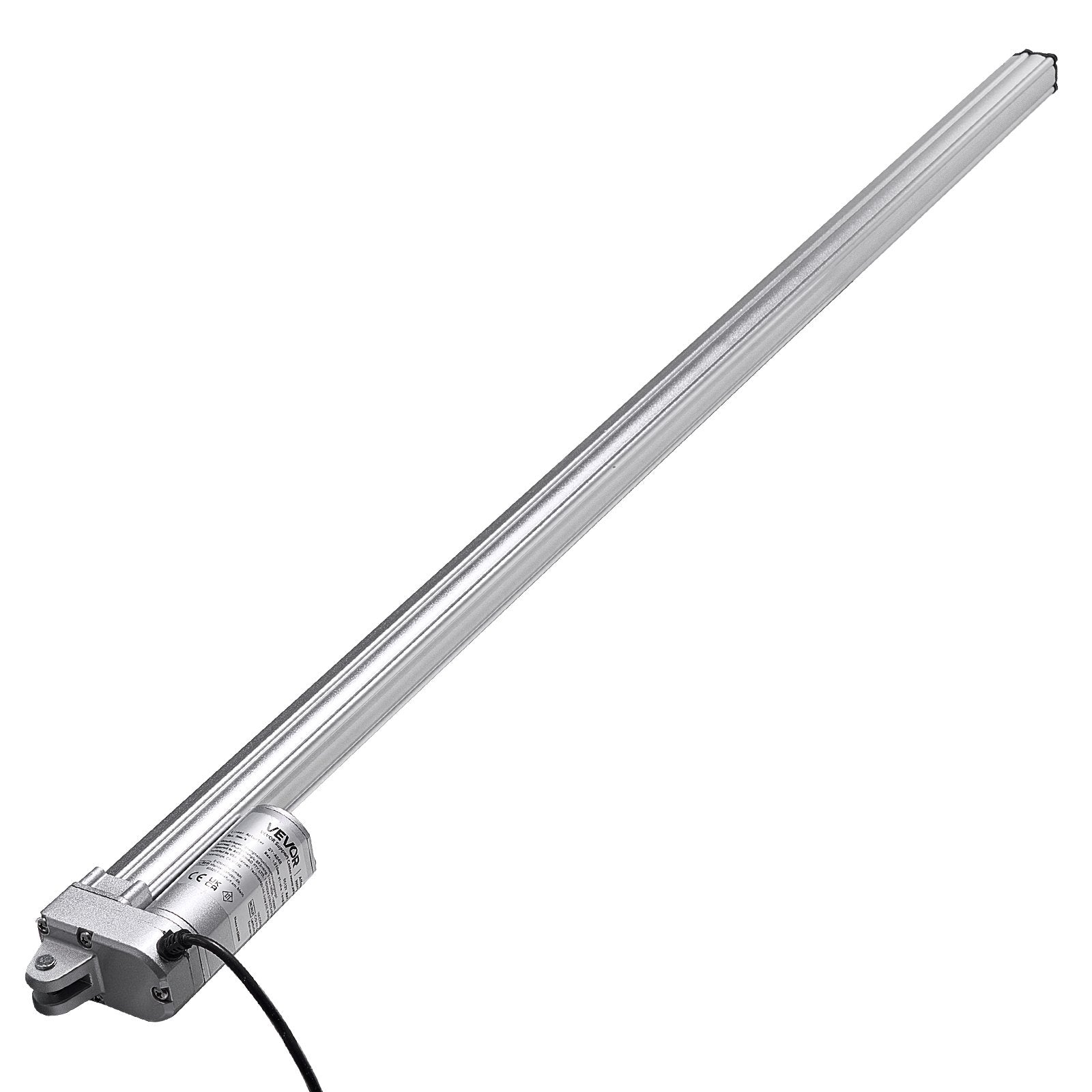

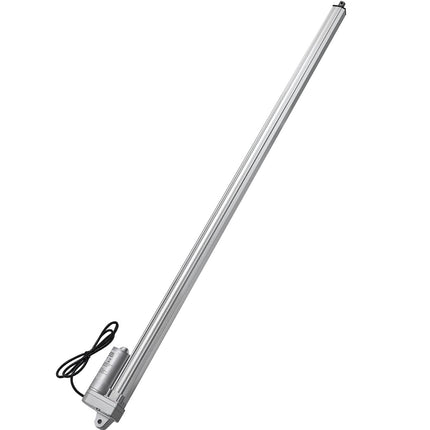

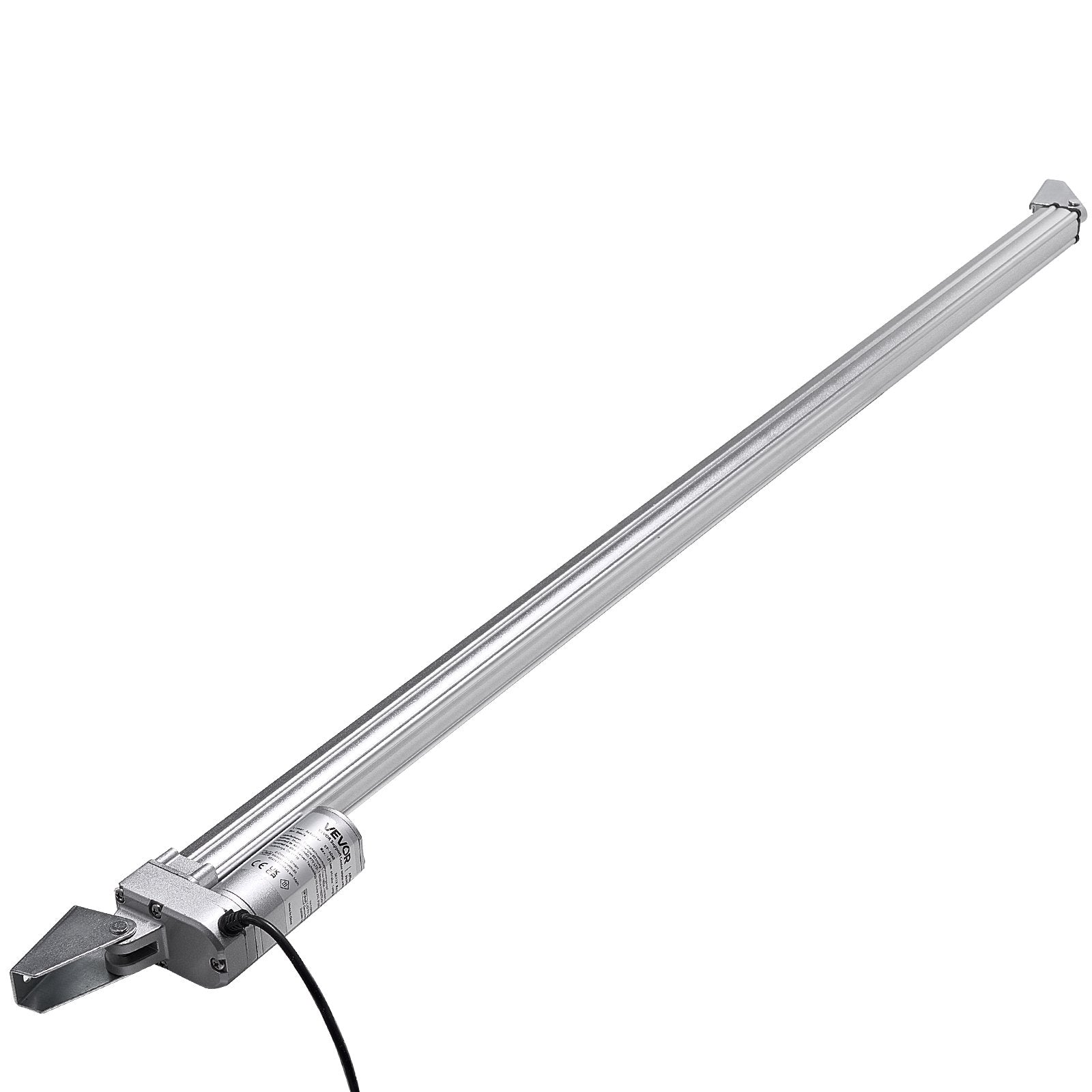

12V Linear Actuator, 40-Inch Stroke, 3000N, IP65

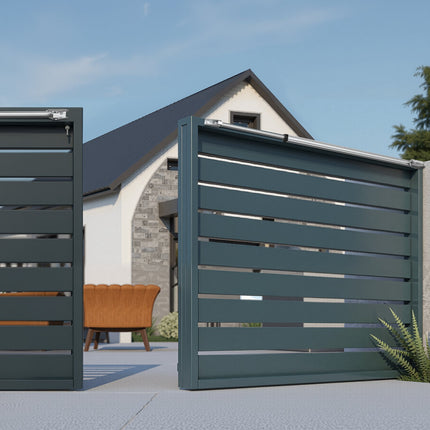

12V linear actuator delivers reliable high-force linear motion for outdoor-capable automation, with a long 40-inch stroke for wider travel and precise positioning. Built with an aluminum alloy body and IP65-rated dust/water resistance, it’s designed for solar tracker adjustment, door opening, irrigation mechanisms, and industrial machinery where consistent push/pull power matters. Includes a mounting bracket to speed setup and integration into custom builds.

• Delivers up to 3000N (675 lb) thrust for medium-load lifting, pushing, and pulling tasks


• Extends 40 in / 1016 mm stroke to cover longer travel ranges in automation systems


• Handles outdoor use with IP65 dust/water resistance for equipment exposed to splashes and debris

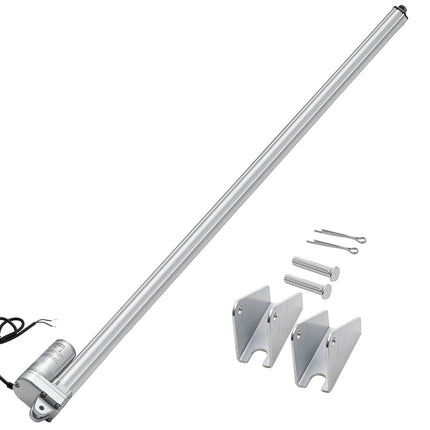

• Includes a mounting bracket to simplify installation on frames, linkages, and tracker assemblies


• Runs on DC 12V with 5 mm/s speed for controlled movement in machines, doors, and panels

Engineered for builders and maintenance teams who need dependable linear motion without complicated hydraulics, this actuator supports a broad range of projects—from solar panel tracking and agricultural equipment to shop jigs, gates, and industrial automation. The 12V input makes it easy to power from batteries or DC supplies, while the long extended length enables larger mechanisms and wider adjustment angles. Match stroke and mounting clearances to your design, then wire it in and get motion where you need it. Grab yours today.

• Input voltage: DC 12V


• Max load / thrust: 3000N (675 lb)


• Speed: 5 mm/s (0.2 in/s)


• Stroke length: 1016 mm (40 in)


• Extended length: 2184.4 mm (86 in)


• Retracted length: 1168.4 mm (46 in)


• Current draw: 6 A


• Duty cycle: 25%


• IP rating: IP65


• Main material: Aluminum alloy


• Net weight: 3.07 kg (6.8 lb)


• Product dimensions: 1186 x 78 x 45 mm (46.7 x 3.1 x 1.8 in)
