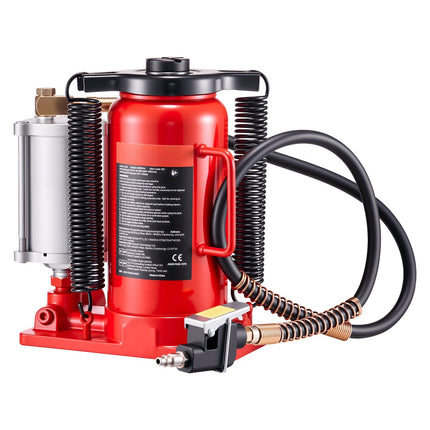

Air Hydraulic Bottle Jack, 20 Ton, 260–495 mm Lift

Air hydraulic bottle jack power lifts up to 20 tons (44,092 lb) to raise trucks, SUVs, RVs, and equipment with less effort and more control. Switch between pneumatic and manual pumping to keep jobs moving in the shop or roadside. A 10.2–19.5 in lifting range with an adjustable screw adds precise height tuning, while the anti-slip saddle and thick, wide base help keep the load stable during tire changes, inspections, and repairs.

• Delivers 20-ton (44,092 lb) rated lifting power for pickups, box trucks, RVs, SUVs, and heavy equipment


• Switches between air-powered quick lifting and manual pump operation when no compressor is available


• Reaches 10.2–19.5 in lift range with 2.6 in screw extension for fine height adjustment in tight spaces


• Stabilizes loads with an anti-slip saddle, seamless connection design, and thick, wide base


• Protects internals with sealed cylinder, overload valve, leak-resistant oil port, and dual return springs

Built from cast iron and carbon steel for demanding auto repair, farm, and construction use, this welded bottle jack is designed for reliable lifting across hot or cold conditions. The EU-style quick connector works with common pneumatic setups, while the manual backup keeps you productive when air supply is limited. Keep it in your garage or service truck for confident lifting and faster turnaround on maintenance jobs. Grab yours today and be ready for the next heavy lift.

• Rated load: 20 t / 44,092 lb


• Lifting range: 10.2–19.5 in (260–495 mm)


• Adjustable screw height: 2.6 in (65 mm)


• Working air pressure: 0.9–1.2 MPa


• Quick connector: EU type


• Materials: cast iron, carbon steel


• Product dimensions: 9.3 x 6.1 x 10.2 in (235 x 155 x 260 mm)


• Product weight: 29.8 lb (13.5 kg)
