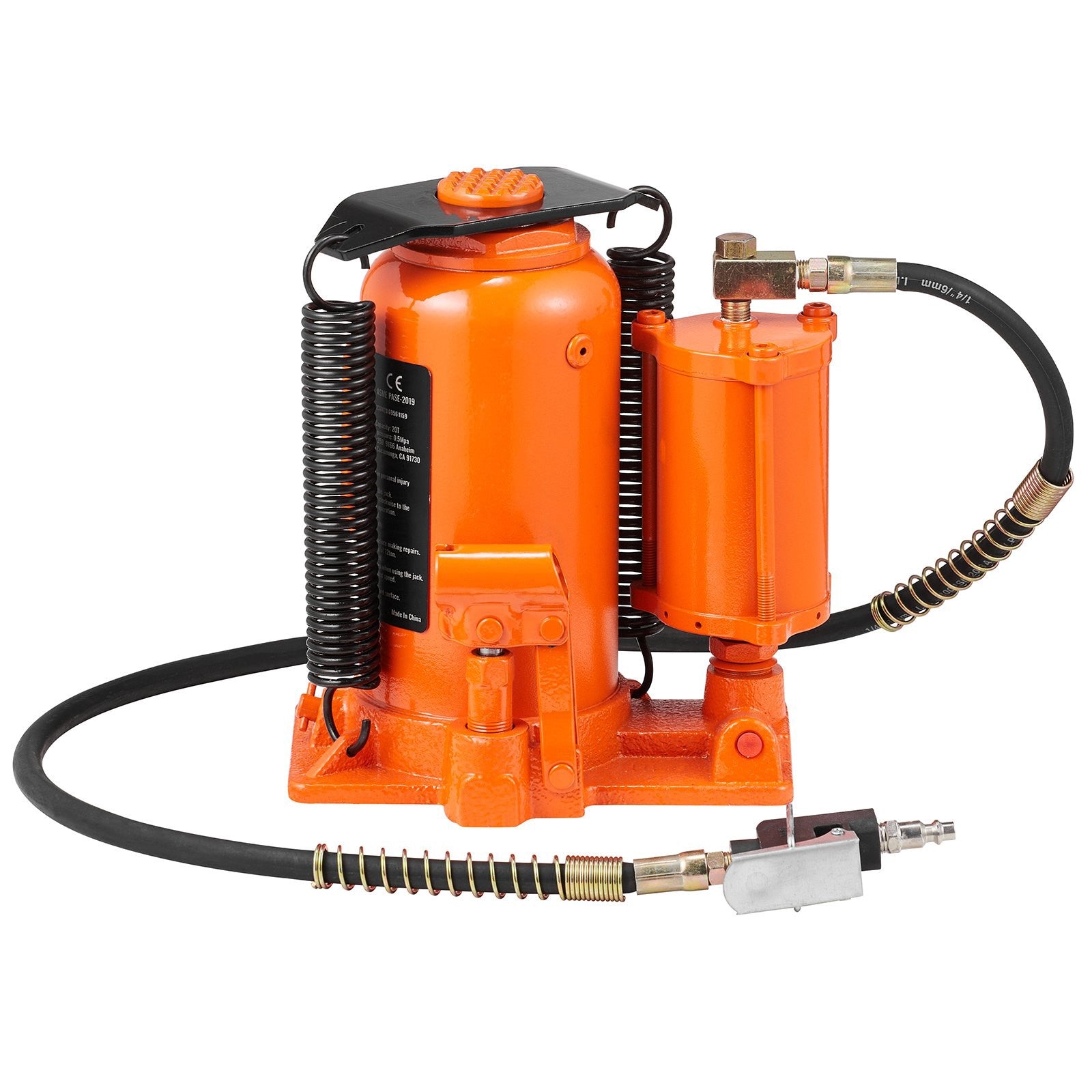

Air Hydraulic Bottle Jack, 20 Ton, 265–500 mm Lift

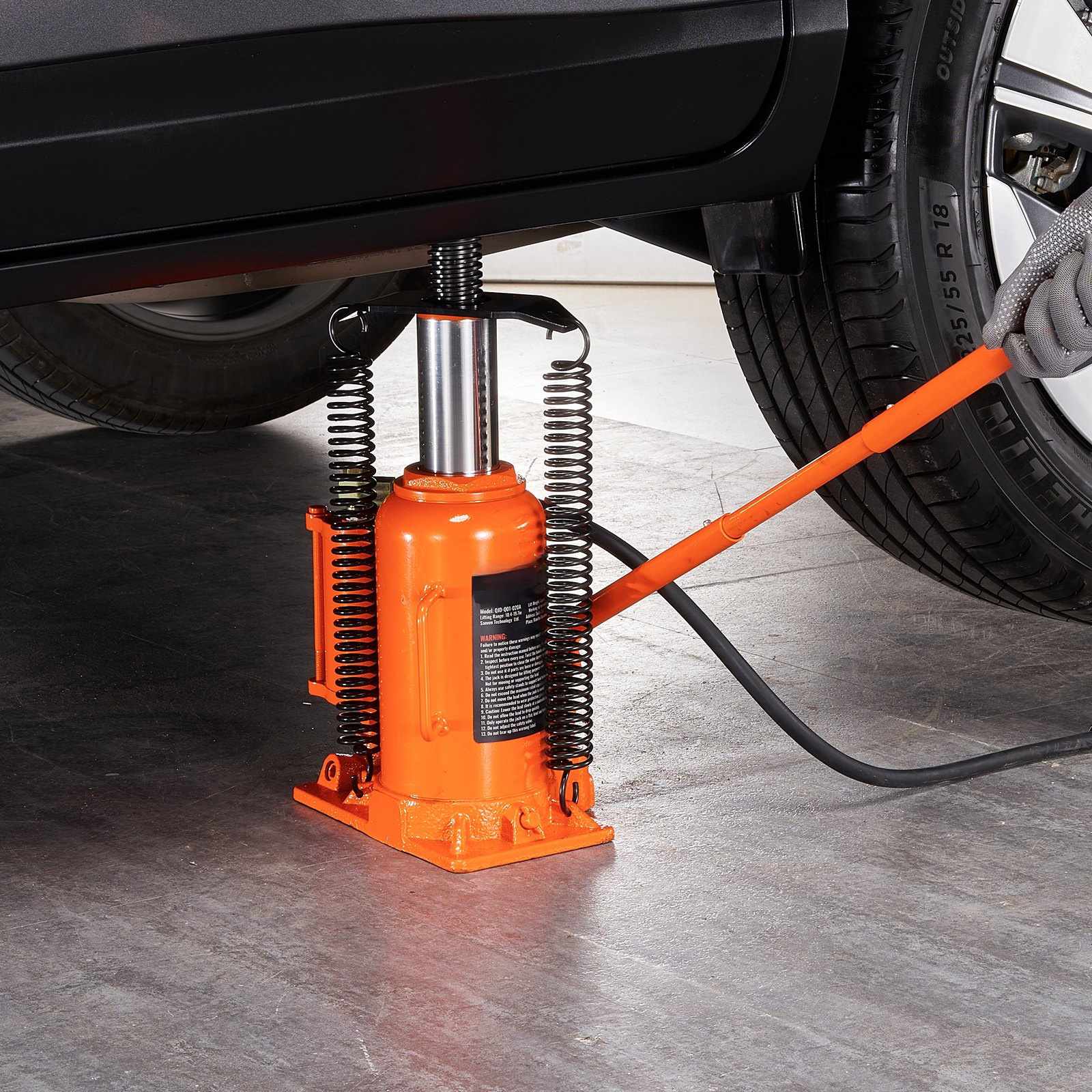

Air hydraulic bottle jack power-lifts up to 20 tons with less manual effort, helping you raise trucks, pickups, RVs, and heavy equipment faster in the shop or on-site. Use it as an air-powered jack with a compressor for quick lifts, or switch to the manual handle when air isn’t available. The welded, sealed construction helps resist oil leaks, while the adjustable lifting range supports a wide variety of vehicle heights and service tasks.

• Delivers 20-ton (44,092 lb) lifting capacity for trucks, RVs, industrial and engineering work

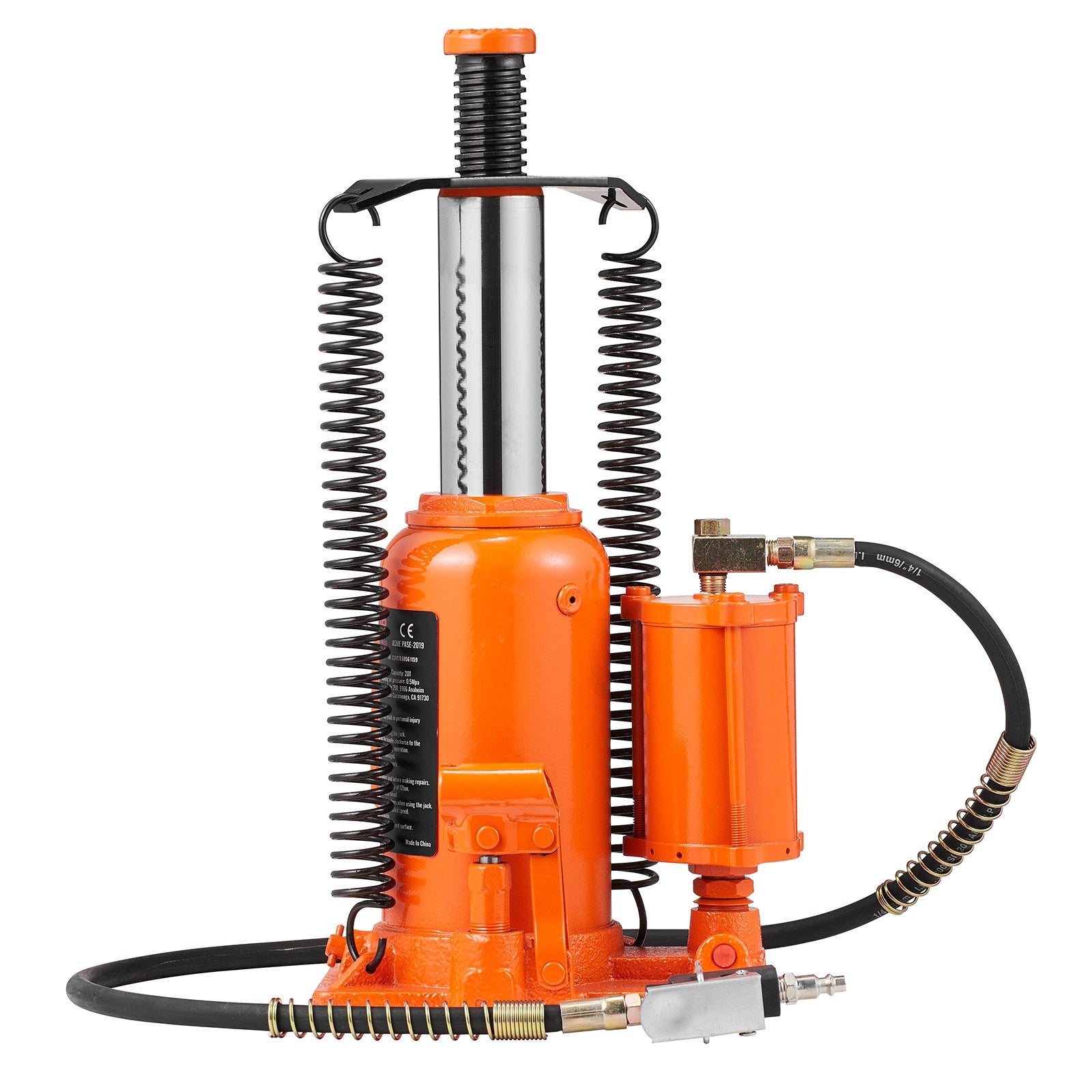

• Fits 10.4–19.7 in (265–500 mm) lift range with 2.4 in (60 mm) screw extension for fine height control

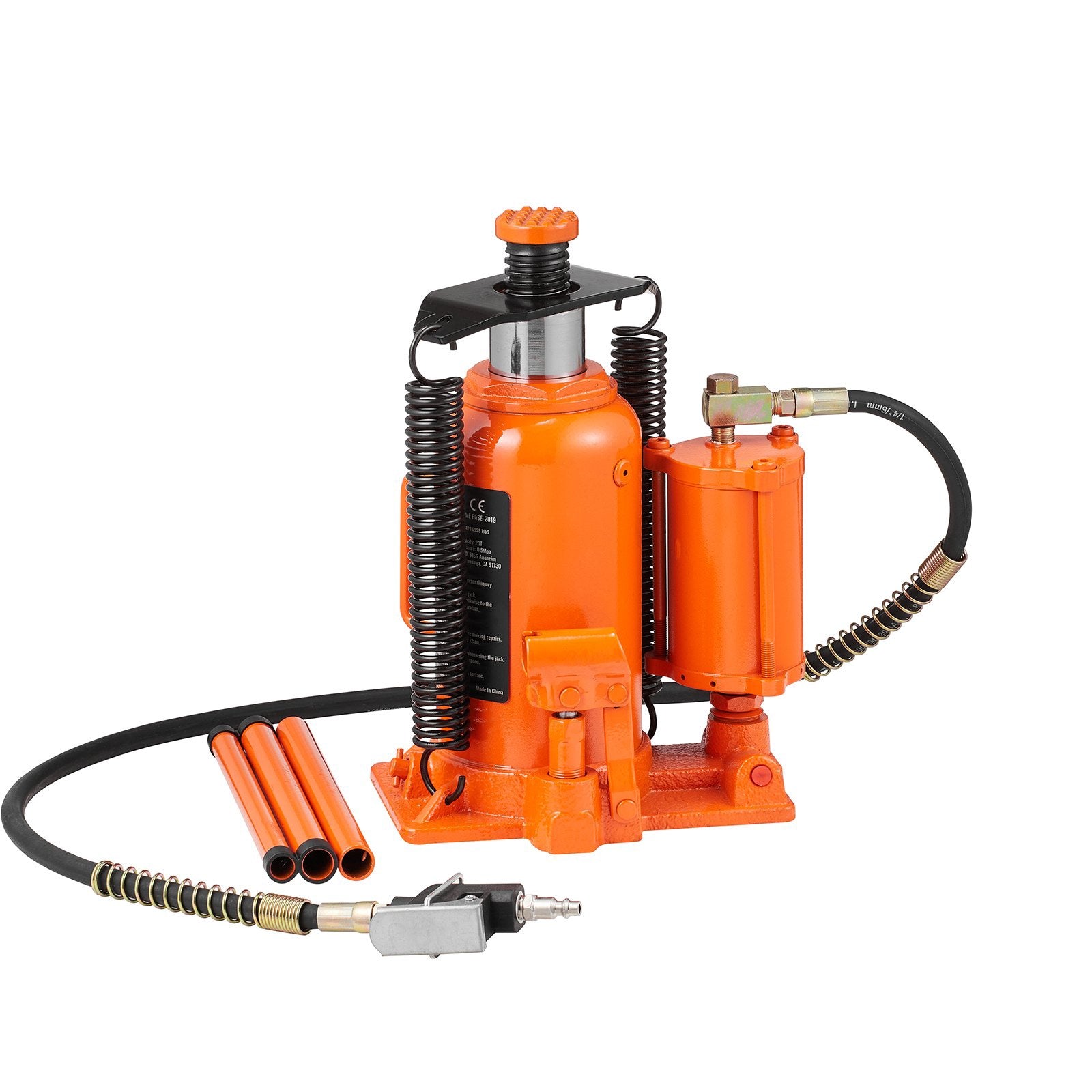

• Operates via air pump switch when connected to a compressor, plus includes a manual handle backup


• Protects with built-in safety valve to reduce overload risk during lifting

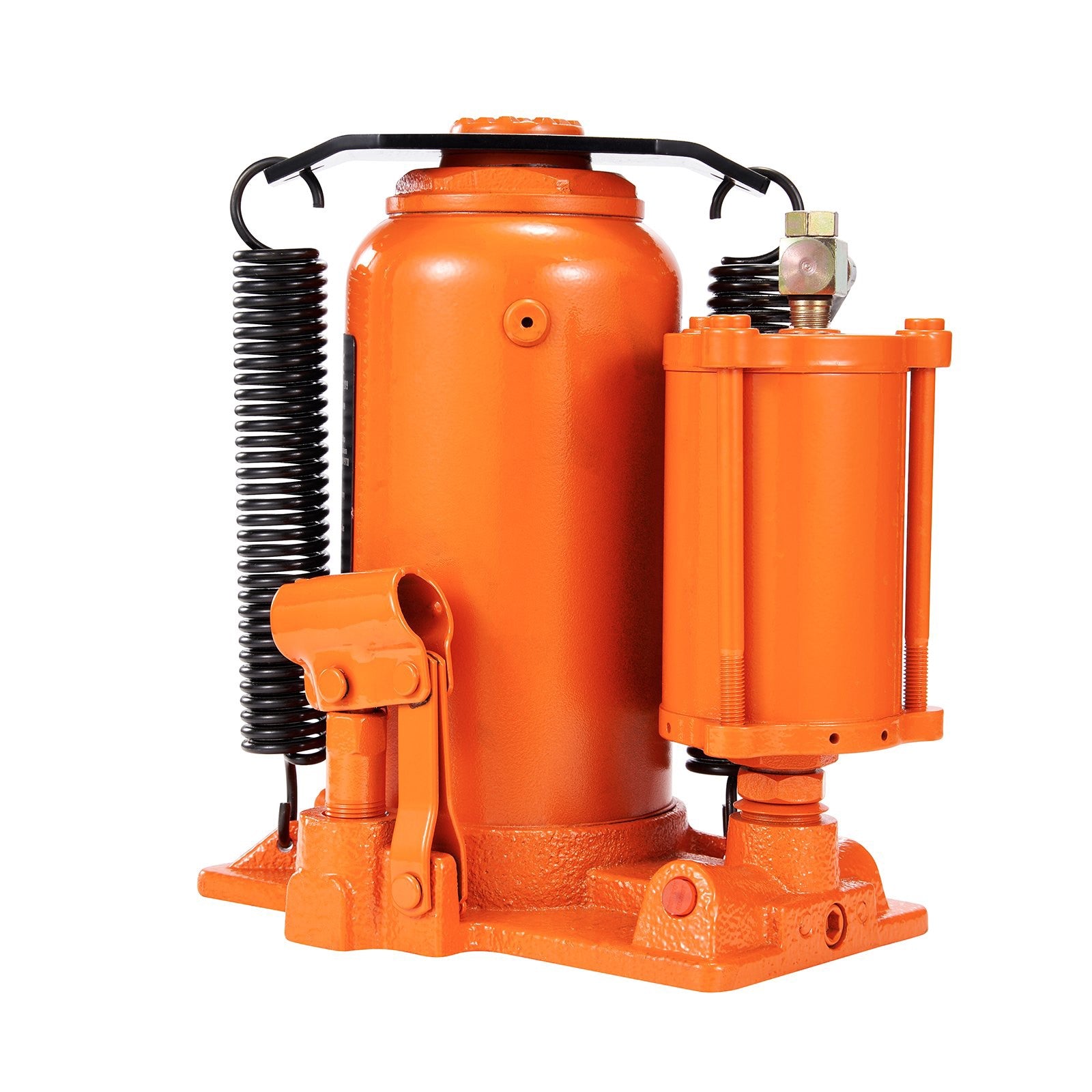

• Resists leaks with all-welded body and tight seals; coated exterior helps fight rust and corrosion

Built for demanding auto repair and industrial lifting, this pneumatic hydraulic bottle jack combines speed, control, and durability in a compact footprint. The stable lowering and quick reset help keep jobs moving, while the carry handle makes it easier to reposition between bays or service calls. If you need a heavy-duty air-over-hydraulic jack that supports multiple vehicle types and tight working spaces, this unit is ready for your tool lineup. Grab yours today and get more lift with less strain.

• Max capacity: 20 ton / 44,092 lb


• Lifting range: 10.4–19.7 in (265–500 mm)


• Screw extension: up to 2.4 in (60 mm)


• Working pressure: 0.5 MPa


• Air inlet connector: 20 PM


• Product size: 8.7 × 6.3 × 10.4 in (220 × 160 × 265 mm)


• Net weight: 32.4 lb (14.7 kg)
