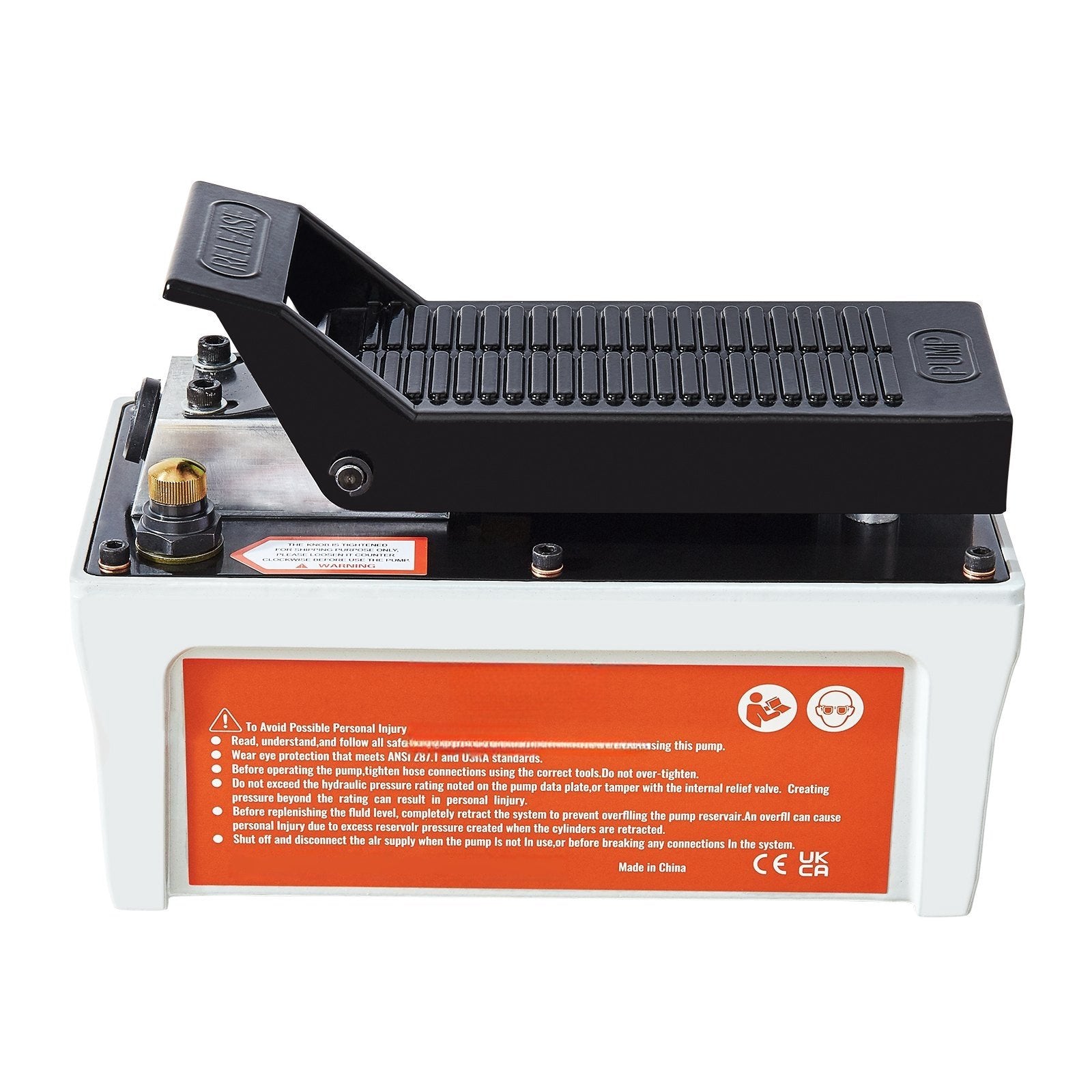

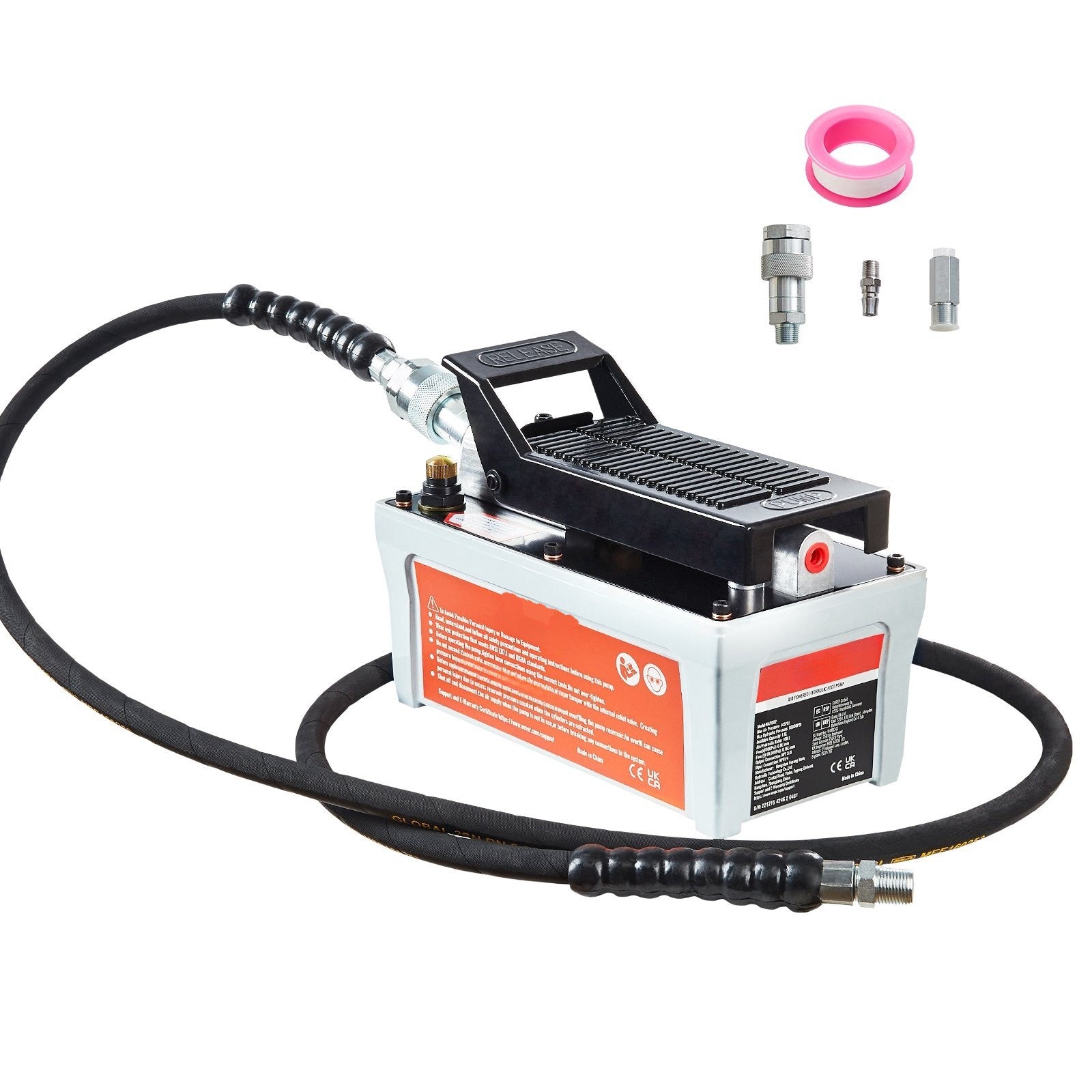

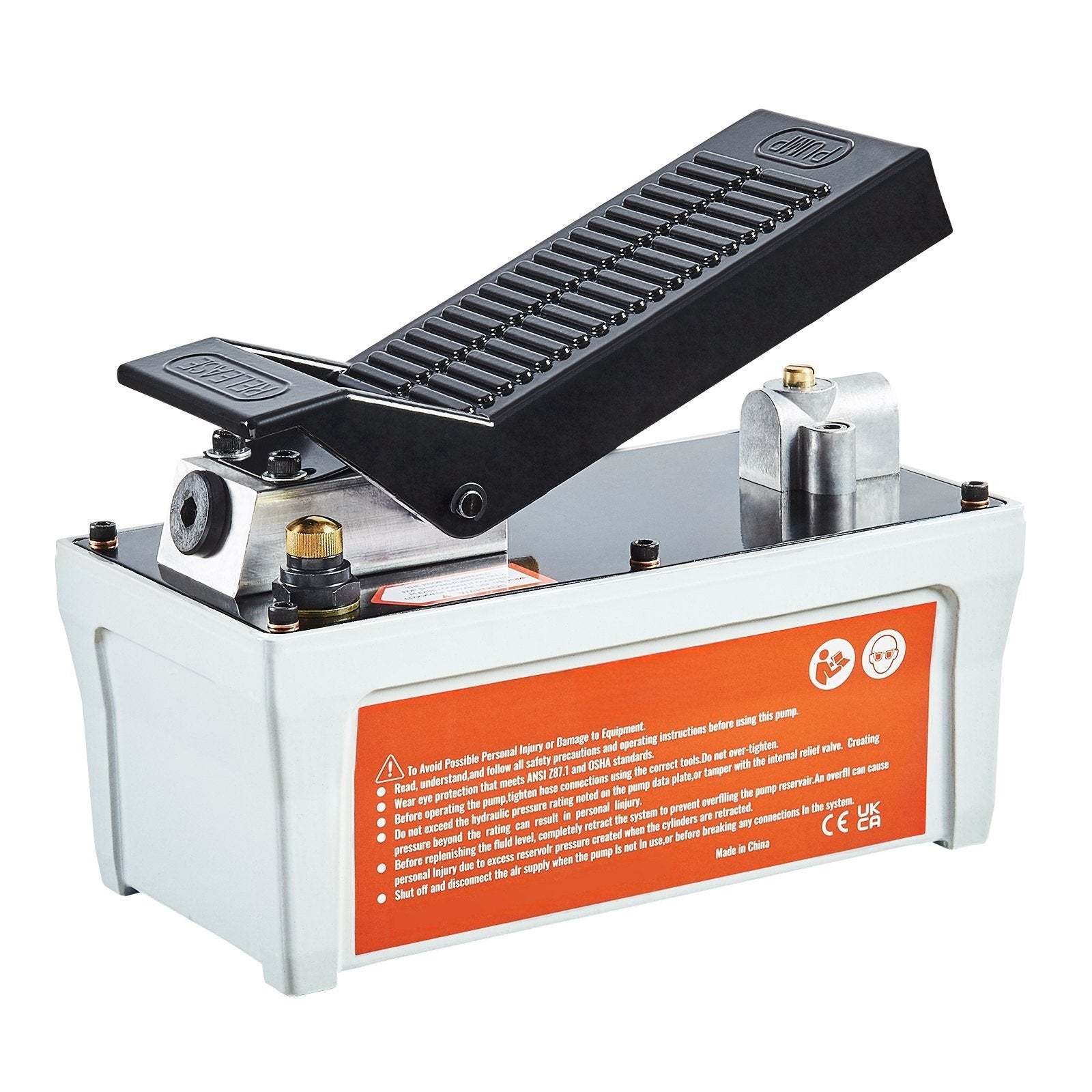

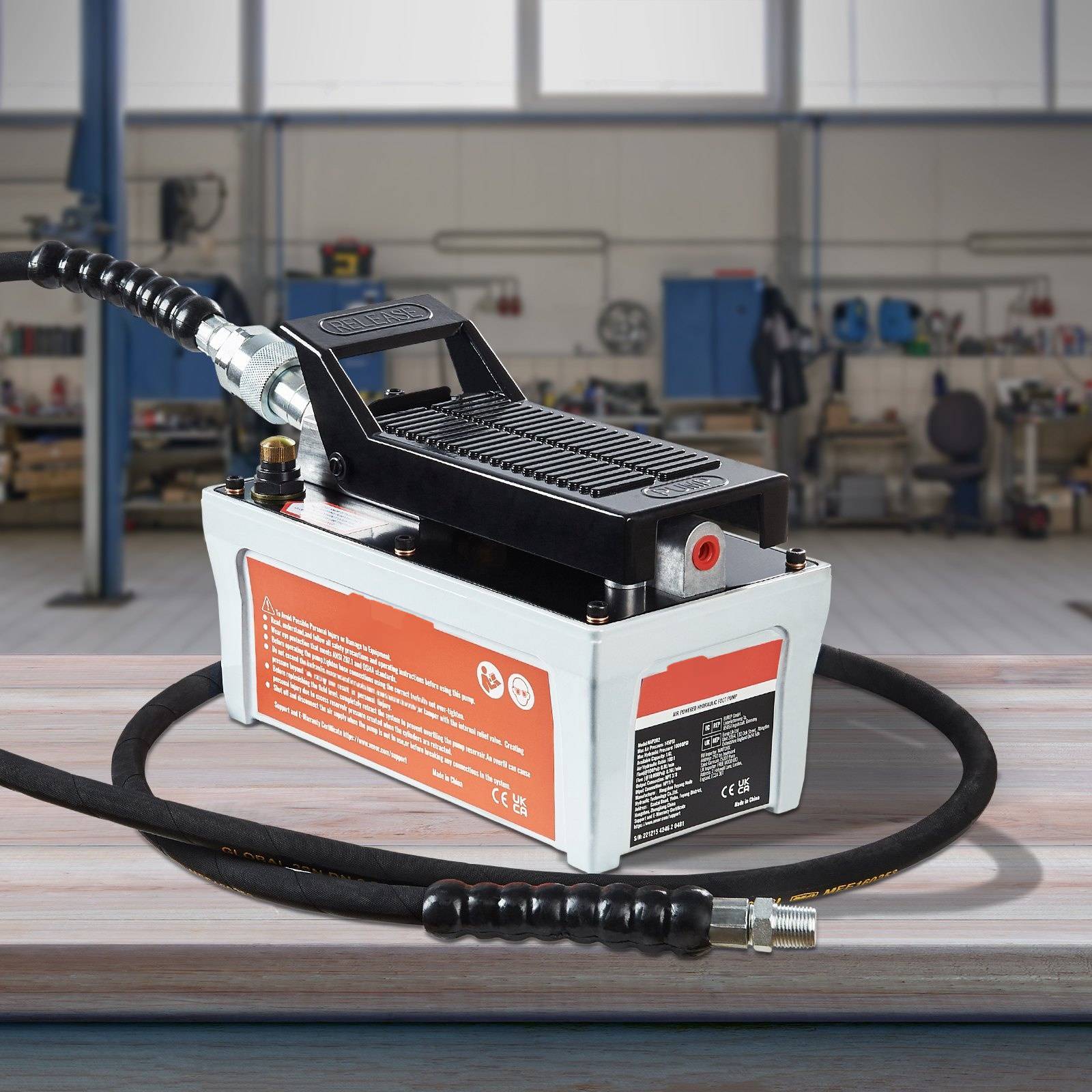

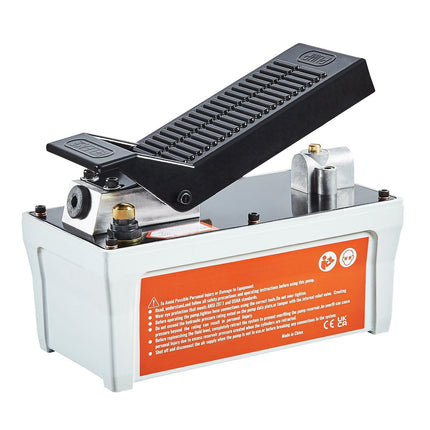

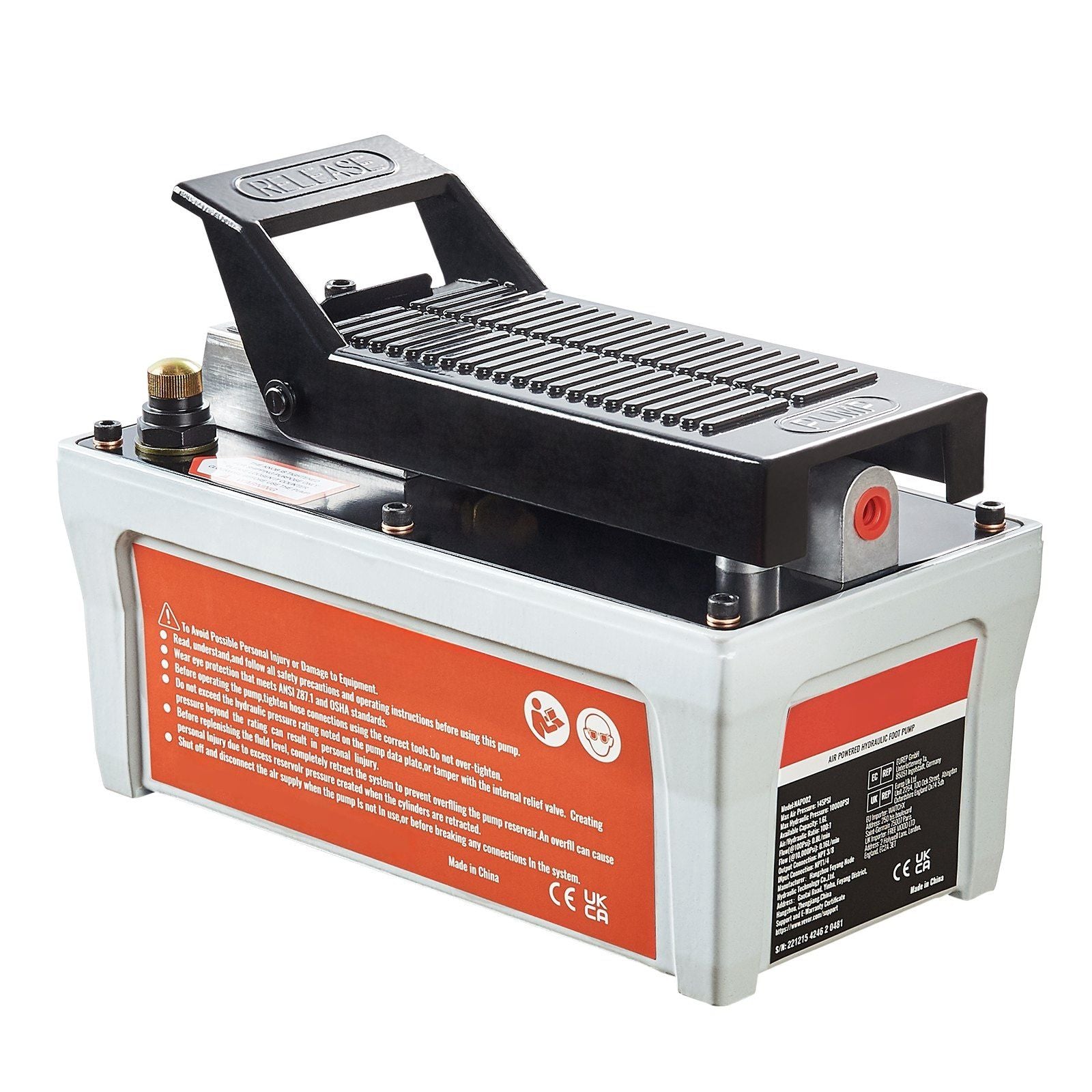

Air Hydraulic Foot Pump 10,000 PSI, 1.6L, 2m Hose

Air hydraulic pump delivers hands-free, foot-controlled hydraulic power for faster pulls, presses, and frame straightening up to 10,000 PSI. The 6.6 ft/2 m hydraulic hose gives extra reach around vehicles and shop equipment, while the compact metal body is easy to position. Designed for single-acting ram setups, it runs on shop air and includes key fittings so you can connect quickly and stay focused on the job.

• Delivers foot-actuated control to build and release pressure smoothly without tying up your hands


• Includes 6.6 ft/2 m hydraulic oil hose for longer-reach operation around frames, posts, and presses


• Fits single-acting rams, presses, and hydraulic pullers requiring high-pressure output up to 10,000 PSI


• Reduces slip and vibration with bottom mounting holes for steadier, quieter operation


• Supports daily shop use with metal housing, aluminum pump core, and internal relief valve protection

Set it, connect it, and power through demanding body shop and industrial tasks with controlled air-to-hydraulic performance. With standard NPT air and oil ports, this treadle pump integrates easily into many existing setups, making it a practical upgrade for frame machines, pulling posts, and general shop hydraulics. Keep your workflow moving with reliable foot control, extended hose reach, and a compact footprint that stores neatly between jobs. Grab yours today and streamline your next pull or press.

• Maximum output pressure: 10,000 PSI


• Input air pressure range: 110–145 PSI


• Hydraulic pump flow: 0.8 L/min (no-load); 0.16 L/min (load)


• Oil tank capacity: 98 in³ / 1.6 L


• Hydraulic oil hose length: 6.6 ft / 2 m


• Air inlet: NPT 1/4"


• Oil outlet: NPT 3/8"


• Product size (L x W x H): 10.3 x 5.4 x 7.3 in / 262 x 136 x 186 mm


• Product weight: 19.6 lb / 8.9 kg


• Color: Gray
