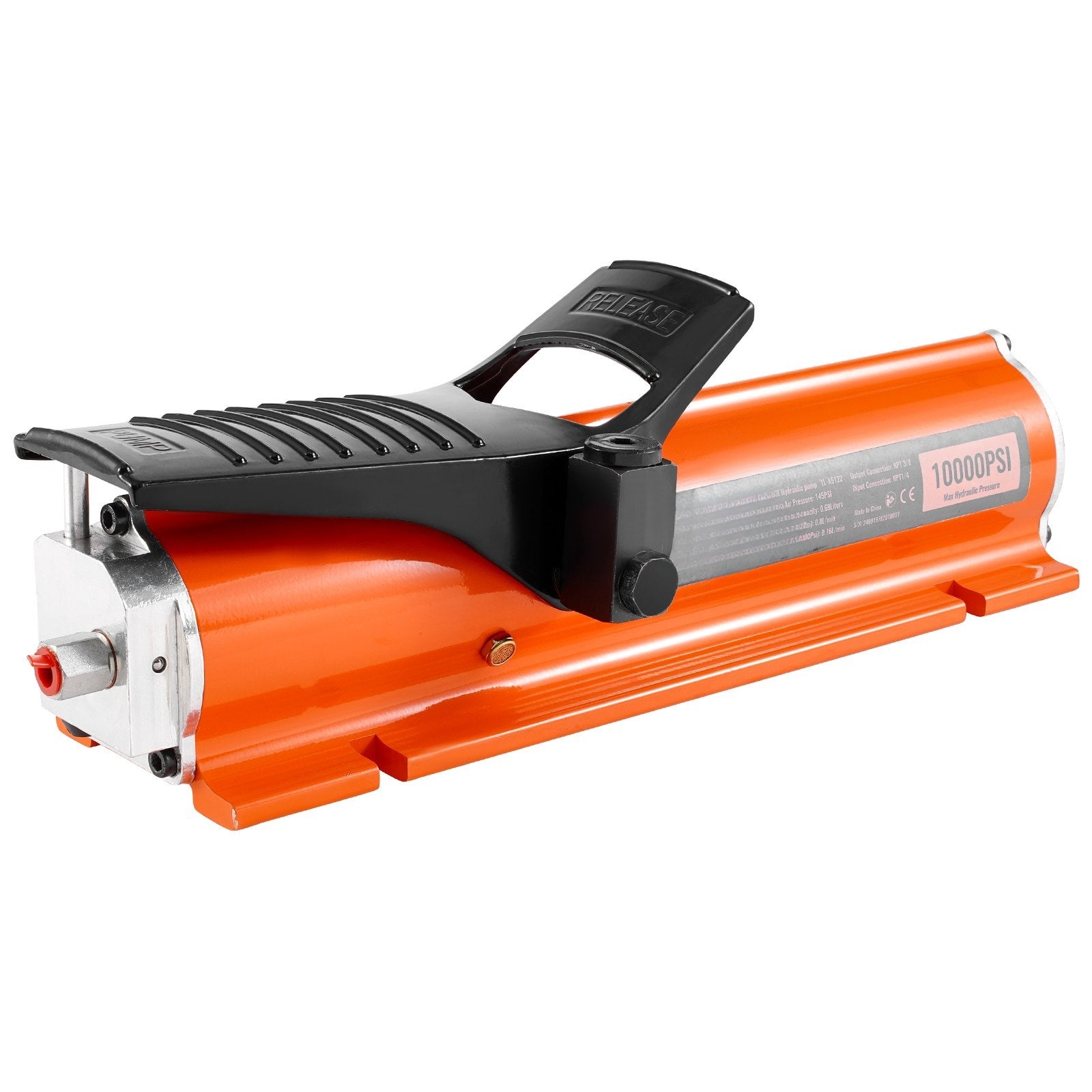

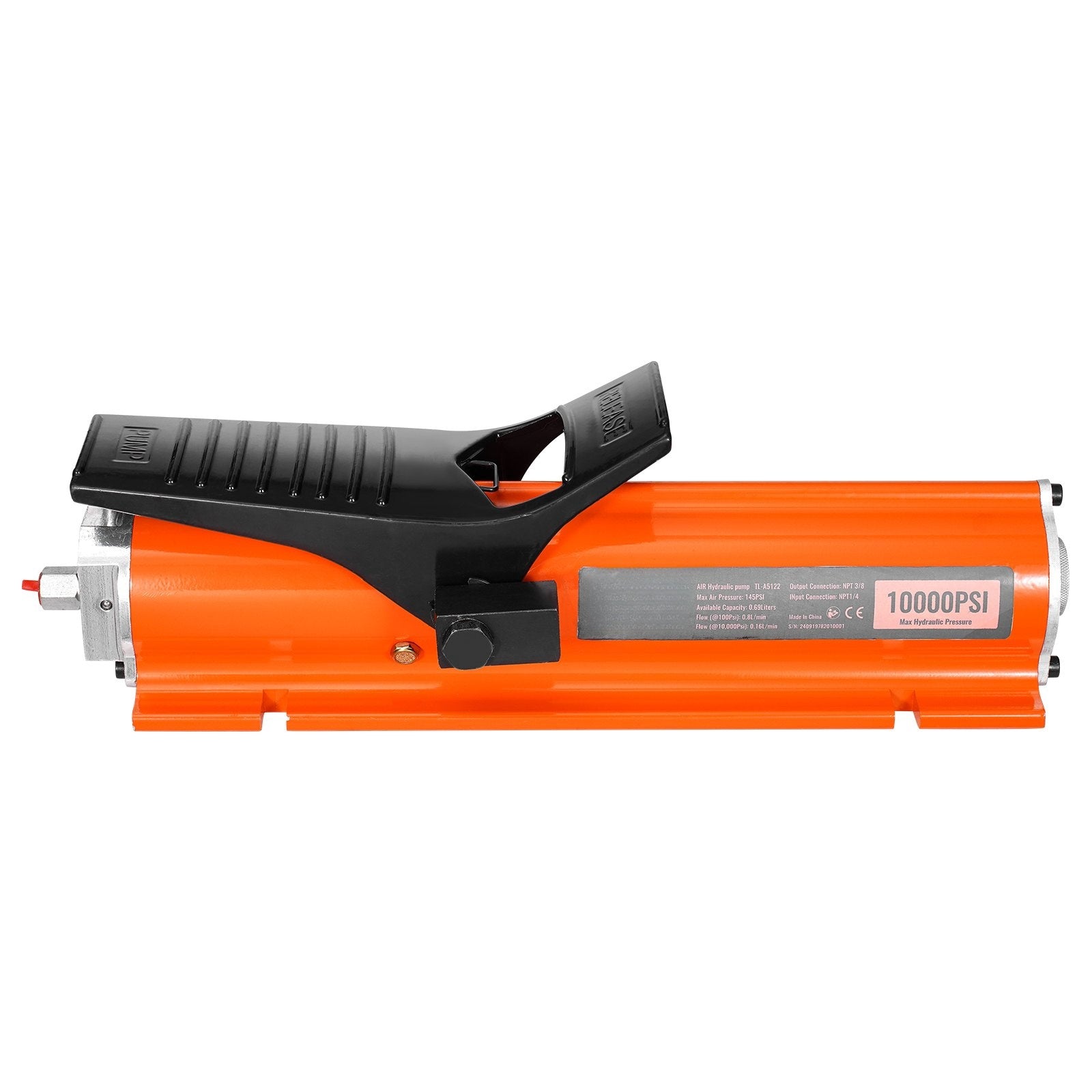

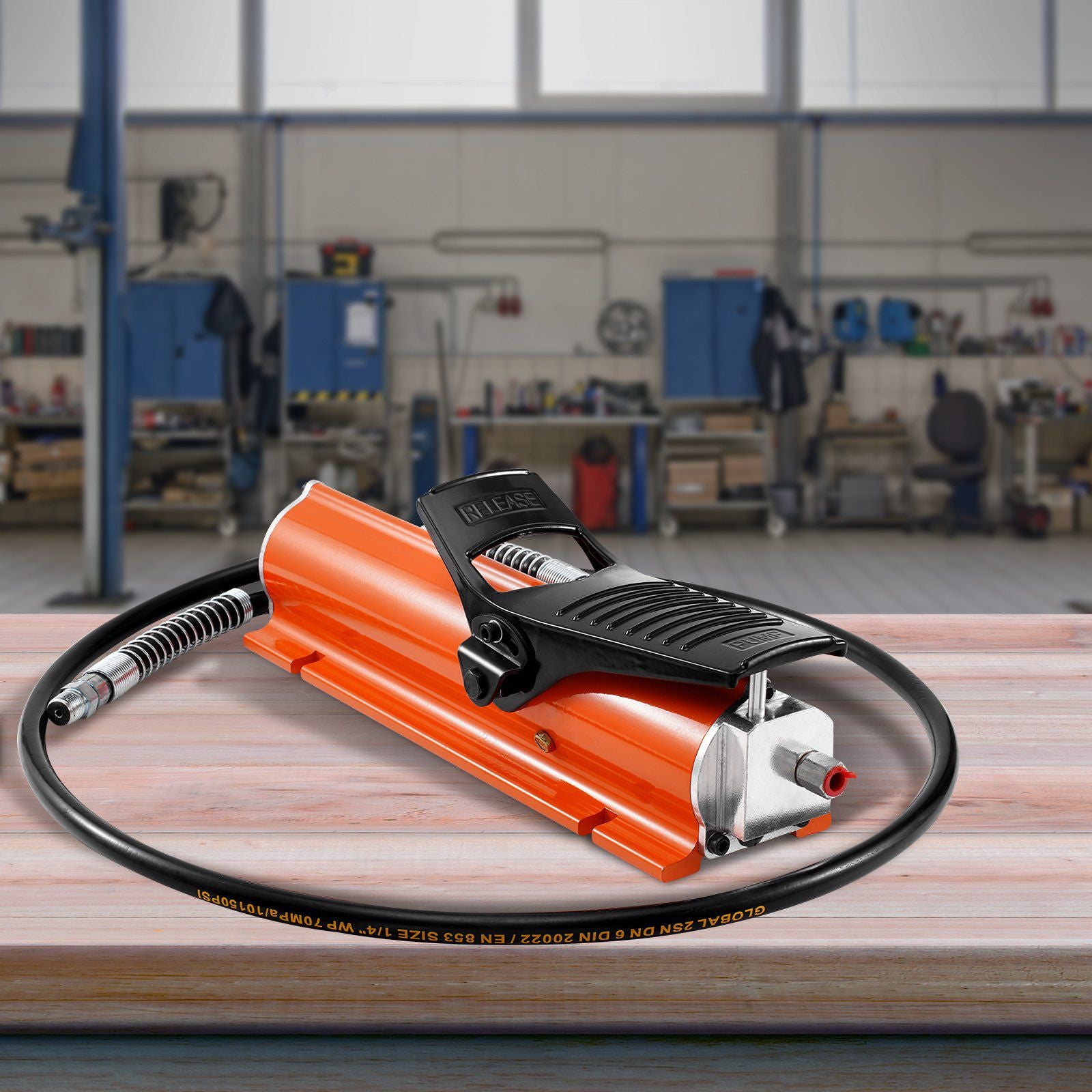

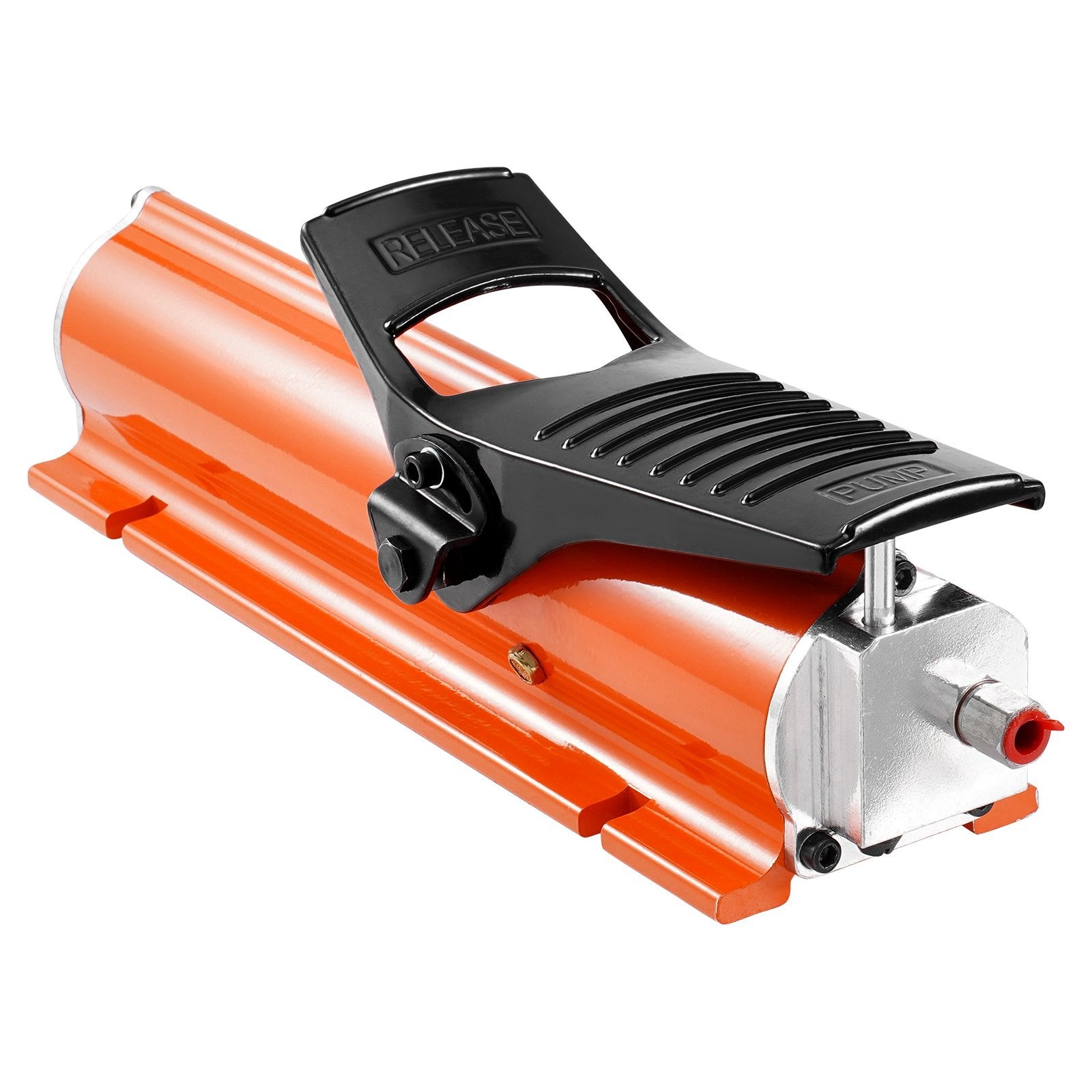

Air Hydraulic Foot Pump, 10000 PSI, 0.69 L Reservoir, 2 m Hose

10,000 PSI air hydraulic pump delivers fast, foot-controlled hydraulic power for lifting, pressing, bending, cutting, and assembly work in demanding shops. Air-actuated treadle operation keeps your hands free while building pressure quickly and releasing on command. A factory-filled 0.69 L reservoir reduces setup time, and standard NPT ports make it easy to integrate with compatible hydraulic tools and systems. Built with a metal shell and integrated relief valve for dependable operation under load.

• Delivers up to 10,000 PSI max output with 340 L/min airflow for heavy-duty hydraulic tasks


• Includes a 0.69 L / 0.18 gal reservoir pre-filled with #13 hydraulic oil for quicker startup


• Controls pressure via air-actuated treadle for hands-free operation and fast release


• Connects to standard NPT 1/4 in air inlet and NPT 3/8 in high-pressure oil outlet

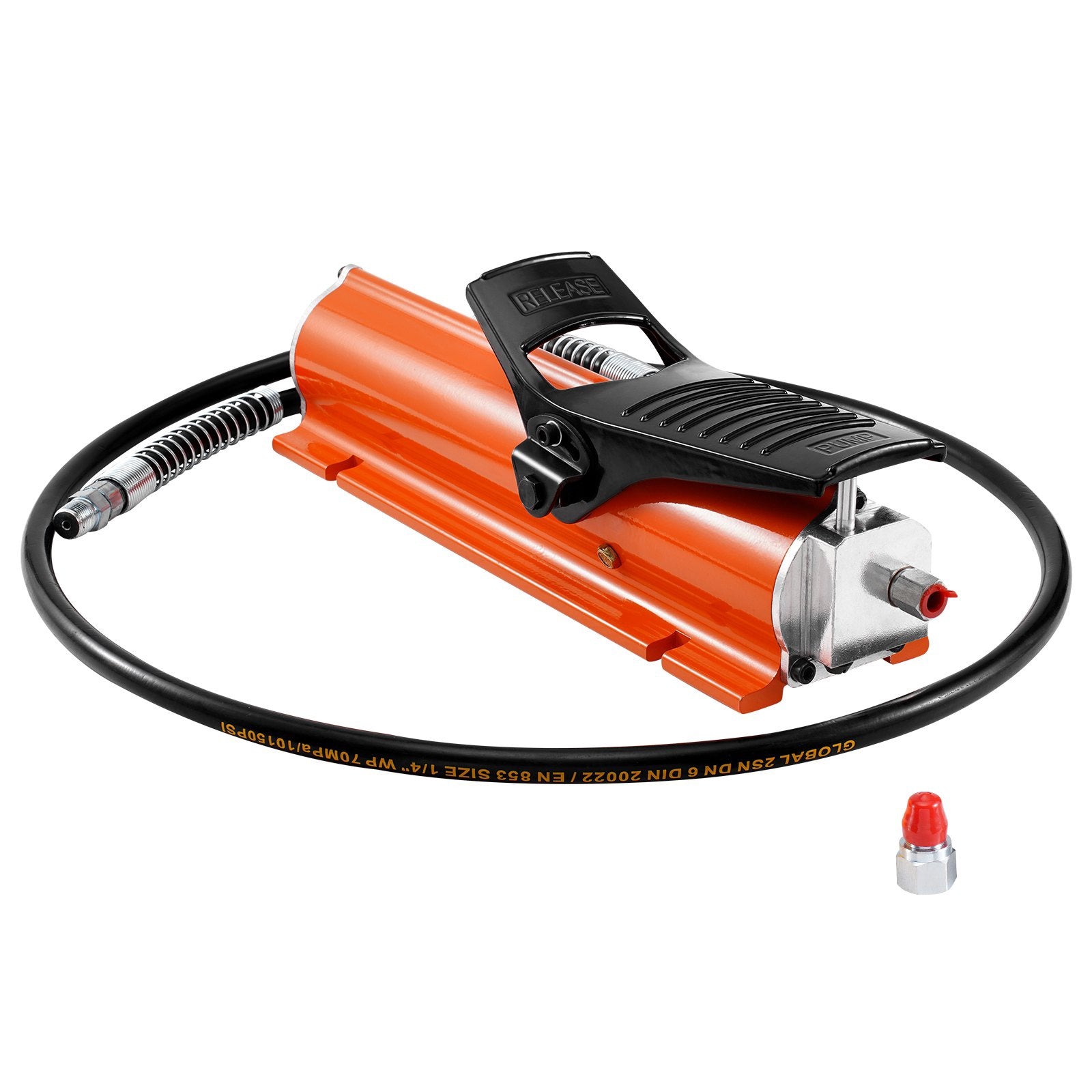

• Handles reach and routing with a 2 m reinforced rubber hose rated up to 125 MPa

Designed for precision industrial machinery and aerospace equipment maintenance, this compact air-over-hydraulic pump supports consistent pressure control for shop presses, hydraulic cylinders, cutters, and spreaders. The reinforced, steel-wire hose helps reduce leak risk and improves flexibility when working around fixtures or vehicles. A durable metal housing and internal relief valve add protection for hydraulic components during repeated cycles. If you need reliable 10,000 PSI output with simple foot operation and minimal setup, grab yours today and keep your workflow moving.

• Maximum output pressure: 10,000 PSI (689 bar)


• Input air pressure: 110–145 PSI


• Air flow rate: 340 L/min


• Hydraulic flow rate: 0.8 L/min (no load) / 0.16 L/min (load)


• Reservoir capacity: 0.69 L / 0.18 gal (factory-filled with #13 hydraulic oil)


• Air inlet: NPT 1/4 in (13.7 mm)


• Oil outlet: NPT 3/8 in (16.66 mm)


• Hose length: 2 m / 6.56 ft; reinforced rubber with 3 steel-wire layers; rated 125 MPa


• Dimensions: 7.91 x 6.50 x 5.71 in (455 x 165 x 145 mm)


• Net weight: 14.68 lb / 6.65 kg
