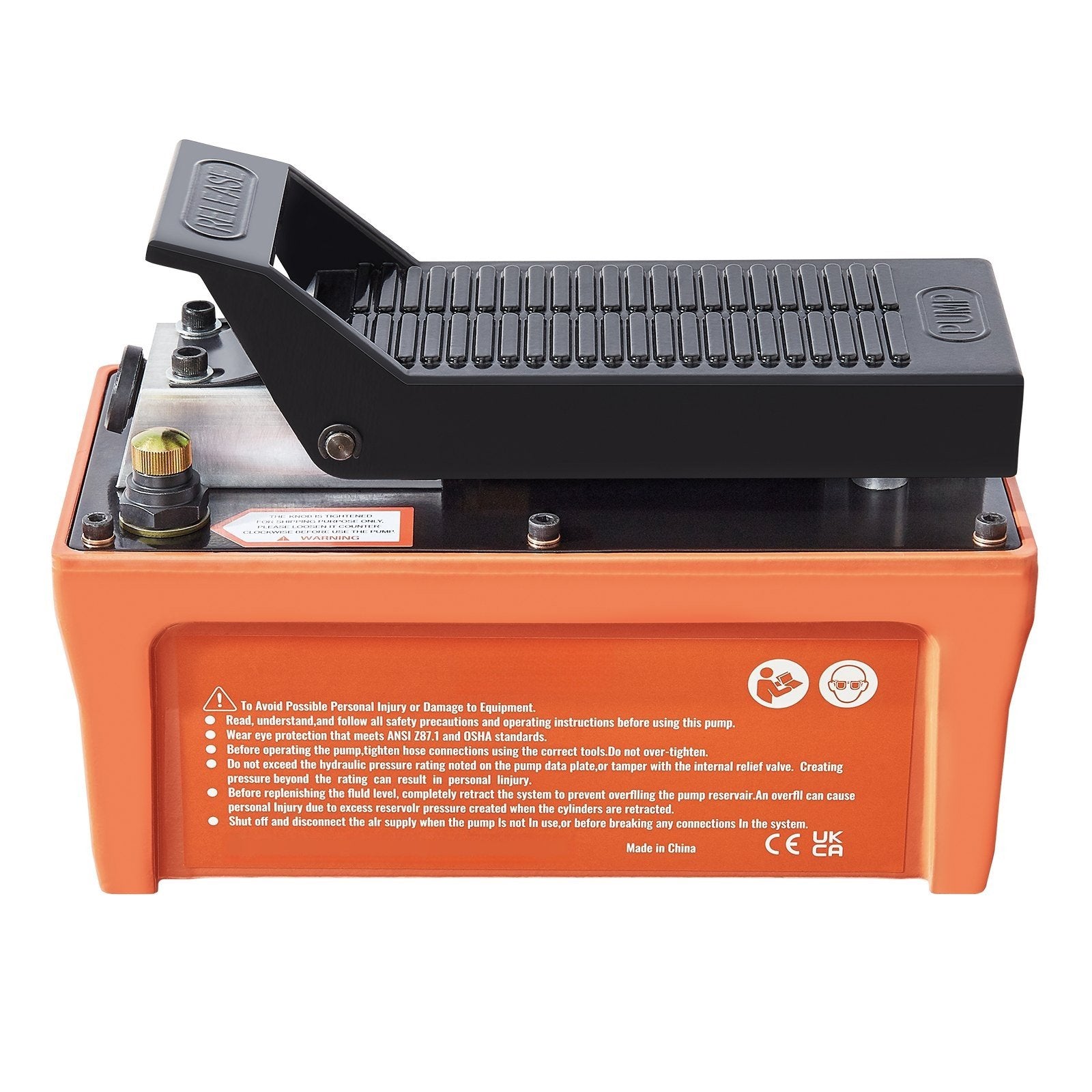

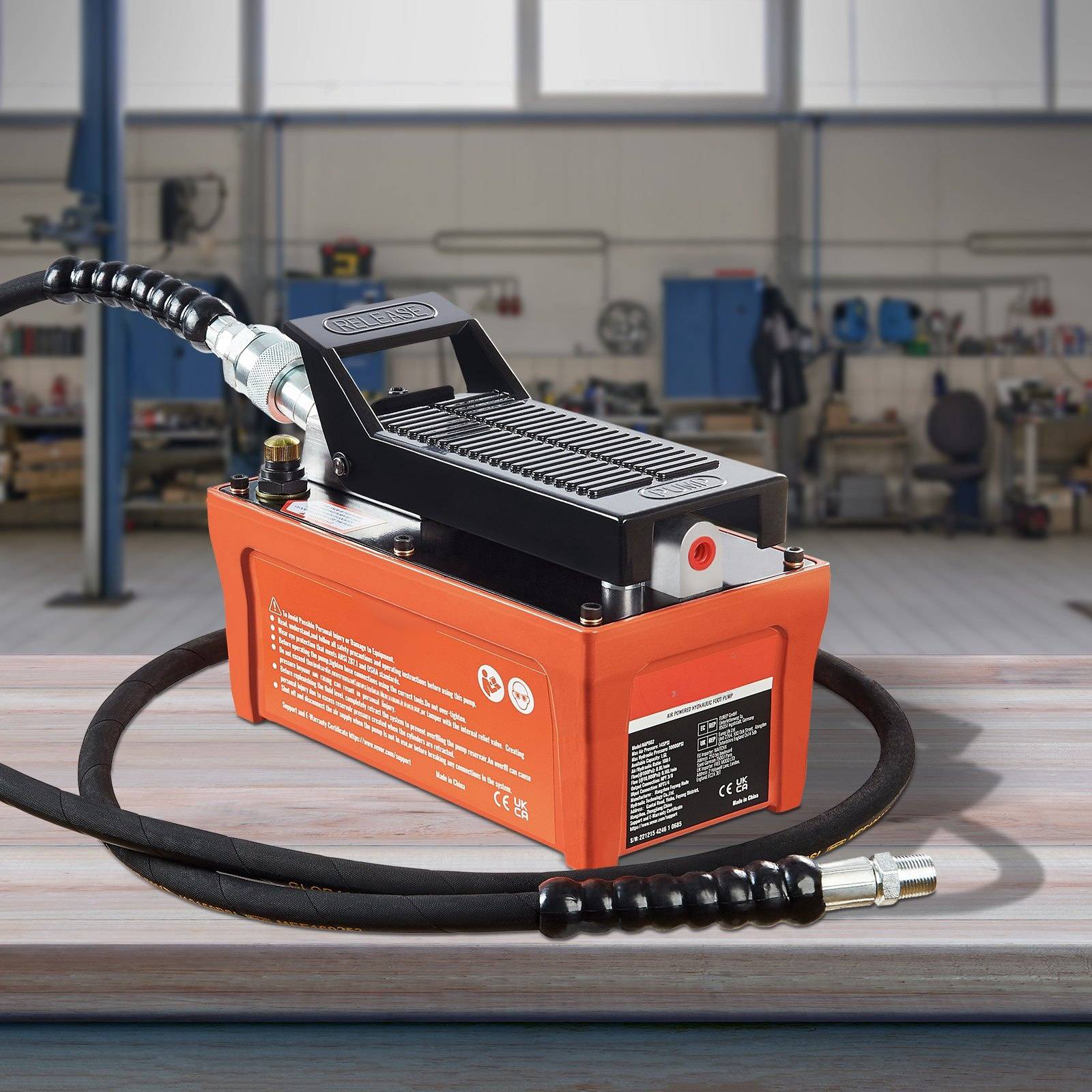

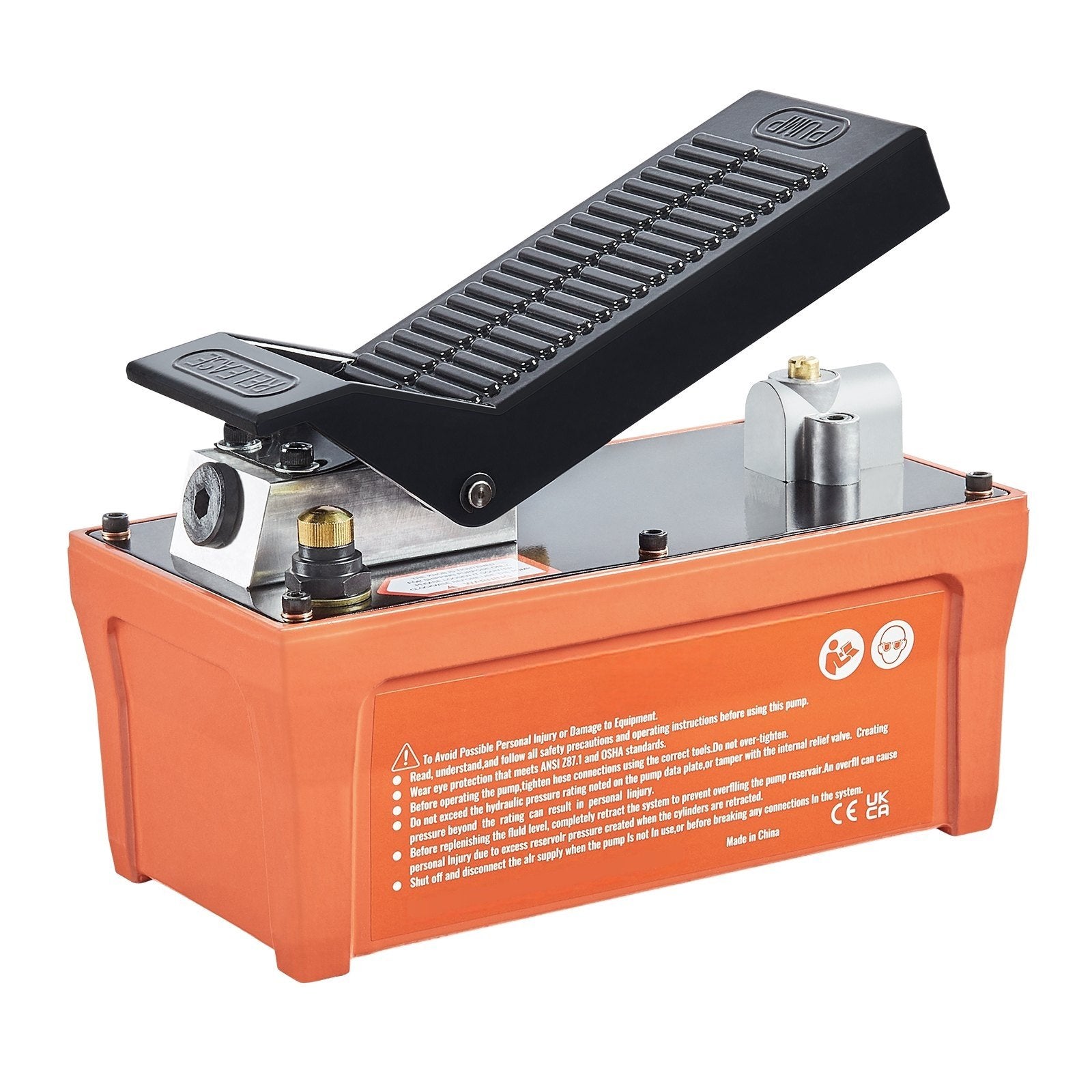

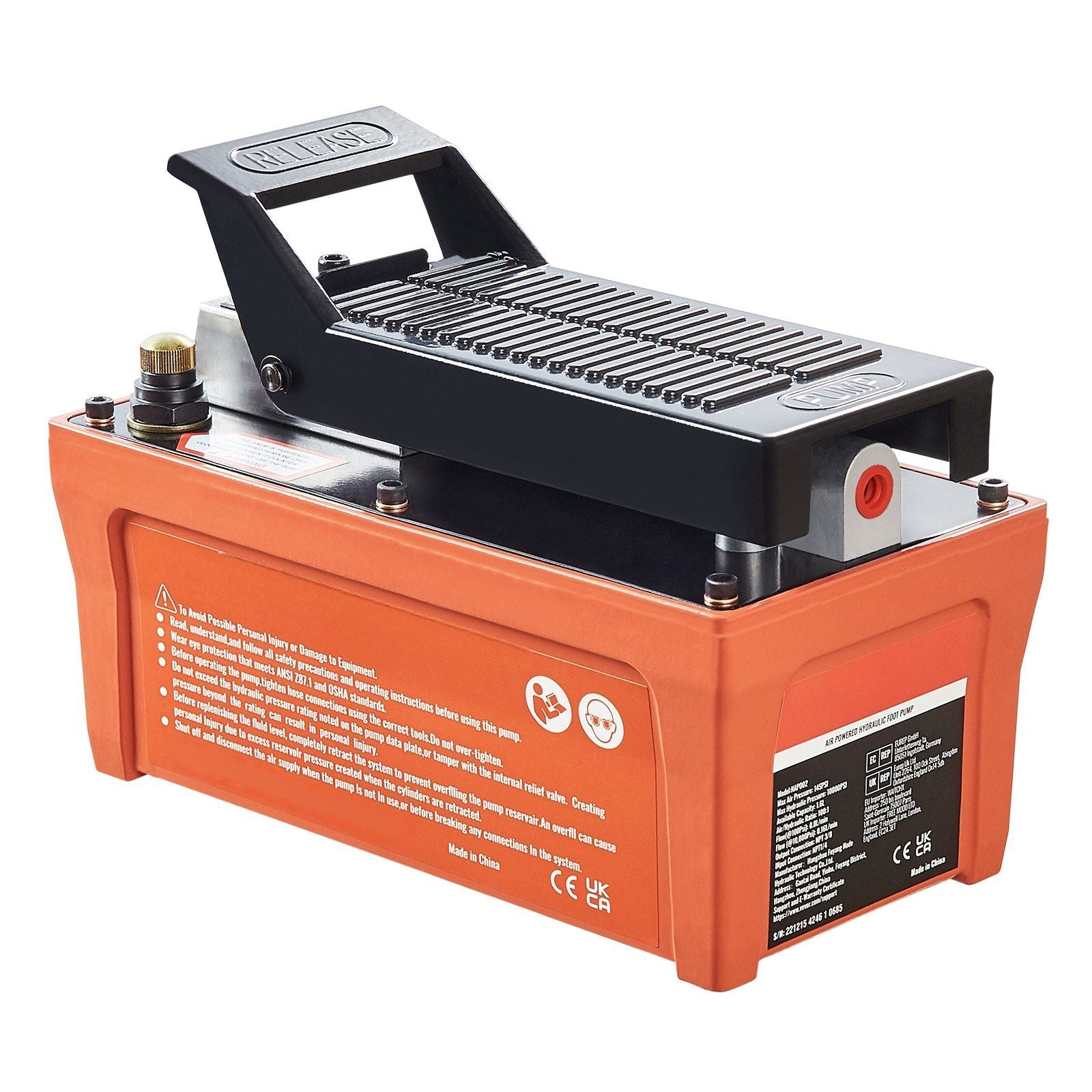

Air Hydraulic Pump, Foot Pedal, 10,000 PSI, 2m Hose

Air hydraulic pump with foot pedal control delivers hands-free, precise pressure for faster auto body frame pulls, shop presses, and single-acting rams. The compact treadle design helps reduce operator fatigue while keeping your hands on the work. Built for demanding repair and construction use, it features a durable aluminum pump core, a high-capacity reservoir, and an internal relief valve to protect hydraulic components under load. Extended 2 m hose reach supports safer, more flexible placement around the job.

• Delivers foot-actuated control for smoother pressurize/release during pulling, pressing, and lifting tasks

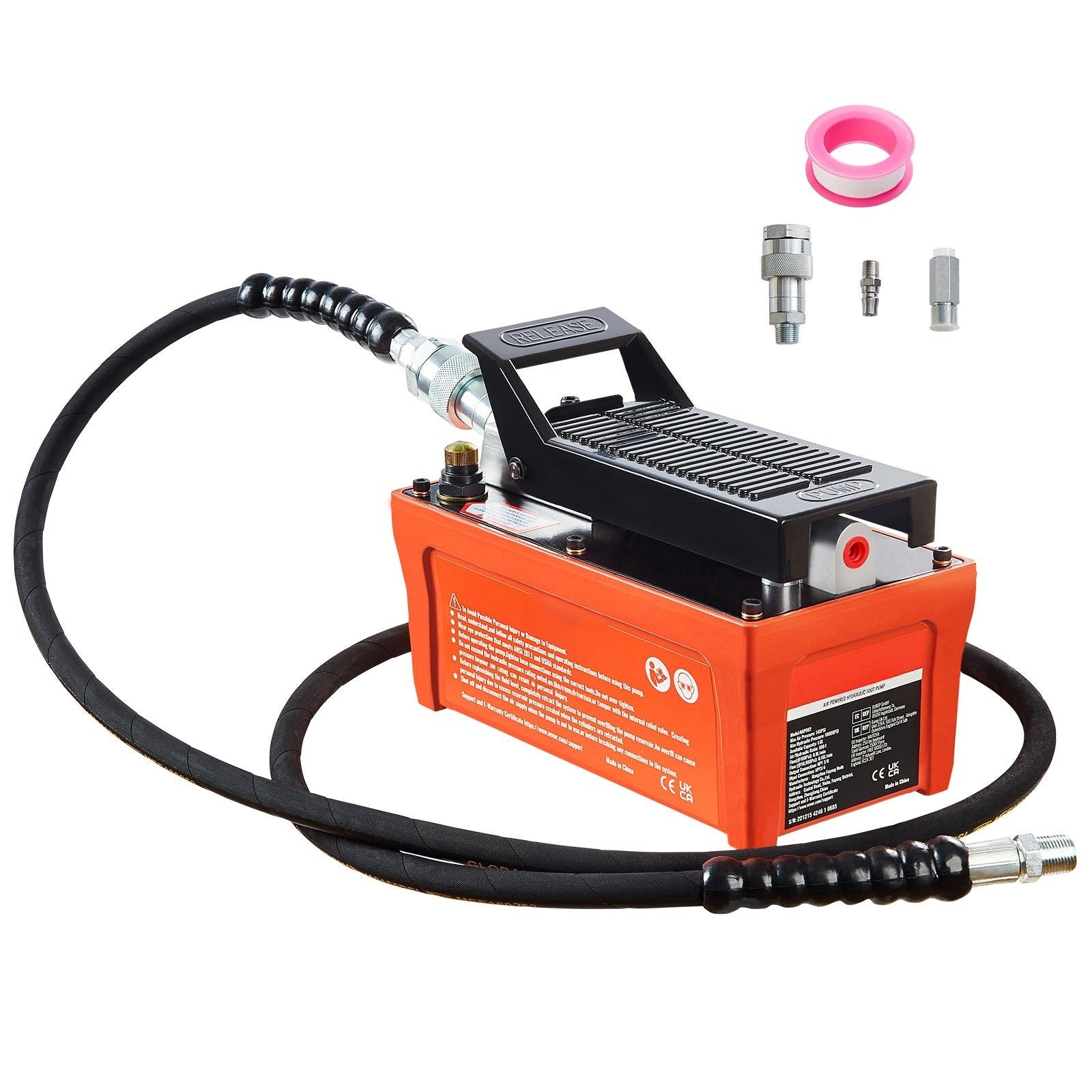

• Includes 2 m/6.6 ft hydraulic oil hose, coupler, air inlet adapter, and PTFE tape for quick setup


• Stabilizes operation with bottom mounting holes to reduce sliding and vibration on the shop floor


• Handles heavy-duty jobs with 10,000 PSI max output and internal relief valve for system protection


• Supports longer runs with 1.6 L (98 in³) reservoir and consistent flow for single-acting ram setups

Set up your air-powered hydraulic system with standard NPT fittings and get controlled power where you need it. This treadle pump is designed for everyday workshop use—auto body frame machines, pulling posts, hydraulic pullers, and presses—without the bulk of larger power units. Place it where it’s stable, connect air and oil lines, then modulate pressure with your foot for confident, repeatable operation. Grab yours today to streamline your hydraulic work and keep jobs moving.

• Maximum output pressure: 10,000 PSI


• Input air pressure range: 110–145 PSI


• Hydraulic flow: 0.8 L/min (no-load); 0.16 L/min (load)


• Reservoir capacity: 1.6 L / 98 in³


• Air inlet: NPT 1/4"


• Oil outlet: NPT 3/8"


• Hydraulic hose length: 2 m / 6.6 ft


• Product size: 10.3 x 5.4 x 7.3 in (262 x 136 x 186 mm)


• Product weight: 19.6 lb / 8.9 kg
