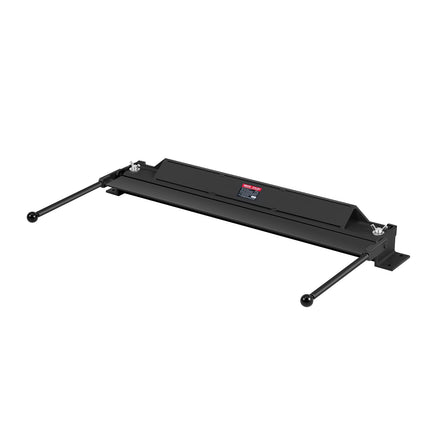

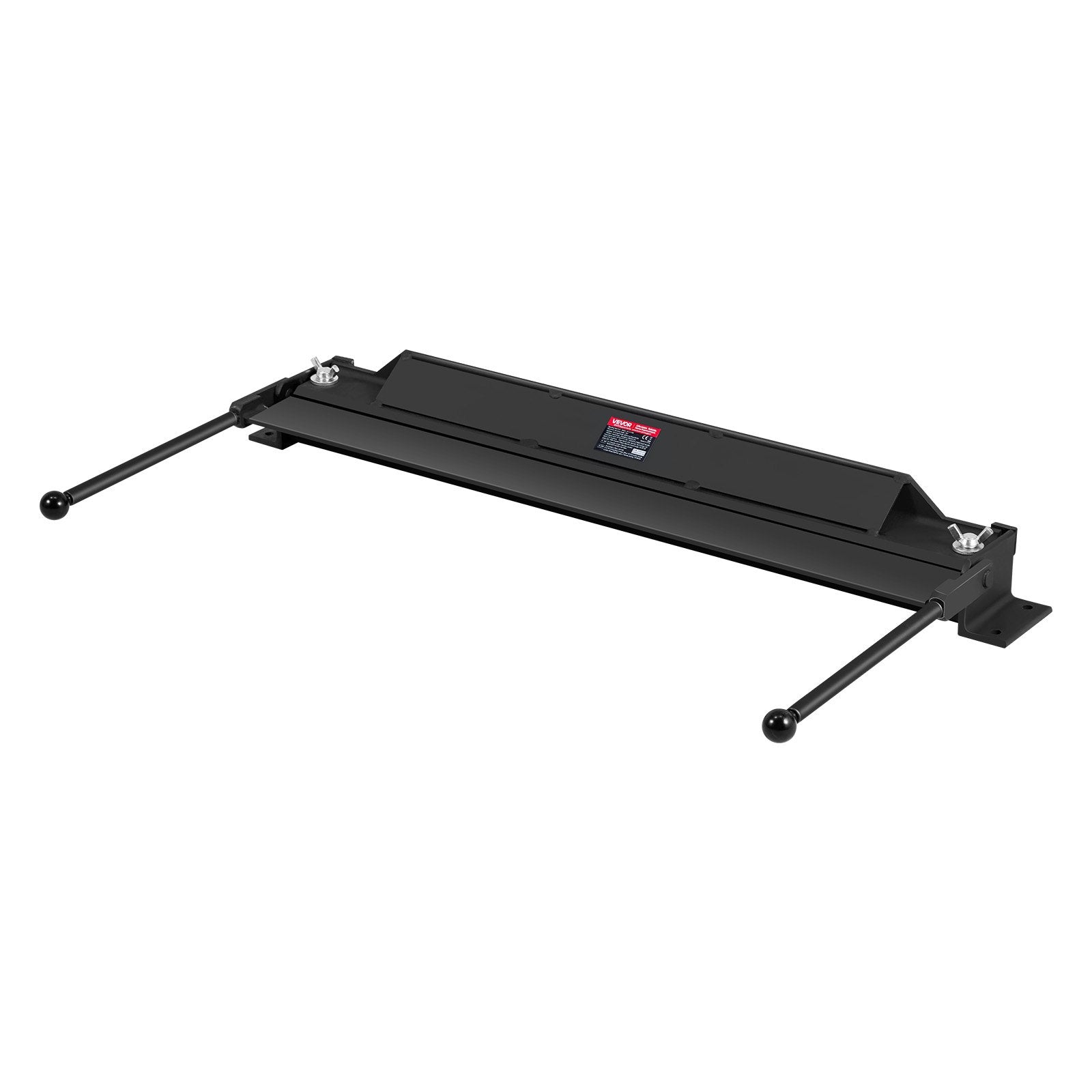

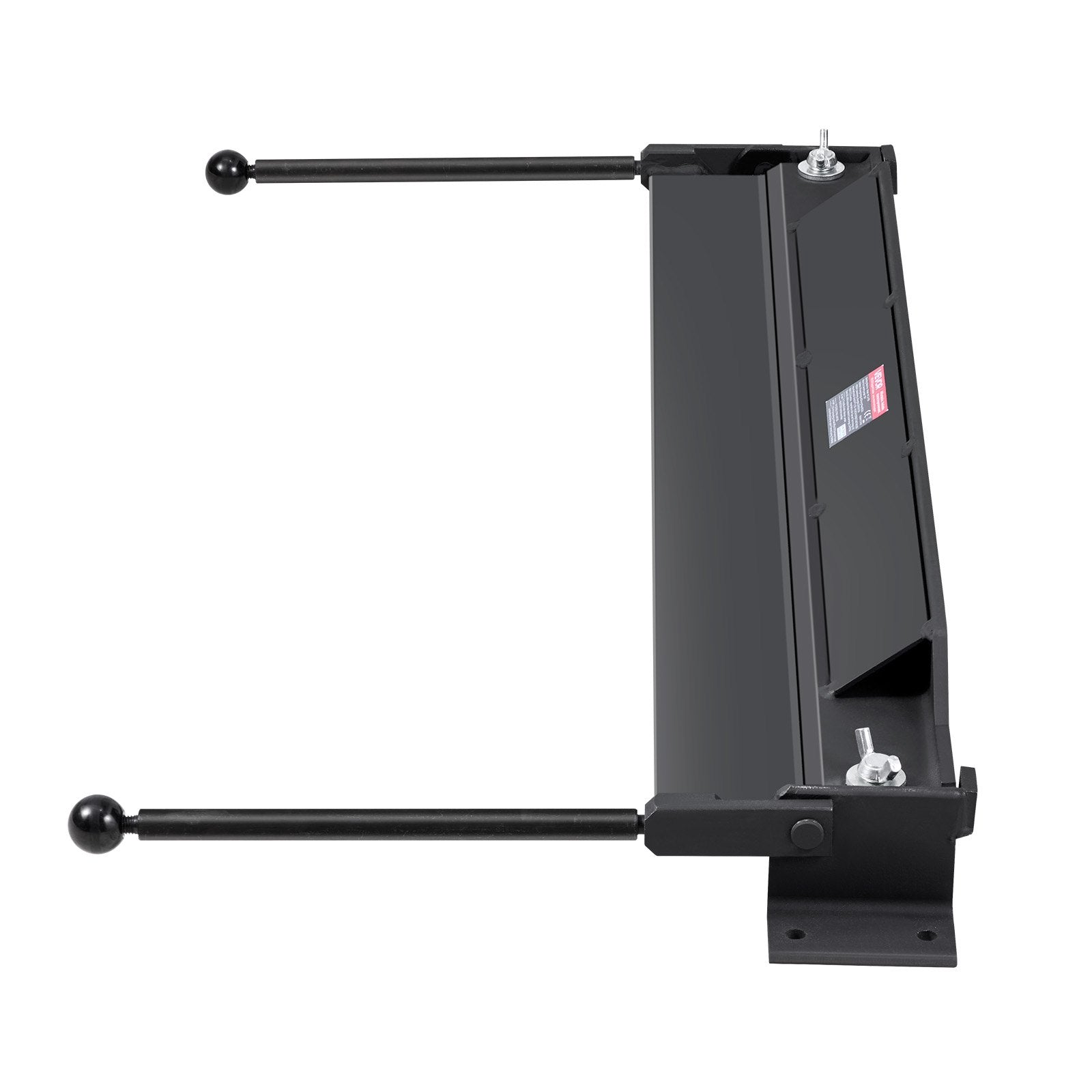

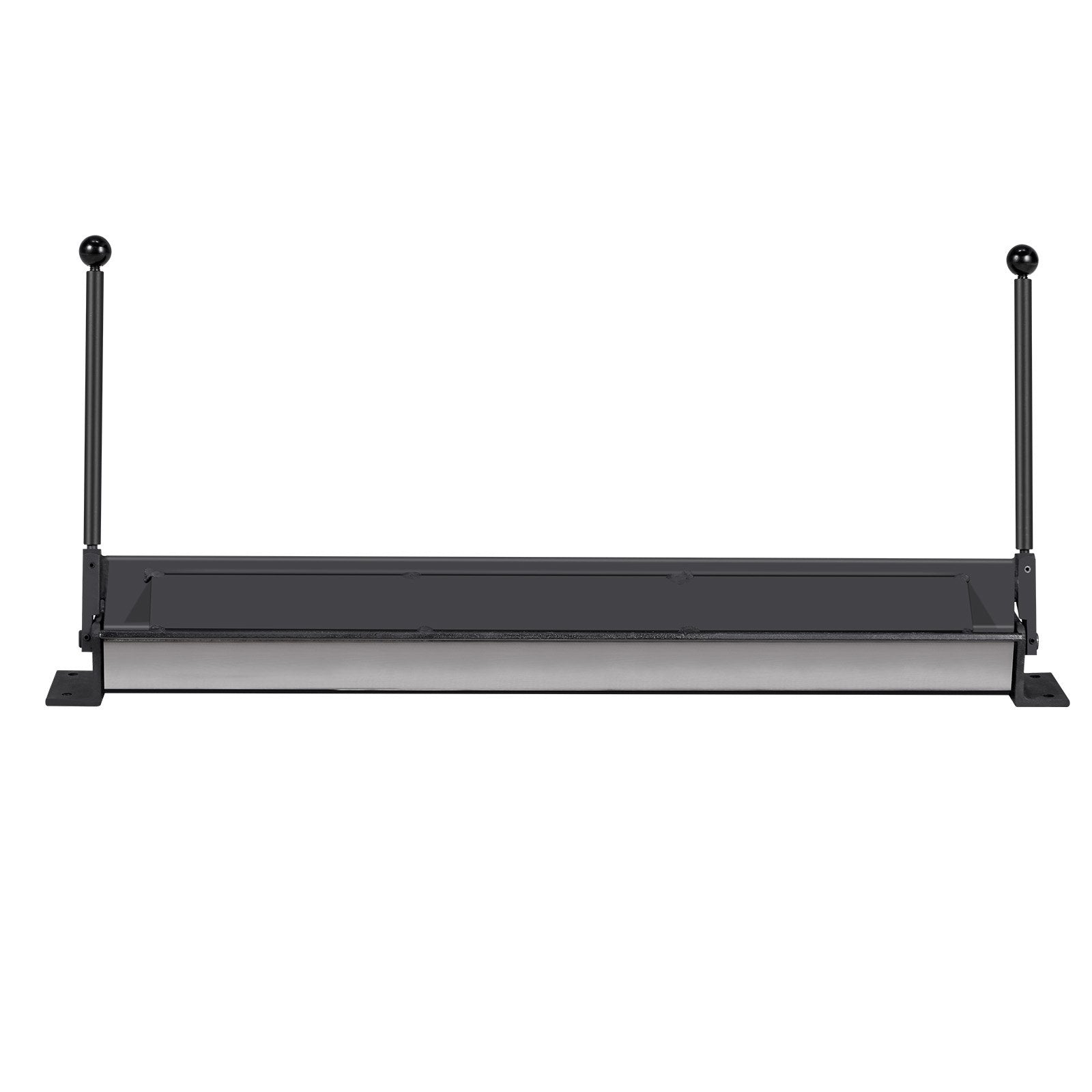

Box And Pan Brake, 30-Inch, 18-Gauge, 0-135 Degree

Sheet metal bending brake delivers clean, repeatable bends up to 30 in/762 mm wide—ideal for fast, accurate fabrication in home shops and small workshops. The 0–135° adjustable angle range helps you match common project specs, while the integrated press plate and clamping bar keep sheets secure for consistent results. Built for stable, desktop-mounted use, it’s designed to reduce wobble and improve control during batch bending.

• Delivers straight, crisp bends on sheets up to 30 in (762 mm) wide for panels, brackets, and enclosures


• Handles up to 18-gauge (1.2 mm) low carbon steel; supports mild steel, stainless steel, copper, and aluminum


• Adjusts bend angle from 0–135° to match your build requirements and repeat settings across batches


• Secures material with an integrated clamping bar and press plate with end-screw adjustment—no loose clamps


• Mounts to your bench via pre-drilled holes for stable, wobble-reduced operation and better accuracy

From HVAC trim and tool trays to simple fabrication and repair work, this manual box and pan brake is made for controlled bending without complicated setups. Tighten the side screws to clamp your sheet, lift the handle to your target angle, and produce consistent folds with less rework. The heavy-duty build and desktop-mount design suit frequent use when you need dependable alignment and repeatable angles. Grab yours today and keep your next metal project moving.

• Max bending width: 30 in (762 mm)


• Max bending thickness: 18 Ga (1.2 mm) low carbon steel


• Max bending angle: 135°


• Material: Low carbon steel


• Yield strength (material): ≤235 MPa


• Mounting type: Desktop-mounted


• Press plate mechanism: Integrated press plate (end-screw adjustment)


• Auxiliary bending method: Without balance hammer


• Product dimensions: 35.8 x 17.7 x 4.3 in (910 x 450 x 110 mm)


• Weight: 45.9 lbs (20.8 kg)
