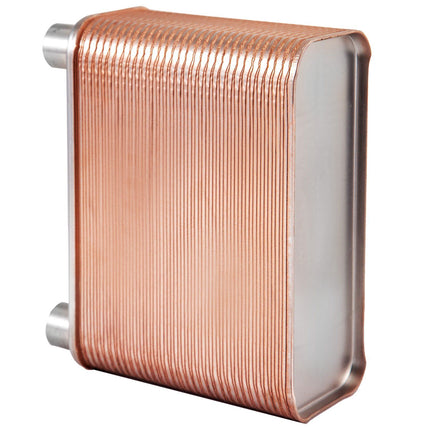

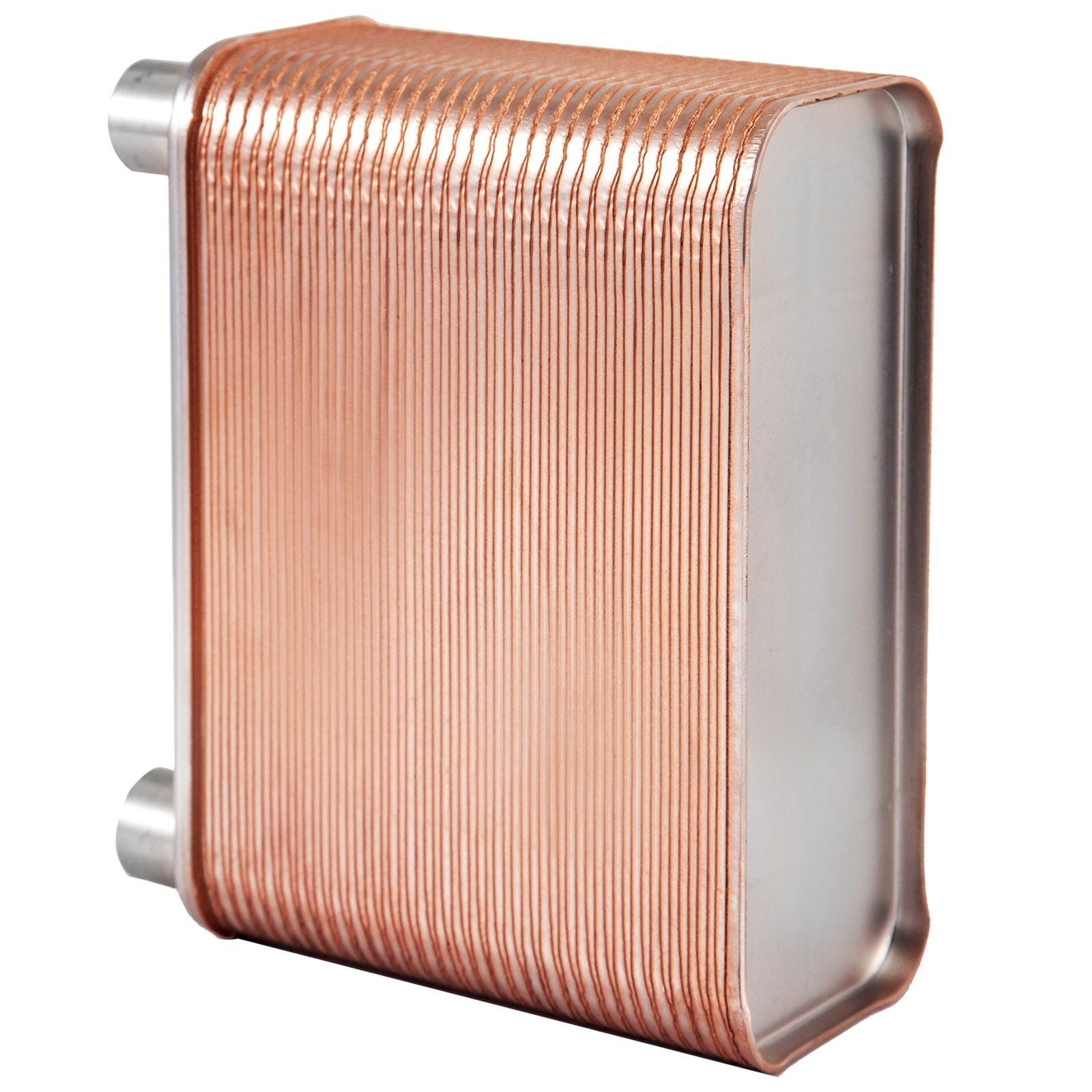

Brazed Plate Heat Exchanger, 60 Plate, 1/2 In BSP FPT, 316L

Brazed plate heat exchanger delivers fast, efficient heat transfer in a compact 60-plate body—ideal for hydronic heating, water-to-water, and light commercial HVAC loops. The turbulent counterflow channel design boosts thermal exchange while helping reduce energy waste in properly designed systems. Built with 316L stainless steel plates and copper brazing, it’s engineered for high-pressure, high-temperature applications where space and reliability matter.

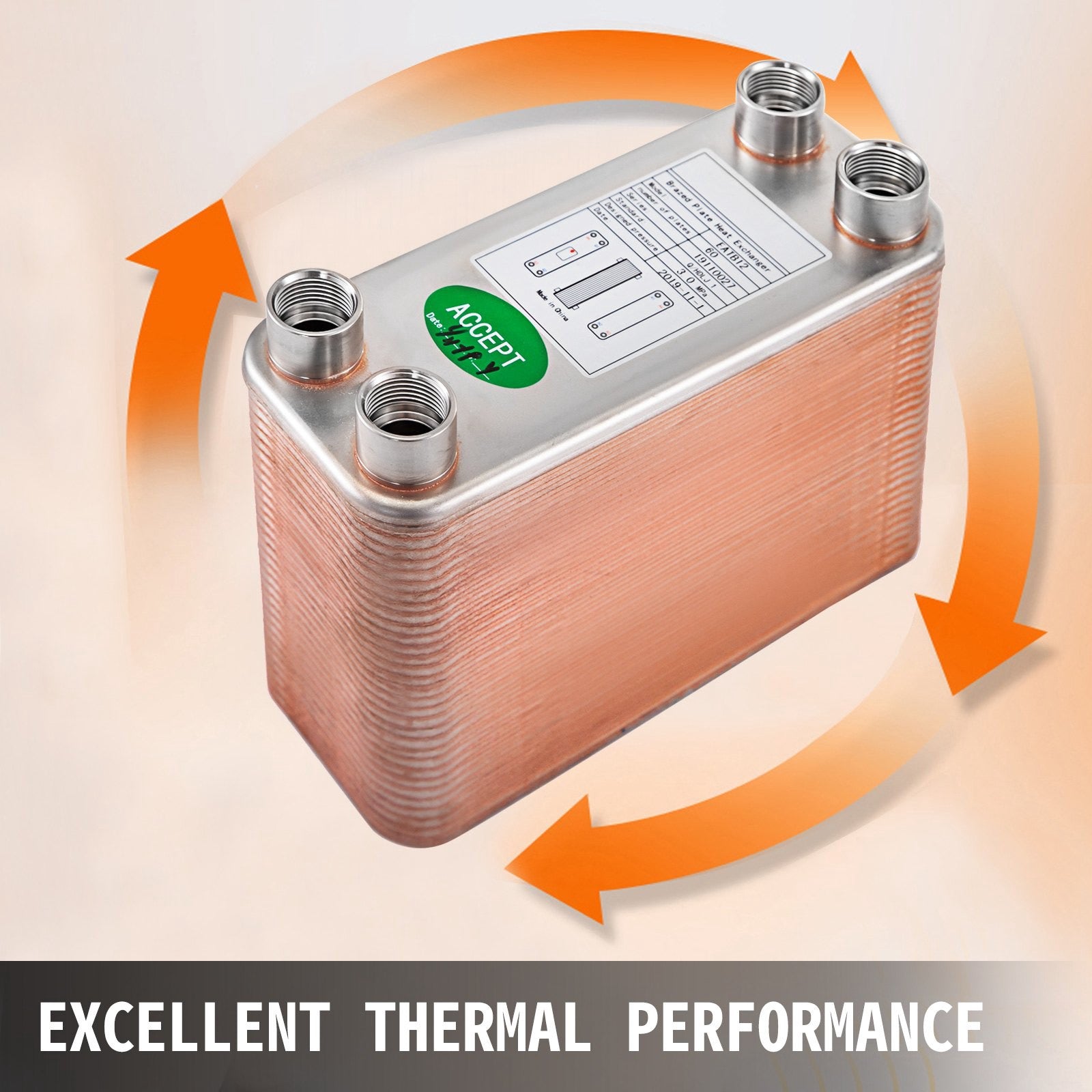

• Delivers high thermal efficiency with turbulent counterflow channels for rapid heat transfer


• Fits hydronic heating, HVAC water loops, oil cooling, evaporator and condenser duty

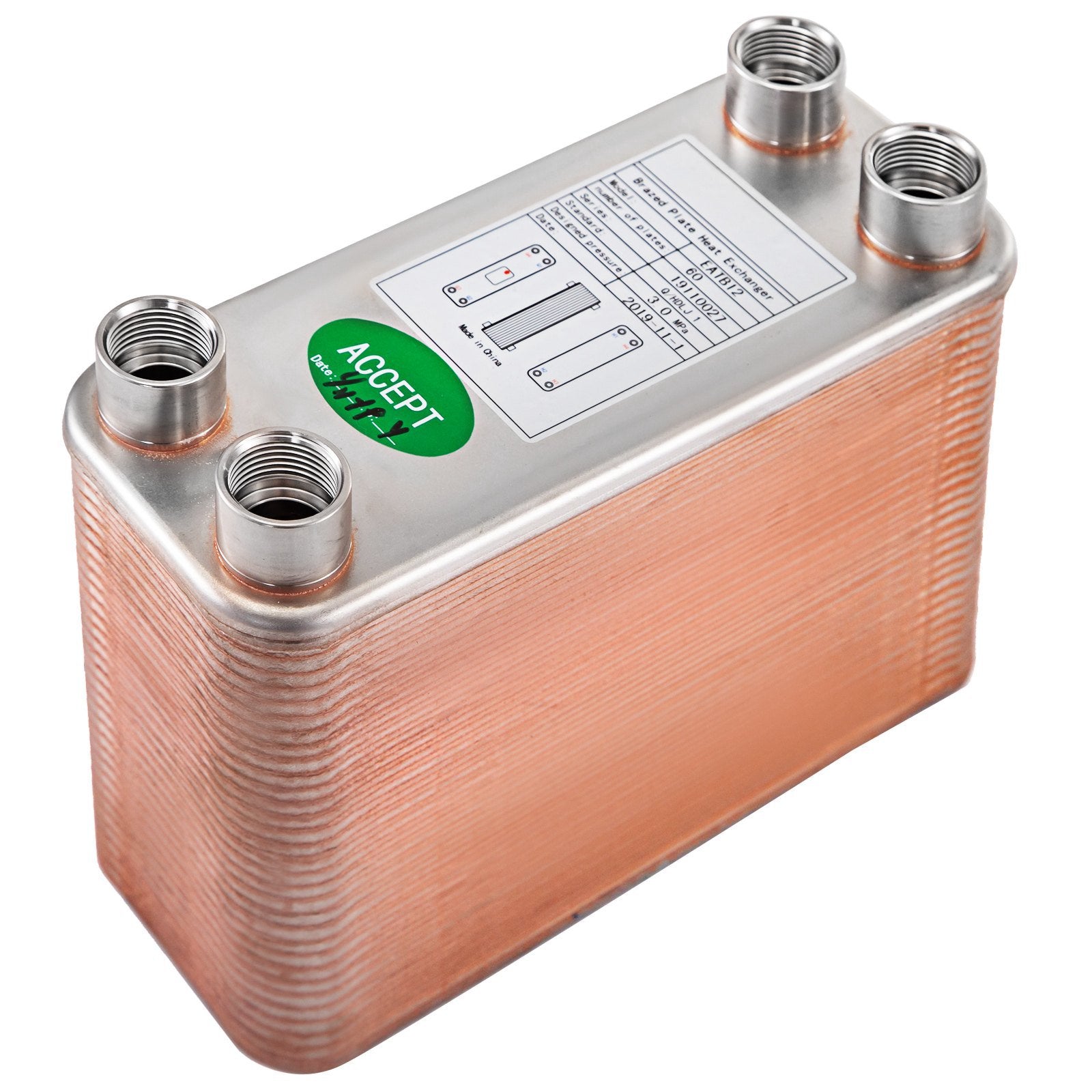

• Includes four 1/2" BSP FPT ports for straightforward plumbing and secure connections


• Withstands demanding systems with 316L stainless plates and copper-brazed construction


• Saves space with a compact brazed plate design that’s easy to integrate in tight installs

Designed for installers who need dependable performance without oversized equipment, this flat plate heat exchanger balances capacity and footprint for clean, efficient heat exchange. Use it for residential hydronic heating, light commercial circulation systems, or process cooling where stable temperatures and consistent flow matter. Confirm port compatibility, pressure ratings, and temperature limits with your system design before installation. Grab yours today and build a more efficient heat-transfer loop with a compact, service-friendly form factor.

• Plate count: 60


• Ports: 1/2" BSP FPT


• Materials: 316L stainless steel + 99.9% copper brazing


• Dimensions: 7.6" x 2.8" x 6.3" (19.4 x 7.2 x 16.1 cm)


• Max design pressure: 3.0 MPa


• Min test pressure: 4.5 MPa


• Design temperature range: down to -196°C
