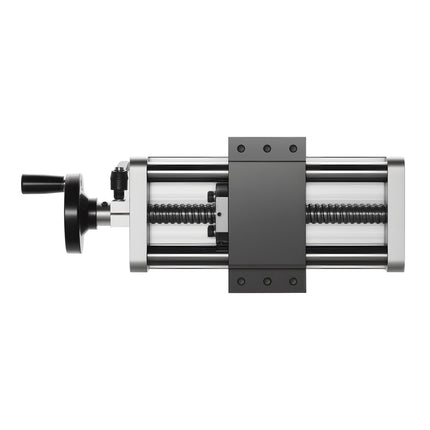

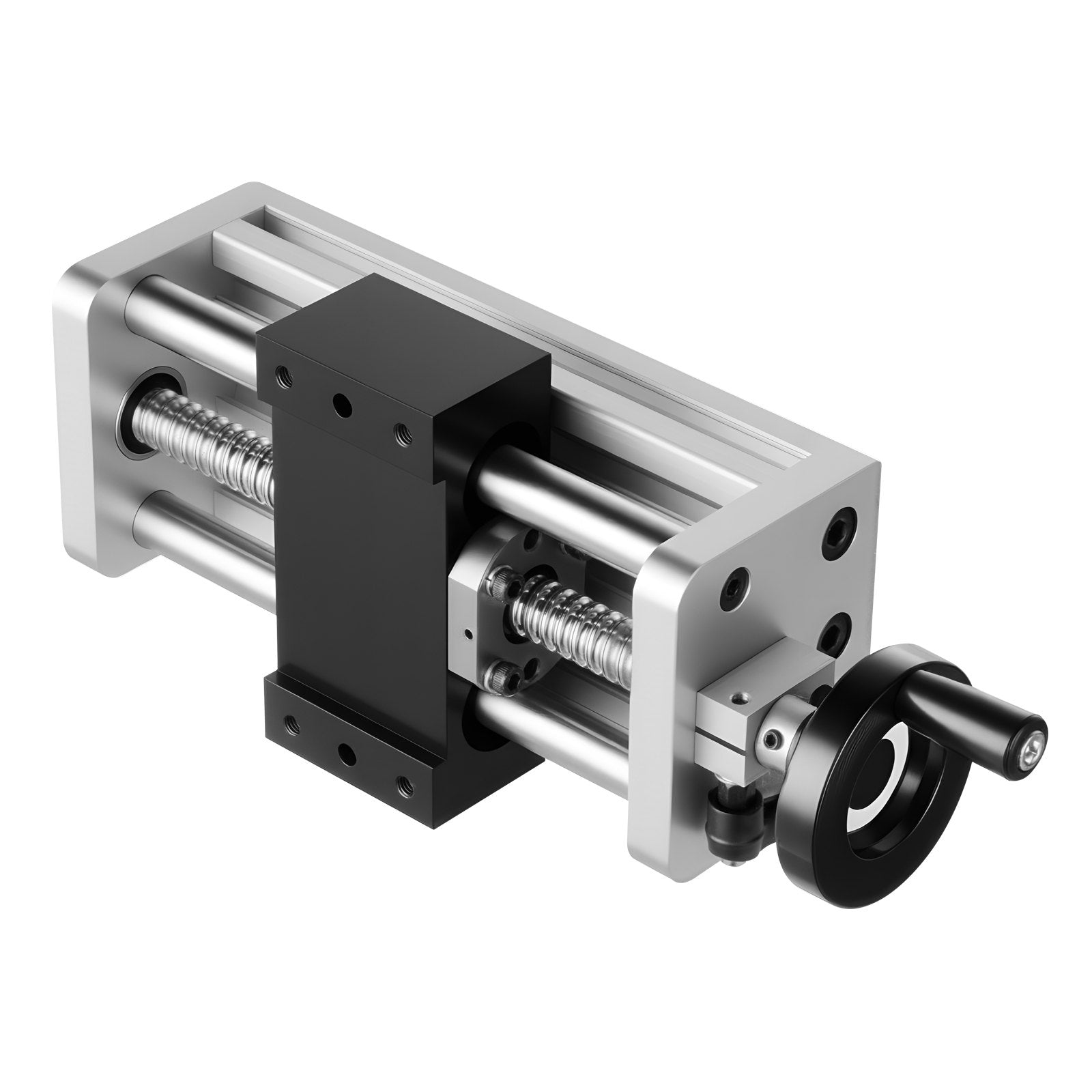

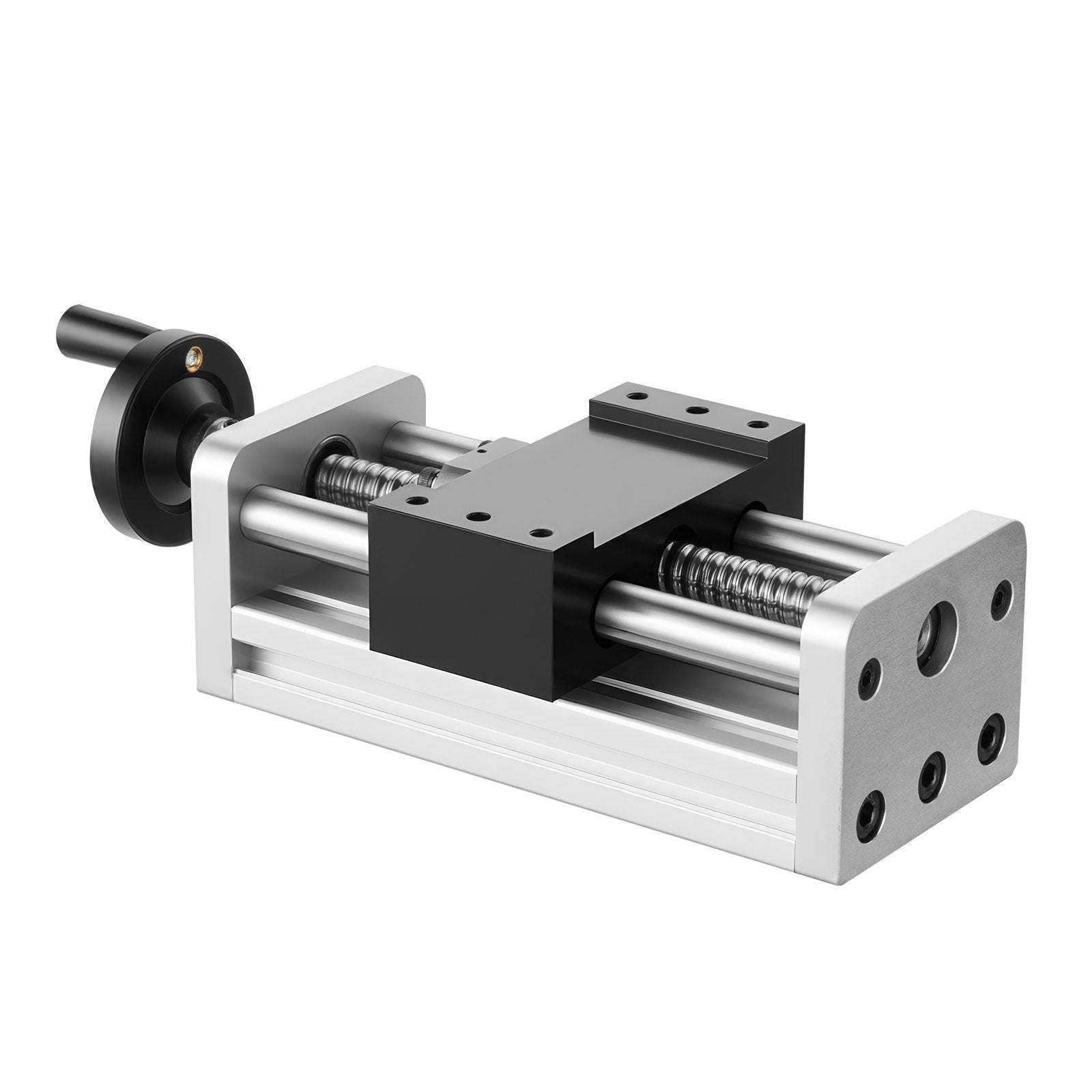

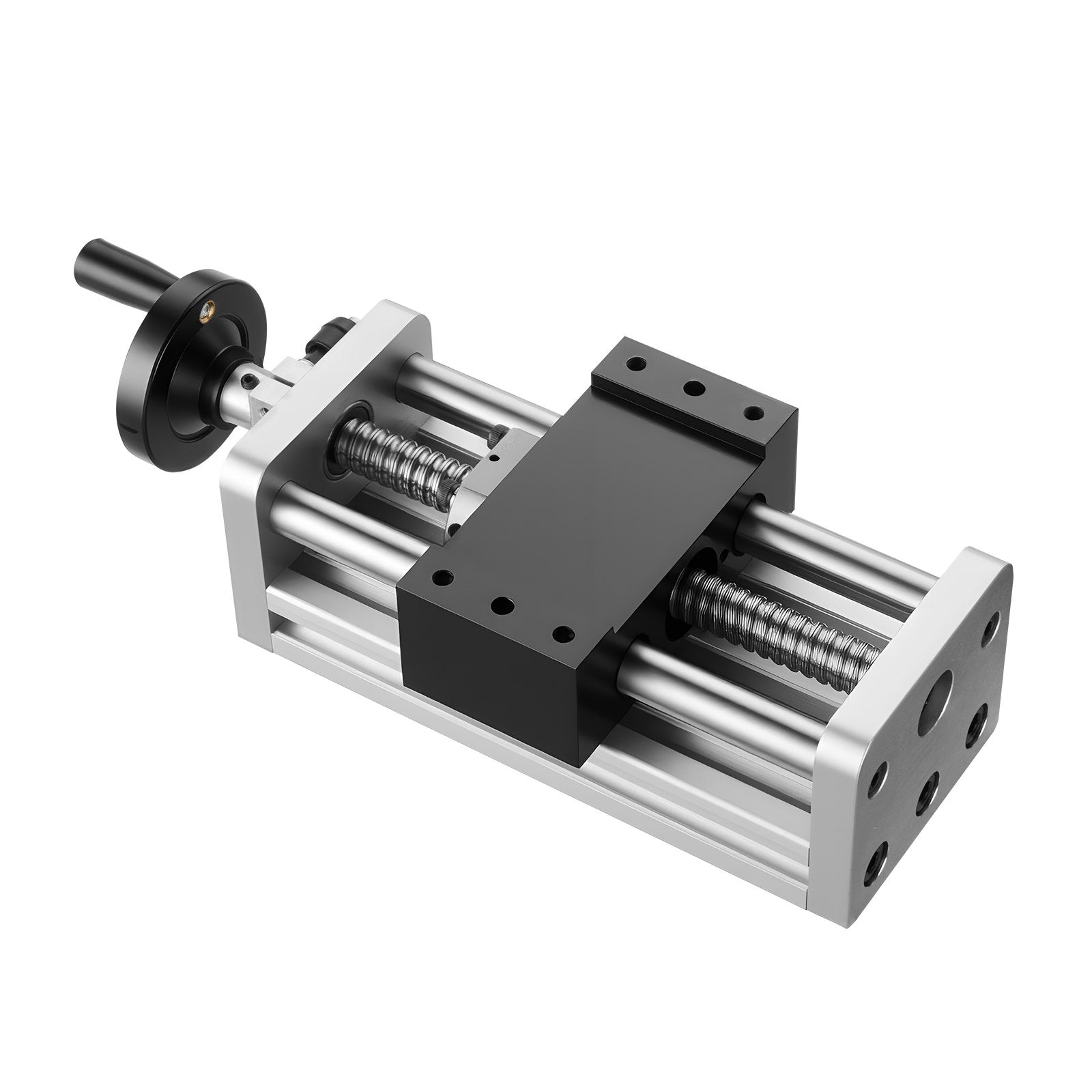

CNC Linear Stage Actuator, 100 mm Stroke, Handwheel

CNC linear stage actuator delivers precise, smooth 100 mm travel for accurate positioning on CNC, robotics, and 3D printer motion systems. Built around a high-precision C7 ball screw with dual optical axis guide rails, it reduces backlash and vibration for cleaner cuts and repeatable moves. Rust-resistant electroplating and a rigid aluminum/chrome-plated steel build support stable performance in workshops and light industrial setups.

• Delivers 100 mm effective stroke for controlled X/Y/Z linear motion and repeatable positioning


• Reduces play with C7 ball screw, dual guide rails, and bearing slide block for stable travel


• Supports loads up to 10 kg horizontal and 5 kg vertical for compact CNC and automation tasks


• Runs quietly with low-friction ball-bearing sliding to help limit wear and vibration


• Includes a handwheel for manual fine-tuning, setup, calibration, and incremental moves

Designed for builders who need compact linear motion without sacrificing accuracy, this ball screw linear motion guide rail helps keep your carriage aligned and movement consistent under load. Use it for CNC router tables, automation fixtures, lab jigs, or custom robot axes where smooth, low-noise travel matters. Pair with a compatible DC motor drive and dial in position by hand when setting stops or verifying tool paths. Grab yours today and keep your motion platform precise from prototype to production.

• Effective stroke: 100 mm


• Drive type: C7 high-precision ball screw


• Guide system: double optical axis with bearing slide block


• Load capacity: 10 kg (horizontal), 5 kg (vertical)


• Motor rated voltage: DC 24–75 V


• Material: chrome-plated steel & aluminum


• Finish: rust-resistant electroplating


• Included: 1 x handwheel, 1 x linear stage actuator


• Quantity: 1 pc
