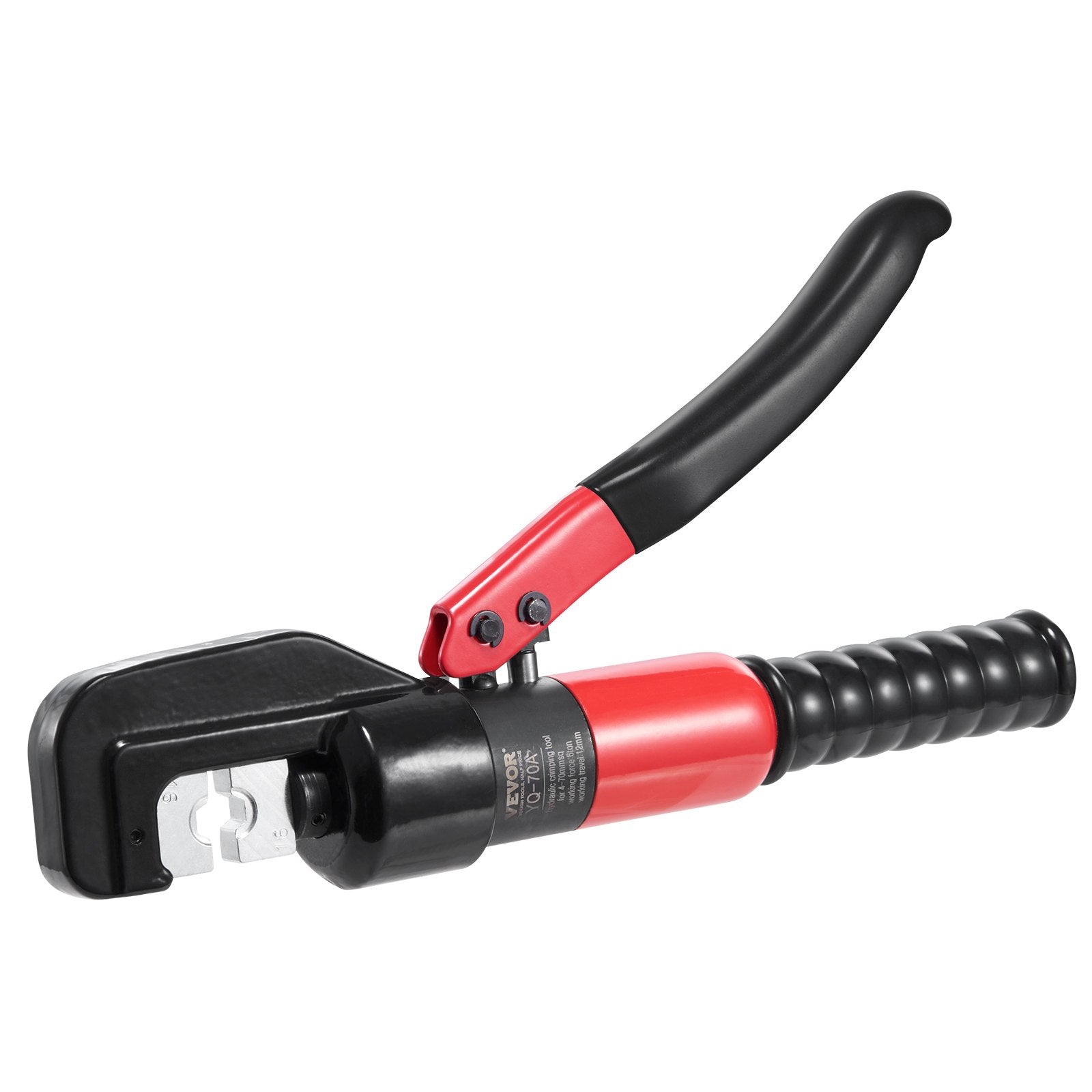

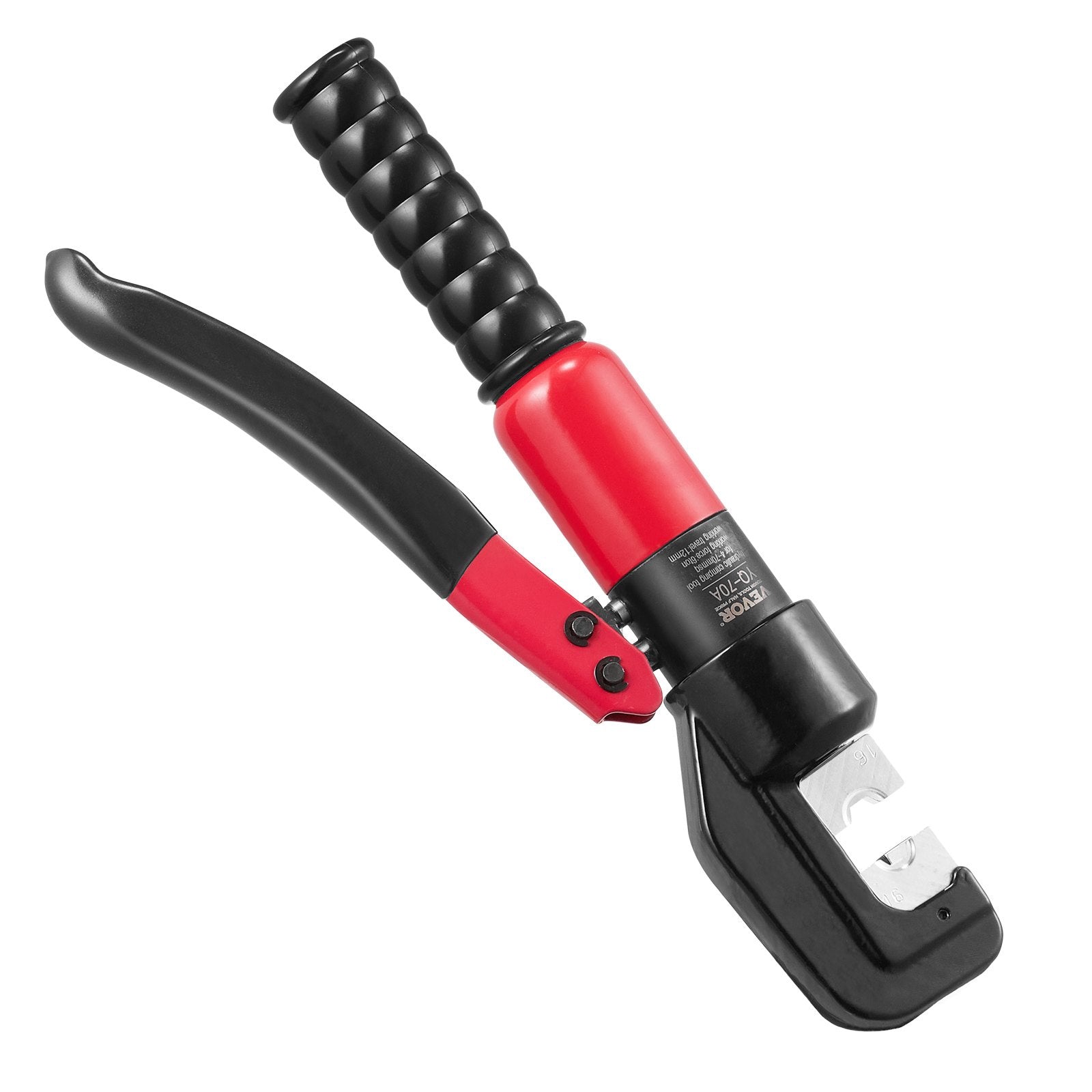

Hydraulic Crimping Tool, 9 Dies, AWG12-2/0

Hydraulic crimping tool delivers strong, consistent cable lug crimps with less hand effort, helping you build safer battery and power connections fast. The 6-ton hydraulic pump and 11 mm stroke handle copper and aluminum terminals across a wide AWG12–2/0 range, while the 180° rotatable head improves access in tight panels and engine bays. Built from heat-treated steel with an electroplated finish, it’s designed for repeated shop and field use.

• Delivers 6-ton hydraulic crimping force with 11 mm stroke to reduce fatigue on large-gauge cable work


• Fits AWG12–2/0 (4–70 mm²) copper and aluminum terminals for battery lugs, power cable, and wire rope tasks


• Includes 9 die sets (12/10/8/6/4/2/1/0/2/0 AWG + 1/8") to match common connector sizes


• Improves access with a 180° rotating head for narrow spaces and awkward angles

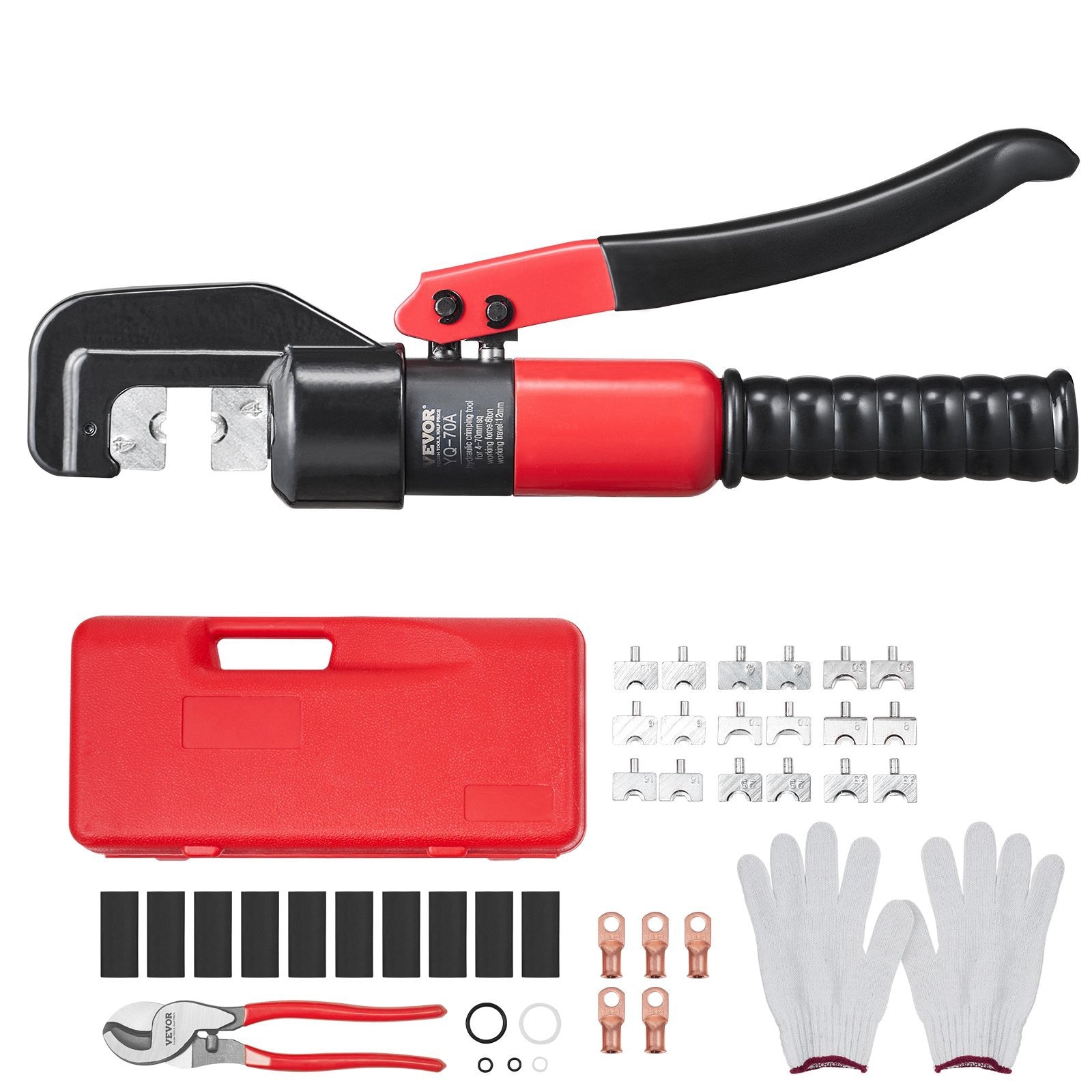

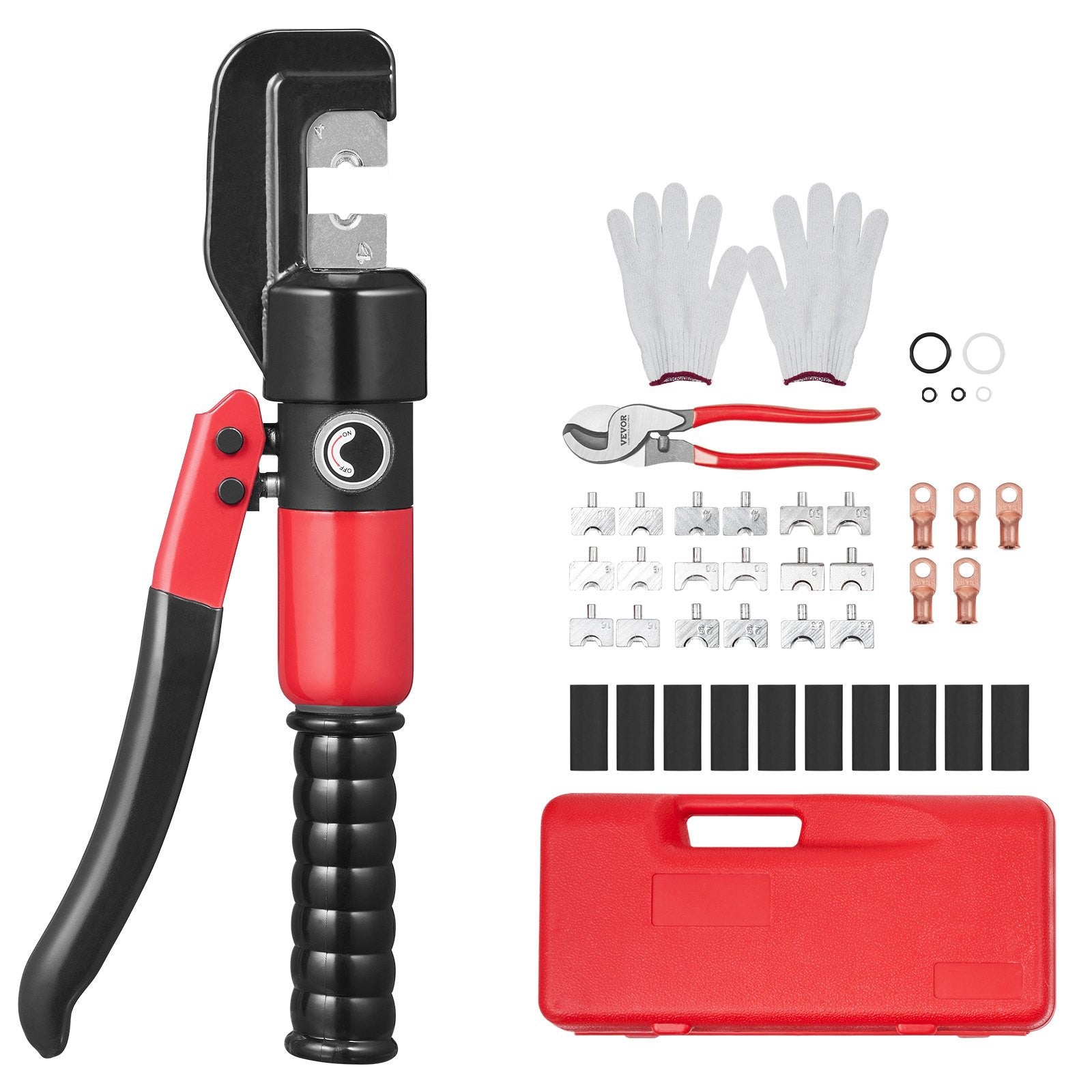

• Includes wire cutter, gloves, copper ring connectors, heat shrink sleeves, and blow-molded carry case

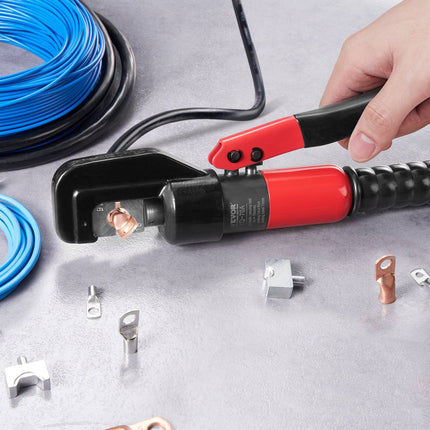

Set the die, insert the terminal and cable, then pump to crimp—simple steps that help you get repeatable results without guesswork. The heat-treated 45# steel jaws are built for durability, and the electroplated surface adds abrasion and corrosion resistance for demanding jobsite conditions. Keep it organized in the molded case and stay ready for automotive battery cables, inverter installs, winch wiring, marine wiring, and general electrical repair. Grab yours today and crimp with more control and less effort.

• Crimping range: AWG12–2/0 (4–70 mm²)


• Applicable terminals: Copper and aluminum terminals/lugs


• Crimping force: 6T hydraulic pump


• Stroke: 0.43 in / 11 mm


• Head: 180° rotatable


• Material: 45# steel, heat-treated jaws; electroplated finish


• Net weight: 7.7 lb / 3.48 kg


• In the box: 9 die sets, wire cutter, gloves, copper ring connectors, heat shrink sleeves, carry case
