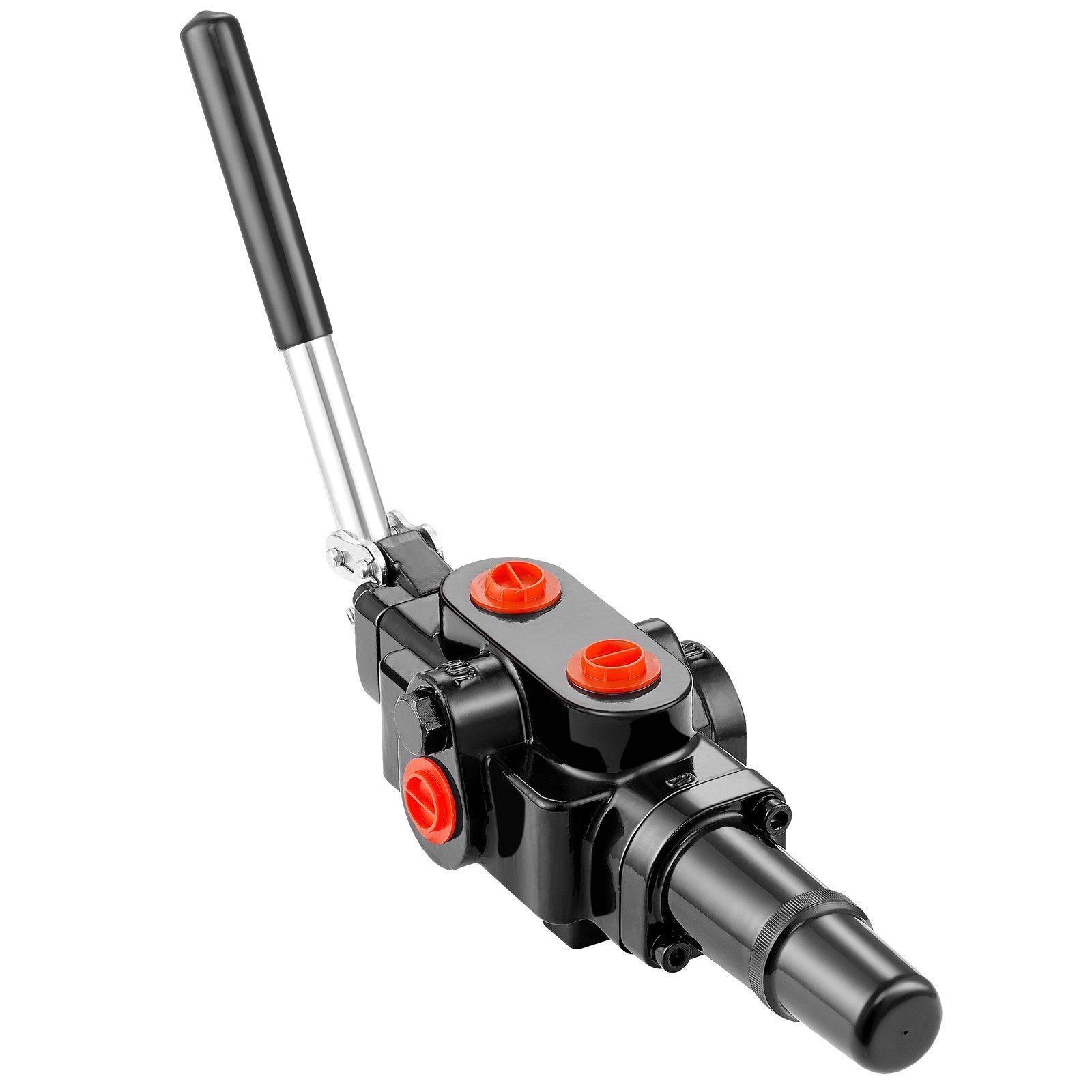

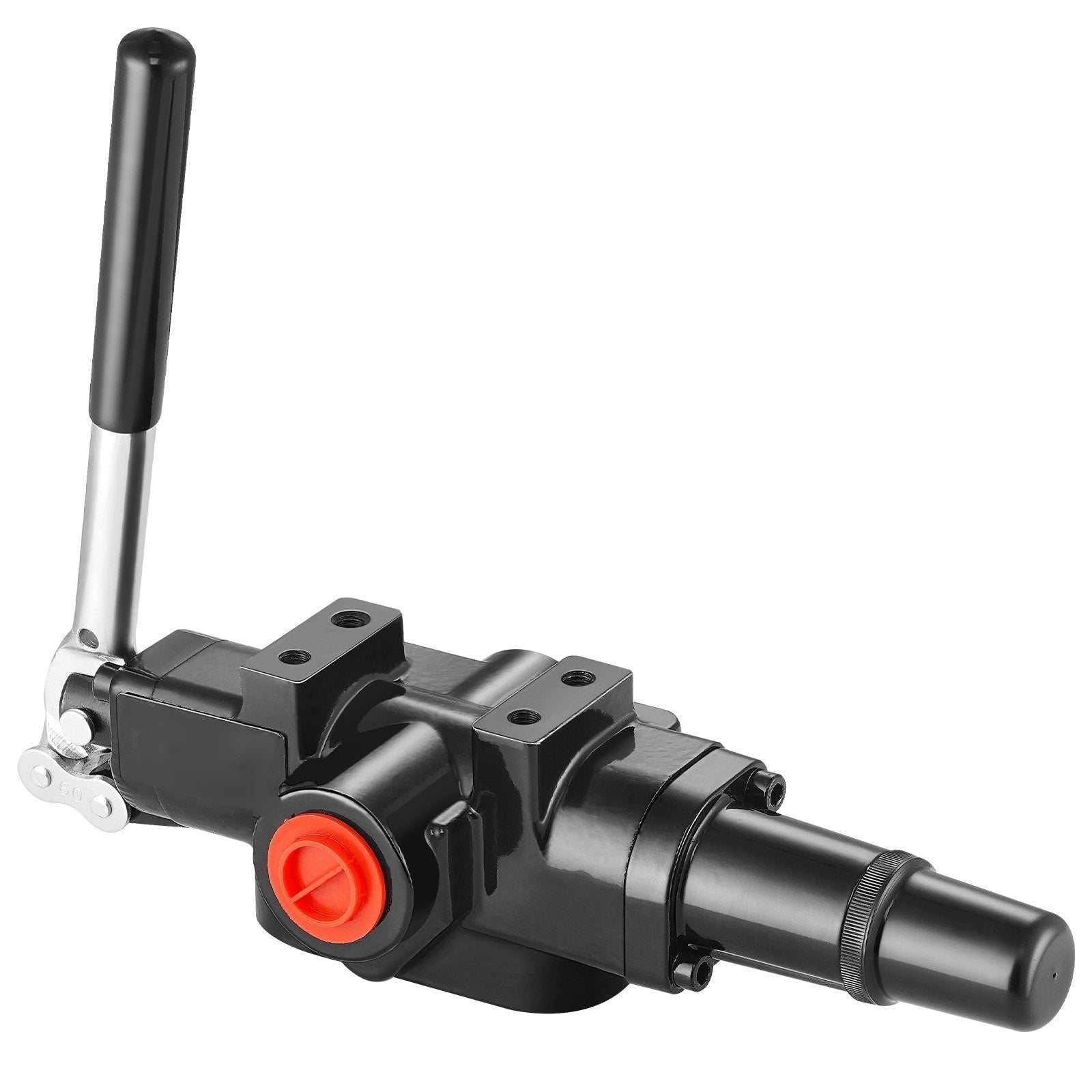

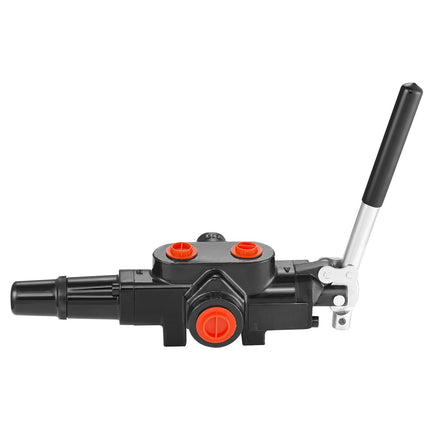

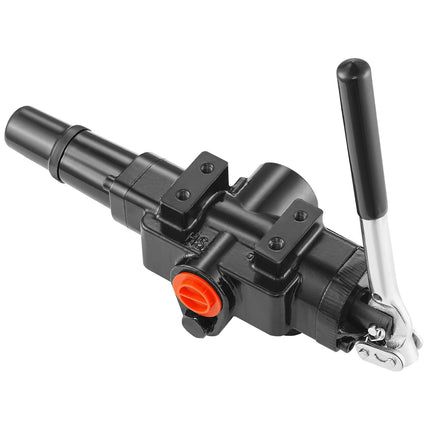

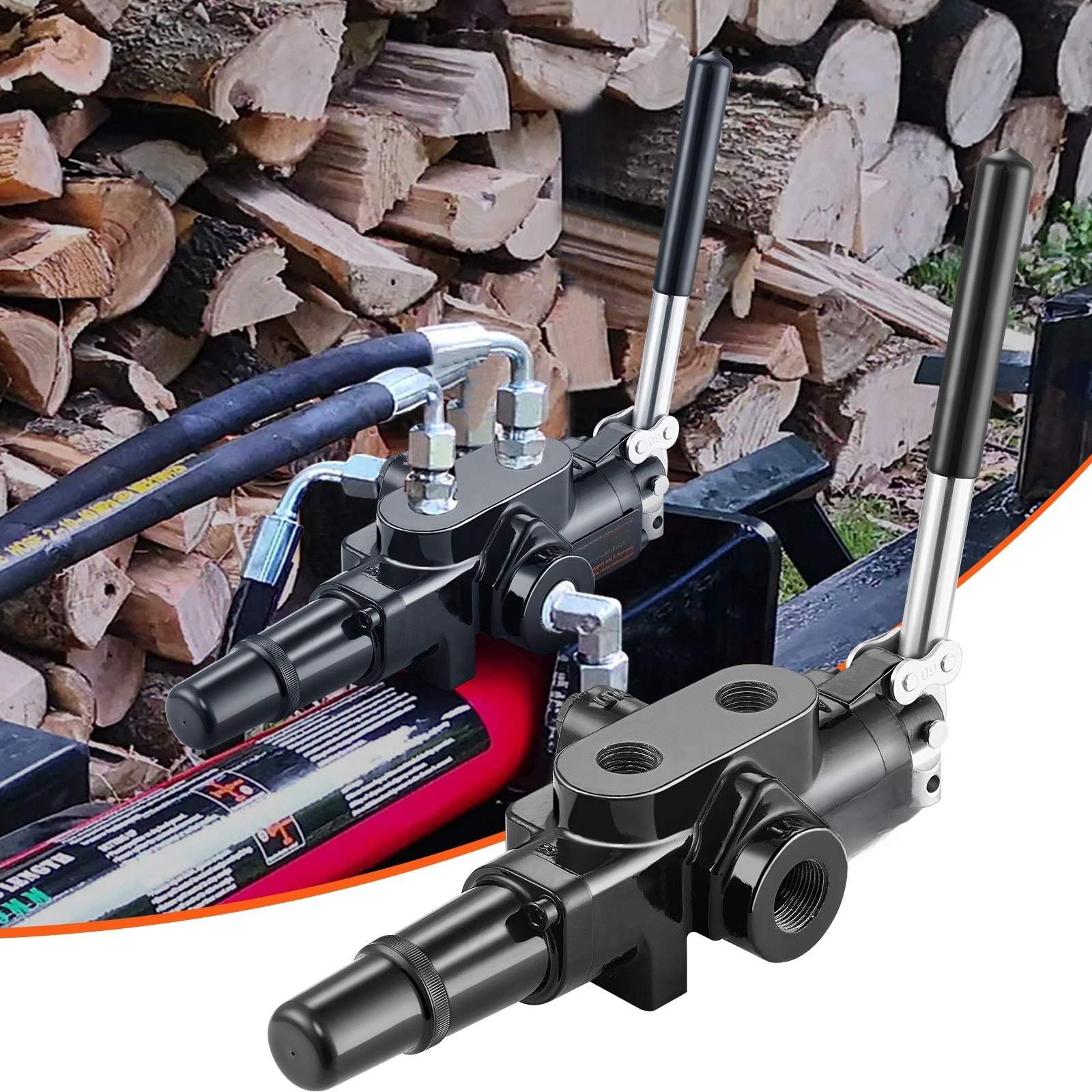

Hydraulic Log Splitter Valve, 1-Spool, 25 GPM, Joystick

Hydraulic log splitter valve delivers high-flow, precise directional control to restore smooth splitting and reliable loader operation. This 1-spool joystick control valve is built for small to medium hydraulic systems, helping replace leaking or sticking valves with a compact, easy-to-plumb design. Rated for 25 GPM flow and up to 3626 PSI maximum pressure, it supports consistent power delivery for tractors, loaders, and log splitters.

• Fits small to medium hydraulic log splitters, tractors, and loader circuits using standard NPT ports


• Delivers 25 GPM high-flow control for faster, steadier cylinder response under load


• Returns automatically to neutral with spring-return spool for safer, more predictable operation


• Protects the system with an integrated safety/relief valve for pressure control


• Simplifies installs with clearly sized inlet/outlet and working ports for quick hose routing

Built from vermicular graphite cast iron for long service life in agricultural, forestry, construction, and industrial hydraulics, this directional control valve is designed to handle demanding work cycles without bulky hardware. Use it to replace a worn, leaking, or malfunctioning valve and regain smoother joystick feel and more stable splitting performance. Verify your port sizes and flow requirements, depressurize the hydraulic system before service, then connect and tighten lines to finish the swap. Grab yours today.

• Valve type: Hydraulic directional control valve, 1 spool


• Control levers: 1


• Rated flow: 25 GPM (95 L/min)


• Rated working pressure: 20 MPa (2900 PSI)


• Maximum working pressure: 25 MPa (3626 PSI)


• Port type: NPT


• P inlet: 3/4 in NPT


• T outlet: 3/4 in NPT


• A working port: 1/2 in NPT


• B working port: 1/2 in NPT


• Material: Vermicular graphite cast iron


• Dimensions: 11.8 x 9.3 x 4.0 in (300 x 235 x 102 mm)


• Weight: 9.5 lb (4.3 kg)


• Color: Black
