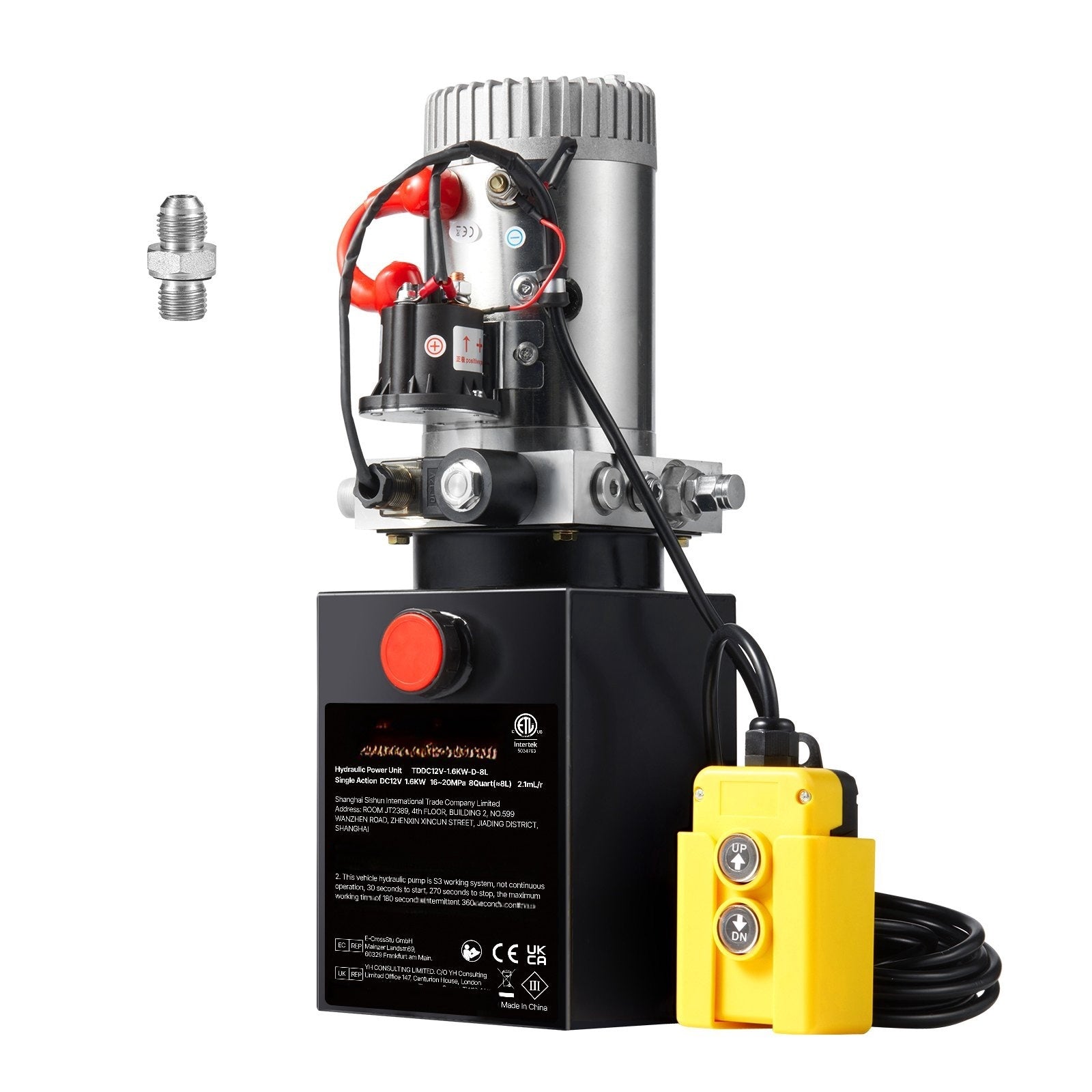

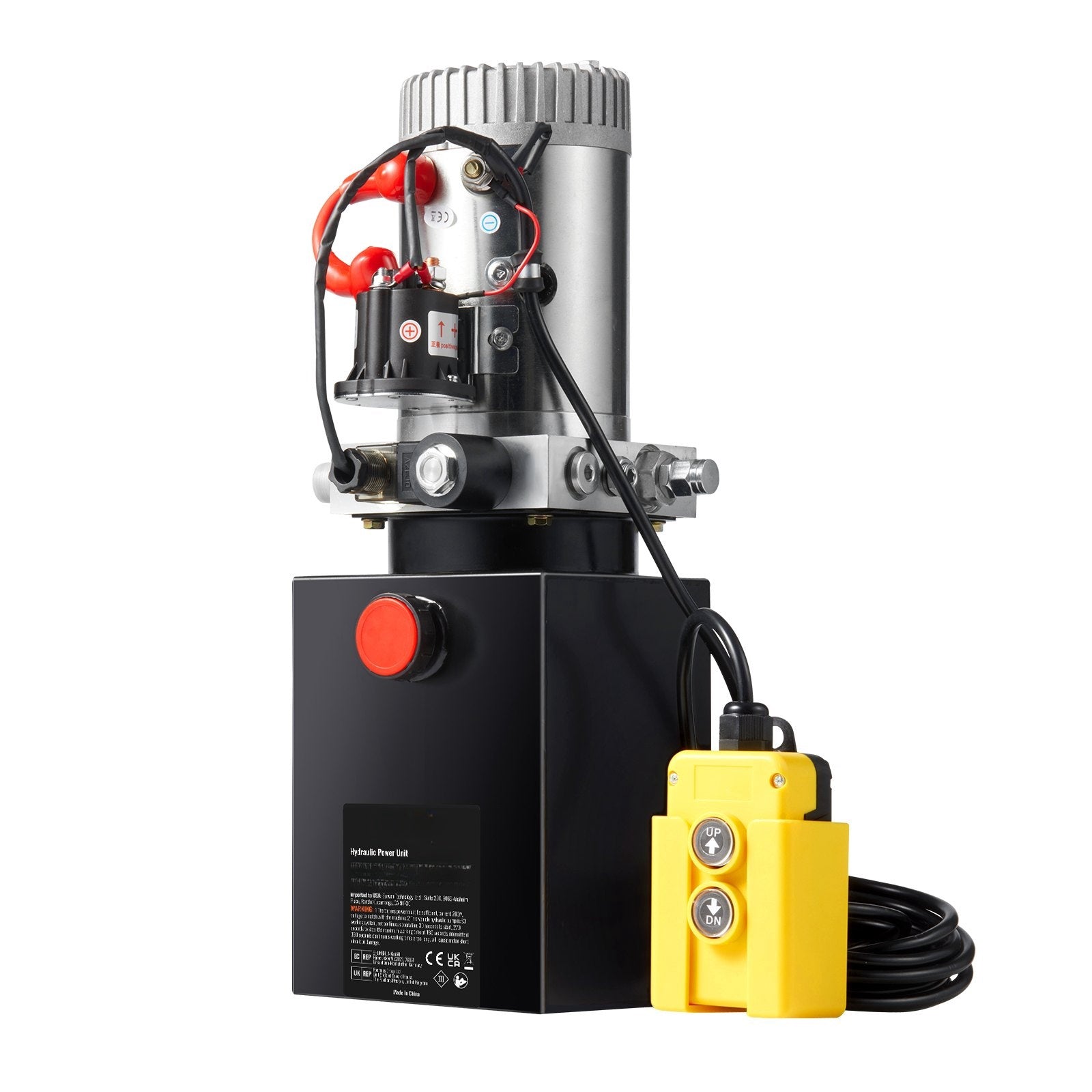

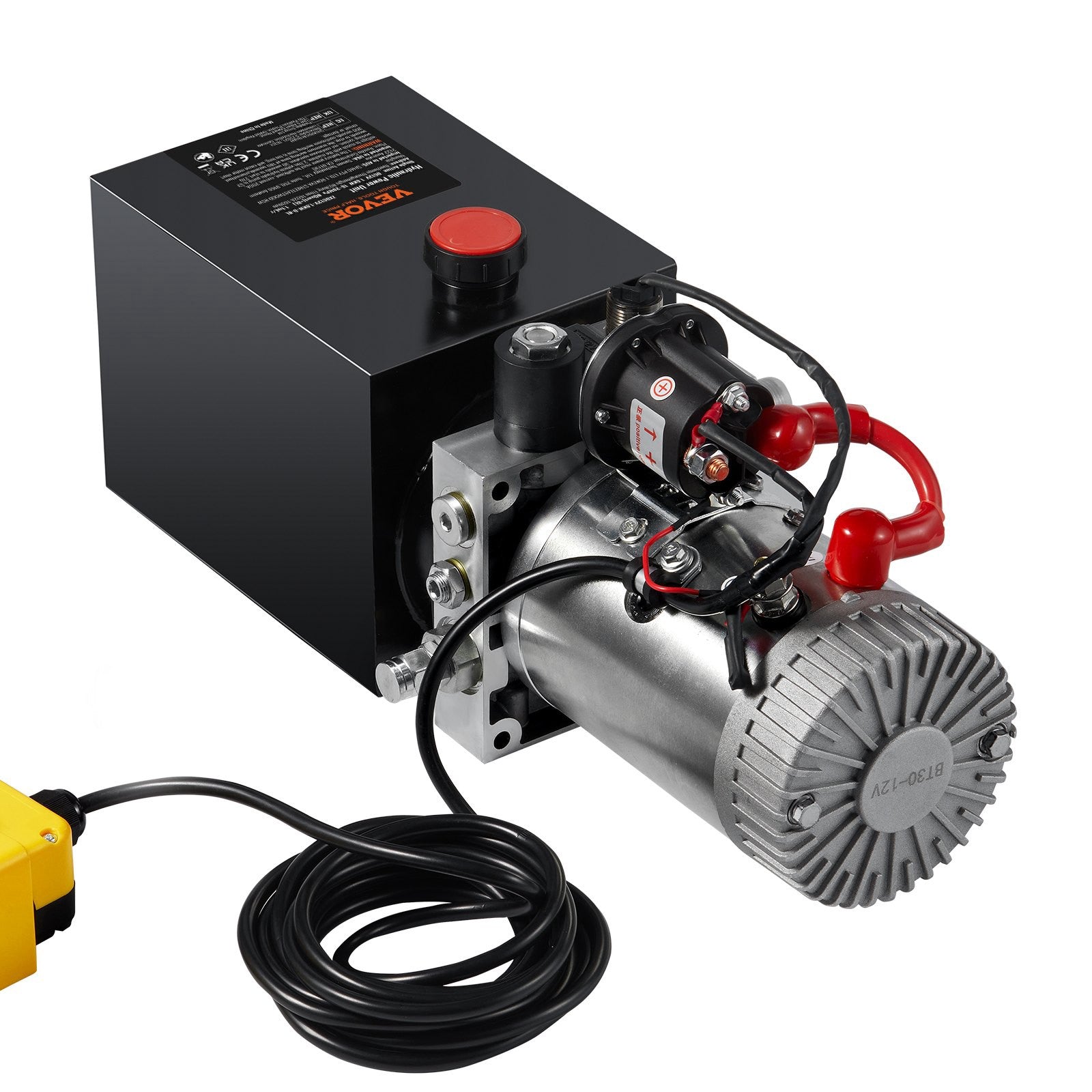

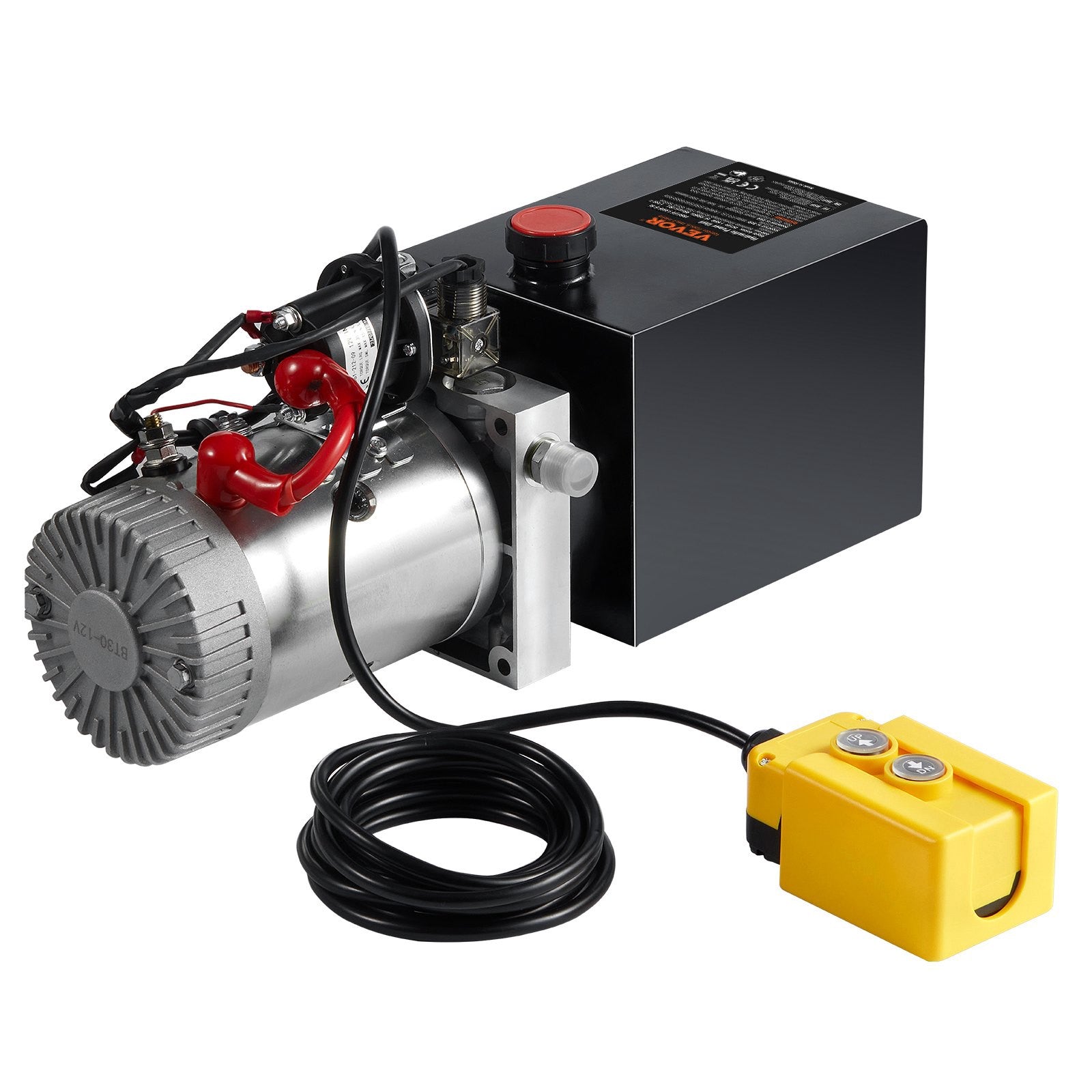

Hydraulic Power Unit, 12V DC, Single-Acting, 8-Quart

Hydraulic power unit 12V delivers reliable single-acting lift performance for dump trailers and heavy equipment, with fast flow and stable pressure control. The 1.6 kW DC motor and 8-quart reservoir support consistent operation for lifting, tailgate/tailplate functions, and light-duty press applications. Pre-assembled design reduces install time—add hydraulic oil, connect power and lines, and put your system to work with confident, controlled output.

• Delivers 0.91 GPM flow for responsive lifting and dependable cycle times on dump trailers and lifting platforms


• Includes single-acting power mechanism for stable raise operation in trailer and equipment hydraulic systems


• Protects with built-in safety relief valve to help prevent overpressure during operation


• Simplifies setup with pre-assembled unit; add hydraulic oil and connect wiring and tubing to start


• Fits mixed interfaces with included SAE#6 connector for metric and American hydraulic hookups

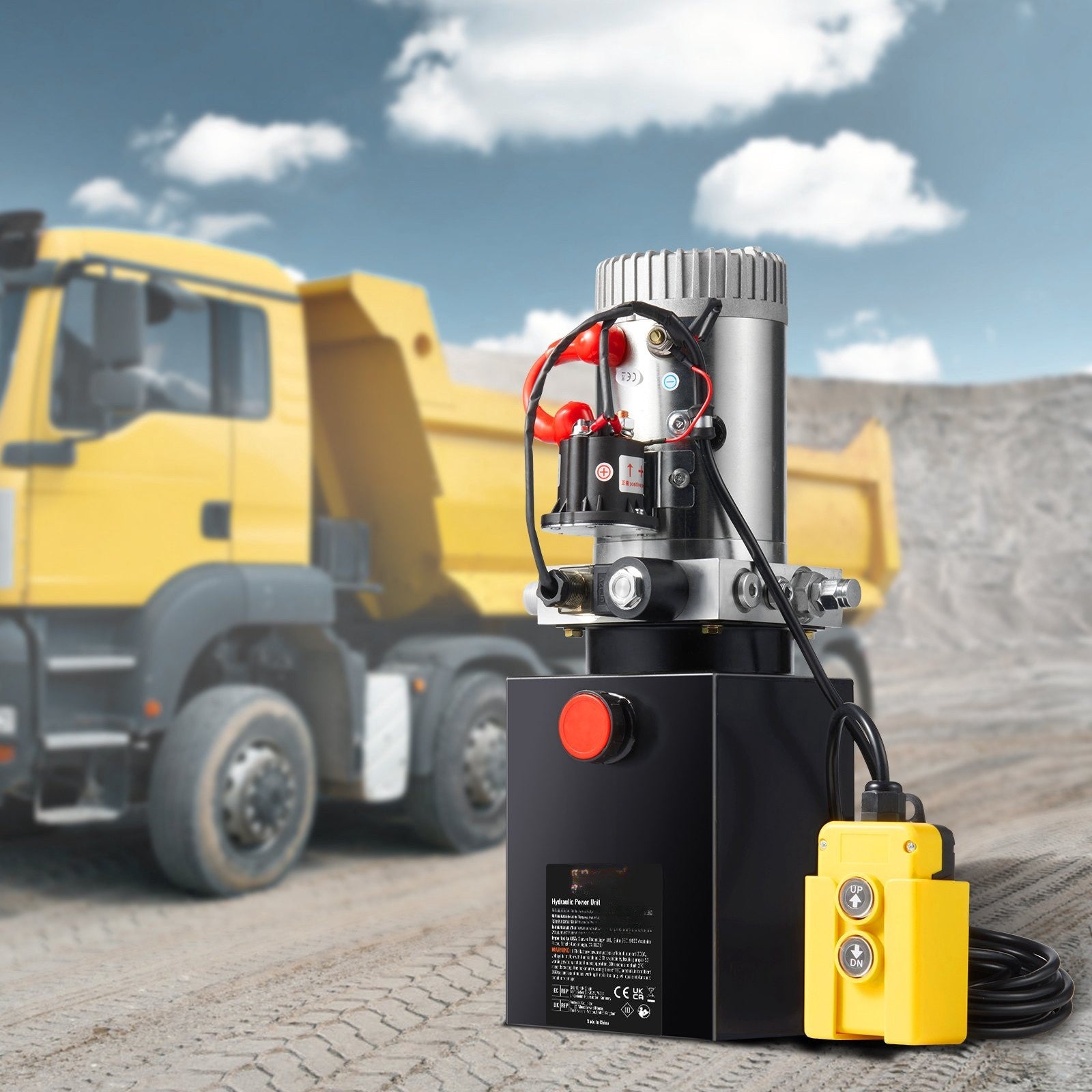

Built for demanding daily use, the steel reservoir and robust sealing help reduce oil leakage and stand up to jobsite vibration and impact. Use this 12V DC hydraulic pump power pack on dump trailers, container truck tailplates, hydraulic wood splitters, small presses, bucket transporters, and semi-electric push trucks where single-acting lift is required. Confirm your voltage, connector type, and pressure/flow needs before install, then grab yours today and get your equipment moving with controlled, on-demand hydraulic power.

• Voltage: DC 12V


• Motor Power: 1.6 kW


• Type: Single-acting


• Max Pressure: 3200 psi (16–20 MPa range stated)


• Flow Rate: up to 0.91 GPM


• Reservoir Capacity: 8 quart / 2 gal (7.6 L)


• Rotating Speed: 2600 r/min


• Material: Steel (GC01)


• Product Dimensions: 20.1 × 7.3 × 8.3 in (510 × 185 × 210 mm)


• Net Weight: 30.1 lb (13.65 kg)


• Connector: SAE#6 (included)
