Locking Drawer Slides, 29 In Full Extension, 500 Lb Pair

Heavy duty locking drawer slides deliver secure, full-extension access while keeping drawers locked in place on the road or in busy workspaces. Built from high-hardness steel with a galvanized finish, these side-mount ball bearing slide rails support heavy loads for shop cabinets, tool drawers, RV storage, trucks, and industrial enclosures. The dual-lock levers help prevent accidental roll-out, while nylon cushioning and a double-row bearing system keep movement smooth and quieter.

• Delivers up to 500 lb load capacity for demanding drawers, cabinets, and equipment bays


• Locks with a press using a dual-lock design to help keep contents secure on bumpy roads


• Glides smoothly with double-row ball bearings and nylon cushioning to reduce noise and rebound


• Extends fully with a 3-fold telescoping design so you can reach the entire drawer


• Fits side-mount installations; measure drawer/cabinet depth (excluding frame) before selecting length

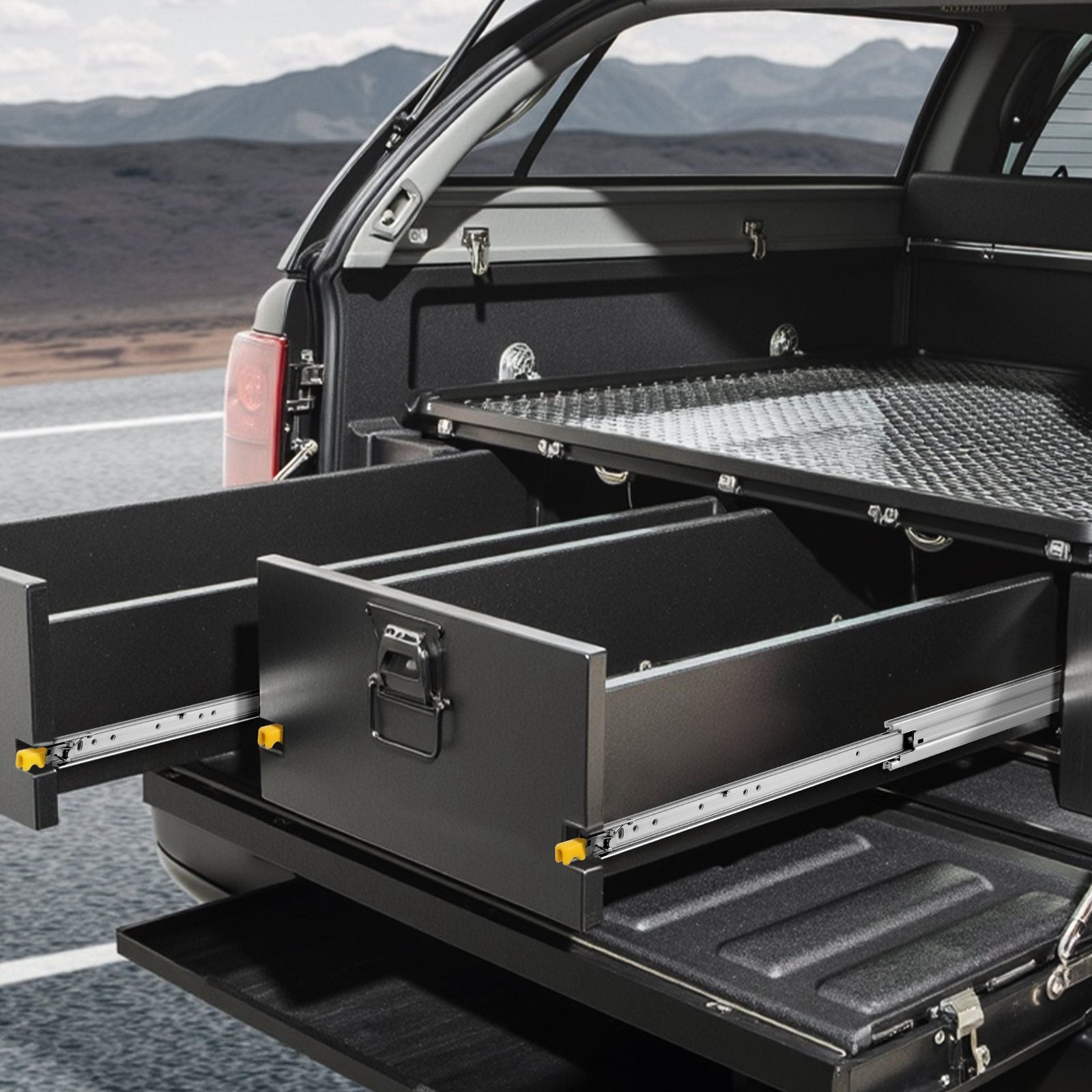

Upgrade storage where standard slides flex, rattle, or won’t stay shut. These full extension locking slide rails are designed for heavy-duty use in workshops, service vehicles, and space-tight builds where stability matters. Install in shelving, cabinets, industrial drawers, RVs, trucks, or vending machines to gain reliable access and added security. Choose the correct size by measuring your drawer box and cabinet depth—slide length should be less than the usable depth. Grab yours today and build drawers that move with control.

• Quantity: 1 pair (2 slides)


• Mounting type: Side mount


• Extension type: 3-fold full extension


• Load capacity: 500 lb (226.8 kg)


• Load capacity (fully extended): 353 lb (160 kg)


• Suitable drawer length: 28.5 in (724 mm)


• Extension length: 28 in (711 mm)


• Dimensions (L×W×T): 29 × 3 × 0.77 in (743 × 76 × 19.5 mm)


• Material thickness: 0.77 in (19.5 mm) high-hardness steel


• Finish: Galvanized


• Net weight: 15.65 lb (7.1 kg)
