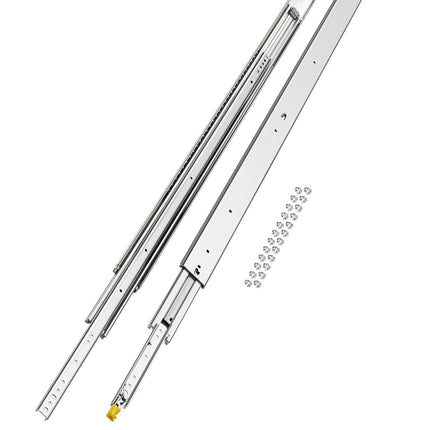

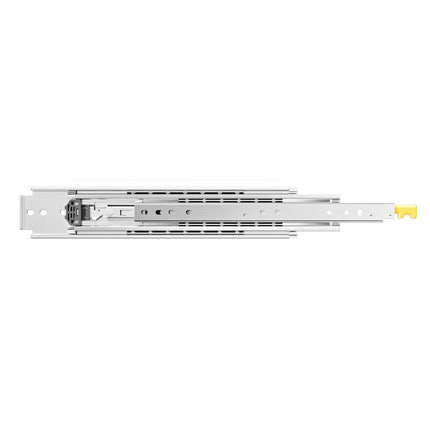

Locking Drawer Slides, 60 In, 500 Lb, Side Mount

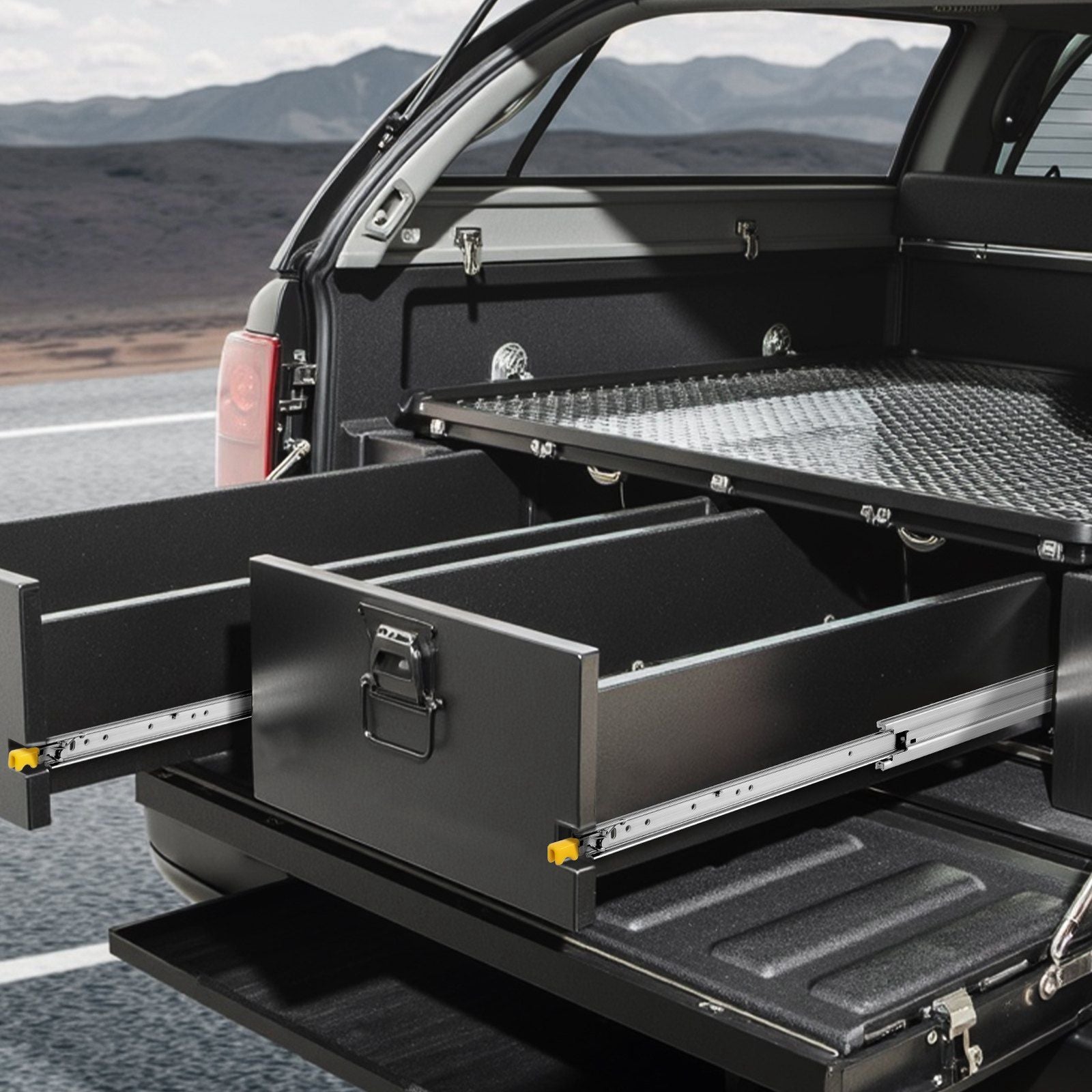

500 lb locking drawer slides keep heavy drawers secure on the move with a press-to-lock design and smooth full-extension access. Built from thick, high-hardness steel with a galvanized finish, these side-mount, ball bearing slide rails are made for demanding installs—from industrial cabinets and shop drawers to RV, truck, and vending machine storage—where stability, quiet travel, and reliable load support matter.

• Delivers 3-fold full extension so you can reach the entire drawer without digging or unloading.


• Locks securely with a simple press to help prevent slide-out during vibration, travel, or uneven ground.


• Glides smoothly on double-row ball bearings with nylon cushioning for quieter open/close and less bounce.


• Supports up to 500 lb load capacity for heavy tools, equipment, and high-use storage builds.


• Includes 1 pair of side-mount slide rails; measure drawer depth (excluding face frame) before choosing length.

When a heavy drawer creeps open, jams, or rattles, it wastes time and risks damage—especially in mobile setups. These telescopic locking slides combine a rugged steel build with a latching lock for controlled movement and dependable hold, even on bumpy roads. Use them for deep drawers, pull-out trays, shelving, and utility cabinets where strength and access are non-negotiable. Check your drawer and cabinet depth to select the correct slide length, then install and put your storage back to work. Grab yours today.

• Type: Full extension, 3-fold telescopic side-mount drawer slides with lock


• Load capacity: 500 lb (226.8 kg); fully extended load capacity: 178 lb (80.74 kg)


• Suitable drawer length: 60.5 in (1540 mm)


• Extension length: 60 in (1524 mm)


• Dimensions (without lock): 60 x 3 x 0.77 in (1523 x 76 x 19.5 mm)


• Dimensions (with lock): 61 x 3 x 0.77 in (1555 x 76 x 19.5 mm)


• Material/finish: High-hardness steel, galvanized


• Net weight: 33.73 lb (15.3 kg)


• Package: 1 pair (2 pcs) locking drawer slide rails
