NEMA 4X Steel Electrical Enclosure 25x20x15 cm, IP66

NEMA 4X steel electrical enclosure delivers reliable IP66-grade protection to keep wiring and controls sealed from water, dust, and corrosion-prone environments. Built from 1.5 mm cold-rolled carbon steel with a powder-coated finish, this lockable hinged electrical junction box supports clean, secure installations indoors or outdoors. A detachable galvanized mounting plate speeds component layout, while pre-installed grounding screws and smooth cable-entry cutouts help reduce setup time and cable damage.

• Delivers IP66 sealing to help block dust, rain splash, and washdown moisture in tough sites


• Protects with 1.5 mm carbon steel body and epoxy polyester powder coating for added durability

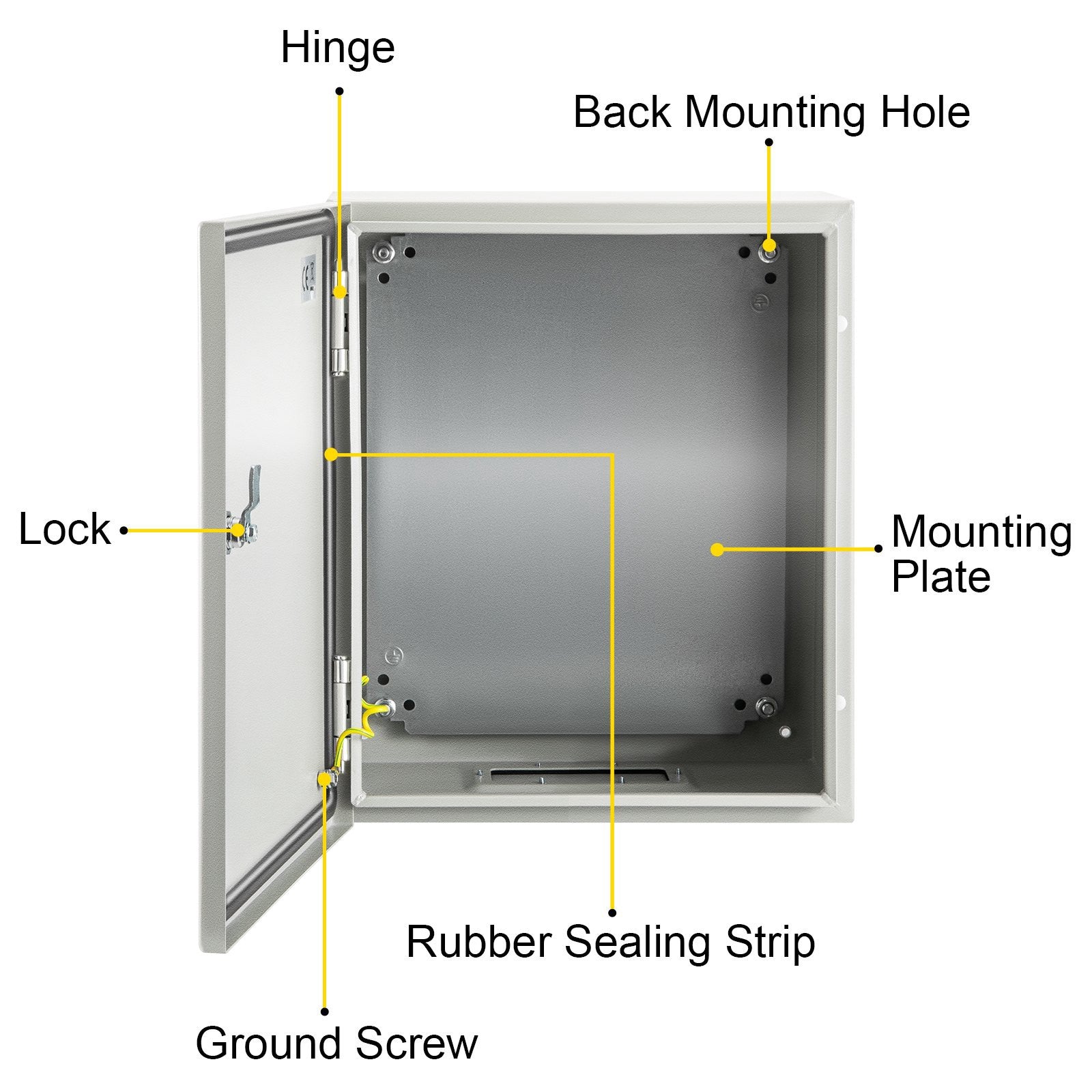

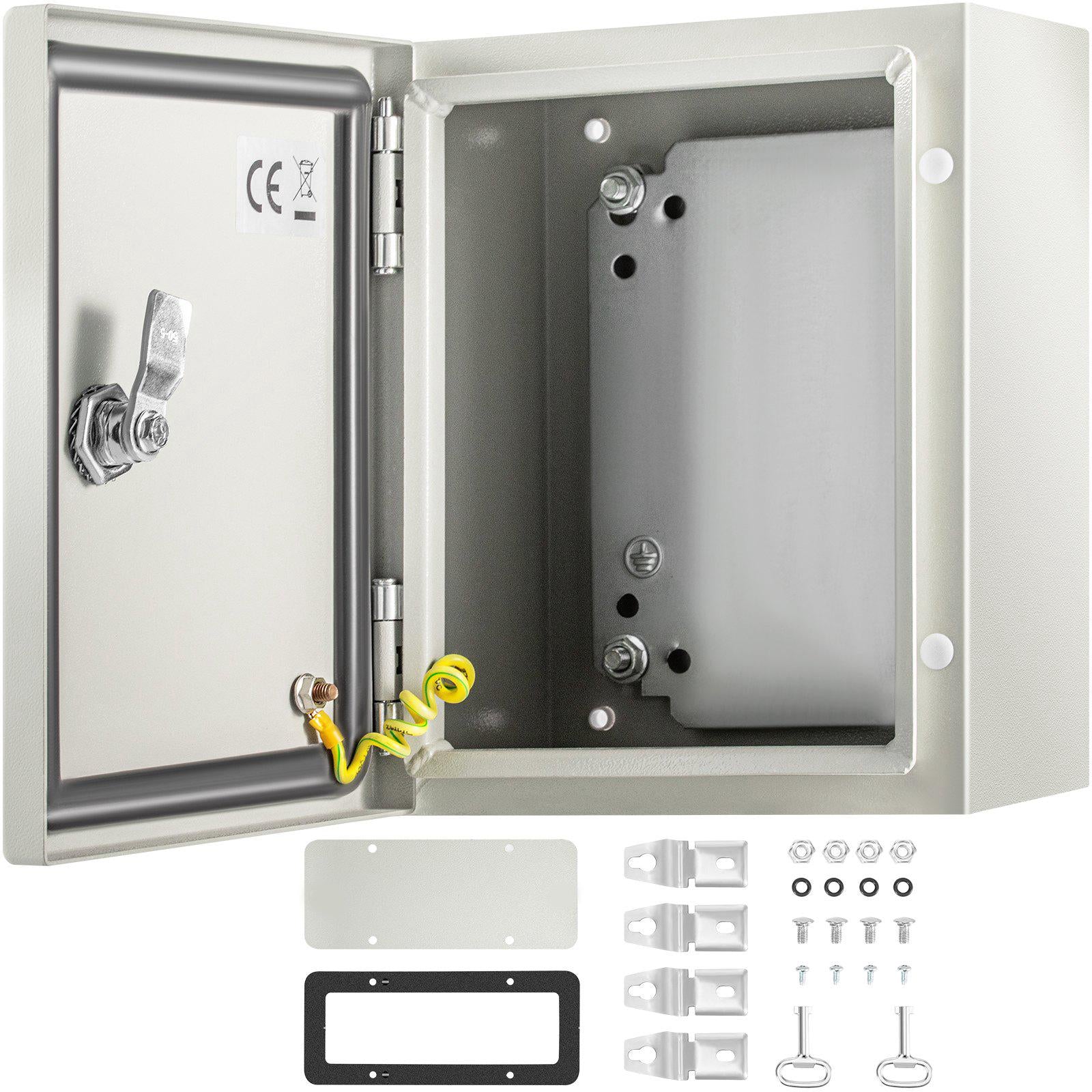

• Includes a detachable 2 mm galvanized mounting backplate for fast panel building and service


• Secures with a reinforced hinge and lockable door to deter tampering and accidental access


• Simplifies setup with wall-mount holes, smooth knockouts, and pre-installed grounding screws

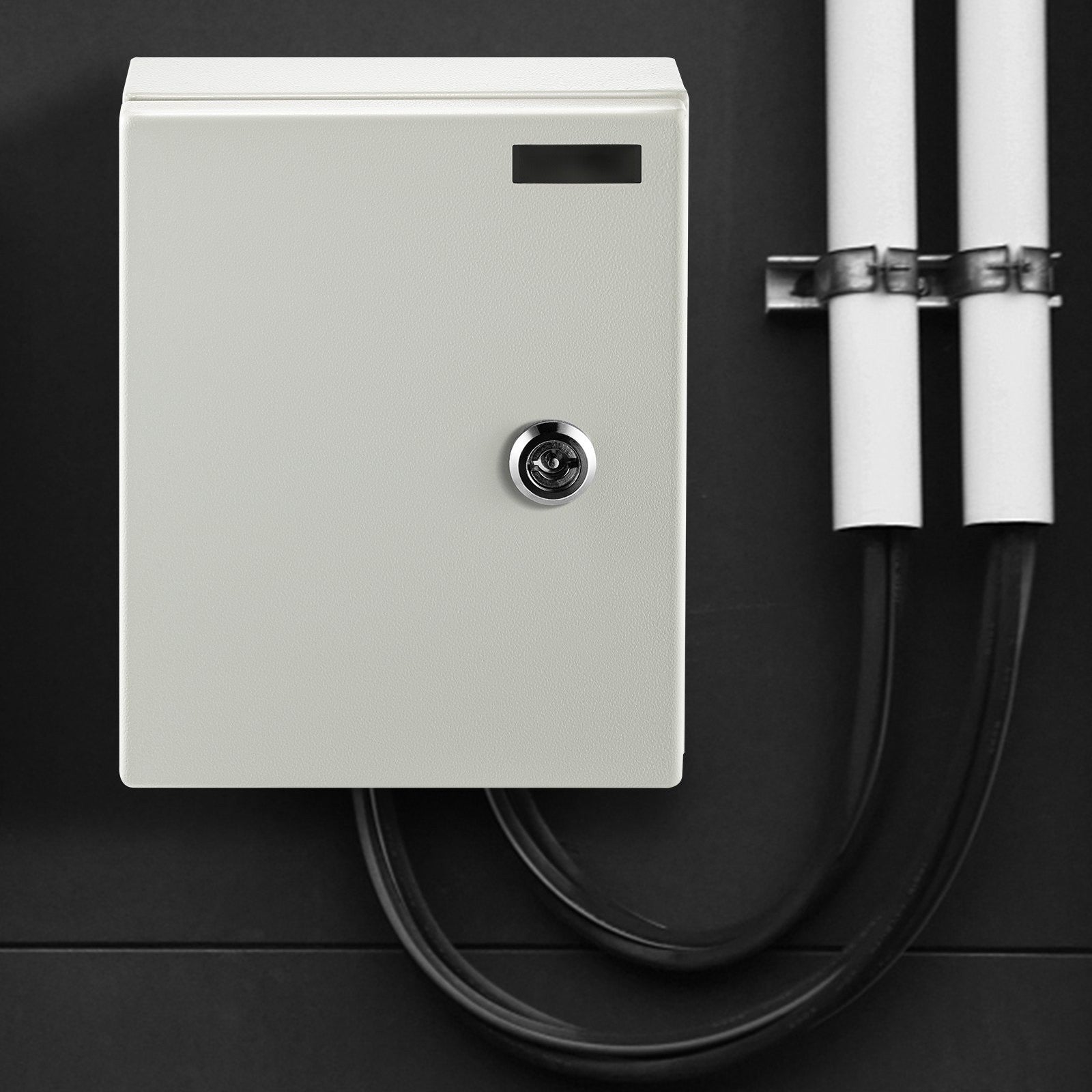

Use this waterproof, dustproof electrical box wherever you need dependable enclosure protection—factories, construction areas, courtyards, residential panels, and outdoor control points. The foam sealing strip supports consistent closure, while the hinged design keeps access straightforward during maintenance. Sized to fit common electrical components without wasting space, it’s a practical choice for cleaner wiring, safer circuits, and longer equipment life in harsh conditions. Grab yours today and finish your install with confidence.

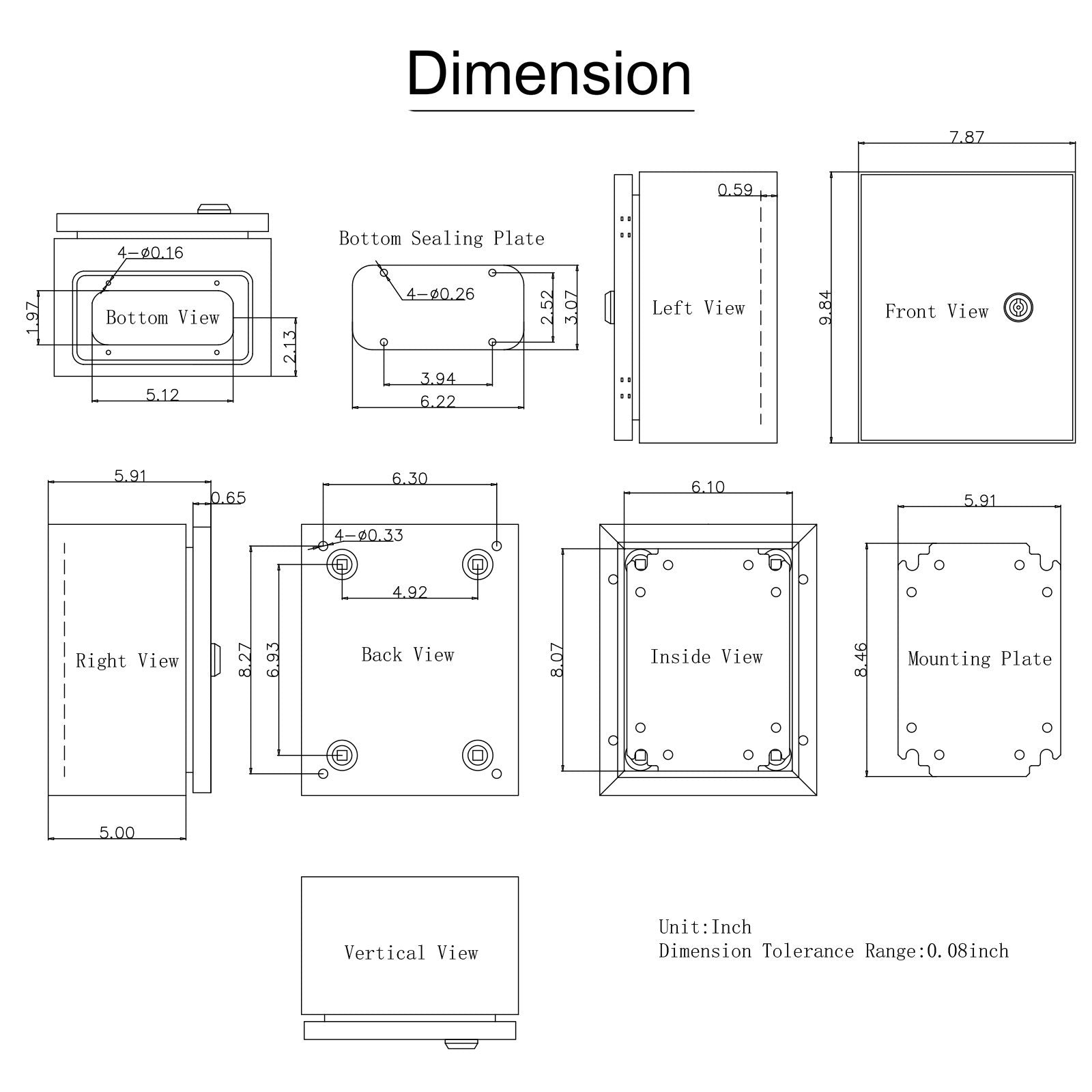

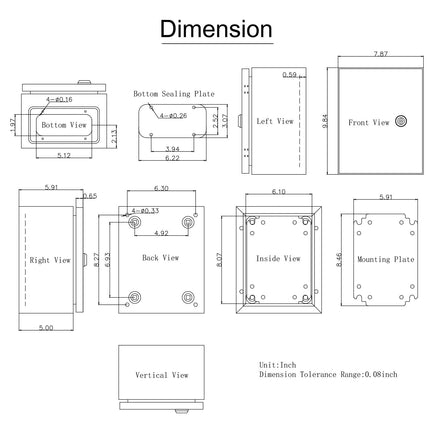

• Outer size (H x W x D): 10 x 8 x 6 in / 25 x 20 x 15 cm


• Inner size (H x W x D): 9.7 x 7.8 x 4.6 in / 24.7 x 19.7 x 11.65 cm


• Material: 1.5 mm (0.059 in) cold-rolled carbon steel


• Mounting plate: 2 mm (0.079 in) detachable galvanized backplate; 7.9 x 6 in / 20 x 15 cm


• Protection: IP66; designed to meet NEMA 1/2/4/4X/12


• Door: Hinged, lockable


• Finish: Epoxy polyester powder coating


• Color: Gray White (RAL7035)


• Certifications: CE, RoHS


• Weight: 9.48 lb / 4.3 kg
