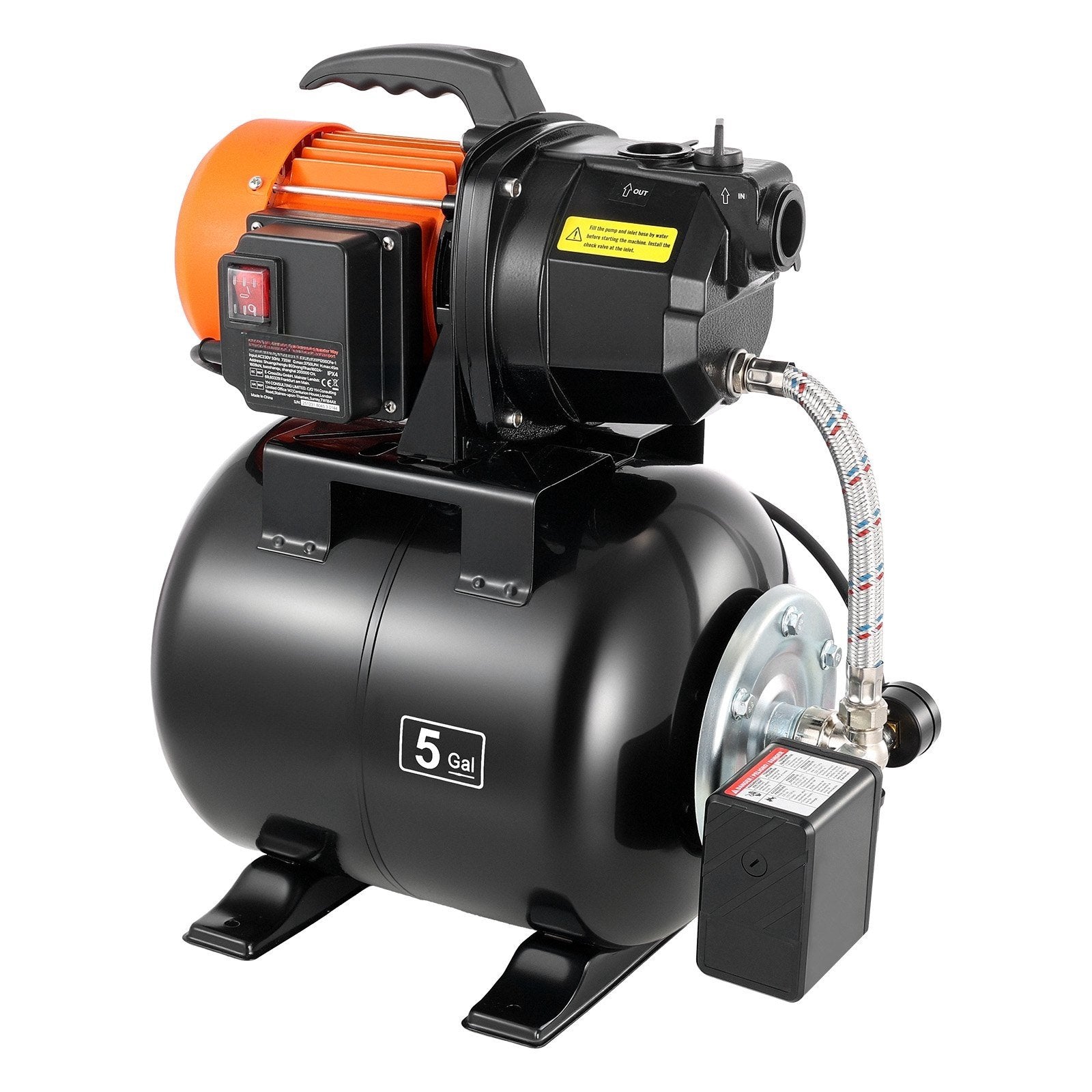

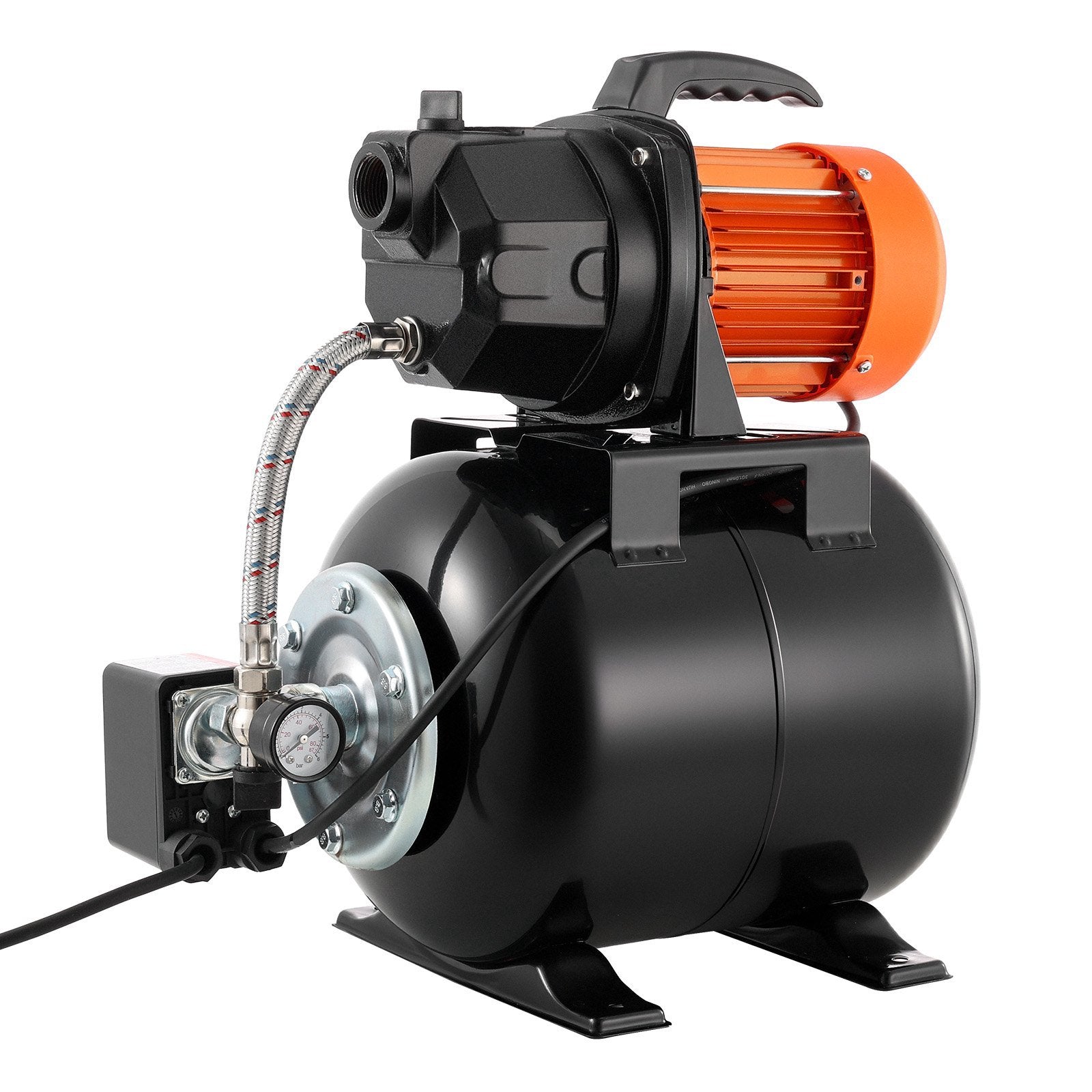

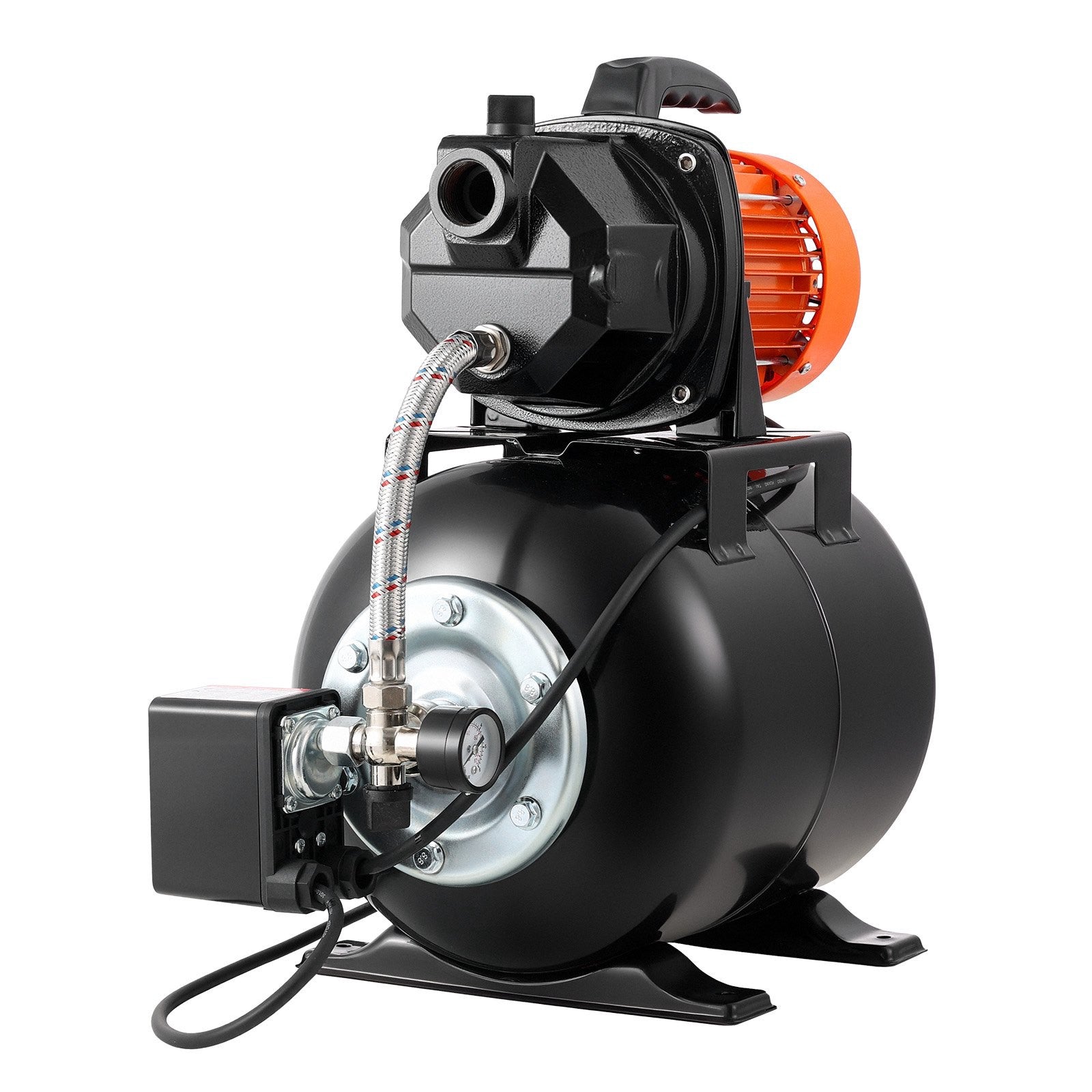

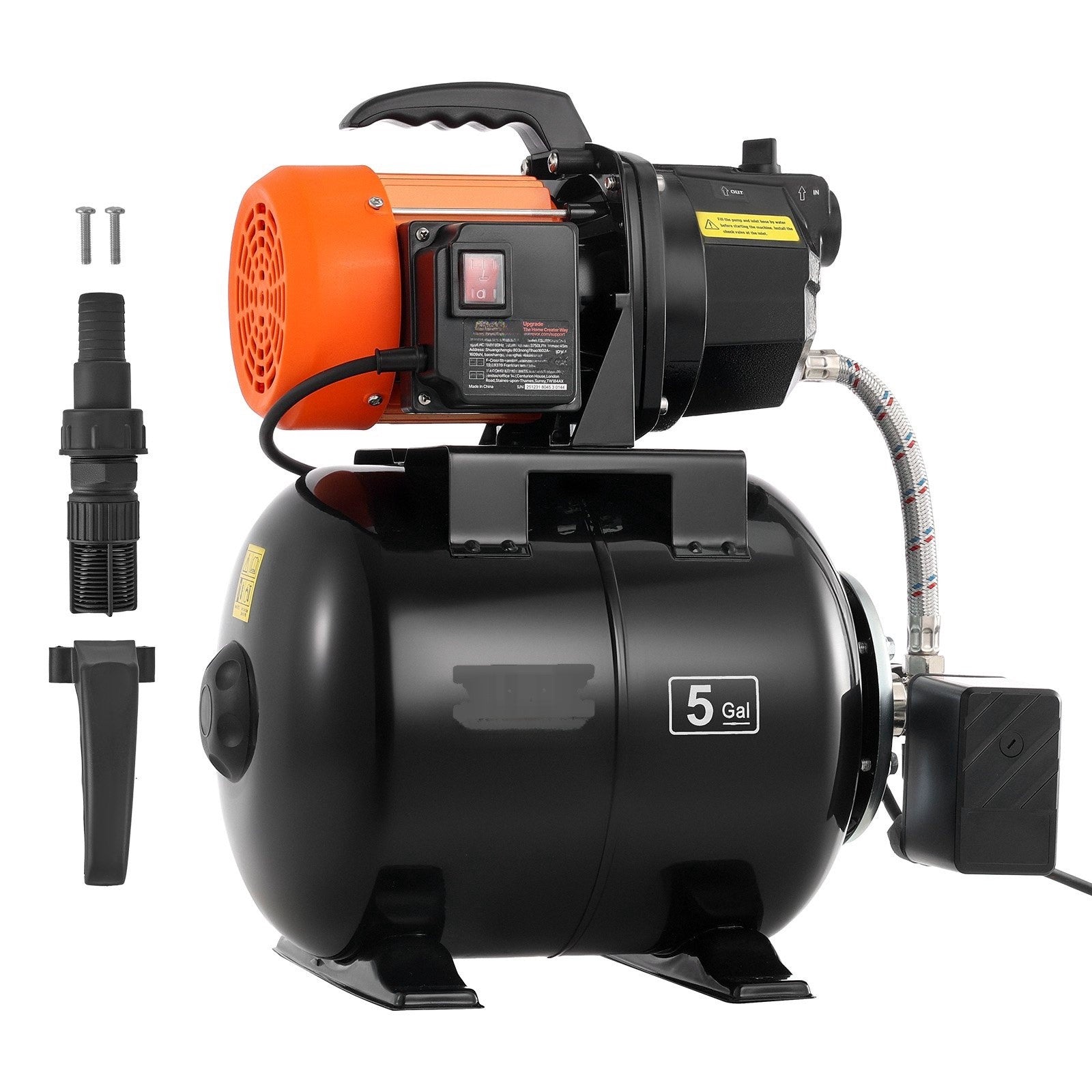

Shallow Well Jet Pump 1 HP, 230V, 19 L Pressure Tank

Shallow well pump with pressure tank delivers steady, automatic water pressure for irrigation, lawn watering, and household boosting without constant manual switching. This 1 HP jet pump system combines a cast iron pump head with a 5-gallon tank to reduce short-cycling and support consistent flow where non-potable water is used. Built for reliable transfer and pressure boosting, it features an adjustable pressure switch range and an easy-read gauge for quick monitoring.

• Delivers up to 1000 GPH (3750 LPH) flow and 150 ft (45 m) max head for demanding garden and yard watering


• Includes a 5-gallon (19 L) pressure tank to reduce cycling and help extend pump service life


• Controls automatically with a 20–40 PSI (1.4–2.8 bar) pressure switch plus gauge for at-a-glance status

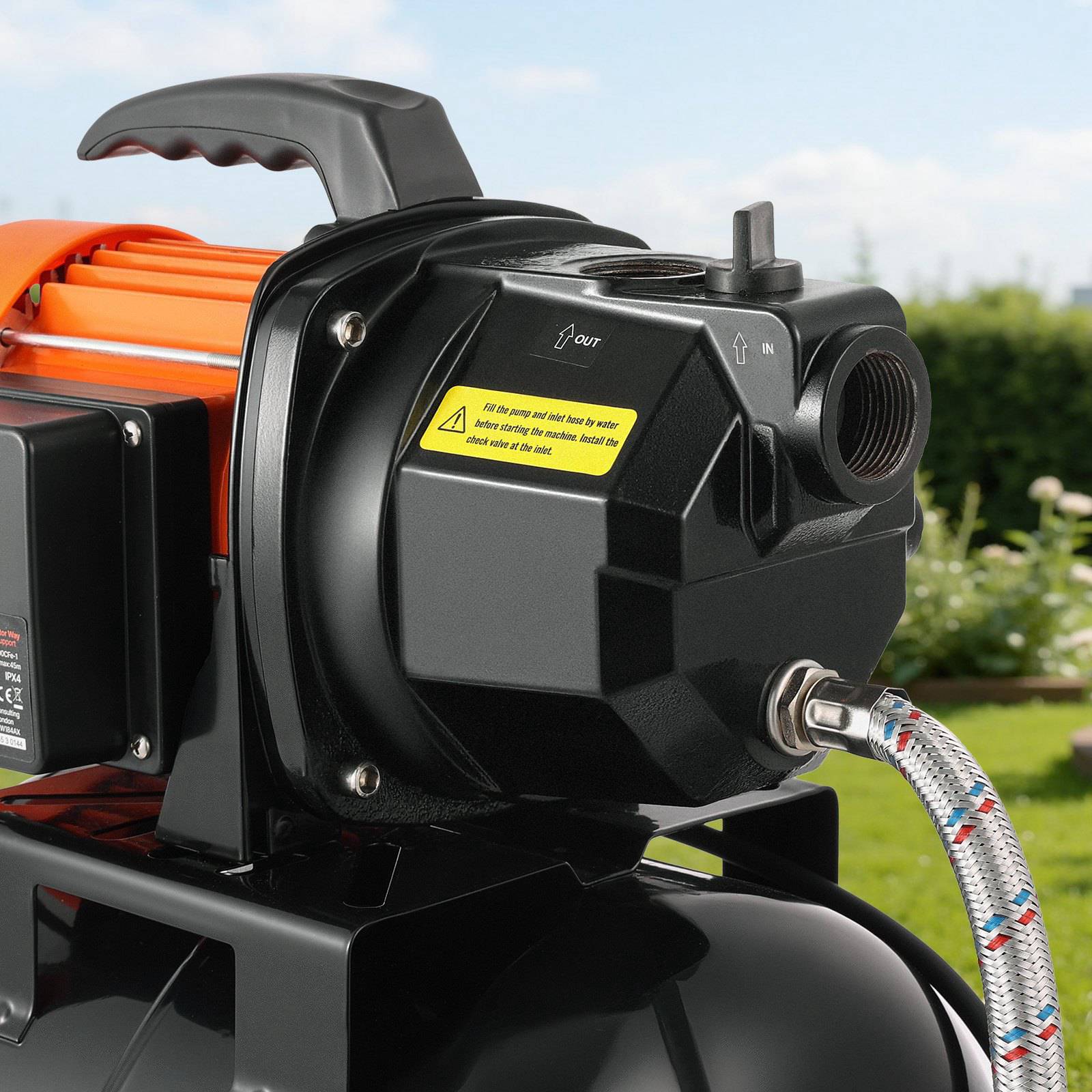

• Resists wear with a thickened cast iron pump head and mechanical seal for stable long-term operation


• Protects the motor with thermal overload shutoff to help prevent damage during overheating conditions

Set up a dependable water booster and transfer system for home, garden, lawn, and light farm tasks. The jet-style design supports shallow-well suction up to 26 ft (8 m) while the tank helps smooth pressure fluctuations for more consistent performance at taps, hoses, and irrigation lines. Designed for non-potable water applications, this pump system is a practical choice when you need reliable pressure and flow without constant monitoring. Grab yours today and streamline your watering and pressure-boosting setup.

• Motor power: 1.0 HP / 735W


• Voltage / Frequency: AC 230V, 50Hz


• Max flow rate: 1000 GPH / 3750 LPH


• Max head: 150 ft / 45 m


• Maximum suction lift: 26 ft / 8 m


• Pressure tank capacity: 5 gal / 19 L


• Pressure switch: 20–40 PSI / 1.4–2.8 bar


• Connection size: G1 in thread


• Seal type: Mechanical seal


• Waterproof rating: IPX4


• Water type: Non-potable water
