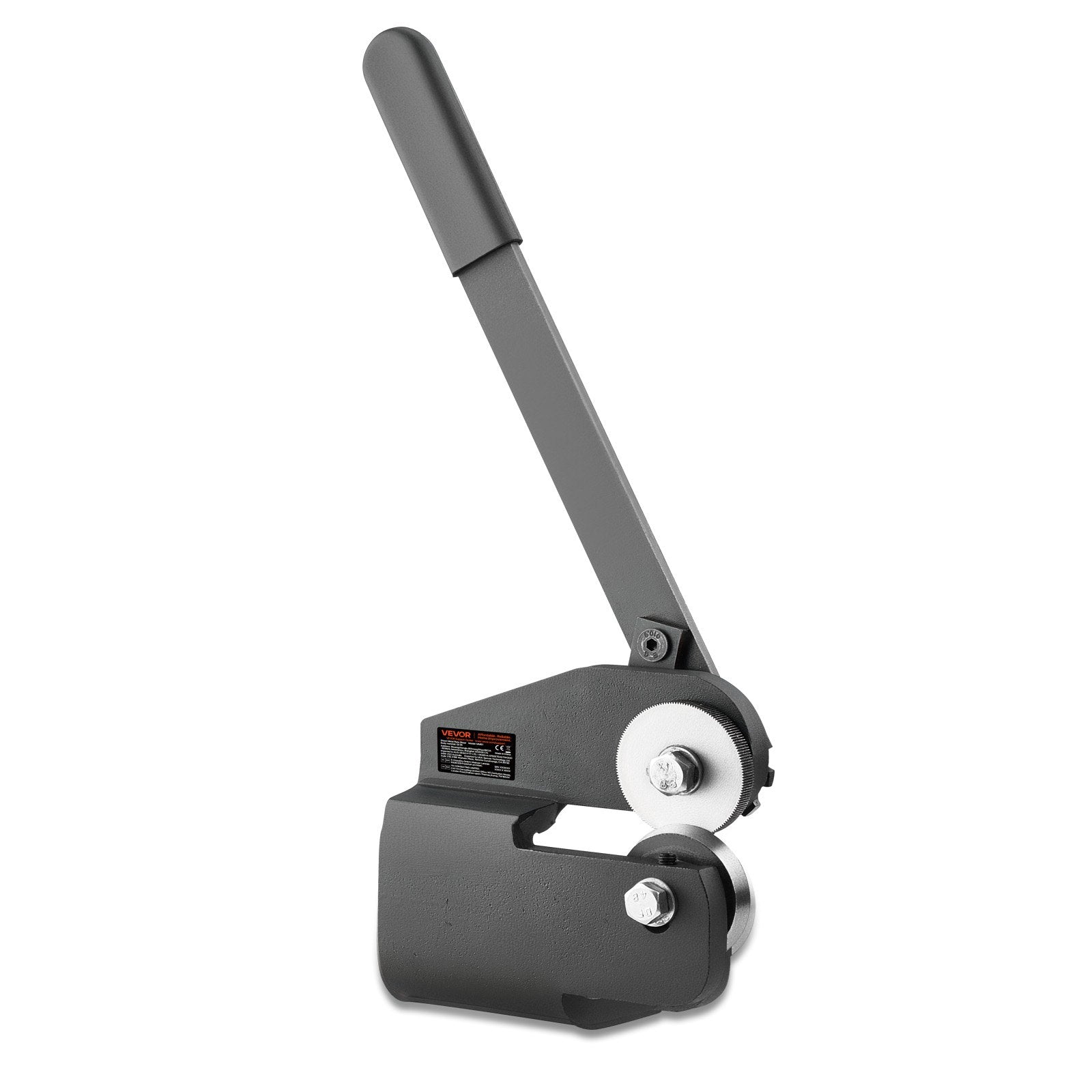

Sheet Metal Shear, Throatless Rotary, 16 Gauge, 1.5 mm

Throatless rotary hand shear delivers clean, controlled cuts in sheet metal with less hand strain, thanks to an extended lever handle and precision blade alignment. The open-throat design makes it easy to cut straight lines, curves, and tight shapes without repositioning the workpiece. Built for workshop reliability, it combines heat-treated 40Cr blades with a rigid Q235 steel frame to help reduce vibration and keep cuts consistent on steel, copper, aluminum, and more.

• Cut precisely with a throatless rotary design that handles straight cuts, curves, and complex shapes.


• Reduce burrs using fine blade-gap control (＜0.07 mm) for cleaner edges and better fit-up.


• Work longer with an extended handle that increases leverage to lower effort and hand fatigue.


• Mount securely via bench-mount style construction for stability during repetitive cutting tasks.


• Hold edge longer with heat-treated 40Cr blades (HRC52–54) to resist rolling and dulling.

When your projects demand consistent results on 16-gauge sheet and similar materials, this metal shear is built to keep up. The rigid steel frame helps minimize chatter, while tight-tolerance fasteners support long-term cutting accuracy. Use it as a dependable sheet metal cutter for fabrication, repairs, HVAC work, craft studios, and home workshops—especially when you need controlled curves without fighting the tool. Set it on your bench, dial in the gap, and get smoother cuts with less rework. Grab yours today and keep your shop moving.

• Max cutting thickness: 0.06 in / 1.5 mm (ideal for Q235 steel; suitable up to 0.07 in noted)


• Blade material: 40Cr, heat-treated to HRC52–54


• Main frame material: Q235 steel


• Precision blade gap: ＜0.07 mm


• Upper blade size: 1.89 x 0.24 in / 48 x 6 mm


• Lower blade size: 2.09 x 0.24 in / 53 x 6 mm


• Dimensions (max handle position): 12.2 x 2.76 x 14.76 in / 310 x 70 x 375 mm


• Dimensions (min handle position): 12.2 x 2.76 x 11.42 in / 310 x 70 x 290 mm


• Net weight: 3.97 lb / 1.8 kg
