Shelf Pin Jig and Hinge Jig Set, Aluminum, 2 Drill Bits

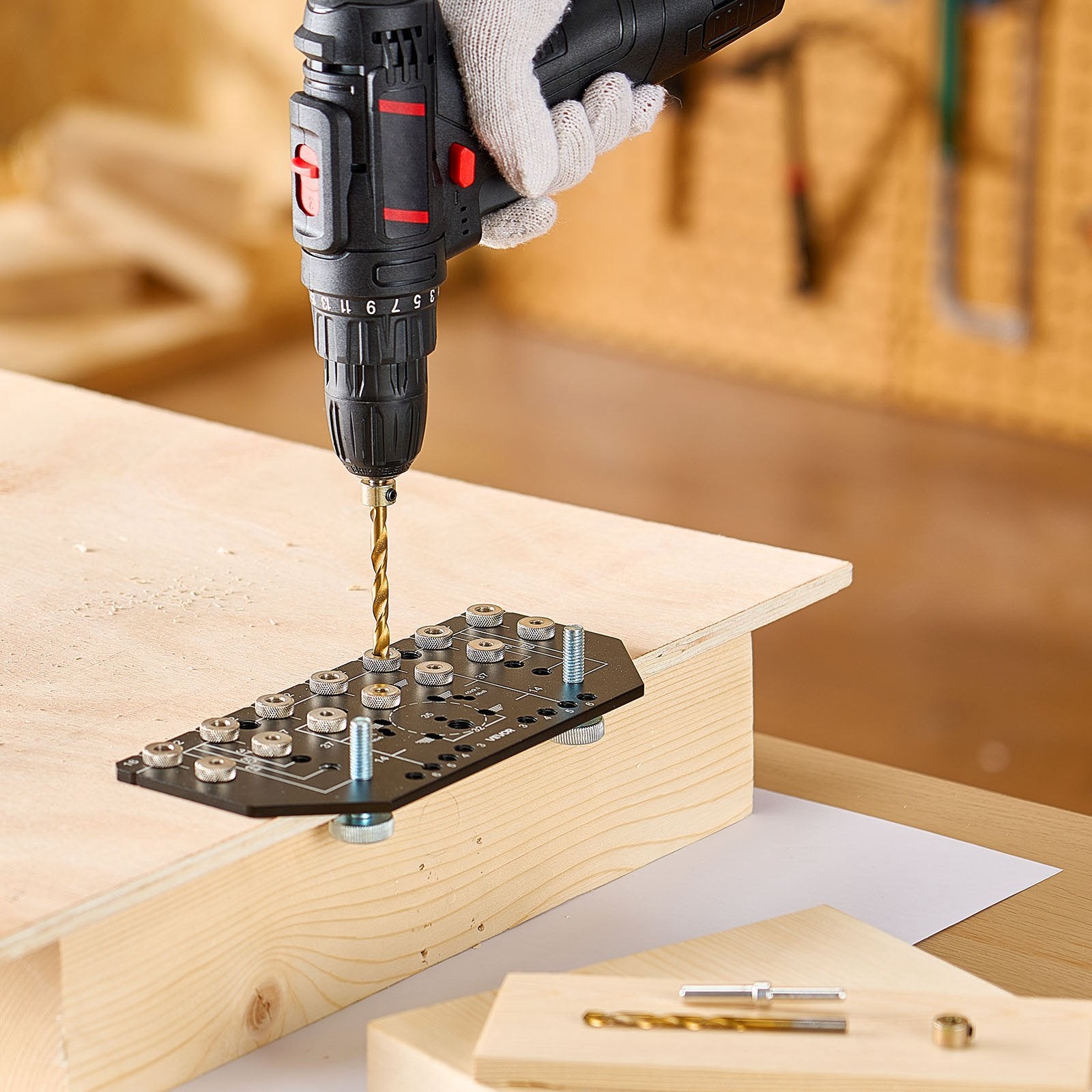

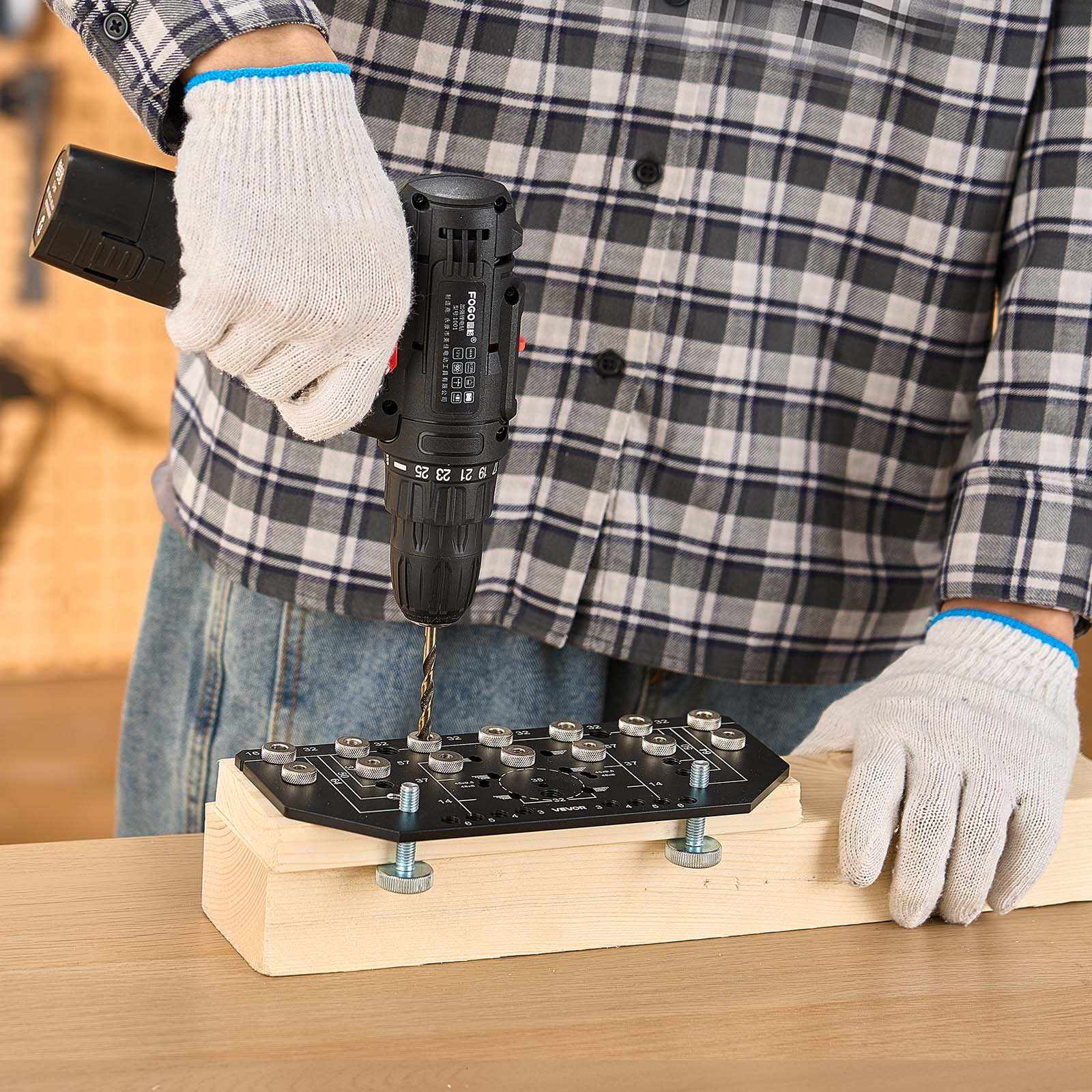

Shelf pin jig with hinge jig functionality delivers fast, repeatable hole alignment for clean cabinet and furniture builds. This aluminum alloy drilling template helps you drill evenly spaced shelf pin holes and position hinge holes with consistent edge offsets—reducing measuring errors and rework. Laser-etched scales stay readable for precise setup, while the compact body is easy to carry to the jobsite or bench for woodworking, DIY, and repair projects.

• Delivers evenly spaced holes in one pass; connect multiple jigs to extend drilling runs


• Provides 3 edge distance options to match common shelf and cabinet installations


• Improves accuracy with wear-resistant laser-marked scales for quick, repeatable alignment


• Includes drill bits, stop collars, pin, and hex wrenches to start drilling right away


• Fits cabinets, bookcases, wardrobes, desks, racks, and general woodworking projects

Build adjustable shelves and upgrade cabinets with a compact hole drilling guide designed for consistency. The rigid aluminum alloy body helps keep the template stable, while the preset spacing options simplify layout for shelf pins and hinge positioning. Whether you’re assembling new furniture or correcting misaligned holes during repairs, this jig keeps your drilling clean and predictable with less setup time. Grab yours today and streamline your next cabinet, closet, or bookshelf project.

• Material: Aluminum alloy


• Dimensions (L×W×H): 8.8 × 3.9 × 0.2 in (223 × 100 × 5.1 mm)


• Weight: 0.99 lb (0.45 kg)

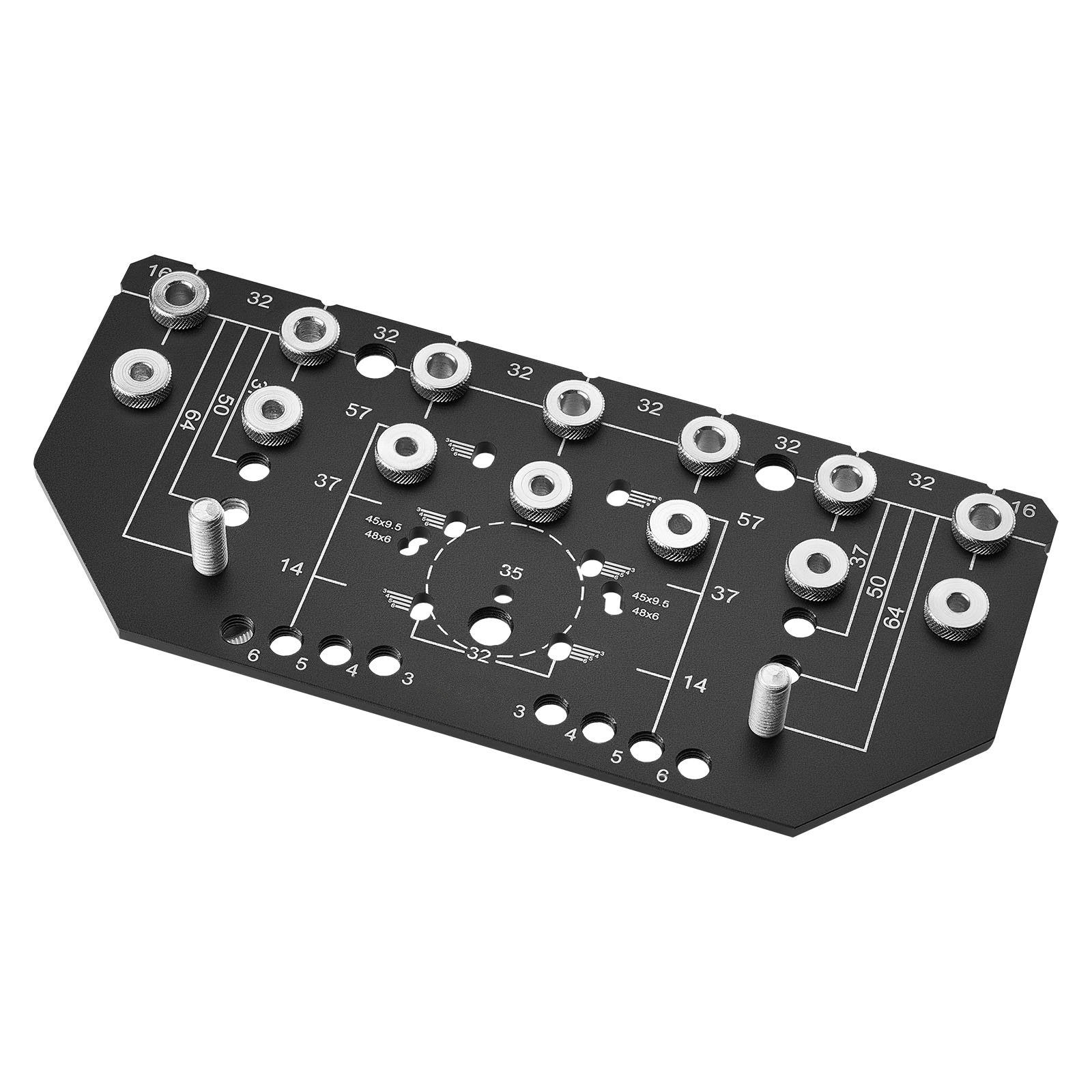

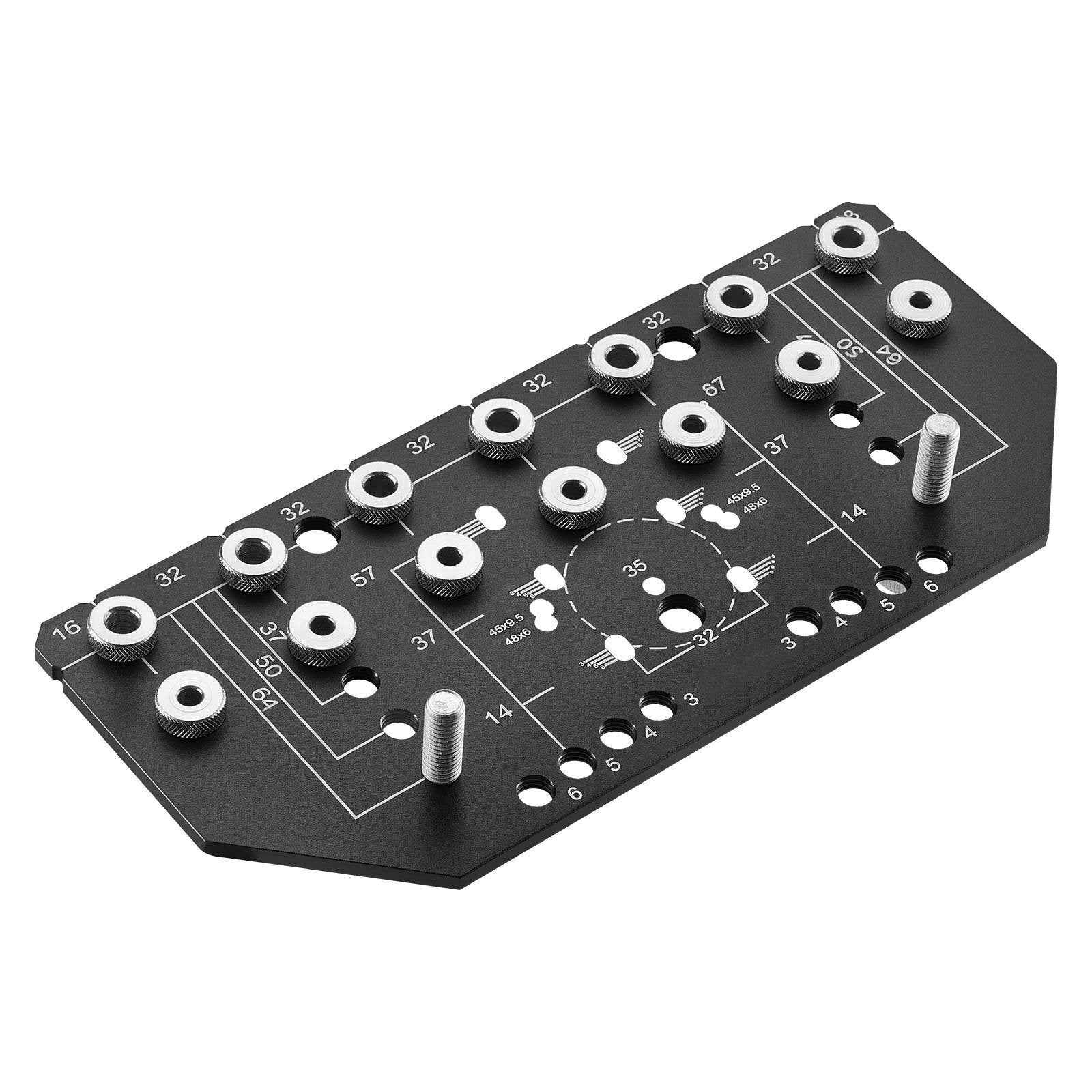

• Hole center spacing: 16 mm, 32 mm, 37 mm, 50 mm, 64 mm


• Drill size: 1/4 in


• Included drill bits: 2 pcs (6.4 mm and 4.8 mm)

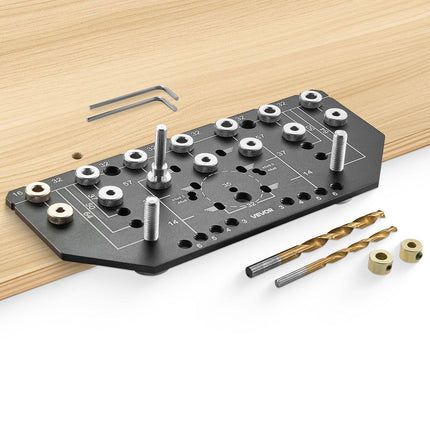

• In the box: jig, 2 drill bits, 2 stop collars, 1 pin, 2 hex wrenches
