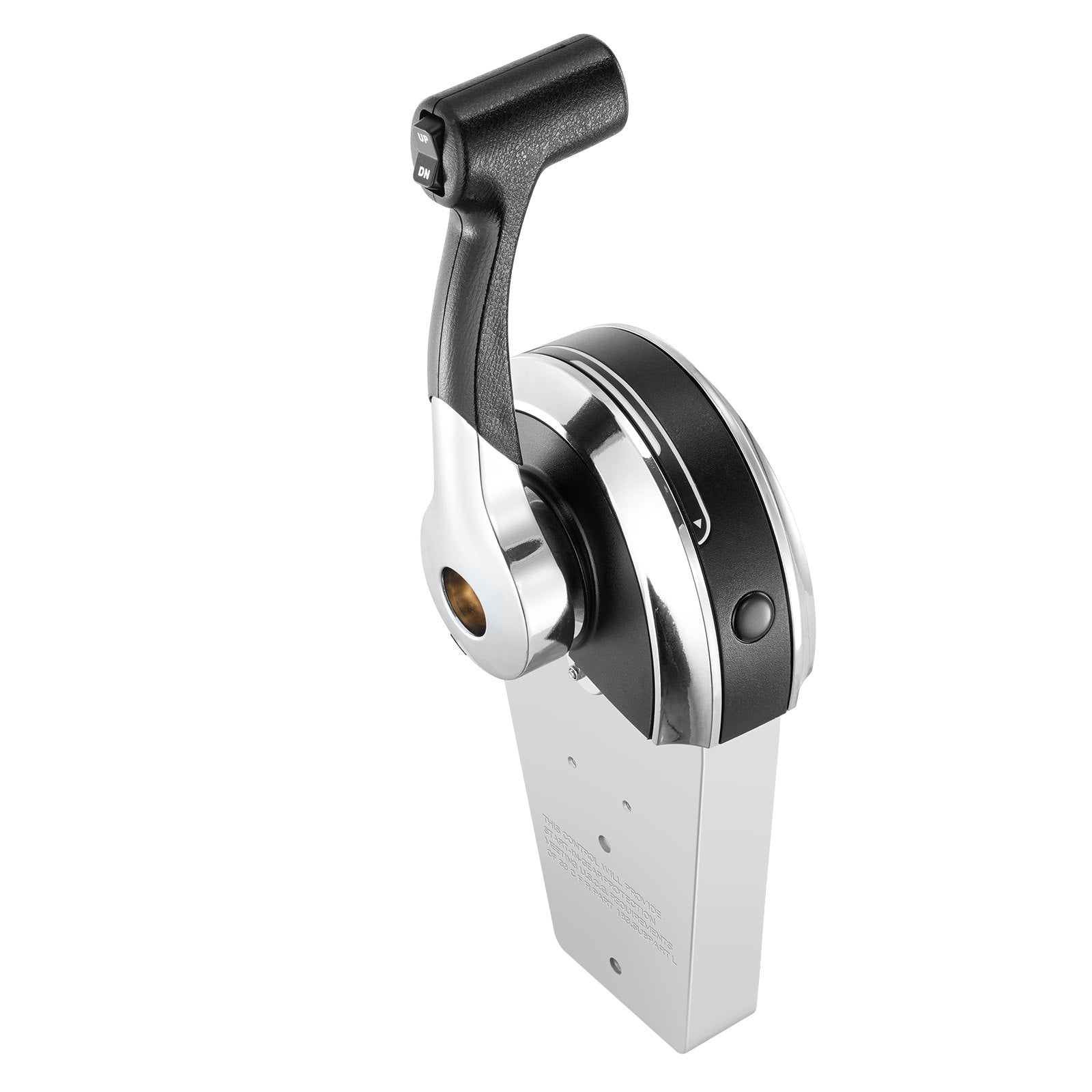

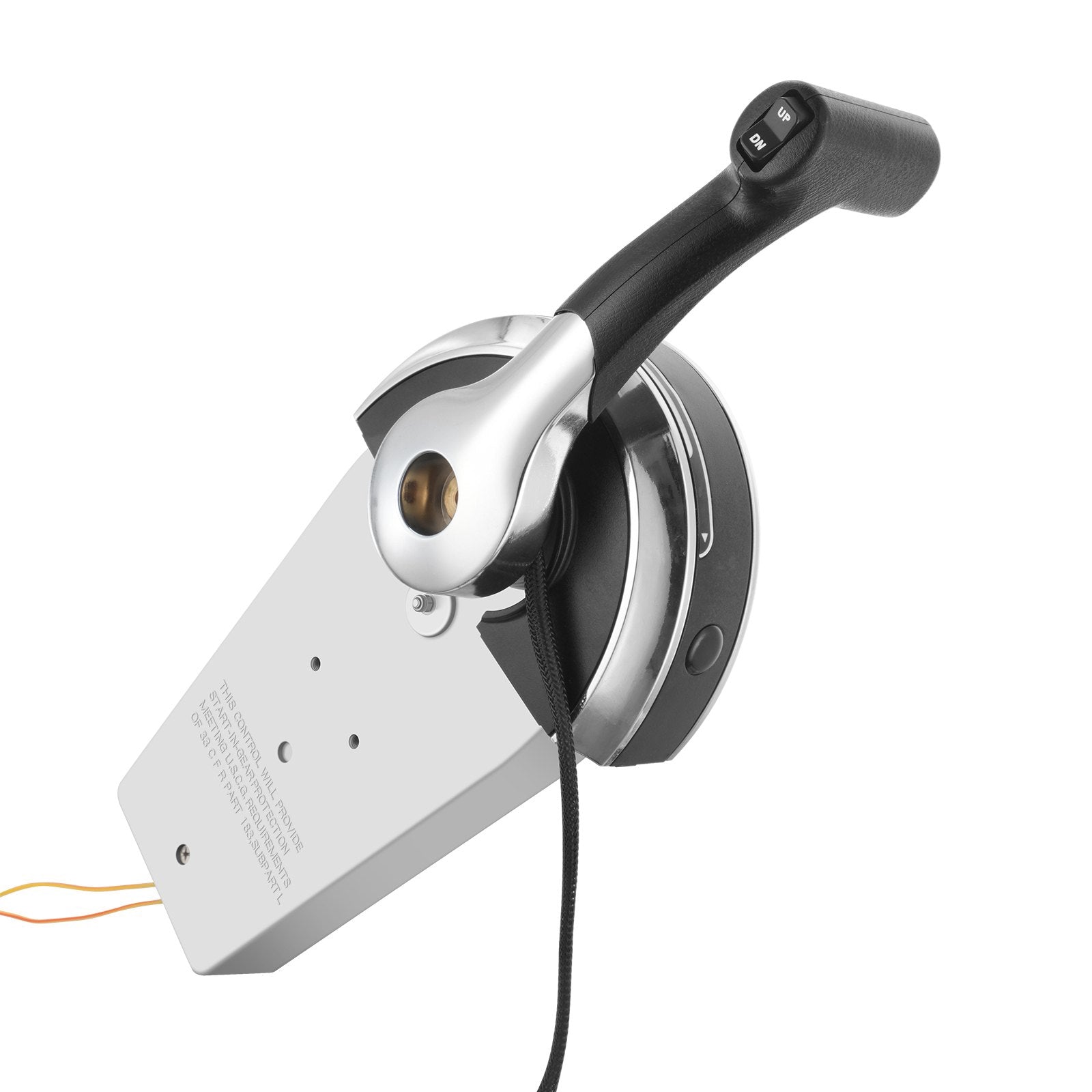

Top-Mount Outboard Remote Throttle Control Box, Trim Switch

Top-mount boat throttle control delivers smooth shifting and precise trim control from a single lever for cleaner docking, easier starts, and safer handling. Designed for PT 2-stroke outboards, this remote control box includes a neutral release, free accelerator for warm-up, and a lever-mounted power trim/tilt switch to adjust engine angle without reaching to the transom.

• Delivers smooth forward/neutral/reverse shifting with a neutral release button for controlled gear engagement


• Enables quick starts using the free accelerator button to open throttle in Neutral for warm-up


• Controls trim and tilt from the lever handle to fine-tune engine position while underway or loading


• Adjusts air-fuel ratio for low-temperature operation to help maintain stable running in cold weather

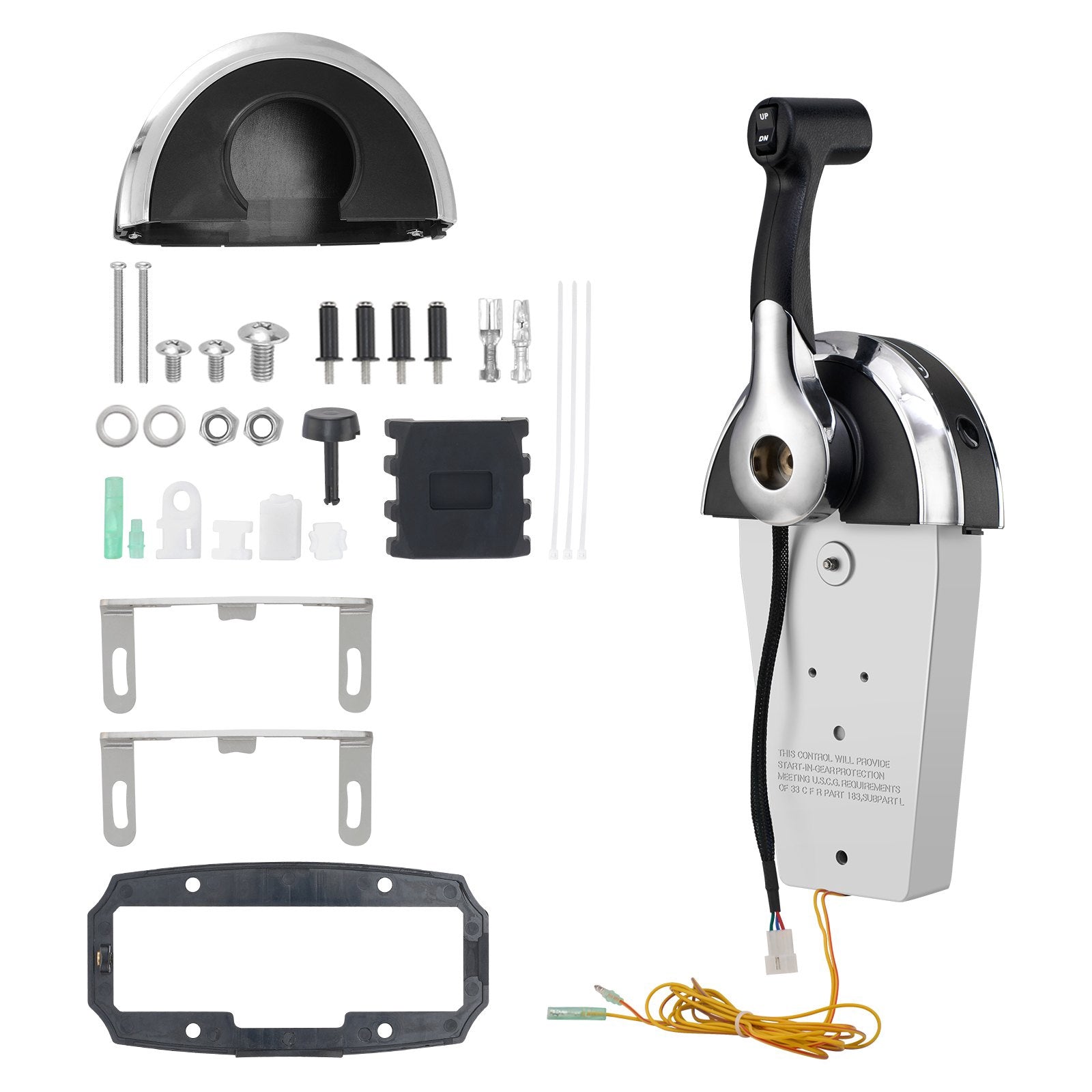

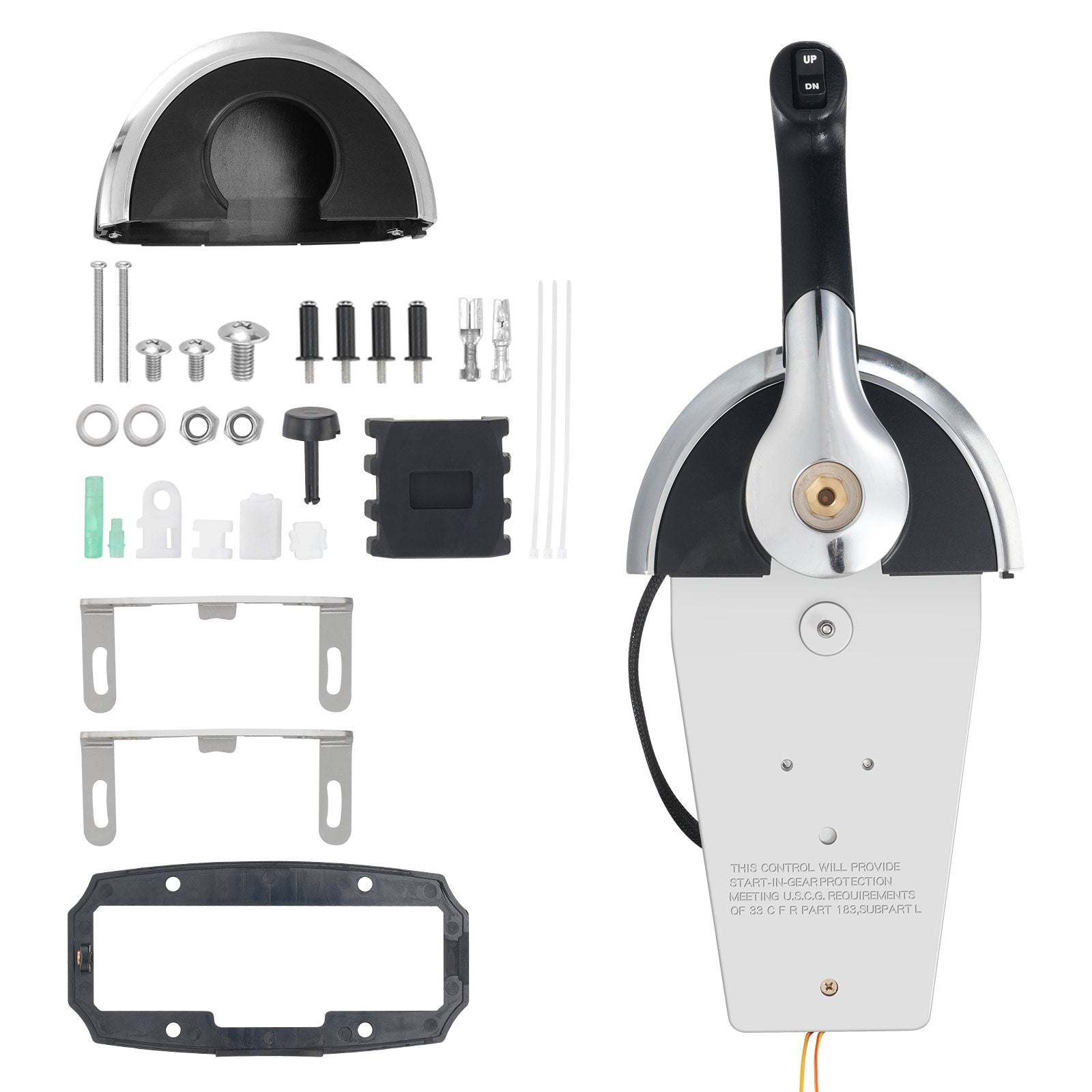

• Includes long wiring harnesses for flexible console layouts and remote power supply setups

Built for demanding marine use, the housing combines an aluminum alloy body with a tough ASA/ABS shell handle to resist cracking through repeated push-pull cycles. The lever geometry supports clear, consistent movement into forward and reverse, while the trim switch stays within thumb reach for fast corrections in changing water conditions. Before installation, disconnect power and cables, remove the key, and confirm harness lengths to match your setup. Grab yours today and upgrade to smoother throttle response and more confident trim control.

• Mounting style: Top mount


• Compatibility: PT 2-stroke outboard motors


• Operating voltage: DC 12–24V


• Operating current: 2A


• Main materials: Aluminum alloy ADC2 + ASA


• Product dimensions: 17.9 x 5.7 x 3.7 in (455 x 145 x 95 mm)


• Product weight: 7.0 lb (3.19 kg)


• Harness 1: 1.0 ft (320 mm), 3-pin plug


• Harness 2: 5.9 ft (1800 mm), 2-pin connector
