12V Linear Actuator, 4in Stroke, 3000N, IP65

12V linear actuator delivers controlled linear motion with 3000N thrust to automate lifting, pushing, and positioning in equipment and DIY builds. Built for dependable medium-load applications, it combines a 4" (101.6 mm) stroke with a 5 mm/s travel speed for steady movement. IP65-rated dust and water resistance supports outdoor-capable installs like solar trackers and irrigation systems, while the aluminum alloy housing and precision screw drive help reduce wear, vibration, and jamming during frequent cycles.

• Delivers up to 3000N (675 lb) thrust for medium-load automation in machinery and equipment


• Protects with IP65 dust/water resistance for outdoor-capable projects and exposed environments


• Moves at 5 mm/s (0.2"/s) for smooth, controlled actuation and reliable positioning

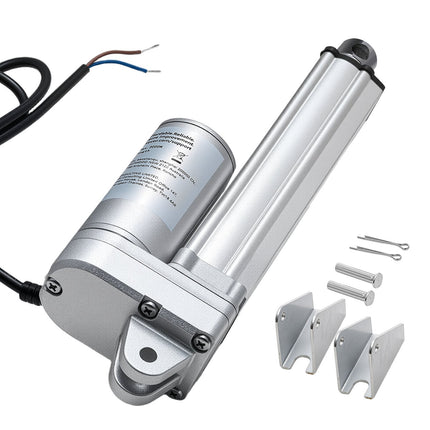

• Includes mounting brackets to simplify installation on doors, frames, linkages, and custom rigs


• Reduces noise with ≤65 dB no-load operation to help limit vibration during repeated cycles

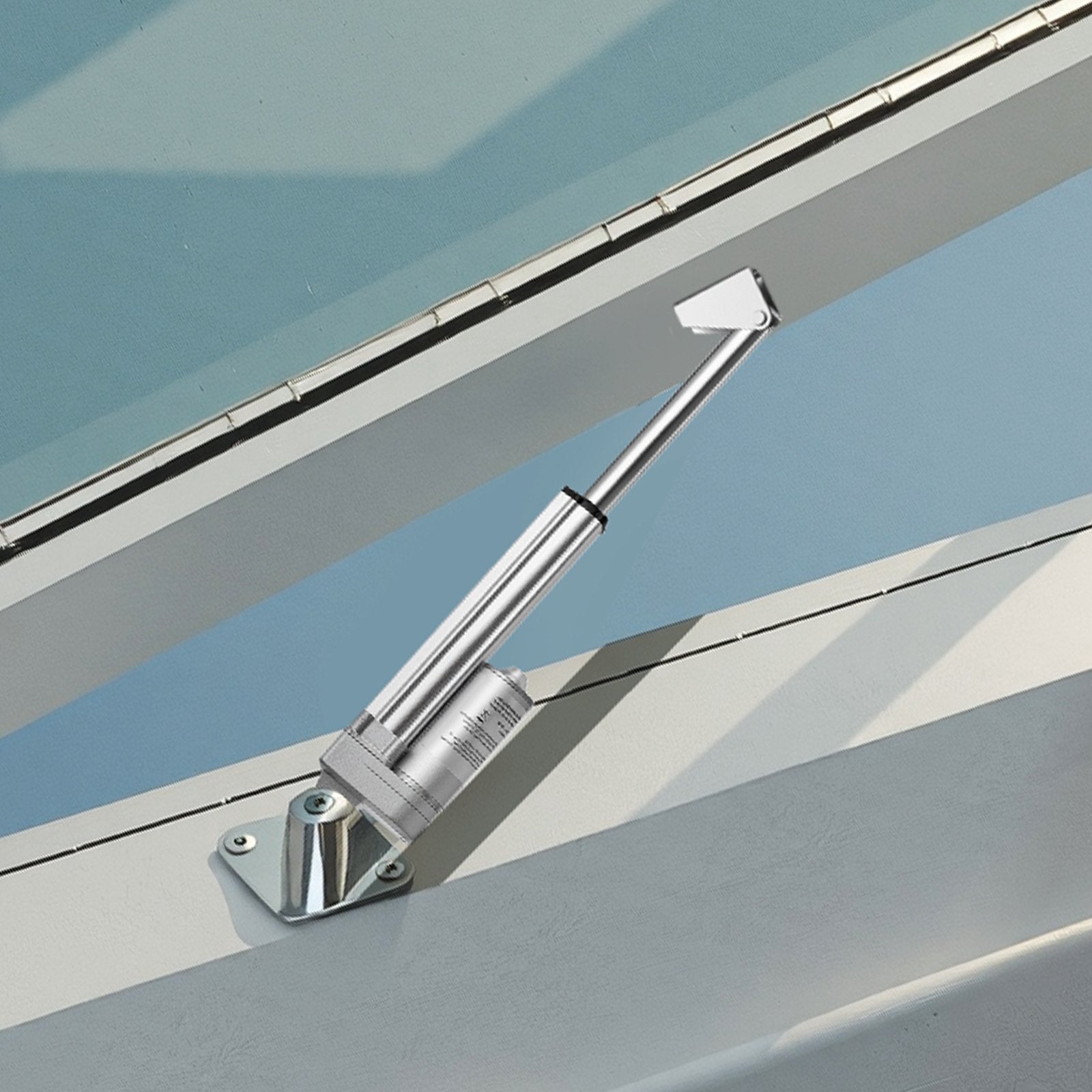

Designed for solar panel tracking, door openers, industrial automation, agricultural equipment, furniture, and home automation, this DC actuator fits tight builds without sacrificing force. The 4" stroke and compact retracted length support clean integration into mechanisms where space matters. Use within the stated duty cycle and avoid prolonged continuous outdoor exposure to extend service life. Grab yours today and upgrade your project with consistent, high-thrust linear motion.

• Rated voltage: DC 12V


• Max load/thrust: 3000N (675 lb)


• Stroke length: 4 in / 101.6 mm


• Travel speed: 0.2 in/s (5 mm/s)


• Extended length: 13 in / 330.2 mm


• Retracted length: 9 in / 228.6 mm


• IP rating: IP65


• Current draw: 6 A


• Duty cycle: 25%


• No-load noise: ≤65 dB


• Main material: Aluminum alloy


• Product dimensions: 9.8 x 3.1 x 1.8 in (250 x 78 x 45 mm)


• Net weight: 3.3 lb / 1.48 kg
