12V Single-Acting Hydraulic Pump, 7-Quart Reservoir

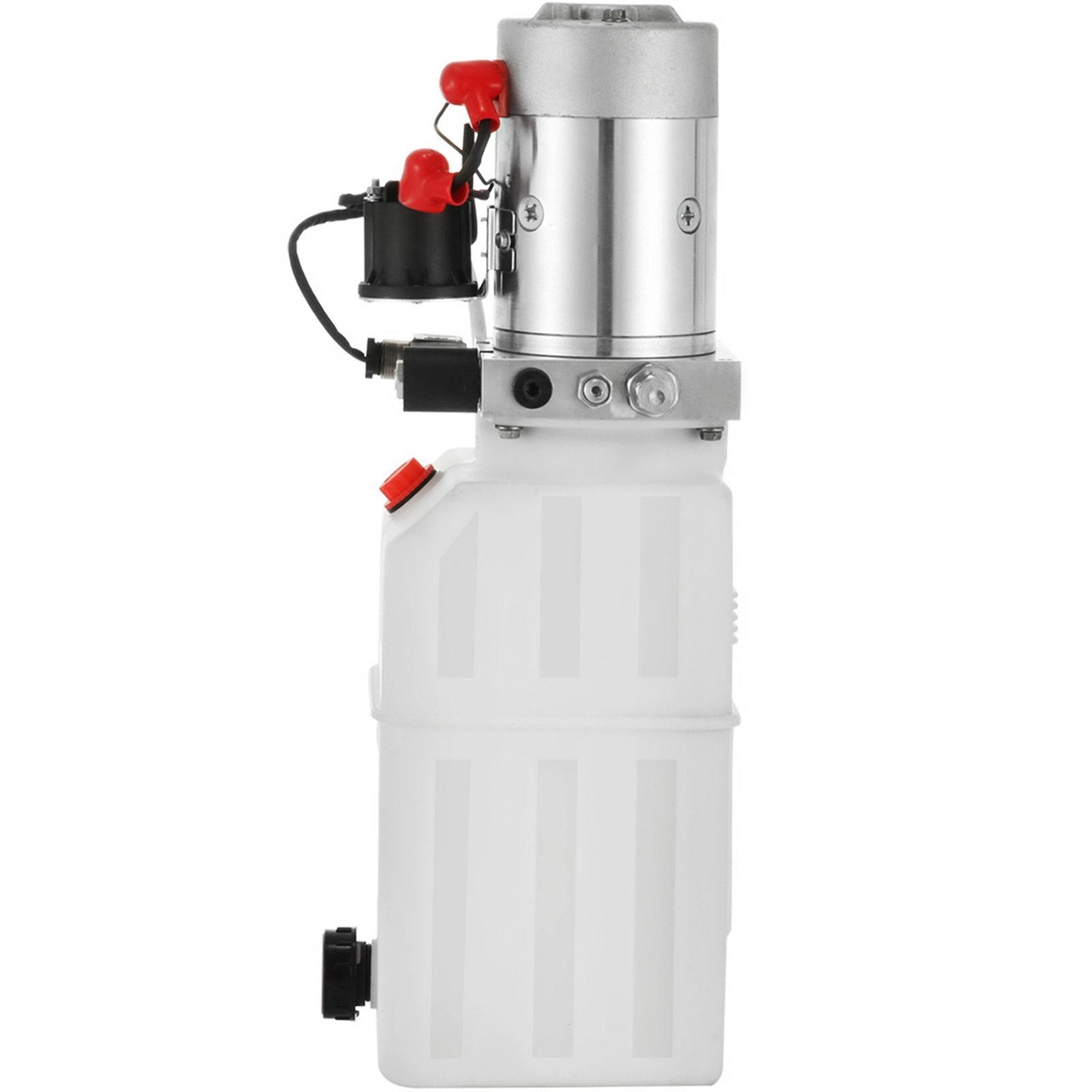

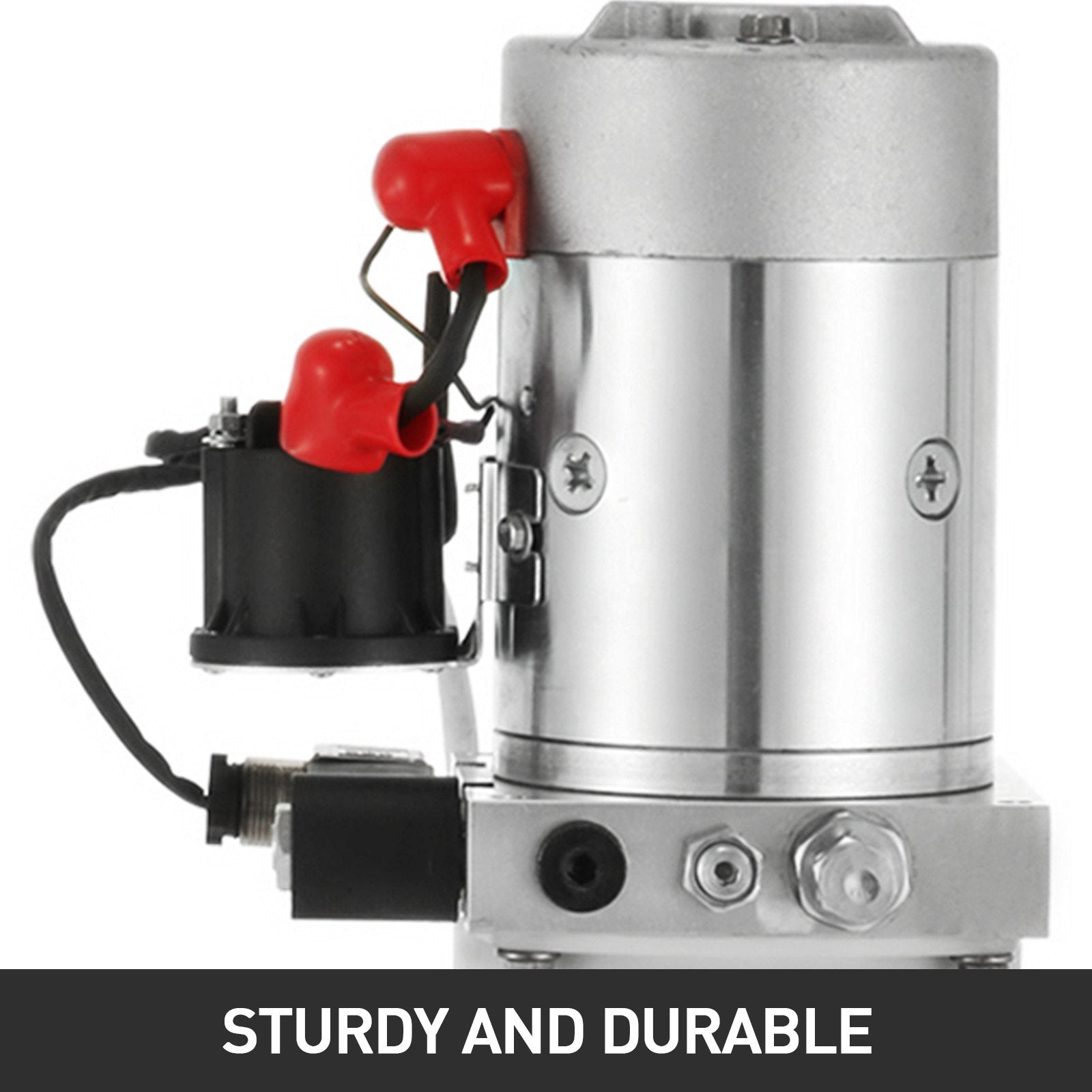

12V single acting hydraulic pump delivers fast power-up lifting with gravity-down return for dump trailers, dump beds, and lifting platforms. This pre-assembled hydraulic power unit pairs a DC 12V motor with a 7-quart translucent reservoir for quick oil output and straightforward installation. Designed for remote operation, it includes a handheld pendant on a long cord, plus an extra SAE #6 connector to help you replace worn power packs and get equipment moving again with minimal downtime.

• Delivers single-acting Power-Up/Gravity-Down control for dump trailers and dump beds

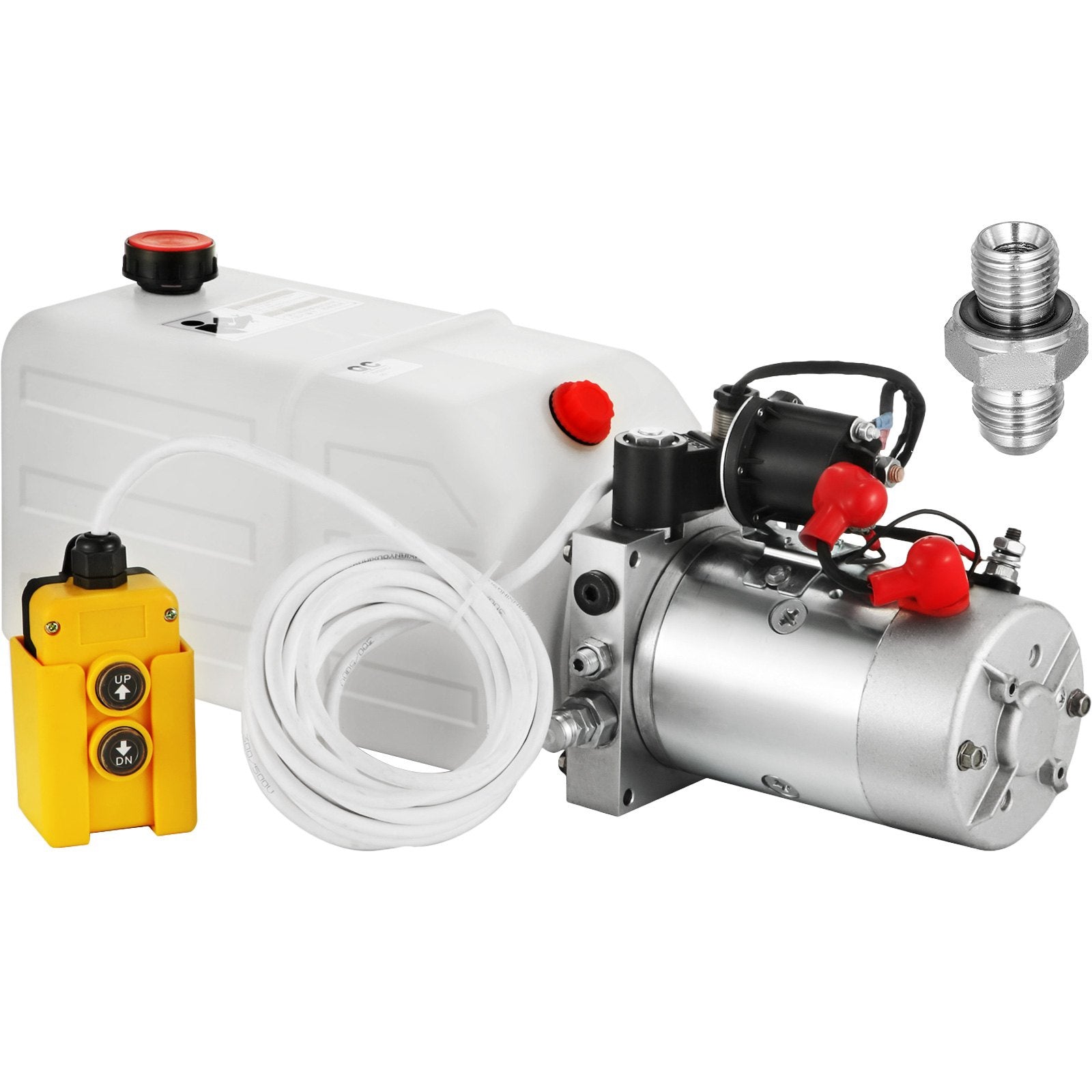

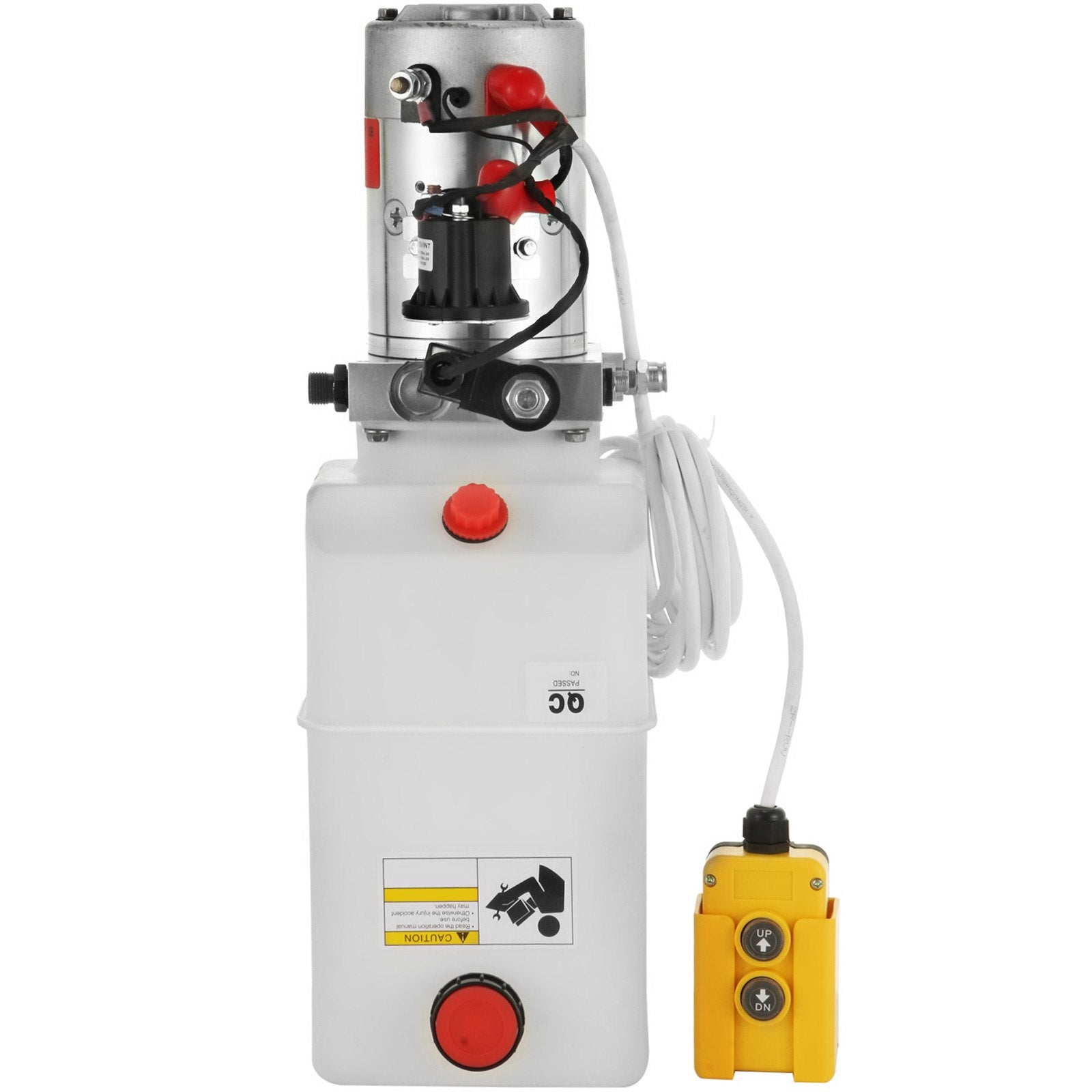

• Includes handheld pendant with ~15 ft (4.5 m) cord and start solenoid for remote operation


• Supports fast starts and strong oil output to reduce lift cycle time


• Protects with built-in relief/overflow valve that releases under overpressure


• Fits many 12V DC remote hydraulic systems using SAE #6 ports; extra SAE #6 connector included

Built for practical service work, this compact 12V hydraulic power pack arrives assembled to simplify wiring and mounting. The translucent 7-quart plastic tank helps you monitor fluid level at a glance, while the relief settings support dependable lifting performance for common single-acting applications. Use it as a replacement hydraulic pump unit on dump trailers, movers, stackers, and small to mid-size lift tables. Confirm your port type, mounting orientation, and pressure needs, then grab yours today and get your hydraulics back on schedule.

• Type: Single-acting (Power-Up / Gravity-Down)


• Motor voltage: DC 12V


• Motor power: 0.37–5.5 kW


• Rated speed: 2850 r/min


• Flow/displacement: 0.562–4.350 GPM


• Reservoir capacity: 7 Quart / 7 L (translucent)


• Tank material: Plastic


• Ports: SAE #6 (A & B)


• Relief pressure: A port max 3200 PSI (22 MPa); B port max 1500 PSI


• Mounting: Horizontal


• Remote: Handheld pendant with ~15 ft (4.5 m) cord
