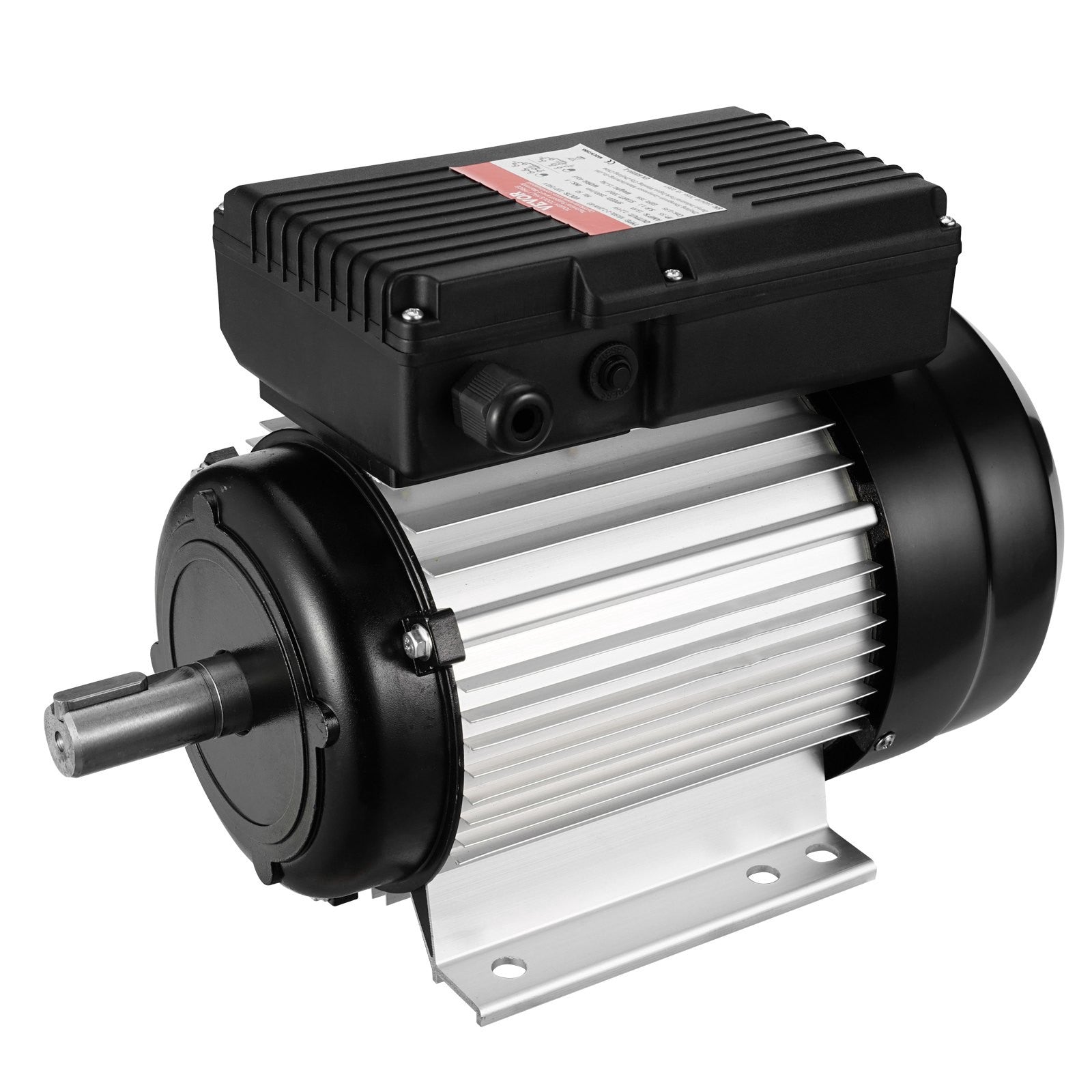

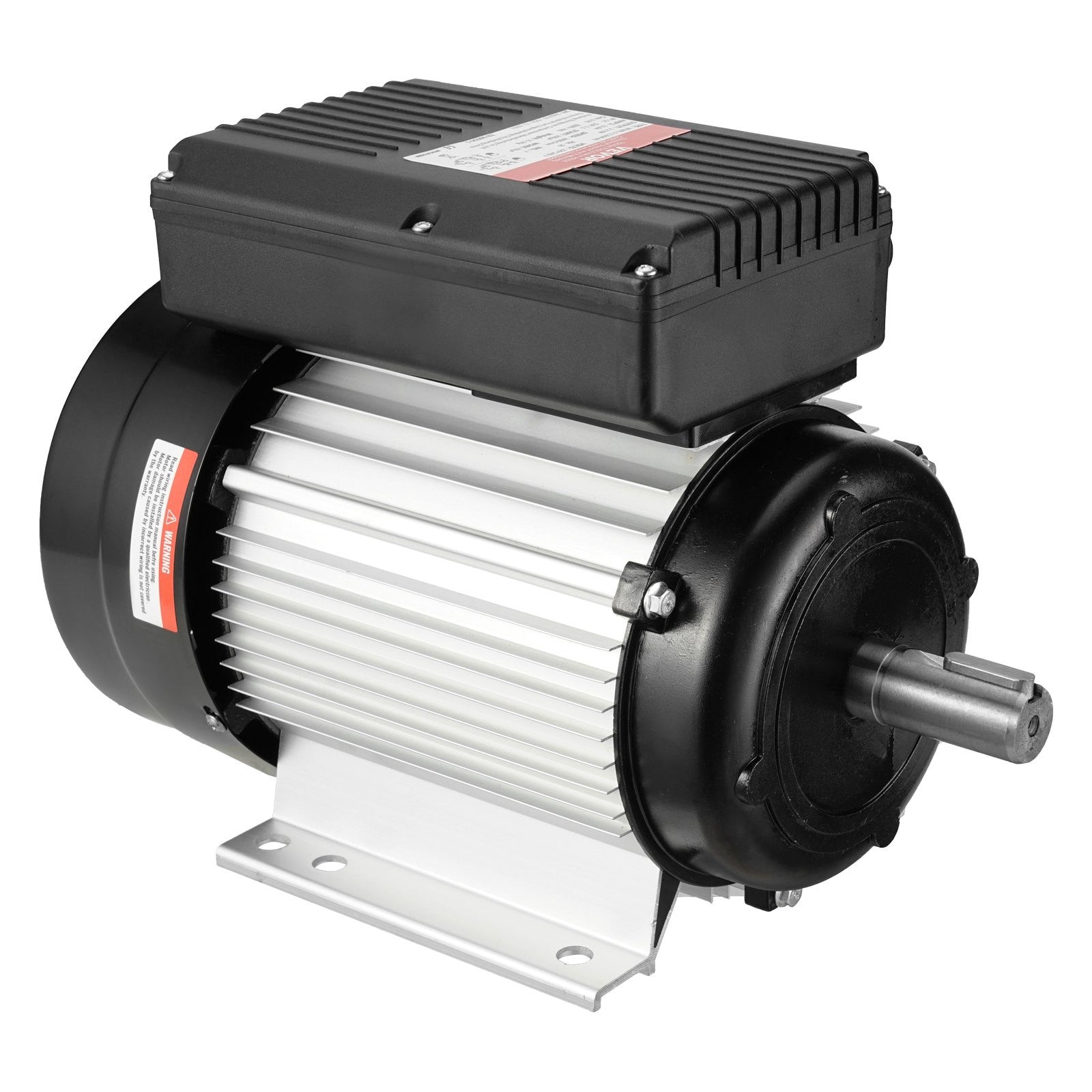

2.2kW Single-Phase Electric Motor, 2800 RPM, 220–240V

2.2kW single phase electric motor delivers high-speed 2800 RPM power for air compressors, pumps, and general machinery. Built for AC 220–240V systems, it combines a rugged rolled steel housing with a B3 foot-mount frame for stable installation. Reversible CW/CCW rotation simplifies wiring and setup across different equipment layouts. Ideal for repairs, replacements, and DIY builds where consistent torque and dependable operation matter.

• Delivers 2.2kW (3HP) output at 2800 RPM for demanding compressor and pump duties


• Supports AC 220–240V, 50Hz single-phase power with 13.8A full-load current


• Enables reversible CW/CCW rotation to match your machine’s direction requirements


• Fits B3 foot-mount applications with 90L frame for stable, straightforward mounting


• Includes 24mm keyed shaft for secure coupling to pulleys, hubs, and drive components

Designed as a general-purpose AC motor for agricultural machinery and workshop equipment, this unit prioritizes practical durability and easy serviceability. The heavy-duty rolled steel shell helps resist corrosion in tough environments, while the keyed shaft and standard frame sizing streamline replacement installs. Whether you’re restoring a compressor, upgrading a water pump drive, or building custom equipment, this motor delivers the power and flexibility to keep your project moving. Grab yours today and get your machine back to work.

• Power: 2.2kW / 3HP (Service Factor: 1.1)


• Voltage/Frequency: AC 220–240V, 50Hz


• Current: 13.8A (full load)

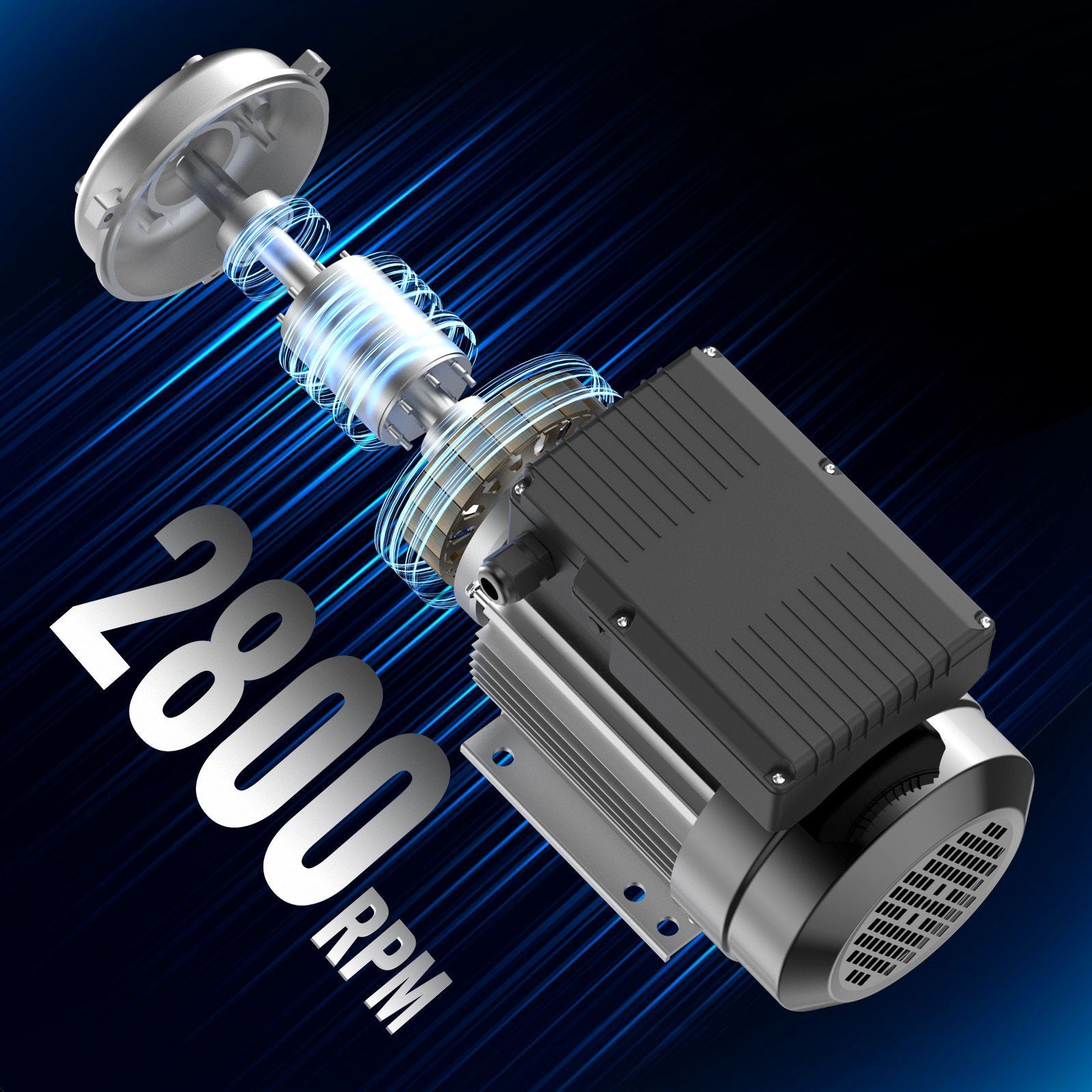

• Speed: 2800 RPM


• Phase: Single phase


• Frame: 90L, B3 foot mount


• Shaft: 24mm keyed; shaft length 50mm; keyway 8mm


• Rotation: CW/CCW reversible


• Enclosure rating: IP55


• Dimensions: 345 x 205 x 215 mm (13.6 x 8.1 x 8.5 in)


• Net weight: 15.2 kg (33.5 lb)
