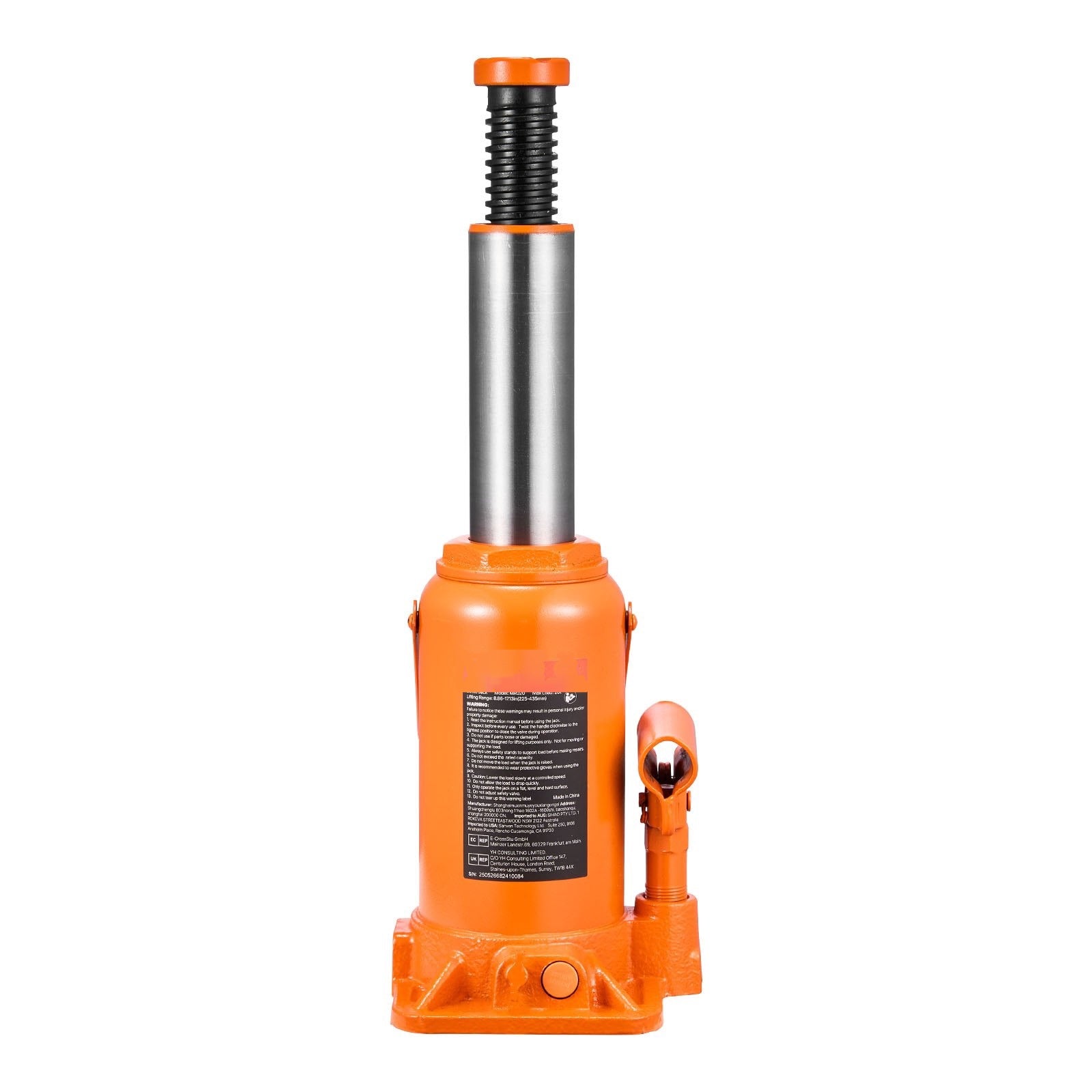

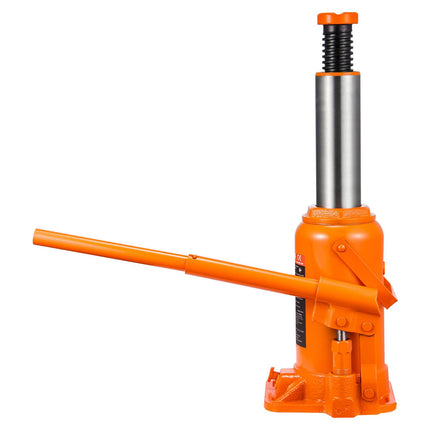

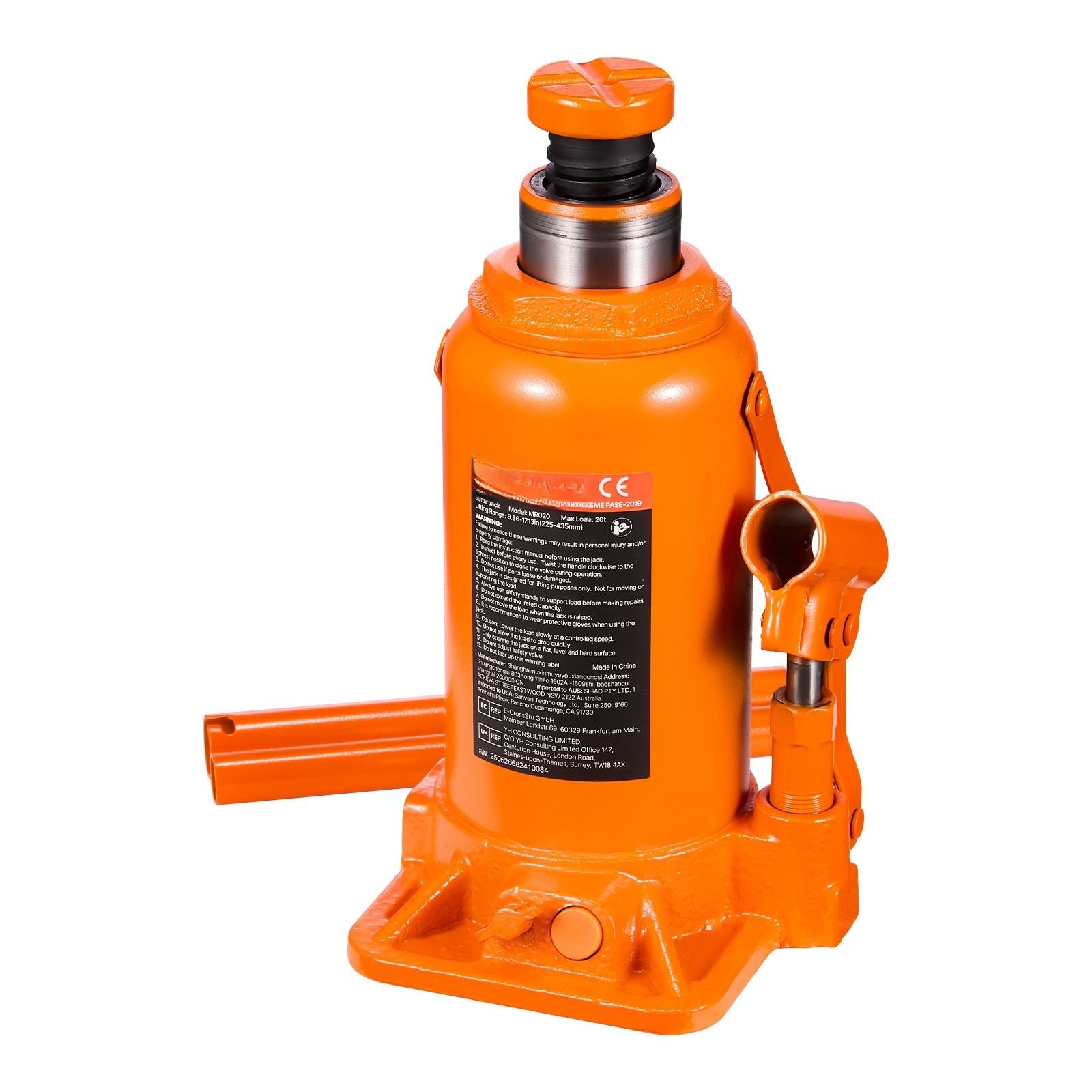

20 Ton Hydraulic Bottle Jack, 225–435 mm Lift

Hydraulic bottle jack delivers controlled, stable lifting for vehicle repairs with a 20-ton (44,092 lb) rated capacity in a compact, garage-ready build. Designed for SUVs, pickups, RVs, and light trucks, it offers a medium lifting range for tire changes, inspections, and equipment support. The anti-slip saddle, thick wide base, and welded body help keep loads steady, while the adjustable screw height fine-tunes fit when clearance is tight.

• Delivers up to 20 ton (44,092 lb) lifting power for SUVs, pickups, RVs, and box trucks


• Extends lifting height from 8.9–17.1 in (225–435 mm) plus 2.4 in (60 mm) screw adjustment


• Supports safer positioning with an anti-slip saddle and thick, wide base for stability


• Operates smoothly with a 2-piece handle and sliding pump; lowers via slow valve release


• Resists leaks with a welded body and rubber-sealed oil port; includes overload protection valve

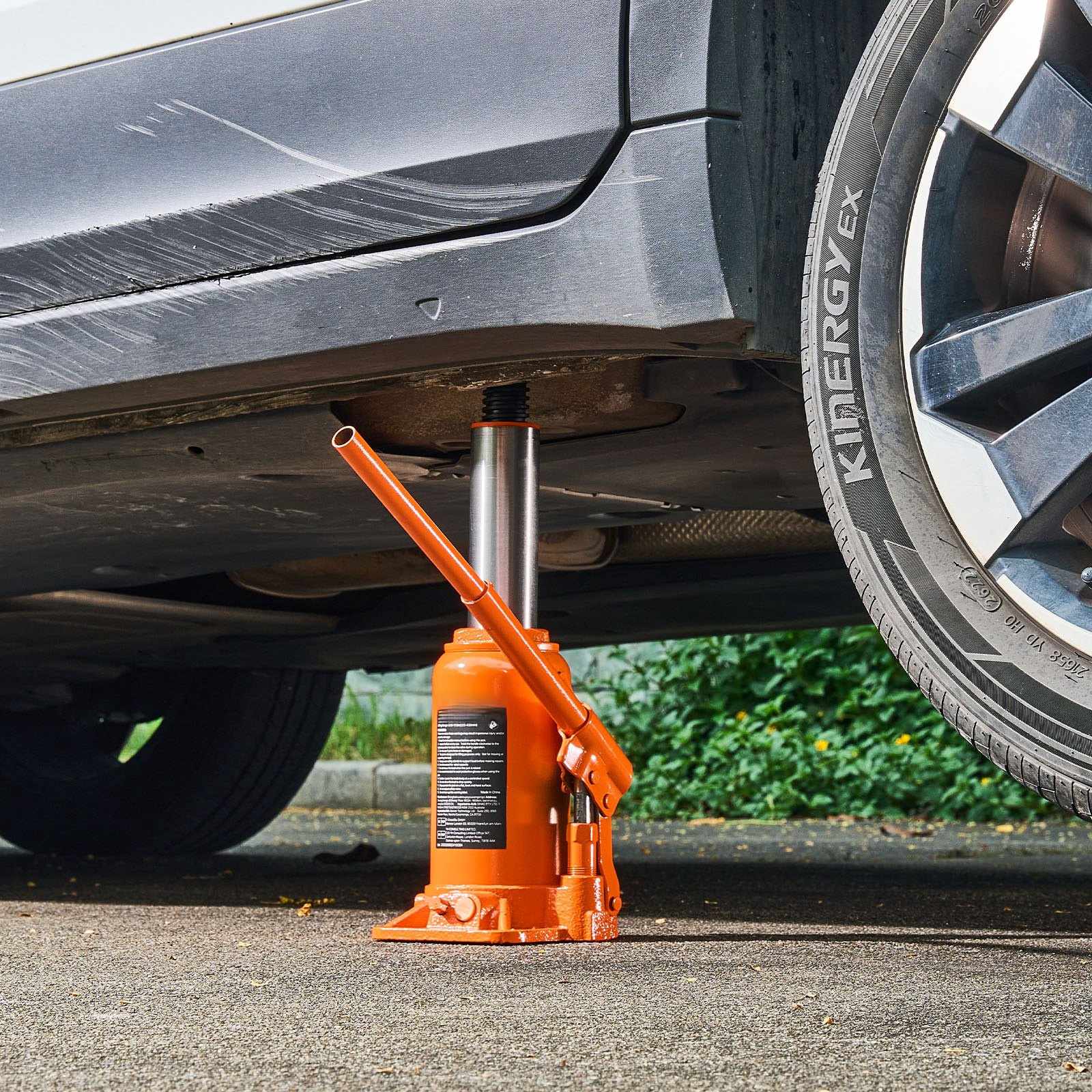

Keep a heavy duty bottle jack on hand for roadside fixes and shop work without relying on electricity or an air compressor. Its compact size stores easily in a trunk, toolbox, or garage shelf, yet the cast iron and carbon steel construction is built for repeated use on everyday vehicles and equipment. For best results, lift on a solid, level surface and support the load with jack stands after raising. Grab yours today and be ready for the next tire change or inspection.

• Rated load: 20 t / 44,092 lb


• Lifting range: 8.9–17.1 in (225–435 mm)


• Adjustable screw height: 2.4 in (60 mm)


• Materials: Cast iron, carbon steel


• Product dimensions: 5.5 x 5.5 x 8.9 in (140 x 140 x 225 mm)


• Product weight: 16.1 lb (7.3 kg)
