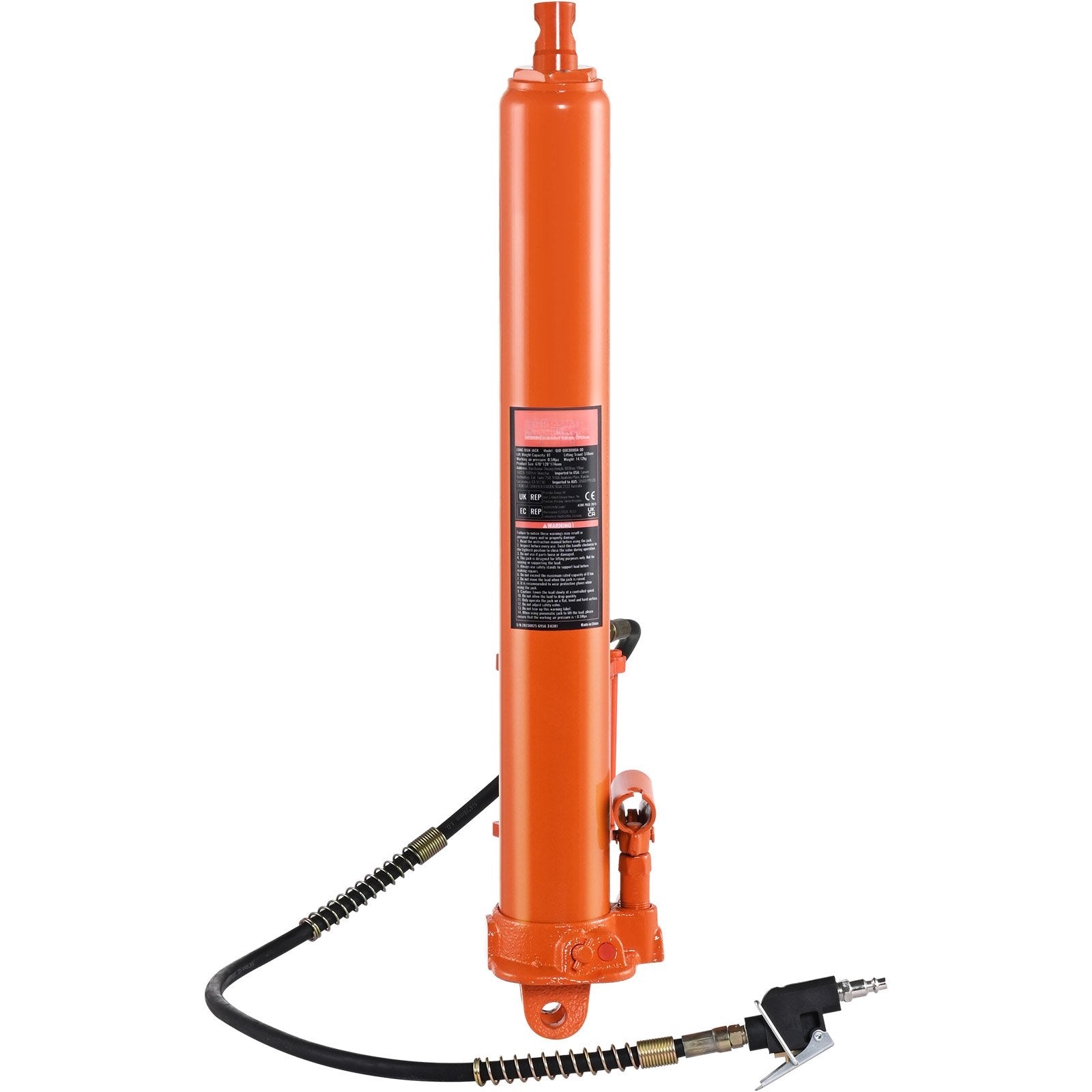

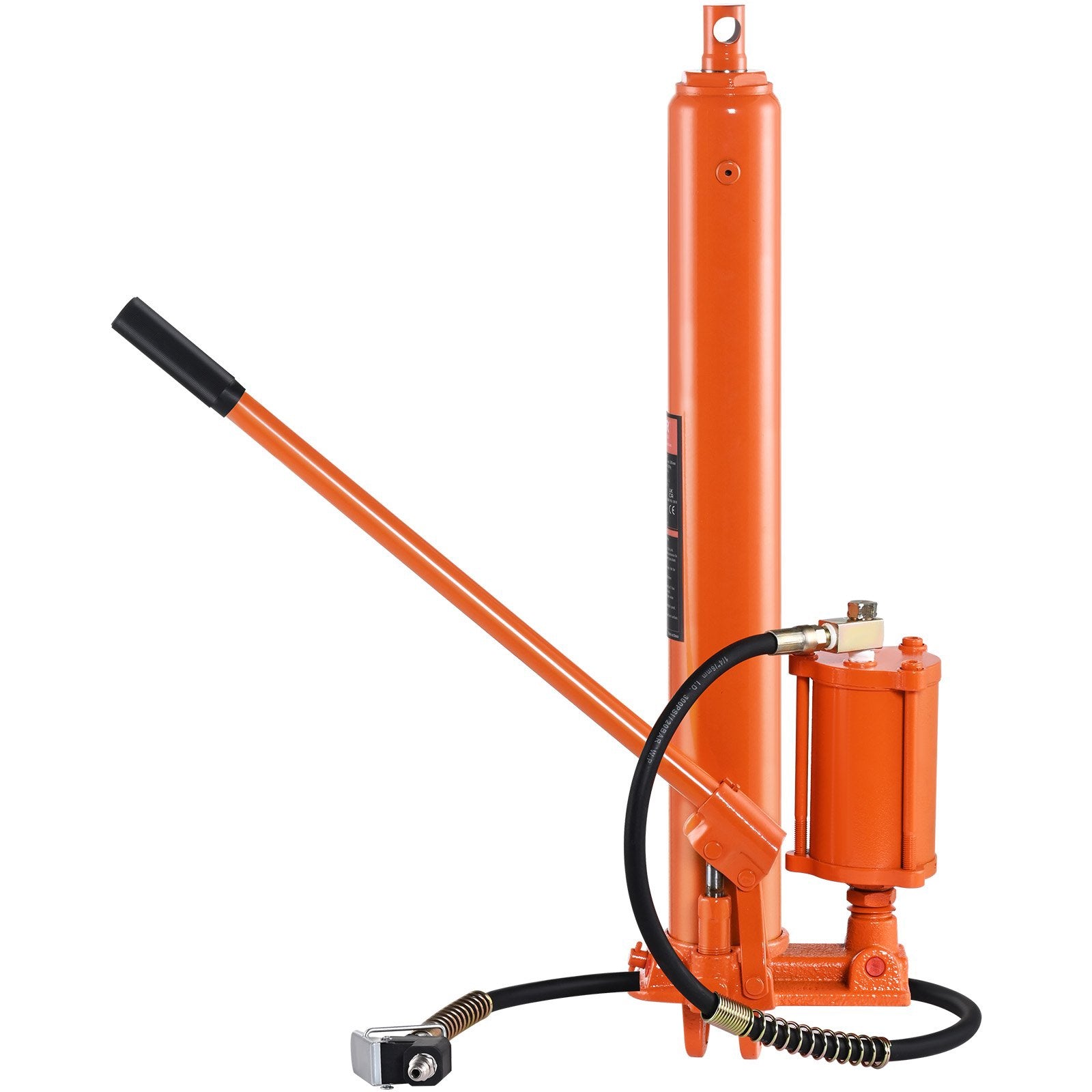

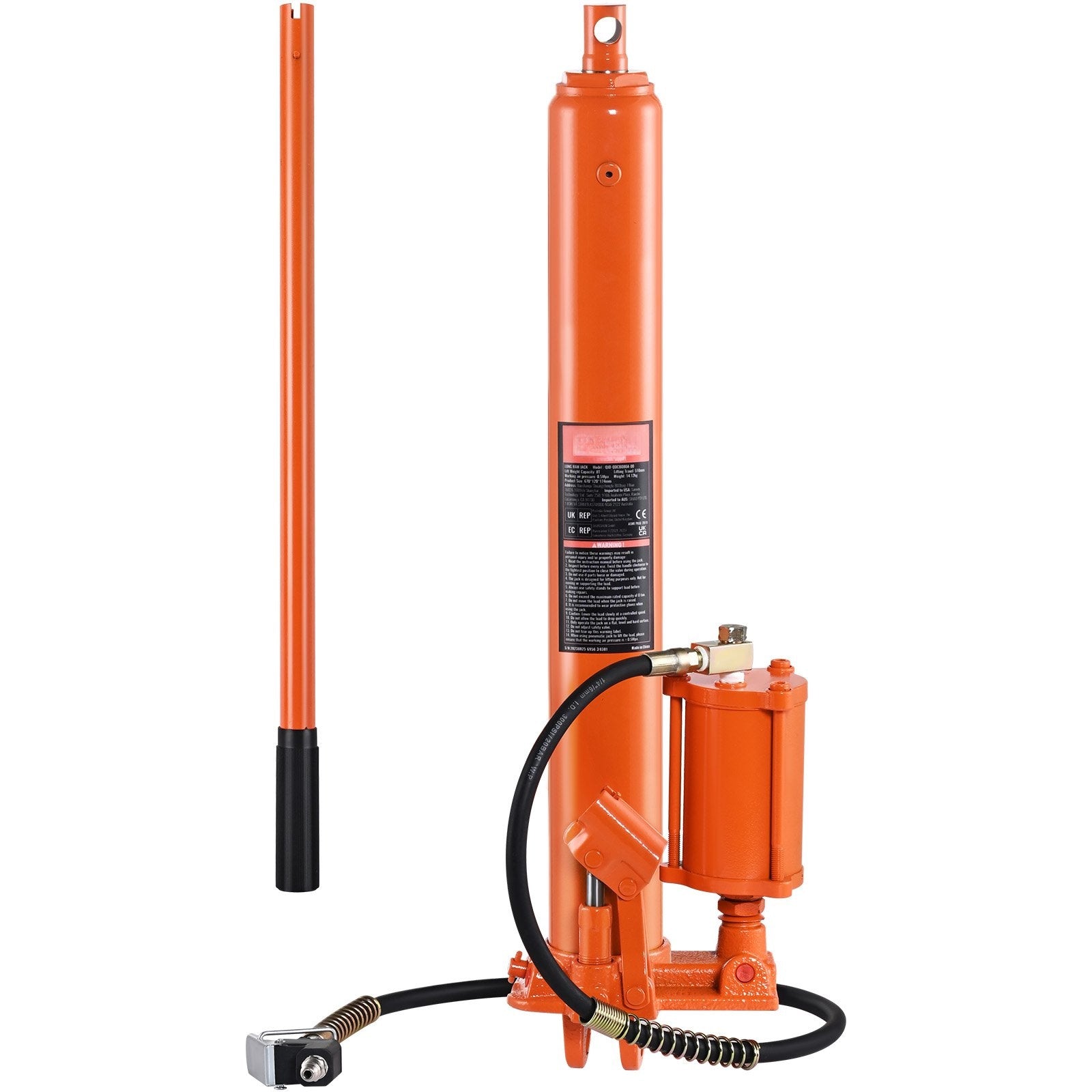

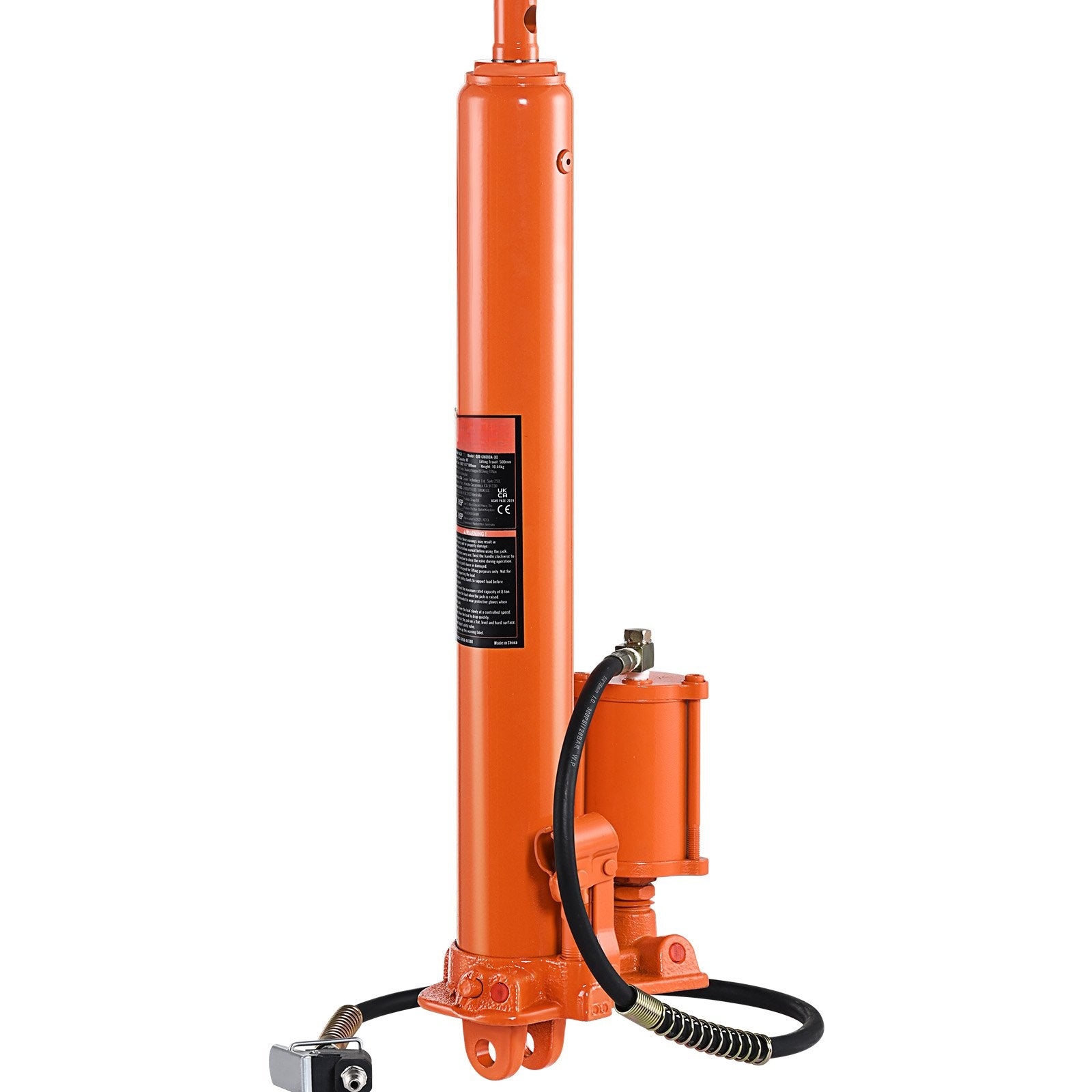

8-Ton Hydraulic Long Ram Jack with Air Pump, Clevis Base

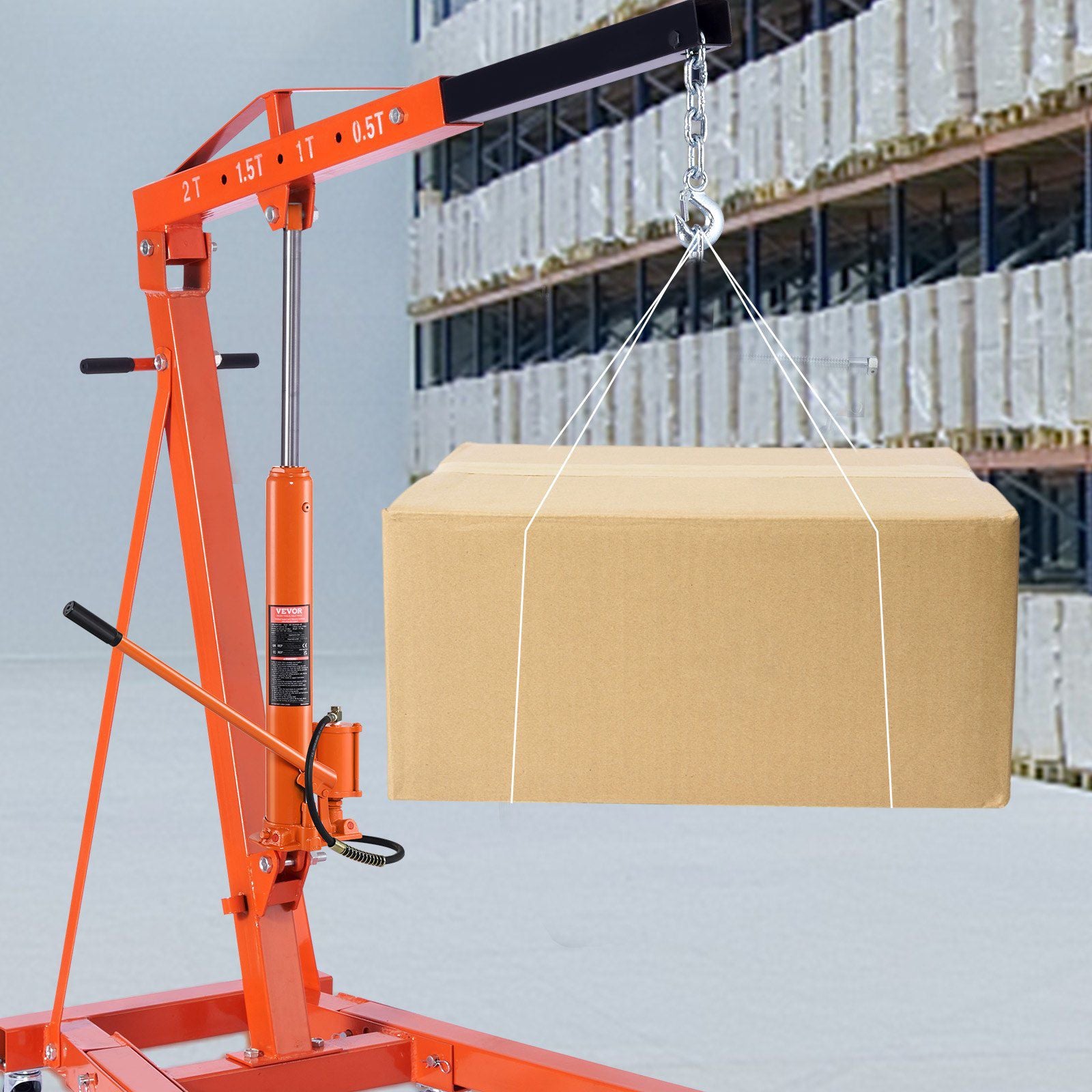

Hydraulic long ram jack delivers controlled 8-ton lifting for engine hoists and shop cranes, helping you raise heavy loads with less effort and better stability. Designed with a clevis base for direct mounting, it’s built for garage, workshop, mechanical, and farm use. Dual pump operation lets you lift by hand or connect to an air compressor for faster cycling, while the slow-release function supports safer, more precise lowering.

• Delivers 8-ton (17,600 lb) lifting power for engine hoist cylinders and garage/shop cranes


• Fits wide height range from 26"–46.1" (660–1170 mm) to handle varied lift setups


• Enables faster lifting with dual pump design: single piston hand pump + air pump hookup


• Protects against overload with integrated oil bypass and overload valves


• Resists wear with #45 steel body and hard chrome-plated surface on key components

Built for frequent, heavy-duty lifting, this hydraulic ram cylinder uses a large-diameter cylinder to reduce required oil pressure and help minimize long-term wear. The corrosion-resistant hydraulic unit supports dependable operation across changing temperatures, while the Y-shaped seal ring and plunger design helps prevent slow descents and internal bypass for steadier holds. Ideal as an engine lift hoist ram or replacement jack cylinder—grab yours today and keep your crane ready for the next job.

• Load capacity: 8 T / 17,600 lb


• Height range: 26–46.1 in (660–1170 mm)


• Lifting stroke: 20.1 in / 510 mm


• Piston rod outer diameter: 1.2 in / 30 mm


• Product dimensions: 26 x 4.7 x 6.9 in (660 x 120 x 174 mm)


• Net weight: 31.1 lb / 14.12 kg


• Mounting style: Clevis base


• Pump type: Air pump + single piston hand pump
