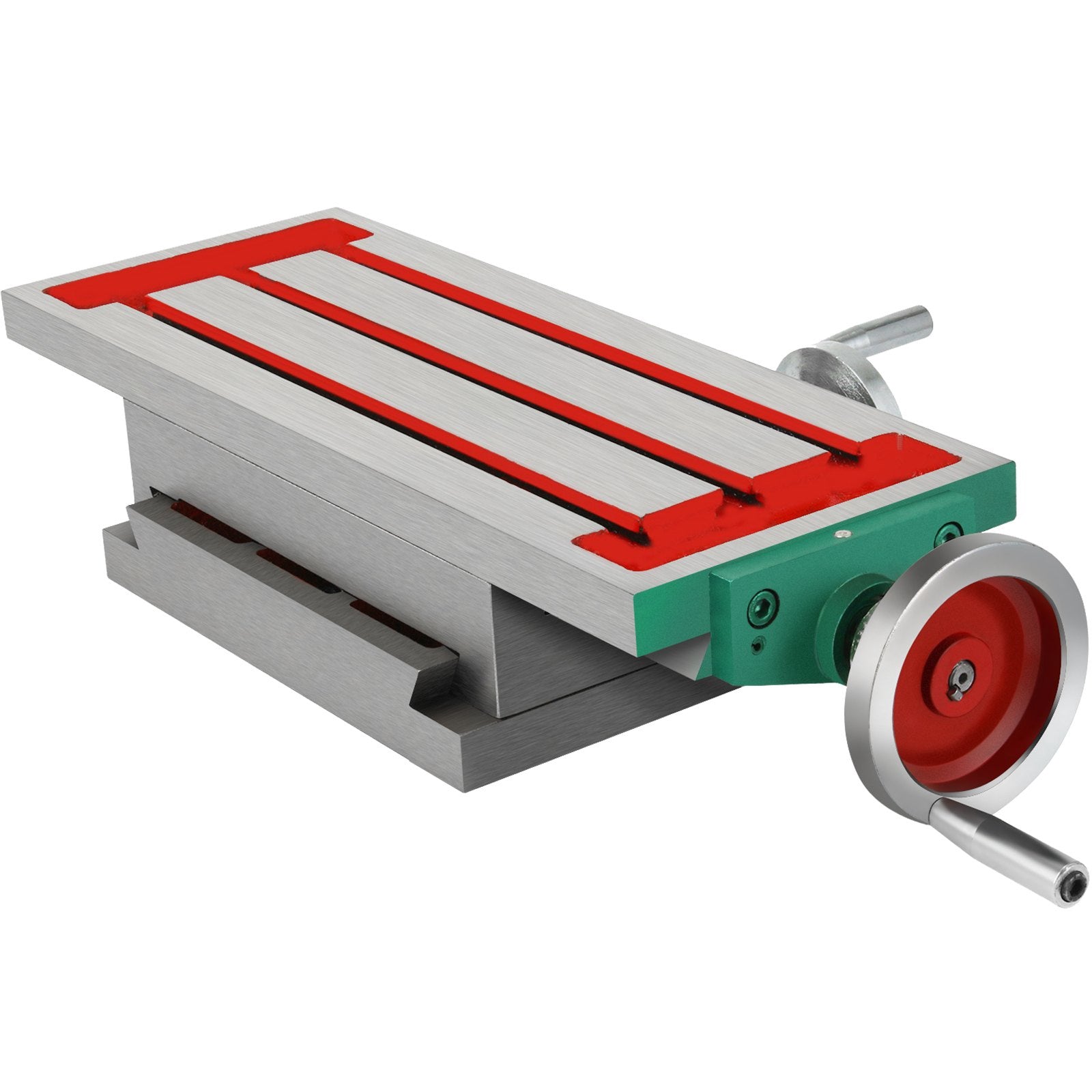

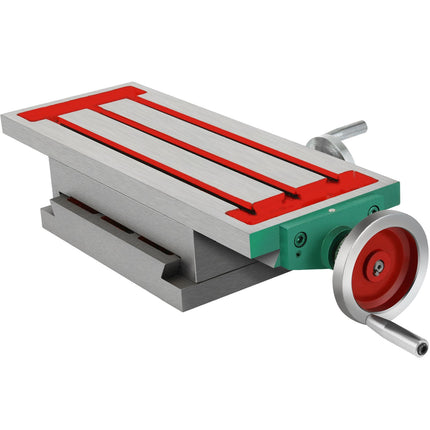

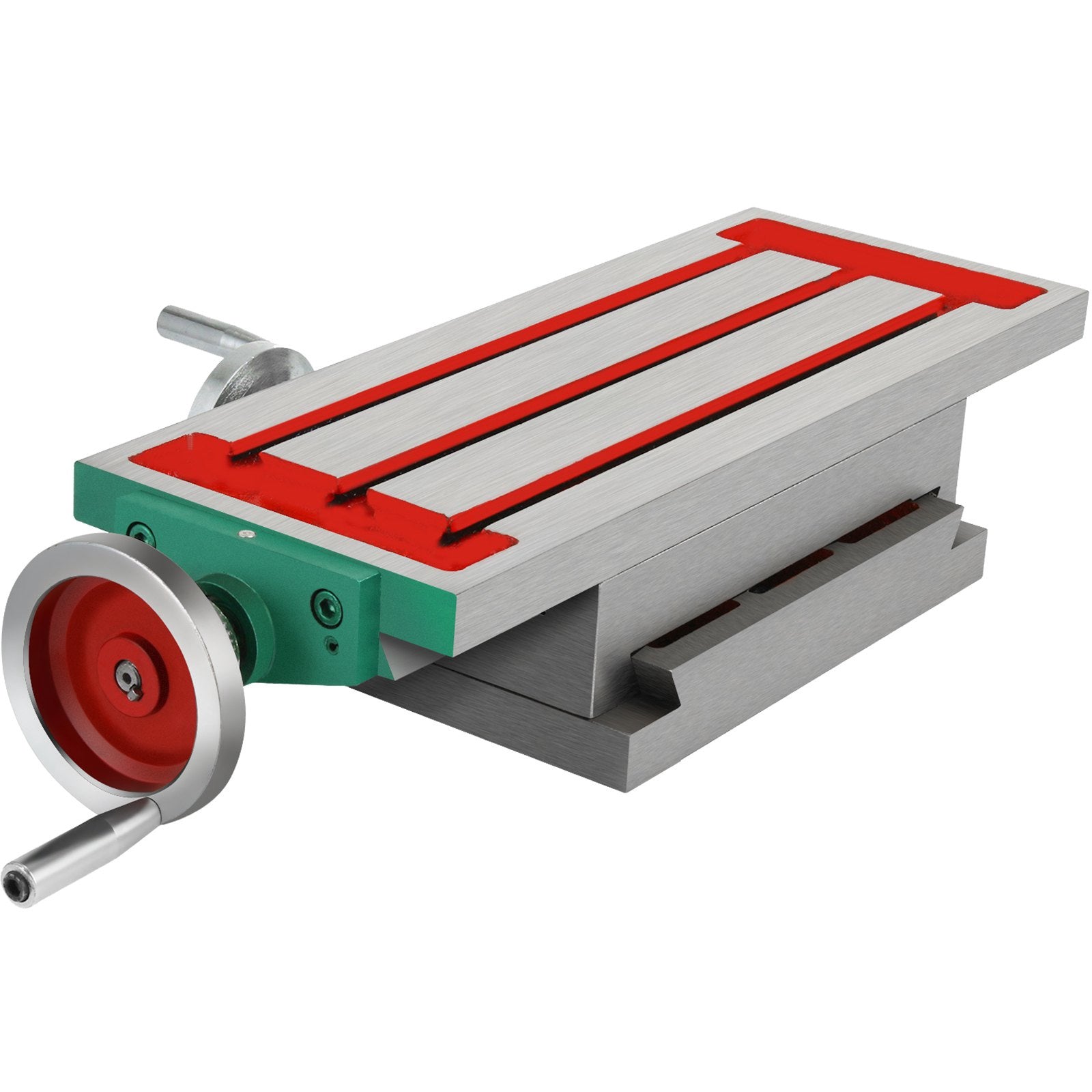

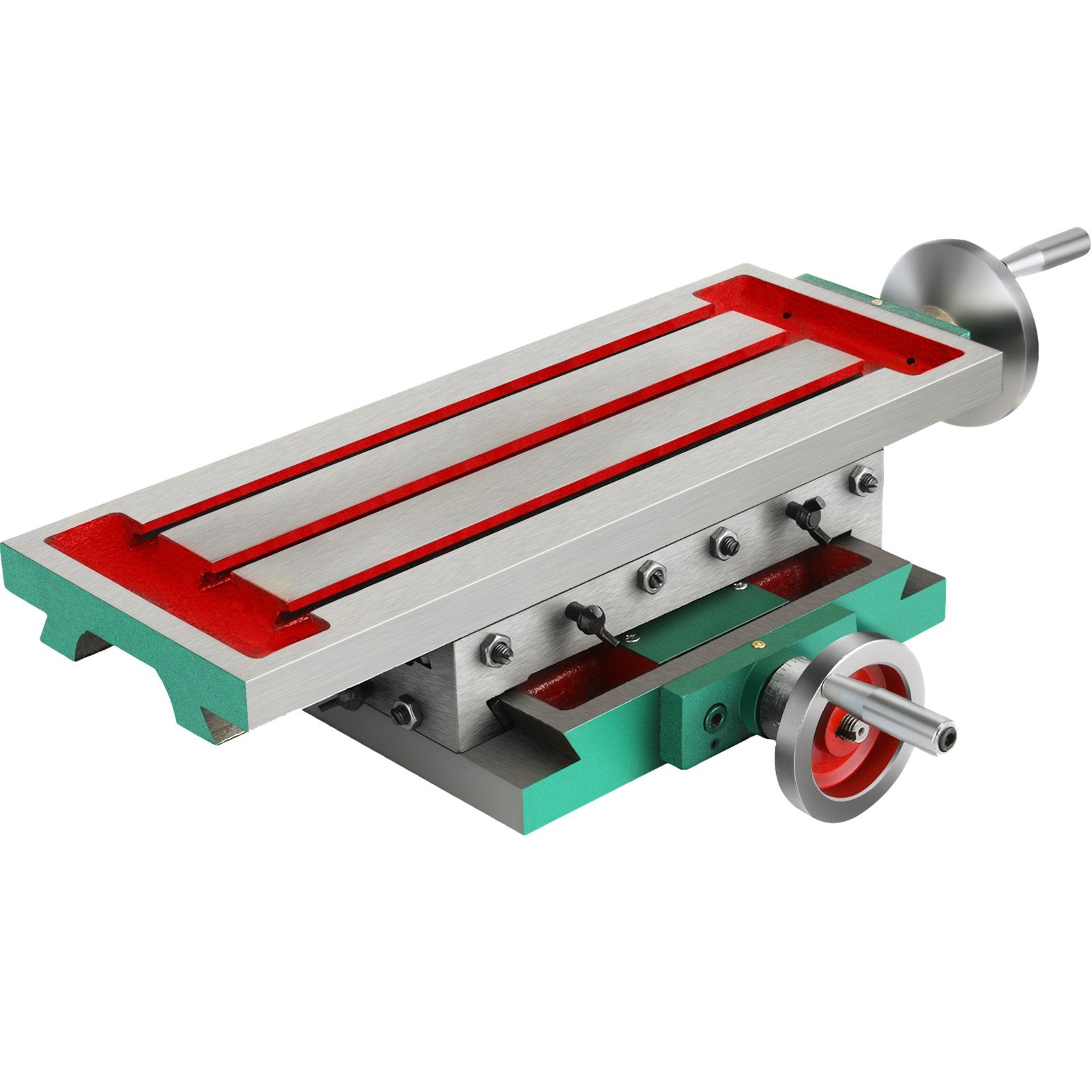

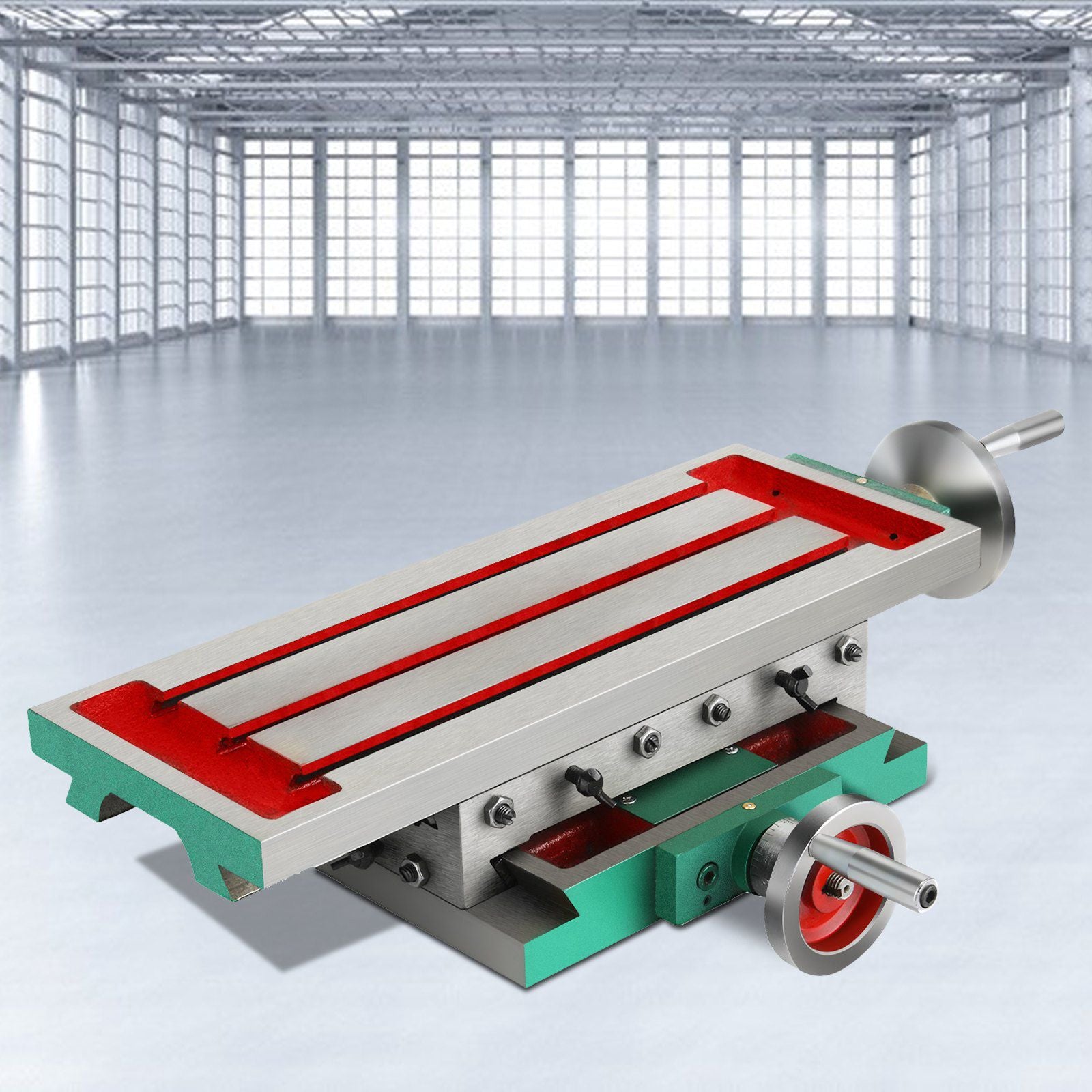

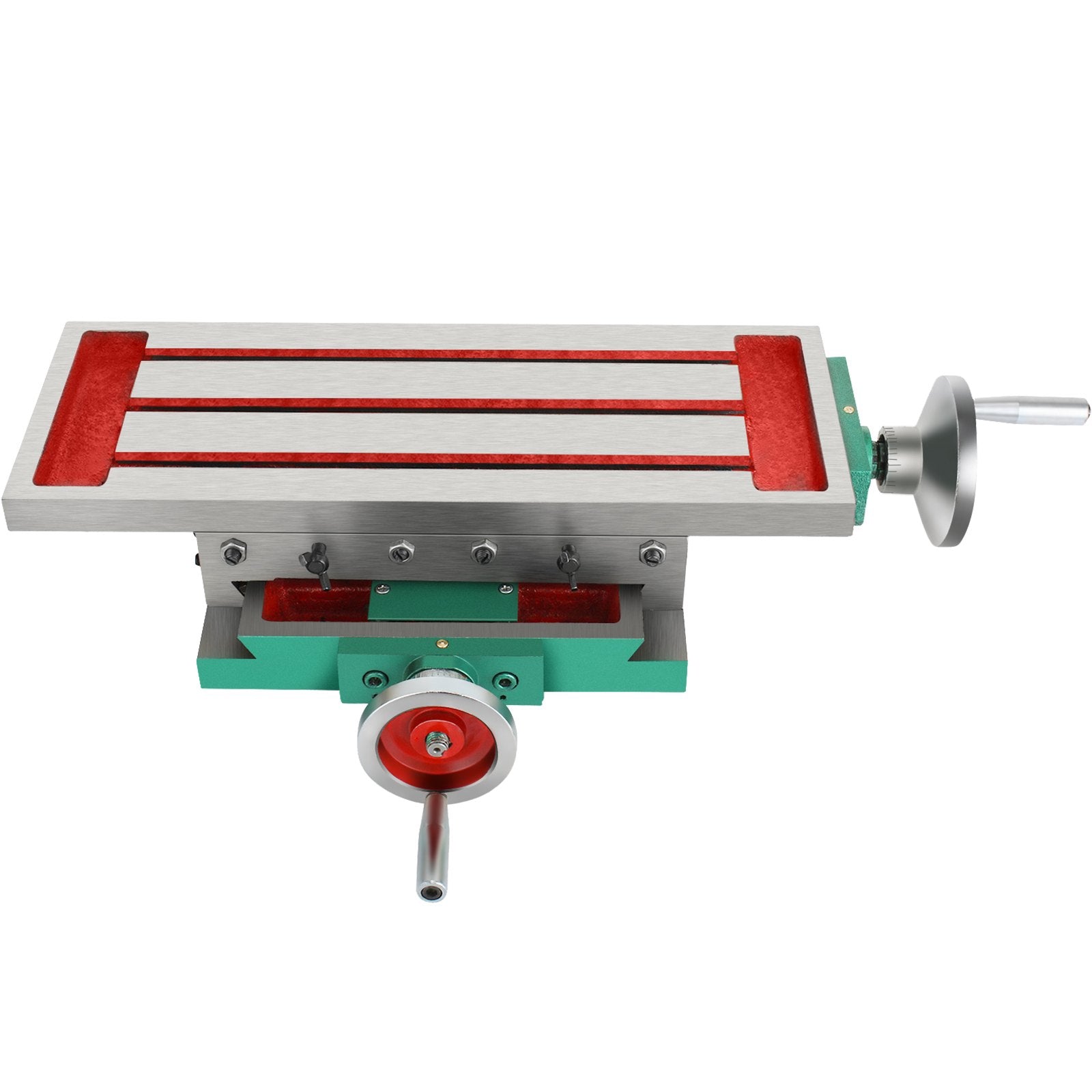

Compound Slide Milling Table, 450 x 170 mm, 2-Axis

Compound slide milling table delivers precise 2‑axis positioning to upgrade drilling and milling setups with controlled X/Y travel. Built from heavy-duty cast iron with a ground, rigid surface, it helps reduce chatter and improve repeatable alignment for workshop tasks. The 450 x 170 mm work surface features three T-slots for flexible clamping, while trapezoidal-thread spindles and clear scales support fine adjustments on drill stands, bench drilling machines, and milling machines.

• Fits drill stands, bench drilling machines, and most milling/drilling setups for accurate positioning


• Delivers 2-axis movement with X travel 210 mm and Y travel 110 mm for controlled cross-slide work


• Supports secure clamping via 3 precision T-slots for vises, clamps, and fixtures


• Enables fine adjustment using trapezoidal-thread handles plus easy-to-read positioning scales


• Adjusts tightness with included bolts and nuts to tune smoothness and reduce play

Set your workpiece once and dial in the cut with repeatable, measurable movement. This multifunction worktable is designed for metalworking and general workshop use where stable clamping and predictable travel matter. The rigid cast iron build helps resist deformation under load, while the T-groove fixing design keeps tooling secure as you reposition. If you need a compound cross slide table that brings milling-style control to a drilling station, grab yours today and get your setup ready for more precise work.

• Worktable size: 450 x 170 mm (17.7 x 6.7 in)


• Overall dimensions: 540 x 310 x 115 mm (21.3 x 12.2 x 4.5 in)


• Transverse travel (X): 210 mm (8.3 in)


• Longitudinal travel (Y): 110 mm (4.3 in)


• Overall height: 100 mm (3.9 in)


• Net weight: approx. 30 kg


• Material: cast iron


• Slot layout: 3 T-slots


• Motion: 2-axis, 4-way movement
