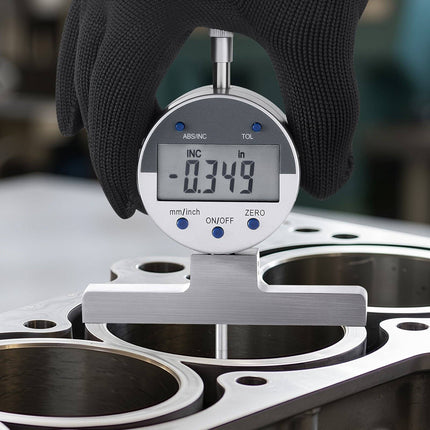

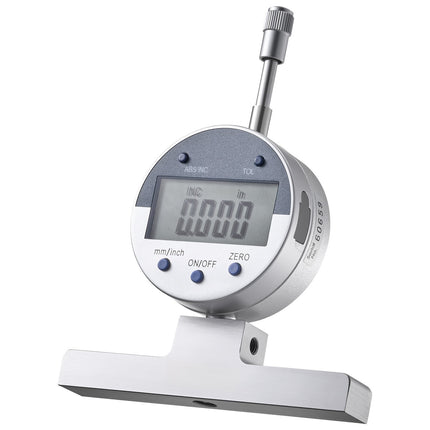

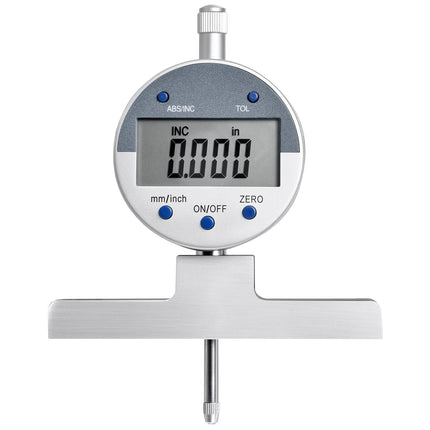

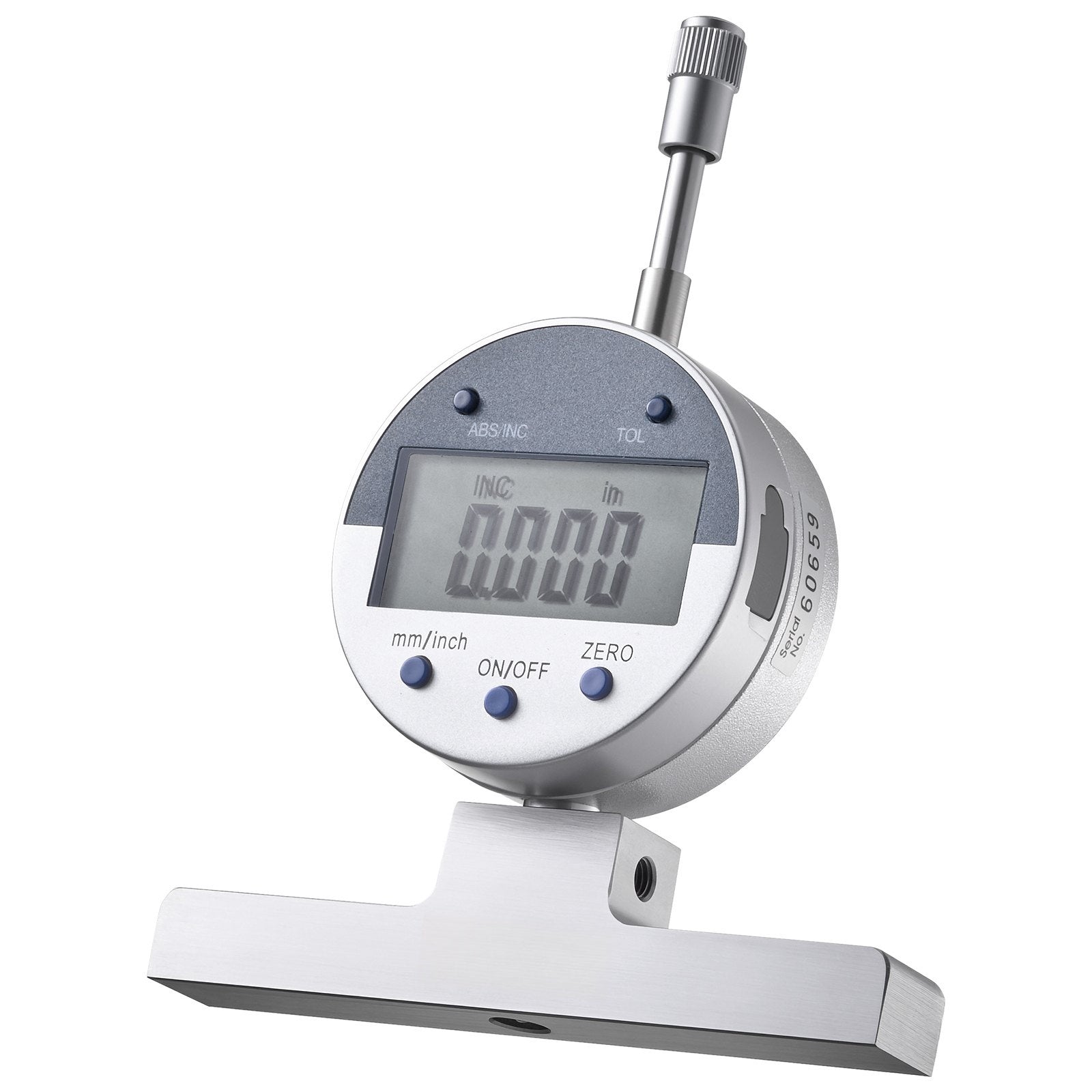

Digital Depth Micrometer 0-558.8 mm, 0.01 mm, 4 Anvils

Digital depth micrometer delivers fast, repeatable depth measurements with switchable metric/imperial readings, helping you verify grooves, steps, and holes with less guesswork. The large LCD readout supports quick inspections, while the zero-setting function lets you compare parts and reset at any position. Built for workshop and lab use, the stainless-steel measuring faces and rigid metal frame help maintain stable contact for consistent results across metalworking, machining, and engine components.

• Delivers clear readings on a large LCD with one-button mm/in unit conversion


• Supports quick comparisons with zero-setting at any position for repeat checks


• Includes four anvils to match different surfaces: pointed, flat, and two ball heads


• Extends range with six interchangeable rods to cover shallow to deep measurements


• Stores securely in a hard case to keep accessories organized and ready to use

When tolerances matter, a depth gauge should be easy to read, quick to set, and stable on the workpiece. This electronic depth micrometer set is designed for measuring depth on grooves, steps, slots, and holes across machining, fabrication, and inspection tasks. Swap measuring heads to match the part surface, combine rods to reach the required depth, and switch between metric and imperial without slowing down your workflow. Keep it protected and portable in the included case—grab yours today and stay ready for precision checks on demand.

• Maximum measuring range: 0–22 in / 0–558.8 mm (with rods)


• Dial maximum range: 1 in / 25.4 mm


• Accuracy: ±0.001 in / ±0.02 mm


• Resolution: 0.01 mm / 0.0005 in


• Units: Metric/Imperial switchable


• Display: LCD screen


• Measuring heads: 1 pointed, 1 flat, 2 ball


• Standard rod lengths: 6/5/4/3/2/1 in (152.4/127/101.6/76.2/50.8/25.4 mm)


• Base dimensions: 3.89 x 0.61 x 0.96 in (99 x 15.5 x 24.5 mm)


• Product dimensions (without standard rod): 3.89 x 1.06 x 5 in (99 x 27 x 127 mm)


• Net weight (with accessories): 1.17 lb / 0.53 kg


• Materials: Stainless-steel anvils; solid metal frame


• In the box: depth micrometer, 6 rods, 4 anvils, instructions, hard case
