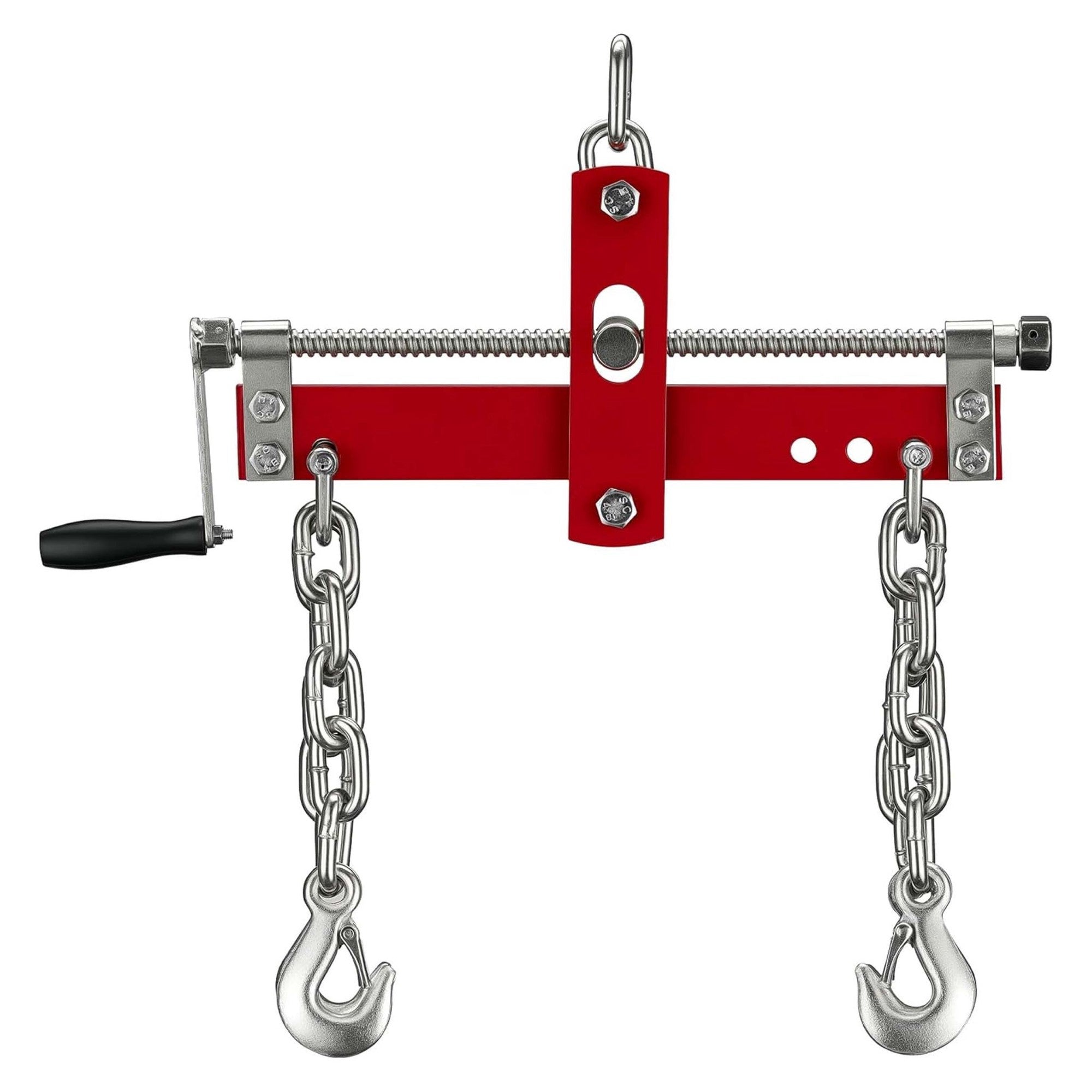

Engine Load Positioner for Workshop Crane, 900 kg – Steel, 4 Chains, Red

Engine load positioner for workshop cranes that lets you lift heavy engines and gearboxes safely and align them with millimetre precision. A stepless worm drive, turned by a hand crank, shifts the centre of gravity to the desired angle, while the solid steel construction and four chains with safety hooks handle loads of up to approx. 900 kg.

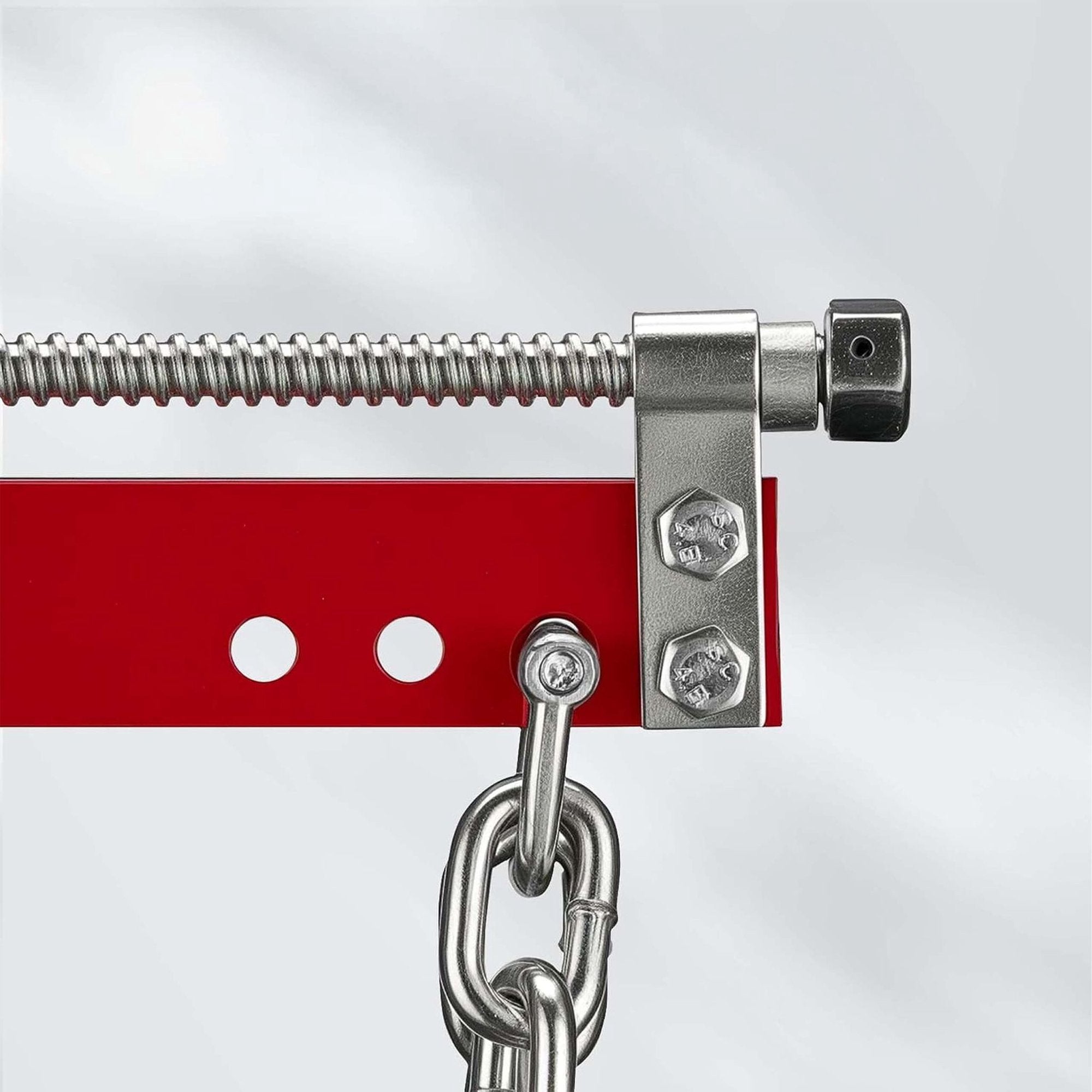

• Aligns loads on the workshop crane steplessly via a worm drive spindle with approx. 35 cm adjustment range.
• Supports a maximum load capacity of approx. 900 kg with a solid steel construction.
• Secures the load with four chains, approx. 30 cm long and 10 mm thick, each with a reliable safety hook.
• Adapts to any engine shape thanks to flexible chain positions.
• Hangs from the crane via the upper eye; crane eye/hook opening approx. 20 mm each.

To use it, hang the upper eye on the crane's load hook and check the locking bolt, attach the four chains in pairs to the lifting points, close the hooks and align the chains centrally beneath the spindle. Then lift carefully with the chains taut and turn the crank until the load sits at the angle you need. Made from Q235 steel and plastic in red and silver, the positioner weighs approx. 5.5 kg and measures approx. 50 x 55 x 6 cm (H x W x D). It arrives partly pre-assembled with instructions in German, English and French. Make every engine installation safer and more precise.

• Product: engine load positioner (balancer) for workshop cranes
• Overall dimensions (H x W x D): approx. 50 x 55 x 6 cm
• Chain length: approx. 30 cm each
• Chain thickness: approx. 10 mm
• Crane eye/hook opening: approx. 20 mm each
• Spindle adjustment range: approx. 35 cm
• Max. load capacity: approx. 900 kg
• Own weight: approx. 5.5 kg
• Material: Q235 steel, plastic
• Colour: red, silver
• Drive: stepless worm drive with hand crank
• Chains: 4, with safety hooks, flexible chain positions
• Mounting: hang the upper eye on the crane's load hook and check the locking bolt; attach the four chains in pairs to the lifting points, close the hooks and align the chains centrally beneath the spindle
• Use: lift the load carefully with the chains taut, then turn the hand crank to align the centre of gravity to the desired angle
• Package contents: 1 x load positioner, partly pre-assembled
• Instructions: German, English, French
• Decorative items are not included
